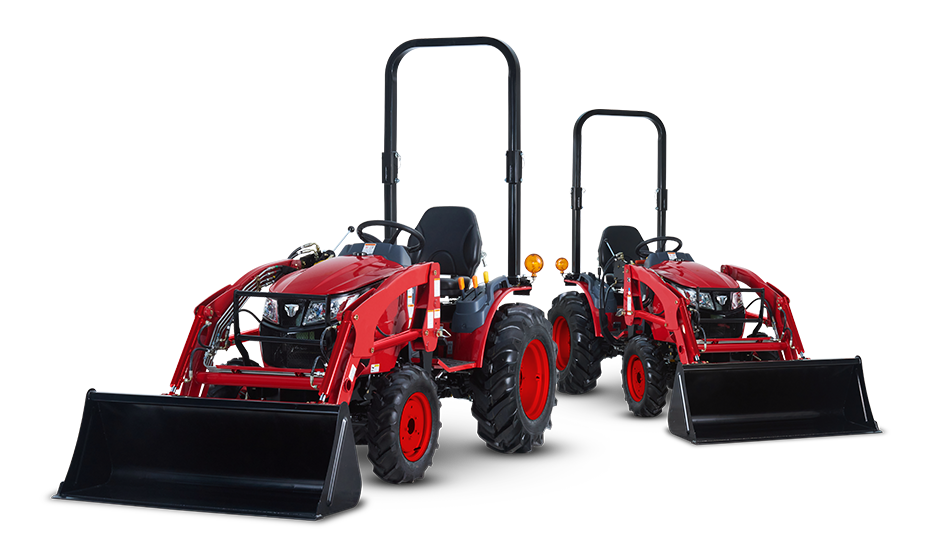

T254 Series 1, Sub-Compact Tractor
-
Engine power
23.9 hp
-
Hitch lift capacity
1214 lb
This tractor is proof that good things can come in small packages. The T254 enables brings you greater power without compromising on maneuverability, backed by a powerful engine and ergonomic operator controls.
Helping you maintain a healthy lawn
With narrow dimensions, a small turning radius, intuitive controls and a lightweight design, a TYM sub-compact tractor is the ideal machine for any home with a yard. A dedicated mid-mount linkage allows easy attachment to a range of mowers in different sizes, while front-end and rear linkages allow for additional functionality compared to riding mowers.
Enabling you to build and maintain a home garden
With a TYM sub-compact tractor, you can leverage multi-functional capabilities and ease of maneuverability to build and maintain your home garden. From tilling the land and spreading fertilizer to aerating and seeding your soil, this tractor is easy to operate and swap implements, enabling you to grow all types of plant life, simply and effectively.
Making yardwork easier and more enjoyable
Complete chores around your property quickly and affordably. From brushing dust and dirt from your driveway to lifting and dumping fallen leaves and other waste, a TYM sub-compact offers the right mix of size and power for maneuverability and efficient engine performance.
Creating space for a lively home farm

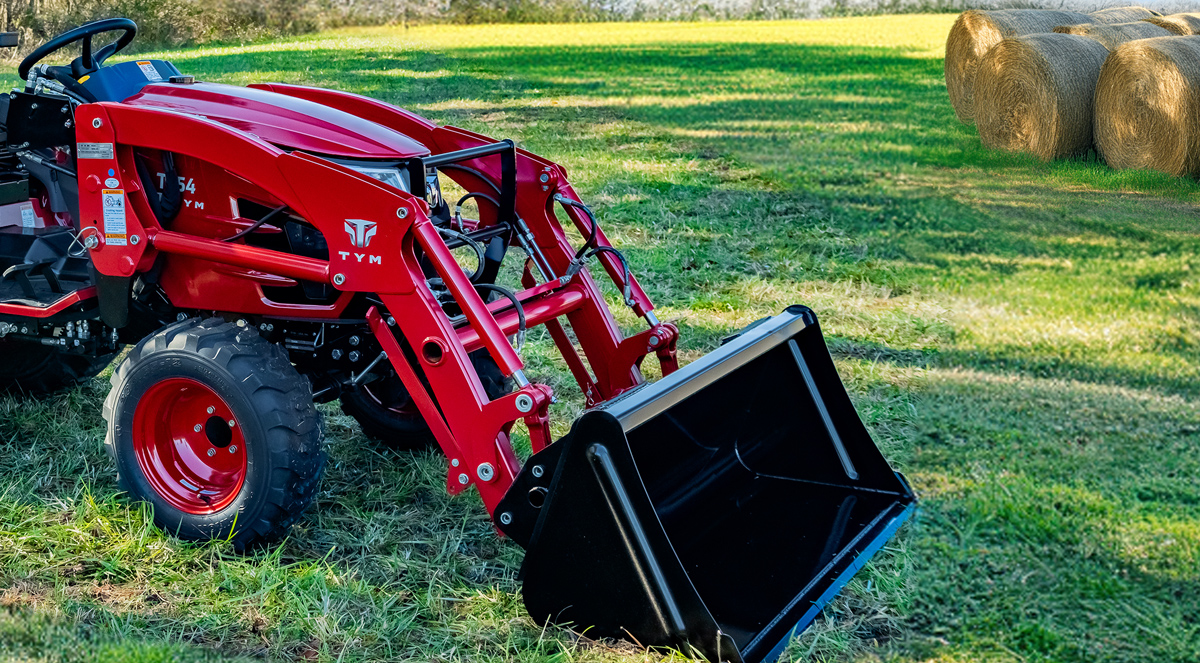

Comfortable to sit in and easy to operate, a TYM sub-compact tractor has the light design and small turning radius to assist with maintaining animal life at home. Level the yard, trim grass, spread feed, move hay bales, clear waste and much more.

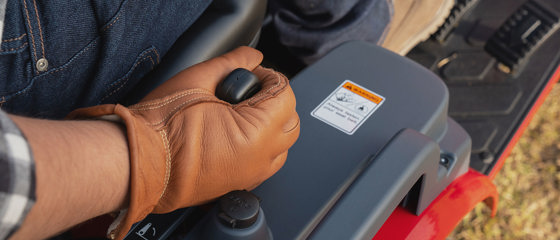

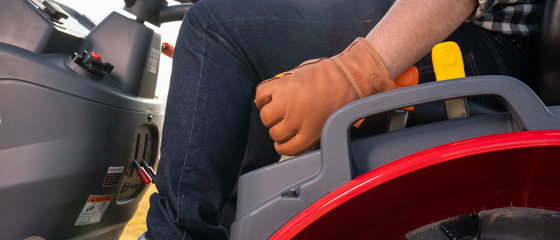

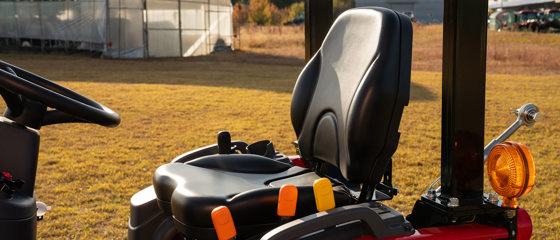

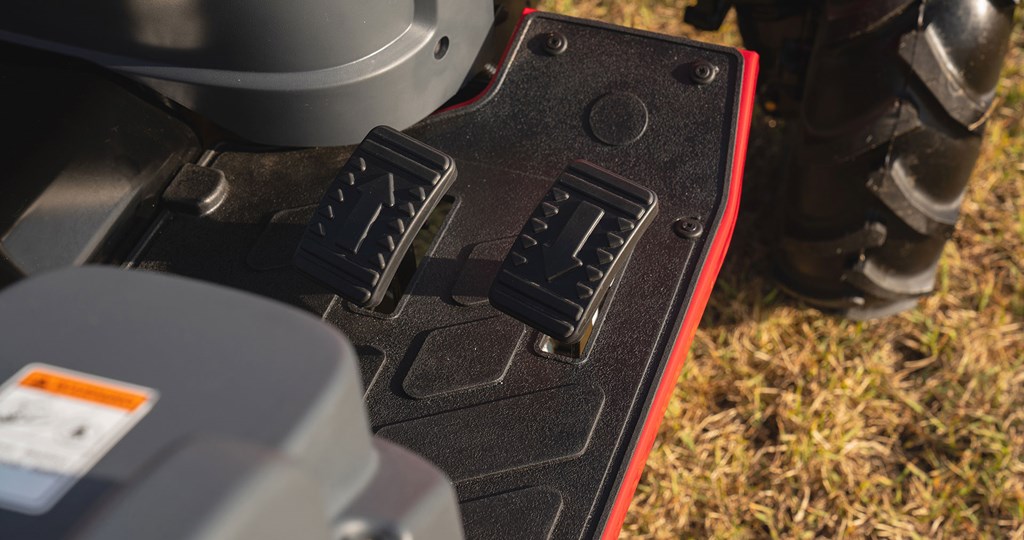

While the exterior of this tractor demonstrates a sleek and rugged design, the interior is packed with in-cabin controls and features to minimize operator effort. From sturdier cast iron linkages to an easy to operate hydrostatic controls, this tractor is engineered for productivity inside and out.

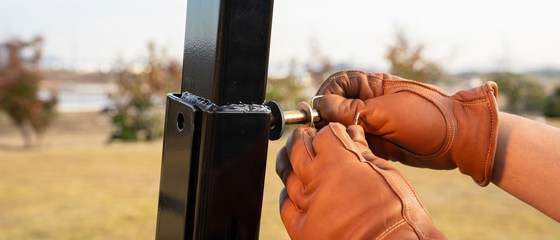

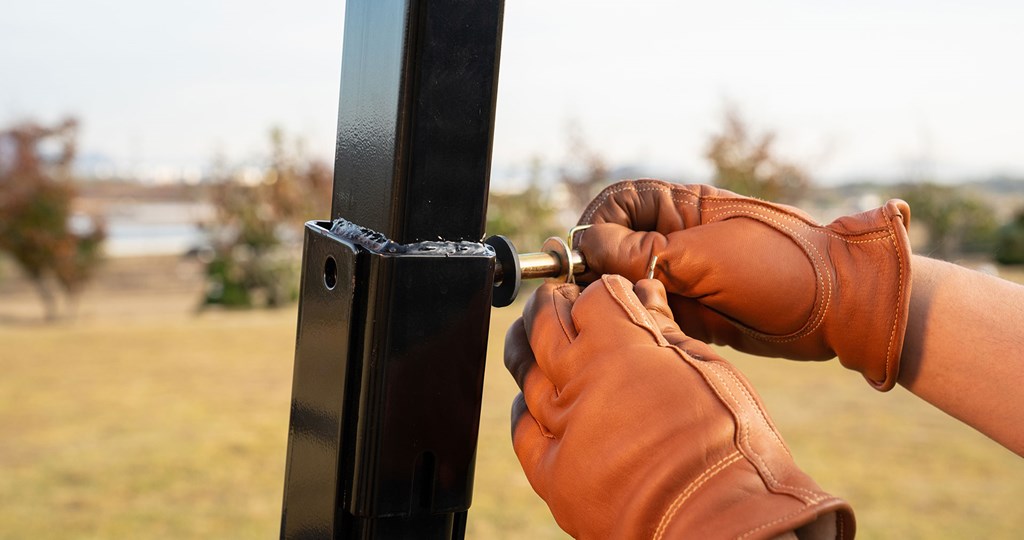

Good ground and overhead clearance allows drivers to take on uneven terrain easily, whether in a barn, in wooded areas under tree cover, or inside greenhouses. Equipped with high engine efficiency, impressive lift capabilities and the option of a foldable ROPS or heated cab configuration, this tractor has the capabilities to perform light-to-medium duty jobs, all year round.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
All the right features to get the job done

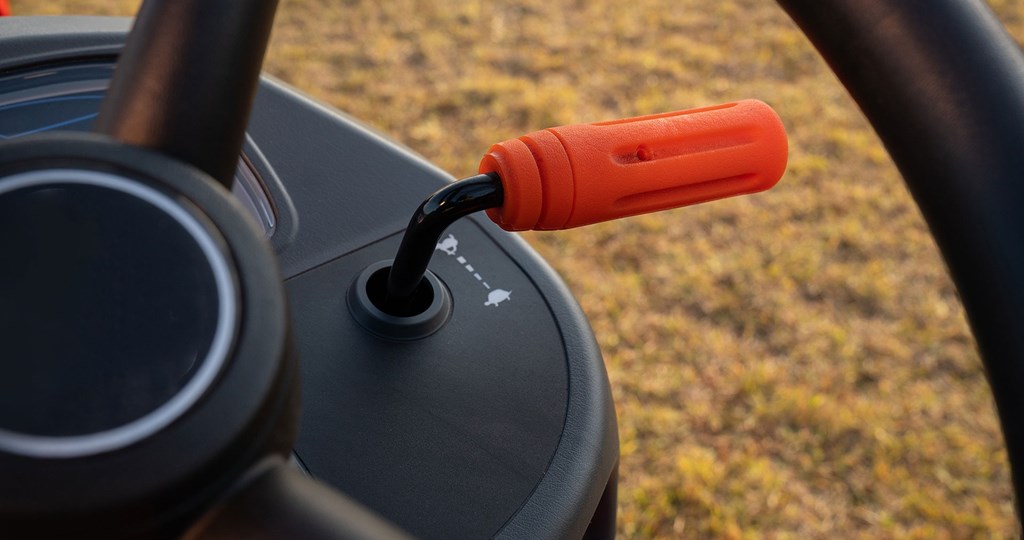

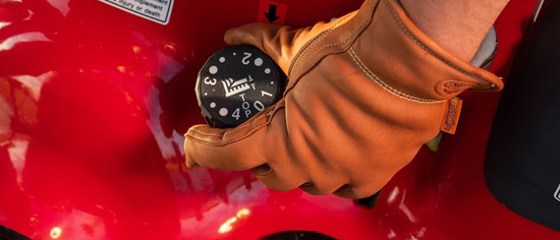

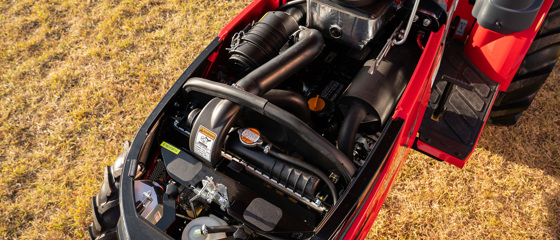

Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control implements easily with a PTO switch, and stay energized with an ergonomically designed operator station.
Technical specifications
Not sure which tractor is right for you? Compare the specifications of each tractor model.
T254 |
|
|---|---|
|
engine
|
|
| Engine manufacturer | Yanmar 3TNV80F |
| Type | Natural Aspiration |
| Gross engine power | 23.9 hp | 17.8 kW |
| PTO power | 18.8 hp | 14.0 kW |
| Rated engine speed | 3000 rpm |
| No. of cylinders | 3 |
| Displacement | 77.3 cu. in. |
| Air cleaner | Single Dry |
| Alternator | 12V, 40A |
| Fuel system | IDI |
|
powertrain
|
|
| Transmission type | HST |
| No. of speeds | Infinite 2-range |
| Max. traveling speed | 11.0 mph |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | Dry Single Plate |
|
hydraulic system
|
|
| Pump type | Single Gear Pump |
| Implement flow | 4.18 gpm |
| Steering flow | 2.77 gpm |
| Total flow | 6.95 gpm |
| Category, 3-point hitch | I (N) |
| Hitch lift capacity | 1214 lb |
| Hitch lift capacity at 24 inches behind link ends | 1101 lb |
| Lift control type | Position |
| No. of standard remote valves | Optional (1) |
|
PTO
|
|
| PTO type | Transmission PTO w/ ORC/Independent |
| PTO control | Electric/Hydro |
| PTO rear | 540 rpm |
|
capacities
|
|
| Fuel tank | 5.81 gal |
| Coolant | 3.8 qt |
| Crankcase | 2.9 qt |
| Transmission/Hydraulics system | 3.7 gal |
| Front axle | 3.7 qt |
|
dimensions & weights
|
|
| Overall length with 3-point hitch | 100.5 in. |
| Overall width | 45.8 in. |
| Wheelbase | 57.5 in. |
| Height to top of ROPS | 91.3 in. |
| Min. ground clearance | 9.4 in. |
| Min. turn radius with brakes | 88.58 in. |
| Min. turn radius without brakes | 100 in. |
| Weight with ROPS | 1638 lb |
|
standard tires
|
|
| R3 Turf - Front | Turf Master 20x8.00-10 NHS TL 4PR |
| R3 Turf - Rear | Multi-Trac CS 29x12.50-15 NHS TL 4PR |
| R4 Industrial - Front | Trac Chief 20x8.00-10 NHS TL 4PR |
| R4 Industrial - Rear | Trac Chief 27x12.5-15 NHS TL 4PR |
| R4 Large Industrial - Front | Trac Chief 23x8.50-12 NHS TL 4PR |
| R4 Large Industrial - Rear | Trac Chief 12-16.5 NHS TL 6PR |
| Request Quote Build Your Own |
Upgrades for the Series 1, T254
Complement the capabilities of your TYM tractor with compatible options and accessories.
Options
| Cabin | CAB254 | ||
| Tire | R3 Turf Tires | F Turf Master 20x8.00-10 NHS TL 4PR | R Multi-Trac CS 29x12.50-15 NHS TL 4PR |
| Tire | R4 Industrial Tires | F Trac Chief 20x8.00-10 NHS TL 4PR | R Trac Chief 27x12.5-15 NHS TL 4PR |
| Tire | R4 Lg Industrial Tires | F Trac Chief 23x8.50-12 NHS TL 4PR | R Trac Chief 12-16.5 NHS TL 6PR |
Accessories
| Block heater |
| Loader quick attach kit |
| Auxiliary hydraulic kit |
| Front counterweights |
| T65A Mechanical Thumbs |
| BHPAD100 Street Pads |
| Rear wiper kit |
| Mulching kits |
