K120 Series 5, Utility Tractor
-
Engine power
117 ps
-

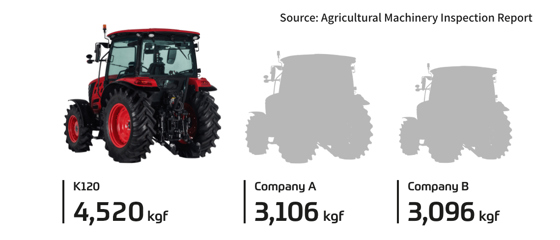

Hitch lift capacity
4642 kg
As the only domestically produced tractor equipped with a John Deere engine, the K120 delivers on performance. Its unique smart package allows the operator to remotely control and monitor the tractor.
-
Material Handling
-
Land Clearing & Forestry
-
Construction
-
Arable Farming
Lifting, hauling and moving heavy materials for your operations
Built to maintain high productivity with maximized speed control and a deluxe operator cabin, a TYM utility tractor can help you accelerate material handling jobs for routine jobs and specialized projects. Maximized front and hitch lift capabilities allow you to carry large volumes of material at once, minimizing the number of trips and promoting operational efficiency.
Enabling you to take control of your commercial land
With a durable frame and powerful hitch lift capabilities, a TYM utility tractor has the traction, rpm and implement compatibility to power through tough land clearing task. From flattening large mounds of soil to clearing shallow-rooted trees, this tractor is equipped to crush, tow and lift away the hurdles for your operations.
Driving productive work for large developments
From preparing and foundation building to final assembly and finishing, productivity means faster completion at every construction stage. TYM utility tractors are designed to maximize productivity, with the highest possible lift capabilities to lift and haul more material with each repetition, a range of gears to promote efficient engine performance and a rugged body to maintain durability. Make this tractor your primary piece of machinery for an entire project, or working in tandem with other construction equipment.
Driving productivity for commercial farming operations
From row crops on wet land or permanent crops on dry land, TYM utility tractors are among the most preferred machines for commercial farming. Equipped with versatile functionality in a heavy-duty design, this tractor promotes productivity from soil preparation and seeding to irrigation and harvest. Enable faster and more efficient crop cycles with this tractor and maximize the use of your commercial farmland.
Equipped with features to enhance versatility and productivity
The immensely powerful engine and hydraulic package means that this tractor has the capabilities to complete a variety of jobs, whether big or small. The car-like conveniences and premium cabin features maintain a high level of productivity while keeping operator comfortable.
Technical specifications
Not sure which tractor is right for you? Compare the specifications of each tractor model.
K120 |
|
|---|---|
|
engine
|
|
| Engine manufacturer | JohnDeere 4045HL292 |
| Gross engine power | 117 ps | 86 kW |
| Type | Turbocharger |
| PTO power | 103.3 ps | 76 kW |
| Rated engine speed | 2400 rpm |
| No. of cylinders | 4 |
| Displacement | 4525 cc |
| Air cleaner | Dry element |
| Alternator | 12V-110A |
| Fuel system | Direct Injection |
|
powertrain
|
|
| Transmission type | Power Shuttle |
| No. of speeds | F16 x R16 |
| Max. traveling speed | 33.18 km/h |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | Wet Disc |
|
hydraulic system
|
|
| Pump type | Gear Pump |
| Implement flow | 69.6 lpm |
| Steering flow | 33.6 lpm |
| Total flow | 103.2 lpm |
| Category, 3-point hitch | Cat 2 |
| Hitch lift capacity | 4642 kg |
| Hitch lift capacity at 24 inches behind link ends | 3339 kg |
| Lift control type | Position/Draft/TBS |
| No. of standard remote valves | 6 |
|
PTO
|
|
| PTO type | Independent |
| PTO control | Electric/Hydro |
| PTO rear | 540/750/1000 rpm |
|
capacities
|
|
| Fuel tank | 160 L |
| Coolant | 15.9 L |
| Crankcase | 13 L |
| Transmission/Hydraulics system | 56 L |
| Front axle | 12 L |
|
dimensions & weights
|
|
| Overall length with 3-point hitch | 4020 mm |
| Overall width | 2270 mm |
| Wheelbase | 2360 mm |
| Height to top of ROPS | 2790 mm |
| Min. ground clearance | 445 mm |
| Min. turn radius with brakes | 4220 mm |
| Min. turn radius without brakes | 5480 mm |
| Track width | F: 1525 mm / R: 1655 mm |
| Weight with cab | 4080 kg |
|
standard tires
|
|
| Agricultural - Front | 13.6 - 24 |
| Agricultural - Rear | 18.4 - 34 |
| Request Quote Build Your Own |
Similar tractor models
TYM provides a range of tractors that meet all your sub-compact to utility needs. Below are three tractors that are similar in power and specification to the K120:
Downloads and useful resources
TYM machines are renowned for their reliability and economy. Find useful files such as parts catalogs and operator manuals for your tractor, or read through our series of useful resources for your TYM tractor.
