K120
Series 5 , Utility Tractors
Engine manufacturer
117 PS
Engine power
4520 kg
Hitch lift capacity
A utility tractor that merges heritage innovation with powerful technology
The K120 excels on performance, being the only domestically-produced tractor equipped with a John Deere engine. Its distinctive smart features allow the operator to control and monitor the powerful tractor remotely.
*Images on this page are for illustrative purposes only. The actual product may vary.
High-powered Deutz engine
Equipped with a high-quality, high-output John Deere engine. Its reliability means the tractor experiences fewer failures and a longer life cycle.
High-capacity fuel tank
High-capacity fuel tanks allow long operating times without refueling and improves engine fuel efficiency.
Driver oriented interior
The ergonomically designed cabin decreases stress on the operator and increases convenience.

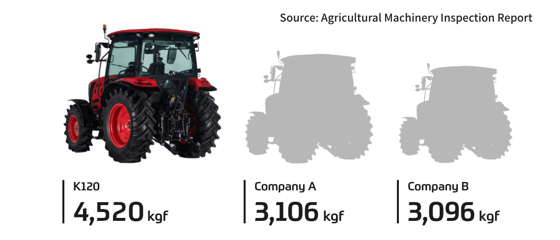

Excellent lift capacity
With an enhanced rear 3-point lift, you can easily lift heavy attachments and install more types of attachments to your tractor.
High-capacity hydraulic top link
Conveniently control the hydraulic top link and the attached implement from the cabin with the operating lever.
Conveniently control the hydraulic top link and the attached implement from the cabin with the operating lever.
Equipped with an automotive start/stop button and smart key, remote start/stop, rear implement remote control, LED monitor and rear-mounted camera.
Full LED work light
The Full LED work light provides a bright and wide view of the environment for safer operation at night.
Best-in-class external hydraulic cylinder
The powerful external hydraulic cylinder exerts 4.2 tons of lifting strength and is easy to service.
Equipped with features to elevate your productivity
With an immensely powerful engine and hydraulic package, this tractor is equipped to take on challenges of all kinds. The car-like conveniences and premium cabin features keep the operator comfortable while maintaining a high level of productivity.
Designed for applications in and around your property
The Series 5 tractors are optimized for agile maneuverability and feature a highly efficient liquid-cooled Stage V engine that delivers even output.
The premium, all-season cabin ensures comfortable working conditions, and the intuitive console adds to the ease of operation. A high-capacity fuel tank for larger jobs provides sustainable power throughout all your tasks.
Material Handling
Maximized front and hitch lift capabilities allow you to carry large volumes of material at once, minimizing the number of trips and promoting operational efficiency.ting operational efficiency.
Land Clearing & Forestry
From grappling dead plants to removing uprooted tree stumps, this tractor can maintain your land or clear it for your next big project.
Construction
Use this tractor as your primary piece of machinery for an entire project, or in tandem with other construction equipment to build your vision.
Arable Farming
Equipped with versatile functionality in a heavy-duty design, this tractor promotes productivity from soil preparation and seeding to irrigation and harvest.
Tractors Model | K120 | T115 | T130 |
Engine manufacturer | JohnDeere 4045HK551 | Deutz TCD 3.6 L4 | Deutz TCD3.6L4 |
Engine power | 117 PS | 86 kW | 113 PS | 83 kW | 129 PS | 95 kW |
Rated engine speed | 2100 rpm | 2200 rpm | 2200 rpm |
Displacement | 4525 cc | 276.1 cu. in. | 3621 cc | 221 cu. in. | 3621 cc | 220.96 cu. in. |
No. of speeds | F16 × R16 | F32 × R32 | F36 × R36 |
Hitch lift capacity | 4520 kg | 9965 lb | 3309 kg | 7294.9 lb | 3747 kg | 8260.7 lb |
PTO rear | 540/750/1000 rpm | 540/750/1000 rpm | 540/750/1000 rpm |
Fuel tank | 160 L | 42.26 gal | 120 L | 31.7 gal | 190 L | 50.19 gal |
Overall length with 3-point hitch | 4070 mm | 158.2 in. | 4450 mm | 175.2 in. | 4490 mm | 176.77 in. |
Overall width | 2270 mm | 89.3 in. | 2270 mm | 89.4 in. | 2360 mm | 92.91 in. |
Wheelbase | 2360 mm | 92.9 in. | 2380 mm | 93.7 in. | 2590 mm | 101.96 in. |
Height to top of ROPS | - | - | - |
Min. ground clearance | 445 mm | 17.5 in. | 425 mm | 16.7 in. | 410 mm | 16.14 in. |
Weight with cab | 4050 kg | 8928.72 lb | 4055 kg | 8940 lb | 4545 kg | 10020 lb |
Agricultural - Front | 13.6-24 | 13.6-24 | 380/85 R 24 |
Agricultural - Rear | 18.4-34 | 18.4-34 | 460/85 R 38 |
