K110E

Telematics

Series 5 , Utility Tractors

REQUEST QUOTE

Engine manufacturer

111 PS

Engine power

4170 kg

Hitch lift capacity

Build My Tractor

Explore Tractor in 3D

Technical Specification

Compatible Attachments

A best-selling utility tractor that provides the power and comfort you need

Holding the distinction of being a top-selling utility tractor in Korea, the K110E stands as the complete package of excellence. With its panoramic cabin and robust 110HP engine, this tractor delivers impressive power while ensuring operator comfort.

DOWNLOAD BROCHURE

*Images on this page are for illustrative purposes only. The actual product may vary.

High-powered Doosan engine

Equipped with a state-of-the-art electronic fuel injection system, this high performance diesel engine produces high-torque at low RPMs for more work capacity.

Telematics

Check the replacement cycle, remote diagnosis, and workload through the mobile app.

1. Remote start and check the status of the tractor.
- Battery, fuel, gear, PTO, oil temperature, and more

2. Review the tractor's work logs
- Hours worked, fuel used, average fuel consumption, and more

3. Receive notifications related to the tractor
- Parts replacement, repairs, emergency alerts, and more

High-capacity fuel tank

High-capacity fuel tanks allow long operating times without refueling and improves engine fuel efficiency.

Driver oriented interior

The ergonomically designed cabin decreases stress on the operator and increases convenience.

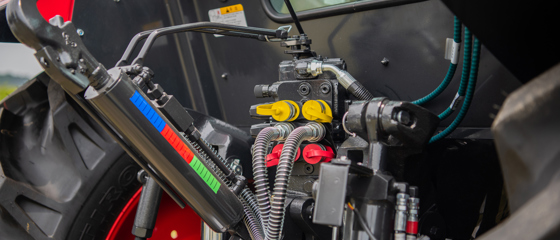

High-capacity hydraulic top link

Conveniently control the hydraulic top link and the attached implement from the cabin with the operating lever.

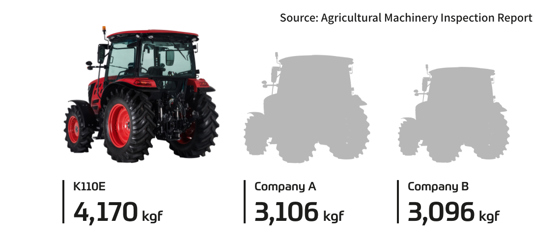

High tow capacity

The high tow capacity is perfect for the most difficult jobs.

Equipped with features to elevate your productivity

With an immensely powerful engine and hydraulic package, this tractor is equipped to take on challenges of all kinds. The car-like conveniences and premium cabin features keep the operator comfortable while maintaining a high level of productivity.

1. Power shuttle

2. De-clutch

3. Dual side mirrors

4. Electronic lift control

5. Loader joystick

6. External hydraulic control lever

Designed for applications in and around your property

The Series 5 tractors are optimized for agile maneuverability and feature a highly efficient liquid-cooled Stage V engine that delivers even output.

The premium, all-season cabin ensures comfortable working conditions, and the intuitive console adds to the ease of operation. A high-capacity fuel tank for larger jobs provides sustainable power throughout all your tasks.

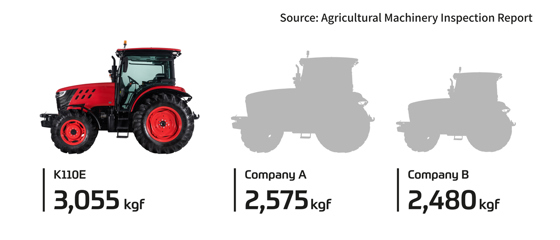

Material Handling

Maximized front and hitch lift capabilities allow you to carry large volumes of material at once, minimizing the number of trips and promoting operational efficiency.ting operational efficiency.

Land Clearing & Forestry

From grappling dead plants to removing uprooted tree stumps, this tractor can maintain your land or clear it for your next big project.

Construction

Use this tractor as your primary piece of machinery for an entire project, or in tandem with other construction equipment to build your vision.

Arable Farming

Equipped with versatile functionality in a heavy-duty design, this tractor promotes productivity from soil preparation and seeding to irrigation and harvest.

STORIES FROM THE FIELD

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

SEE TYM’S CUSTOMER STORIES

Technical Specification

Tractors Model	K110E	T115	K120
Engine manufacturer	HD Infracore DM03VA	Deutz TCD 3.6 L4	JohnDeere 4045HK551
Engine power	111 PS \| 82 kW	113 PS \| 83 kW	117 PS \| 86 kW
Rated engine speed	2200 rpm	2200 rpm	2100 rpm
Displacement	3409 cc \| 208 cu. in.	3621 cc \| 221 cu. in.	4525 cc \| 276.1 cu. in.
No. of speeds	F12 × R12	F32 × R32	F16 × R16
Hitch lift capacity	4170 kg \| 9193.27 lb	3309 kg \| 7294.9 lb	4520 kg \| 9965 lb
PTO rear	540/750/1000 rpm	540/750/1000 rpm	540/750/1000 rpm
Fuel tank	160 L \| 42.26 gal	120 L \| 31.7 gal	160 L \| 42.26 gal
Overall length with 3-point hitch	4070 mm \| 160.2 in.	4450 mm \| 175.2 in.	4070 mm \| 158.2 in.
Overall width	2220 mm \| 87.4 in.	2270 mm \| 89.4 in.	2270 mm \| 89.3 in.
Wheelbase	2360 mm \| 92.9 in.	2380 mm \| 93.7 in.	2360 mm \| 92.9 in.
Height to top of ROPS	-	-	-
Min. ground clearance	460 mm \| 18.1 in.	425 mm \| 16.7 in.	445 mm \| 17.5 in.
Weight with cab	4135 kg \| 9116.1 lb	4055 kg \| 8940 lb	4050 kg \| 8928.72 lb
Agricultural - Front	13.6-24	13.6-24	13.6-24
Agricultural - Rear	18.4-34	18.4-34	18.4-34
Download	Technical Brochure	Technical Brochure	Technical Brochure
