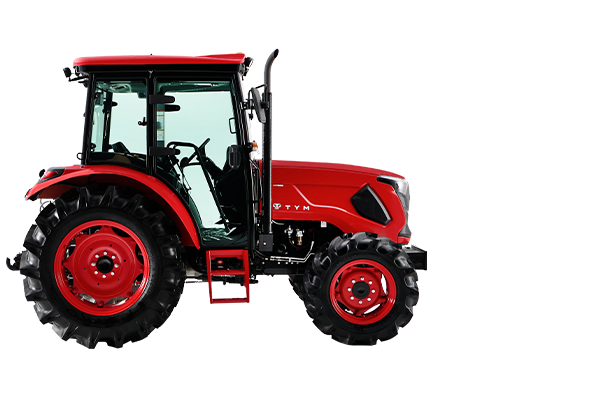

T70
Series 4 , Compact Utility Tractors
Engine manufacturer
70 PS
Engine power
2078 kg
Hitch lift capacity

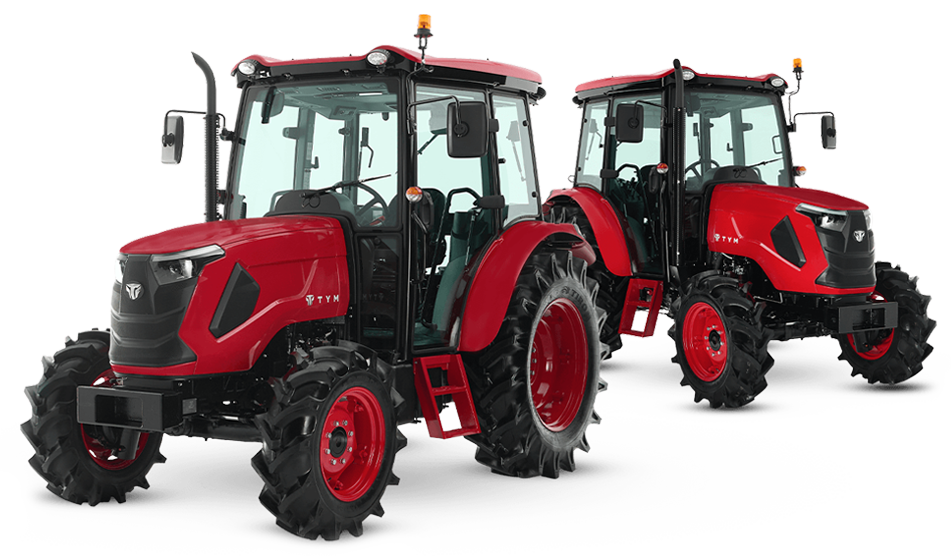

Introducing a flawless tractor from the ground up
The T70 is a perfect tractor offering an exceptional combination of functionality, comfort, and value to meet a diverse range of preferences.
*Images on this page are for illustrative purposes only. The actual product may vary.

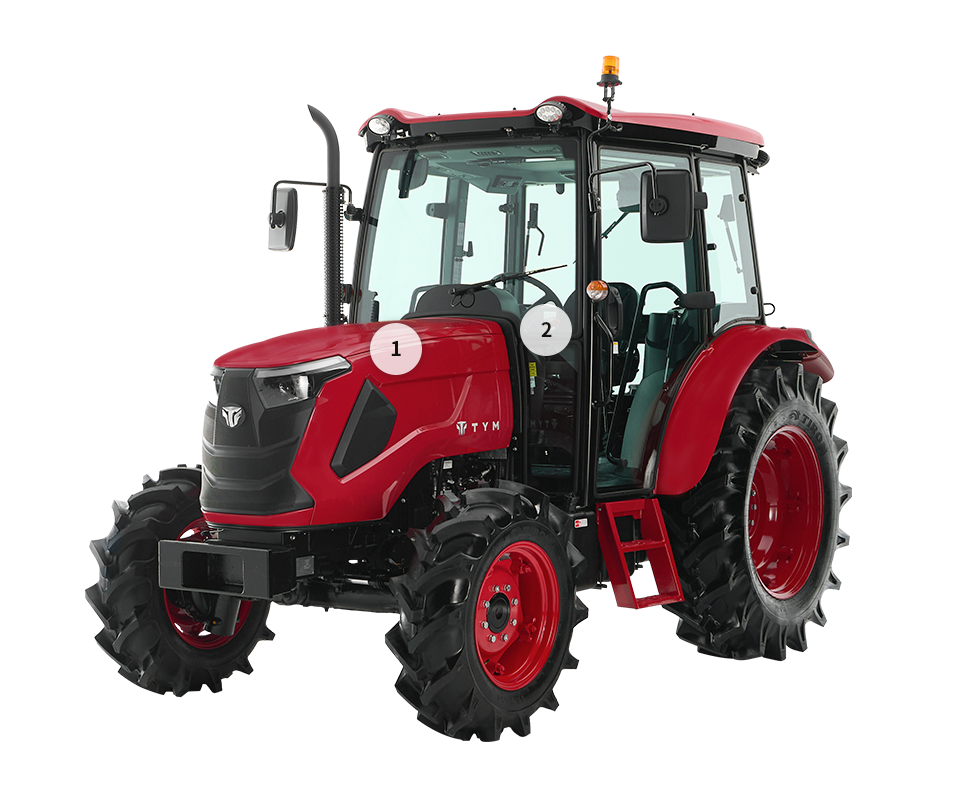

4-cylinder high-output TYM diesel engine
Equipped with a powerful 4-cylinder 70 horsepower 2,400cc turbo engine, the T70 tractor maintains a compact design while boasting performance comparable to that of a utility tractor.
Ergonomic comfort for ease of operation
Ergonomically designed seats and intuitively arranged controls elevate driver comfort.

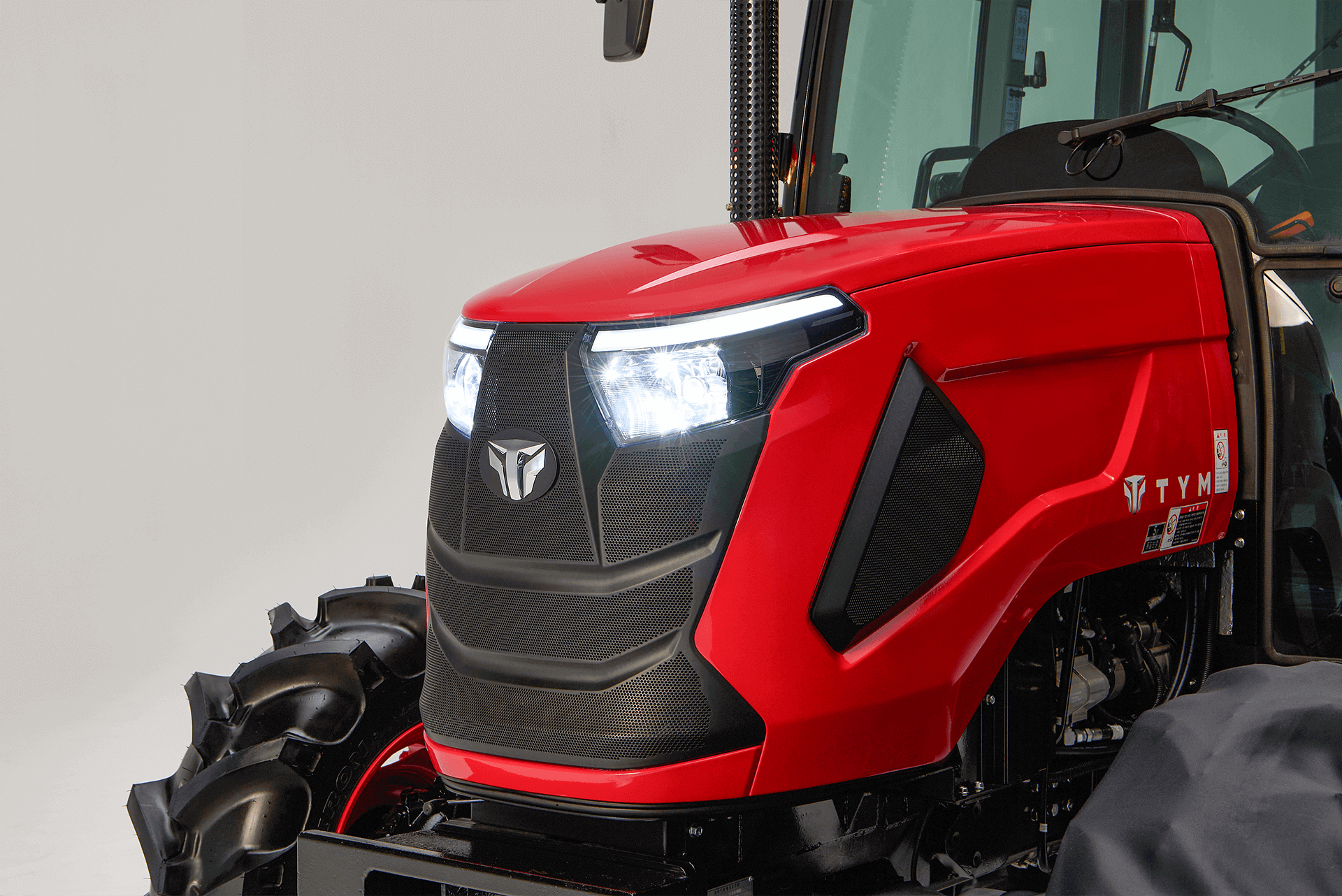

Full LED work lights
Work safely in low-light conditions with brighter LED lights and a wider field of vision.

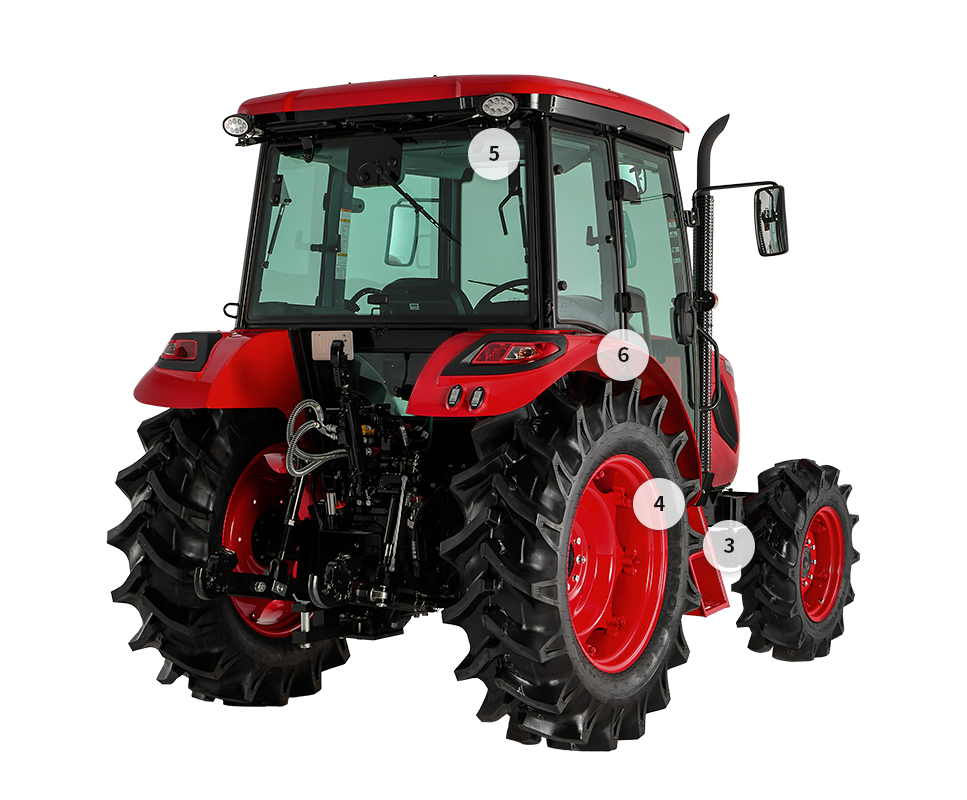

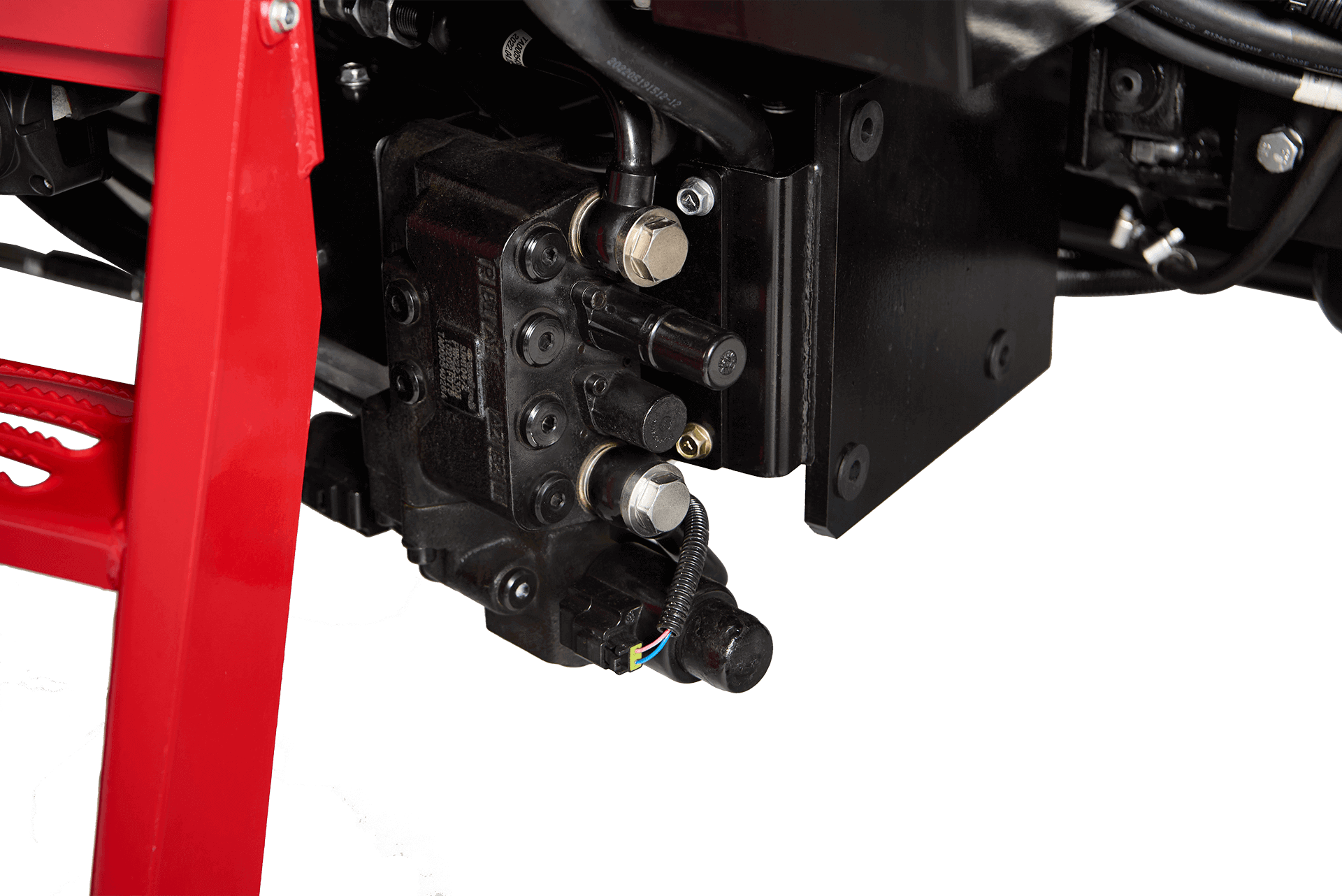

6-port rear external hydraulic valve (hook-type hydraulic top link)
Easily attach attachments from the outside using the hydraulic top link switch. Additionally, equipped with 6 front and rear external hydraulic ports, allowing for the attachment of various attachments.
High-capacity external hydraulic cylinder
Equipped with a high-capacity external hydraulic cylinder, enhancing lifting power and provides durability and ease of maintenance.
Quick turns
Operated by a convenient dial control, the T70 reduces soil compaction and provides impressive maneuverability even in tight spaces.
Telescopic & tilt steering wheel
Enables adjustment of steering wheel angle and height allows the operator to adjust to their best driving position for greater comfort.

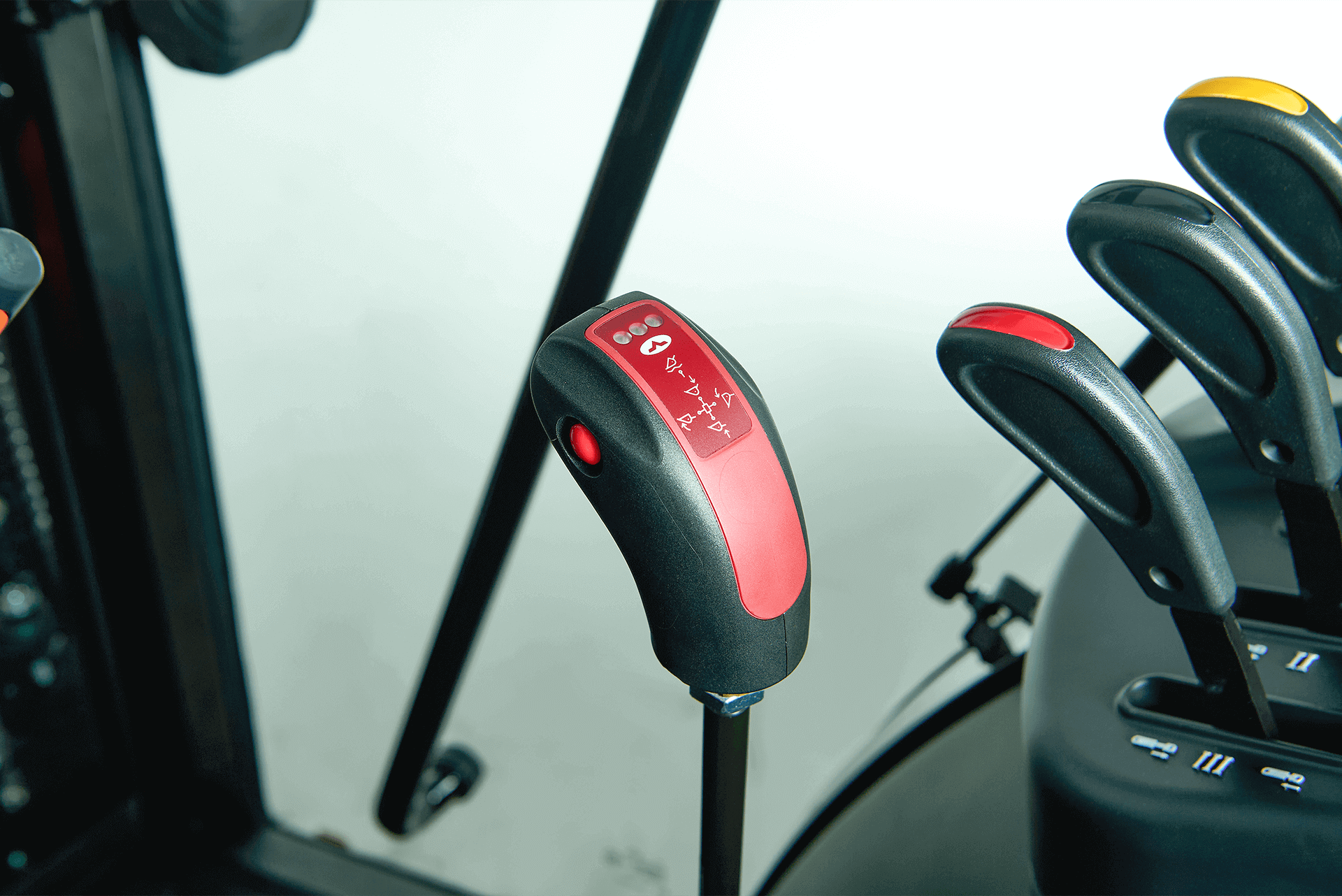

Multi-functional buttons
A single button allows for easy operation of various functions required for the task.
The perfect tractor for function, comfort, and value
The T70 sets a new standard for compact utility tractors with its powerful turbo engine and comfortable operation through a host of features and a price that delivers true value.
Designed for applications in and around your property
The Series 4 tractors combine maneuverability and power to effortlessly tackle medium to large jobs in all terrain conditions, increasing overall productivity.
Even in inclement weather, the comfortable cabin enables you to accomplish a wide range of farming and landscaping tasks.
Livestock & Poultry
Whether you want to build and maintain a modest chicken coop, a functional barn or a expansive stable, a TYM compact utility tractor brings you the multi-functional capabilities to cover the entire farm.
Land Clearing & Forestry
From grappling dead plants to removing uprooted tree stumps, this tractor can maintain your land or clear it for your next big project.
Material Handling
Compatible with attachments like front-end loaders that help you do more in less time, this tractor equips you with the power and control to complete all types of material handling jobs.
Landscaping
Efficient engines, high-capacity fuel tanks, improved operator controls, and fast travel speeds help you tackle large lawn care jobs at local parks, golf courses, and more.
Tractors Model | T70 | K75 | T69 |
Engine manufacturer | TYM T2400TCI | TYM T2400TCI | Deutz TCD2.9L4 |
Engine power | 70 PS | 51.5 kW | 75 PS | 55 kW | 68 PS | 50 kW |
Rated engine speed | 2500 rpm | 2600 rpm | 2200 rpm |
Displacement | 2392 cc | 145.96 cu. in. | 2392 cc | 145.96 cu. in. | 2925 cc | 178.4 cu. in. |
No. of speeds | F16 × R16 | F16 × R16 | F24 × R24 |
Hitch lift capacity | 2078 kg | 4581.2 lb | 2424 kg | 5344 lb | 1964 kg | 4329.9 lb |
PTO rear | 540/750/1000 rpm | 540/750/1000 rpm | 540/750/1000 rpm |
Fuel tank | 90 L | 23.8 gal | 90 L | 23.77 gal | 72 L | 19.02 gal |
Overall length with 3-point hitch | 3685 mm | 145.1 in. | 3850 mm | 151.57 in. | 3695 mm | 145.47 in. |
Overall width | 1895 mm | 74.6 in. | 1890 mm | 74.40 in. | 1840 mm | 72.44 in. |
Wheelbase | 2200 mm | 86.6 in. | 2200 mm | 86.6 in. | 2155 mm | 84.84 in. |
Min. ground clearance | 395 mm | 15.6 in. | 430 mm | 16.9 in. | 420 mm | 16.53 in. |
Weight with cab | 2855 kg | 6294.2 lb | 2945 kg | 6481.61 lb | 2615 kg | 5765 lb |
Agricultural - Front | 11.2-20 | 11.2-24 | 11.2-20 |
Agricultural - Rear | 14.9-30 | 16.9-30 | 14.9-30 |
Download | Technical Brochure | Technical Brochure | Technical Brochure |
