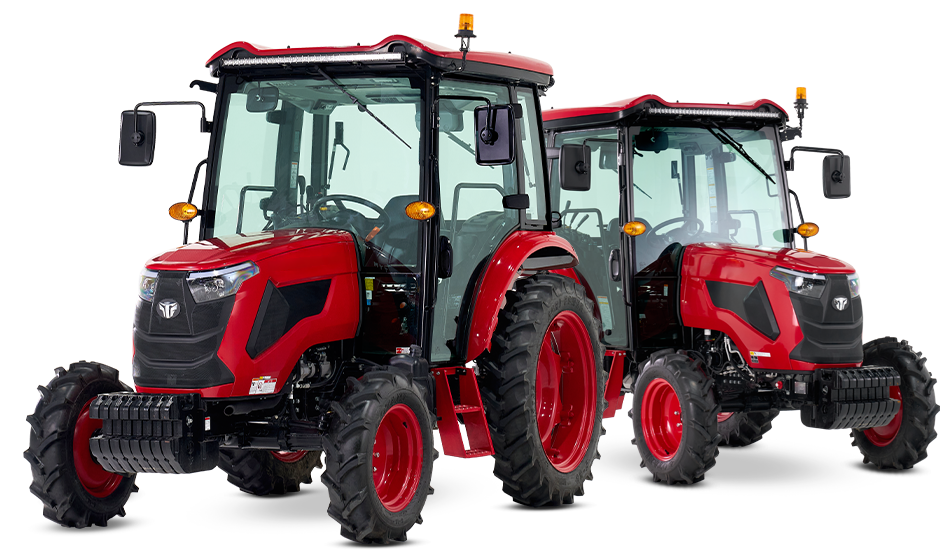

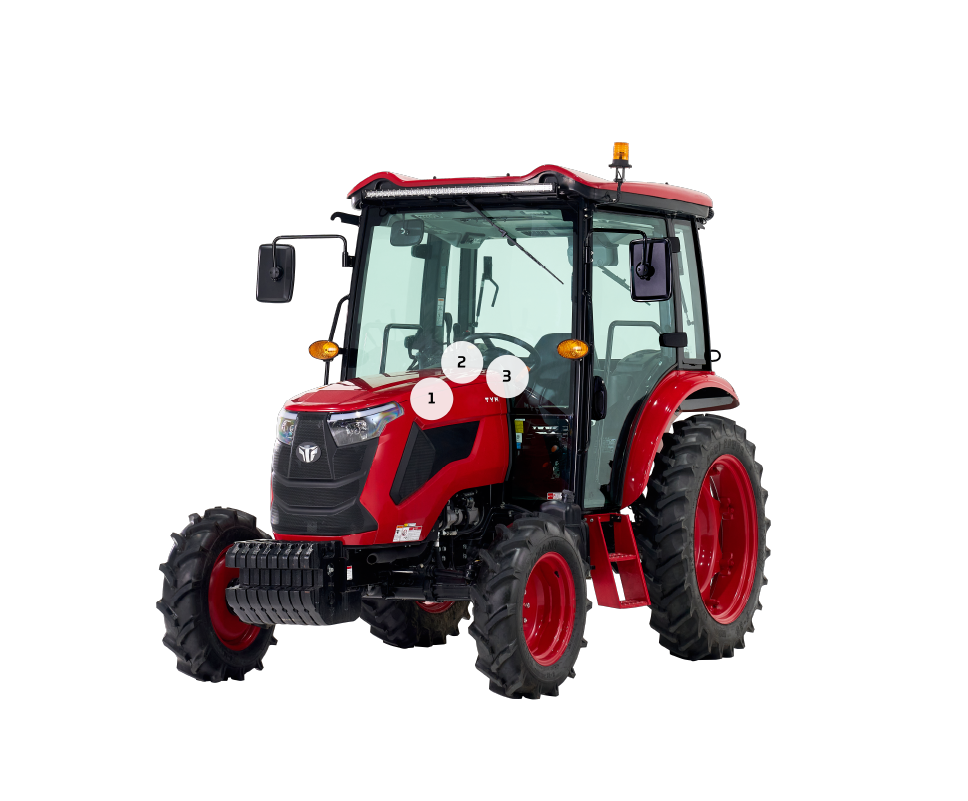

T4058N
Series 4 , Compact Tractors

Engine manufacturer
58 PS
Engine power
1582 kg
Hitch lift capacity

A specialized field tractor designed for optimal ridge cultivation

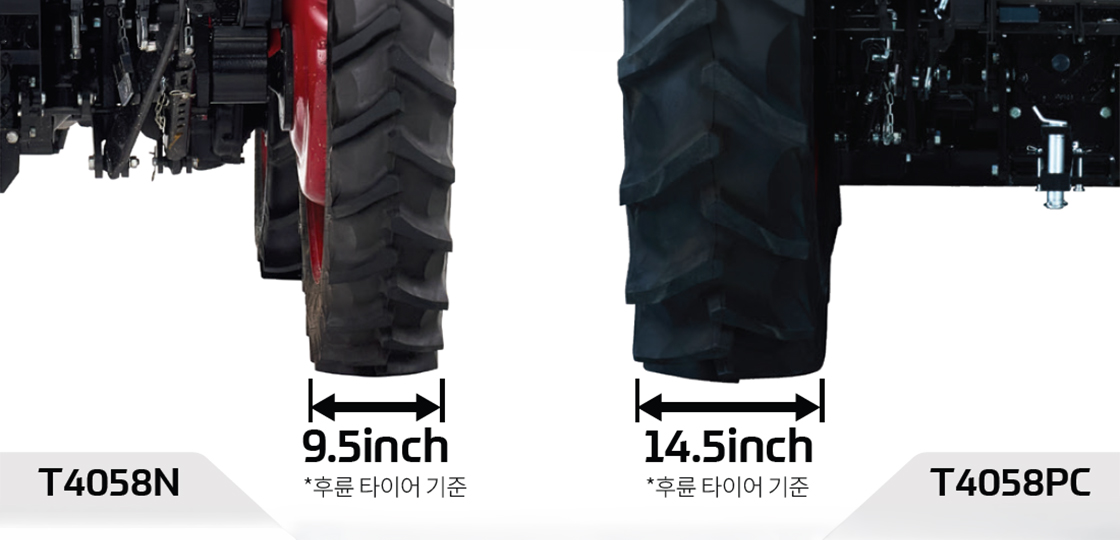

With a 1,400 mm narrow overall width, standard narrow tires, and a tight turning radius, it tracks accurately between rows to help reduce damage to ridges and crops.
*Images on this page are for illustrative purposes only. The actual product may vary.

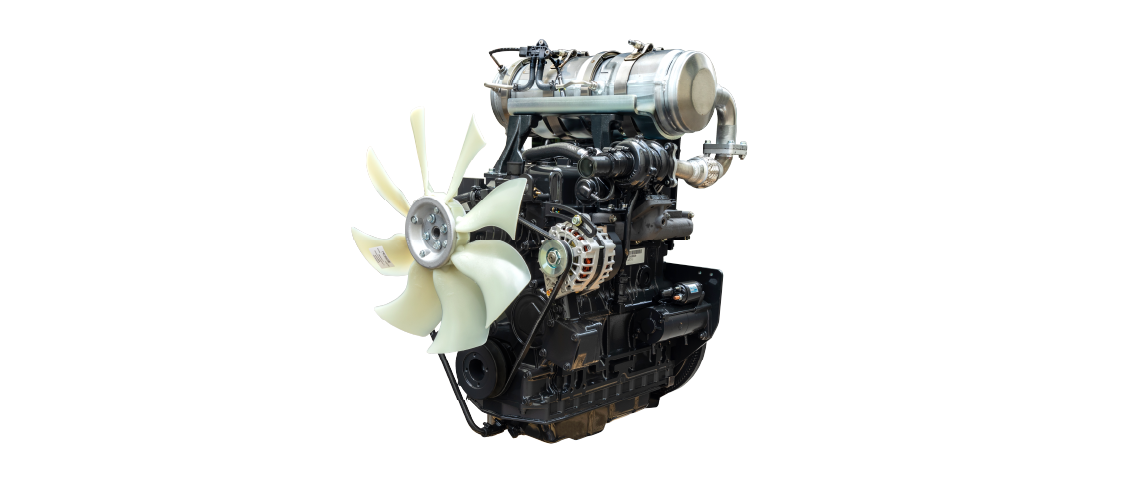

4-cylinder high-output TYM diesel engine
Equipped with an eco-friendly engine, the T4058N is one of the most versatile tractors in its horsepower class, delivering ample performance with its 58 hp engine output.

Purpose-built for field work

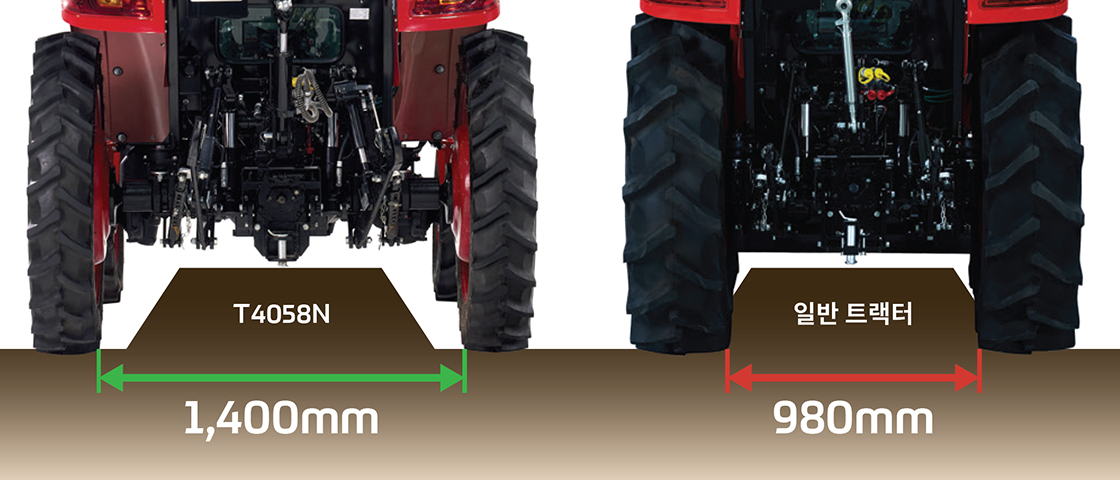

With a 1,400 mm inner tire width, it helps minimize crop damage during entry and harvesting.

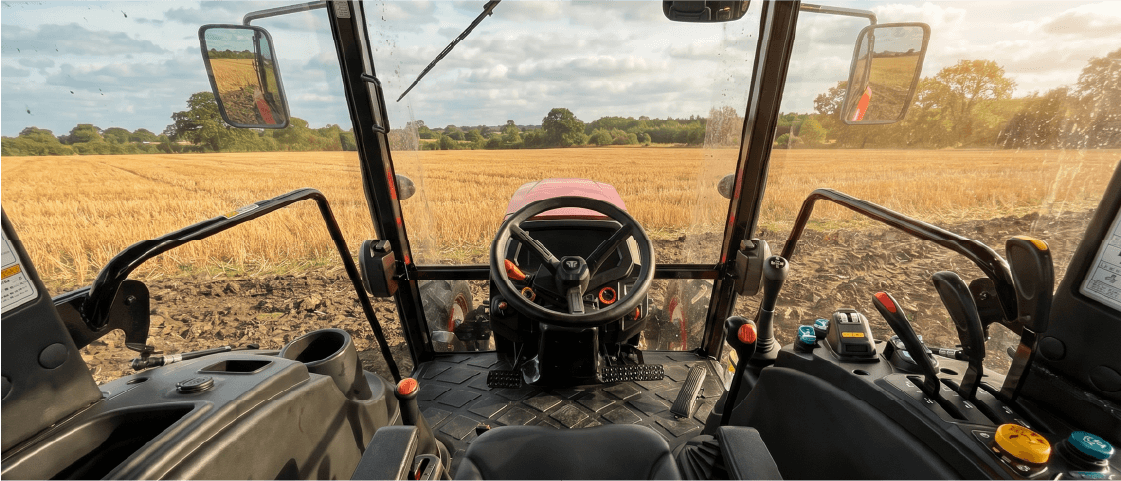

Premium cabin with full LED working light
Premium cabin introduces an LED bar-type front worklight and back side, ideal for low-light tasks and extended operational hours and enhance the productivity. Also offers spaciousness and an unobstructed view, allowing for comfortable work regardless of the weather conditions.

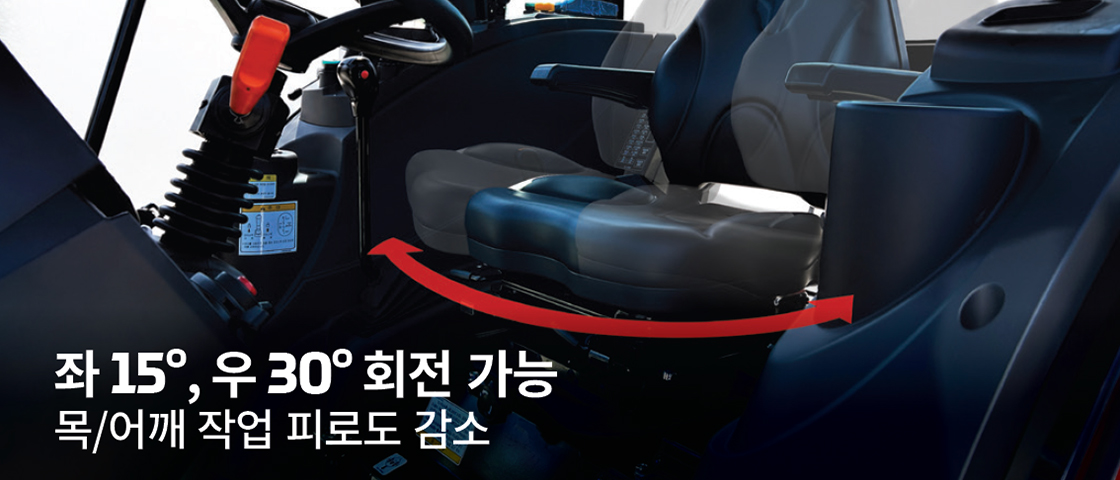

Comfort seat
The swiveling comfort seat makes it easier to check rear-mounted implements and provides a comfortable ride even during long hours of work. (It rotates up to 15° to the left and 30° to the right, helping reduce neck and shoulder fatigue.)

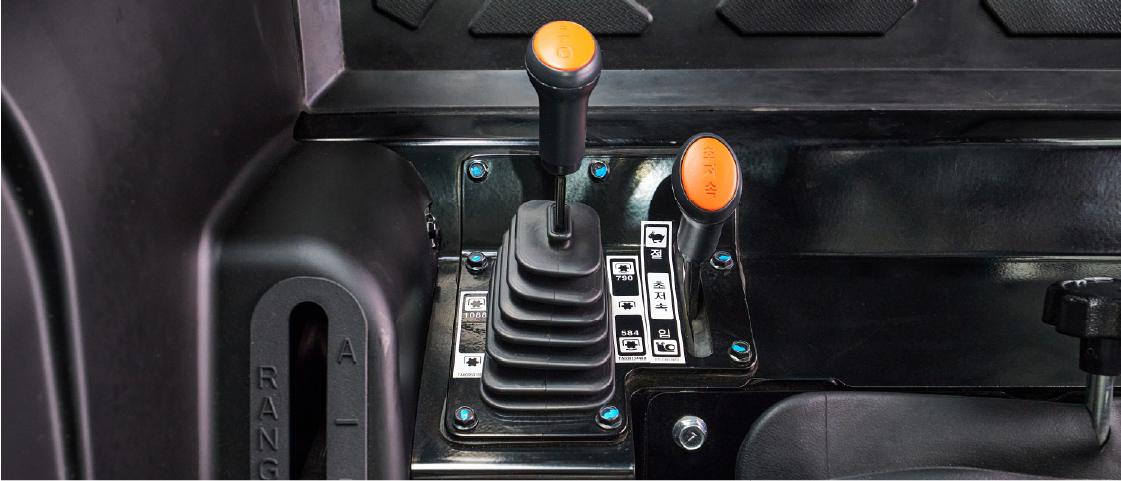

Creeper gear
It supports precise low-speed driving for field tasks such as bed shaping, plastic mulching, and harvesting.

Leveling control
By applying a proportional control valve and gyro sensor, it automatically detects and corrects vehicle tilt. This enables stable operation even on slopes, helping maintain more uniform crop growth and improve productivity.

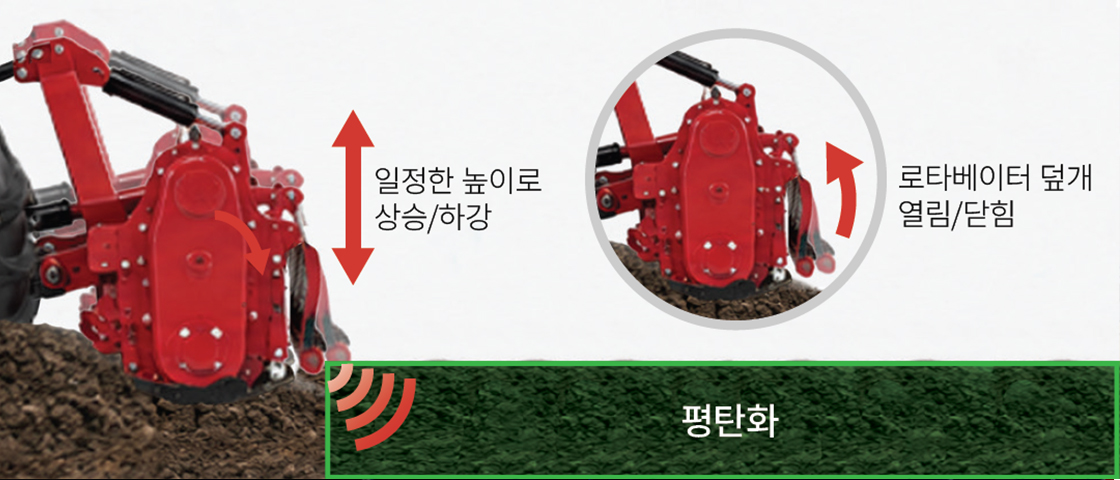

Plowing depth control
It automatically adjusts the implement by sensing working depth and load, helping maintain a consistent tillage depth.

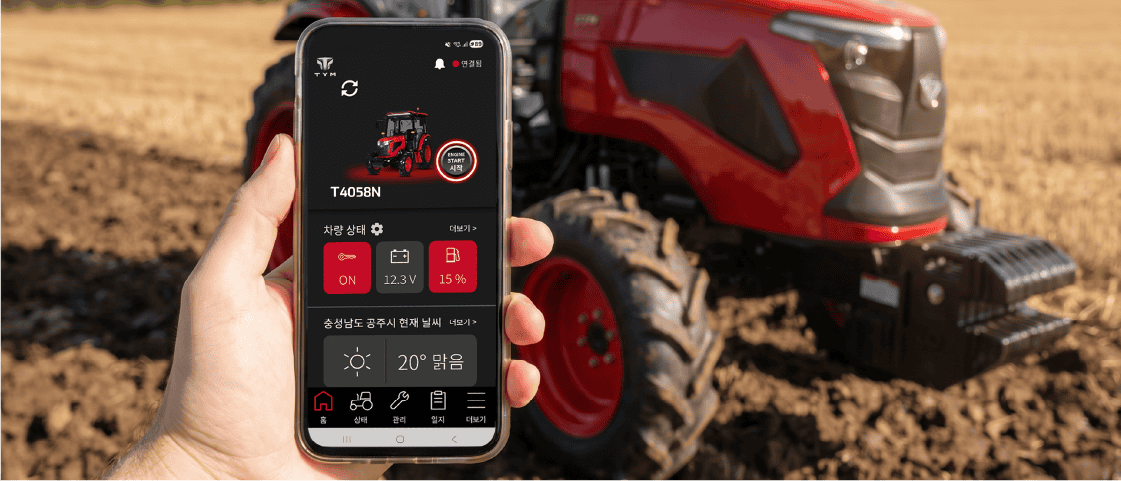

Telematics (Standard)
Through the MYTYM remote diagnostics service, you can check the tractor’s location, condition, and operating status in real time from anywhere in the country. It also lets you conveniently manage safety and vehicle care, navigation, and work logs from your mobile device.

Protect crops, work with precision!
A tractor built specifically for field farming.
Designed specifically for fieldwork, with precise control and user-friendly features, this dedicated field crop tractor helps protect crops during harvest while delivering consistent performance.






Designed for applications in and around your property
The Series 4 tractors combine maneuverability and power to effortlessly tackle medium to large jobs in all terrain conditions, increasing overall productivity.
Even in inclement weather, the comfortable cabin enables you to accomplish a wide range of farming and landscaping tasks.

Livestock & Poultry
Whether you want to build and maintain a modest chicken coop, a functional barn or a expansive stable, a TYM compact utility tractor brings you the multi-functional capabilities to cover the entire farm.

Land Clearing & Forestry
From grappling dead plants to removing uprooted tree stumps, this tractor can maintain your land or clear it for your next big project.

Material Handling
Compatible with attachments like front-end loaders that help you do more in less time, this tractor equips you with the power and control to complete all types of material handling jobs.

Landscaping
Efficient engines, high-capacity fuel tanks, improved operator controls, and fast travel speeds help you tackle large lawn care jobs at local parks, golf courses, and more.

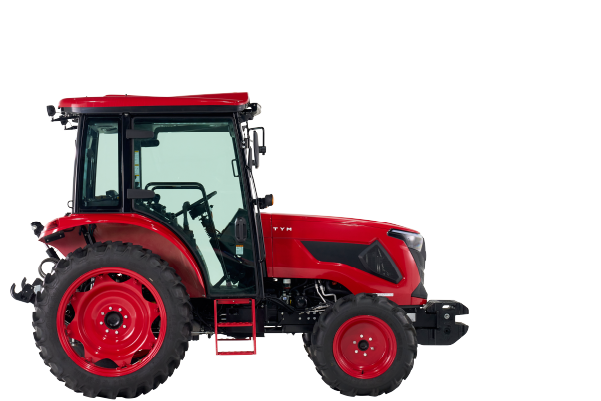

| Tractors Model | T4058N ![]() | T4058P ![]() | T4058PC ![]() |
Engine manufacturer | TYM T2300T2-KTC_5 | TYM T2300T2-KT_5 | TYM T2300T2-KT_5 |
Engine power | 58 PS | 42.5 kW | 58 PS | 43 kW | 58 PS | 43 kW |
Rated engine speed | 2600 rpm | 2600 rpm | 2600 rpm |
Displacement | 2287 cc | 139.5 cu. in. | 2287 cc | 139.5 cu. in. | 2287 cc | 139.5 cu. in. |
No. of speeds | F24 × R24 | F24 × R24 | F24 × R24 |
Hitch lift capacity | 1582 kg | 3486.8 lb | 1926 kg | 4246 lb | 1926 kg | 4246 lb |
PTO rear | 540/750/1000 rpm | 540/750/1000 rpm | 540/750/1000 rpm |
Fuel tank | 58 L | 15.3 gal | 58 L | 15.3 gal | 58 L | 15.3 gal |
Overall length with 3-point hitch | 3595 mm | 141.5 in. | 3595 mm | 141.5 in. | 3595 mm | 141.5 in. |
Overall width | 1800 mm | 74.8 in. | 1750 mm | 68.89 in. | 1750 mm | 68.89 in. |
Wheelbase | 2005 mm | 79 in. | 2010 mm | 79.13 in. | 2010 mm | 79.13 in. |
Height to top of ROPS | - | 2610 mm | 102.75 in. | - |
Height to top of cabin | 2487 mm | 98 in. | - | 2535 mm | 99.80 in. |
Min. ground clearance | 380 mm | 15 in. | 460 mm | 18.11 in. | 460 mm | 18.11 in. |
Weight with ROPS | - | 2110 kg | 4651.75 lb | - |
Weight with cab | 2168 kg | 4179.6 lb | - | 2245 kg | 4949.37 lb |
Agricultural - Front | 8-18 | 9.5-20, 6PR | 9.5-20, 6PR |
Agricultural - Rear | 9.5-32 | 14.9-28, 6PR | 14.9-28, 6PR |
| Download | Technical Brochure | Technical Brochure | Technical Brochure |
