T3040
Series 3 , Compact Tractors
Engine manufacturer
37 PS
Engine power
880 kg
Hitch lift capacity

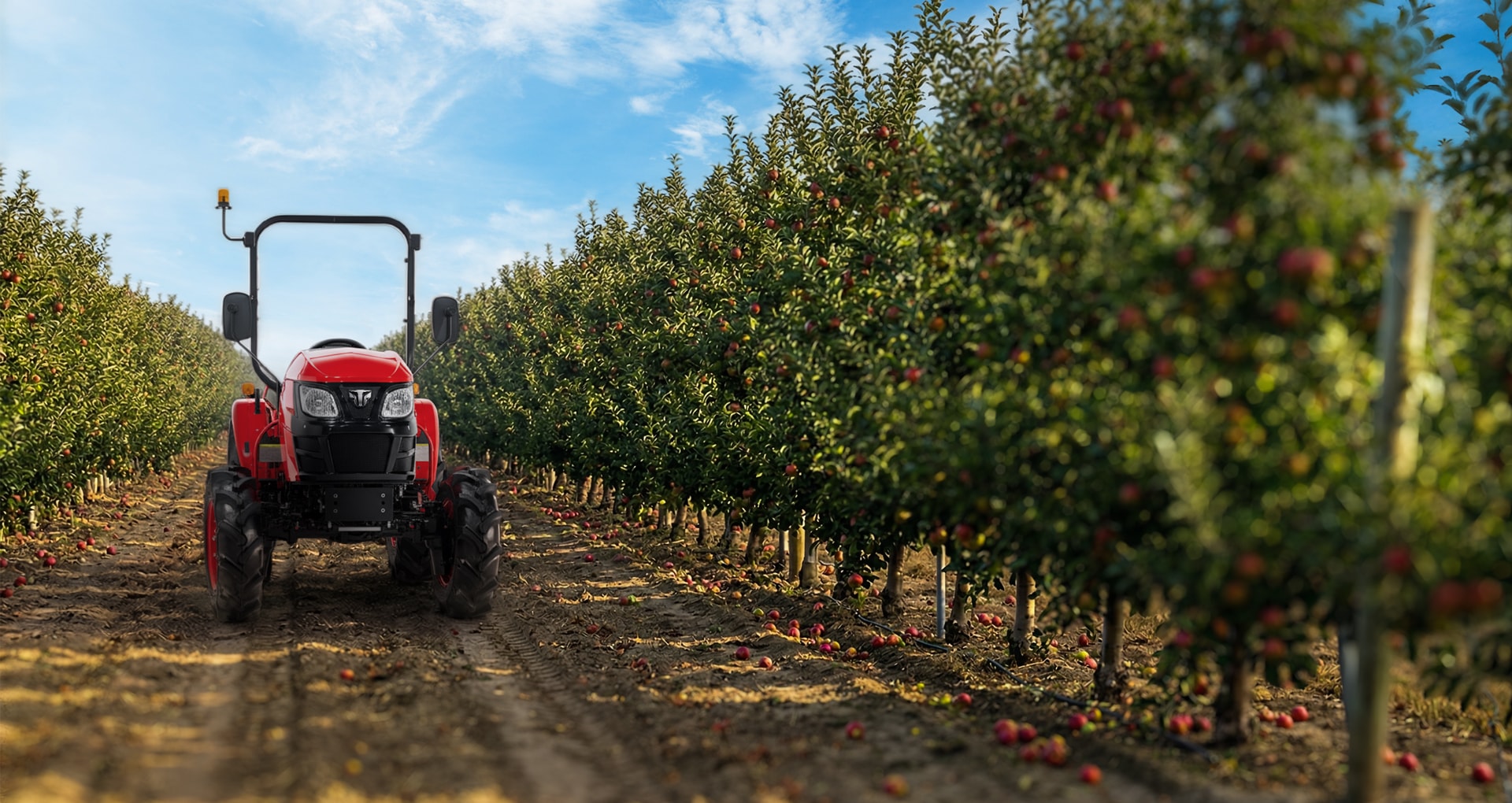

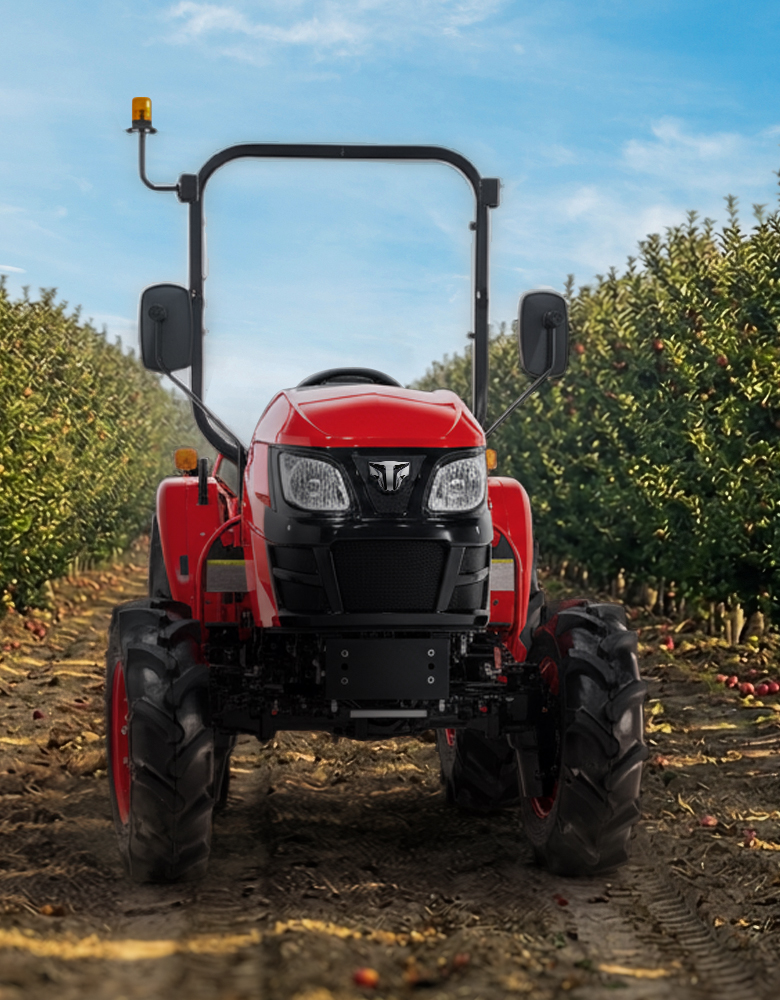

Designed for orchard work and small-scale farms
With its compact body, power steering, and a range of practical work features, it supports more convenient and efficient operation even in narrow orchards and small farms.
*Images on this page are for illustrative purposes only. The actual product may vary.
High-output, eco-friendly Yanmar engine
Built with the proven durability and stable performance of a Yanmar engine, it delivers dependable power that helps improve overall work quality.
Complies with emissions regulations
Excellent fuel efficiency and low noise help reduce operator fatigue
Proven durability and reliability for stable operation
Strong traction, longer working hours
Superior pulling performance in its class and a large-capacity fuel tank help improve both productivity and operating endurance.
Operator-focused controls and convenient operability
An ergonomically designed seat and intuitively arranged controls enhance operator comfort and ease of use.
Auto PTO & PTO on/off switch
With Auto PTO enabled, PTO stops when the implement is raised, and PTO power can be quickly engaged or disengaged with a single switch.
3-speed PTO
With a 3-speed PTO, operators can efficiently perform a wide range of tasks by matching PTO output to the working conditions.
Rear LED work light
Provides clear visibility for stable, reliable nighttime operations.
Features that make every workday easier
With operator-focused controls and a comfortable workspace, it helps reduce fatigue during long hours of operation and delivers a more comfortable working environment.
Designed for applications in and around your property
The Series 3 tractor is both compact and powerful and delivers workhorse performance time after time.
The Stage V engine is powerful and efficient, and the cab is ergonomically designed with the operator in mind.
With a wide range of attachments suitable for managing orchards, greenhouses, and more, the Series 3 tractor meets the highest expectations while delivers satisfying results.
Arable Farming
Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.
Construction
Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.
Snow Clearing
TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.
Landscaping
Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

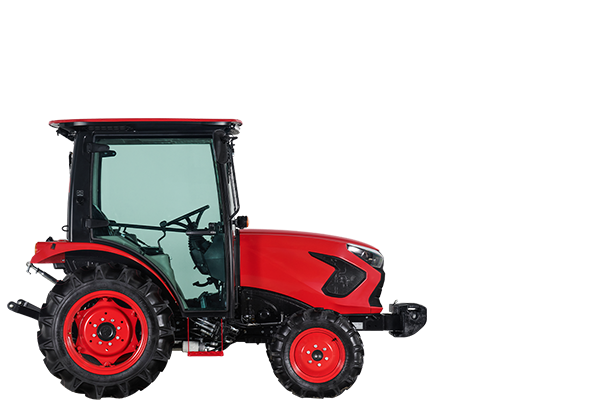

| Tractors Model | T3040  | K48  | K48C  |
Engine manufacturer | Yanmar 3TNV88C | TYM T2300 | TYM T2300 |
Engine power | 37 PS | 28 kW | 48 PS | 35.5 kW | 48 PS | 35.5 kW |
Rated engine speed | 3000 rpm | 2600 rpm | 2600 rpm |
Displacement | 1642 cc | 100.200 cu. in. | 2287 cc | 139.56 cu. in. | 2287 cc | 139.56 cu. in. |
No. of speeds | F12 × R12 | F12 × R12 | F12 × R12 |
Hitch lift capacity | 880 kg | 1940 lb | 1365 kg | 3009 lb | 1365 kg | 3009 lb |
PTO rear | 540/750/1000 rpm | 540/750/1000 rpm | 540/750/1000 rpm |
Fuel tank | 33 L | 8.7 gal | 27 L | 7.13 gal | 50 L | 13.20 gal |
Overall length with 3-point hitch | 3086 mm | 121.5 in. | 3160 mm | 124.40 in. | 3325 mm | 130.90 in. |
Overall width | 1460 mm | 57.5 in. | 1535 mm | 60.43 in. | 1550 mm | 61.02 in. |
Wheelbase | 1640 mm | 64.6 in. | 1720 mm | 67.71 in. | 1750 mm | 68.89 in. |
Height to top of ROPS | 2600 mm | 102.8 in. | 2450 mm | 96.45 in. | - |
Min. ground clearance | 431 mm | 17 in. | 395 mm | 15.55 in. | 395 mm | 15.55 in. |
Weight with ROPS | 1390 kg | 3064 lb | 1580 kg | 3483.30 lb | - |
Weight with cab | - | - | 1810 kg | 3990.36 lb |
Agricultural - Front | 8-16 | 9.5-16 | 9.5-16 |
Agricultural - Rear | 12.4-24 | 13.6-24 | 13.6-24 |
| Download | - | Technical Brochure | Technical Brochure |
