K57C
Series 3 , Compact Tractors
Engine manufacturer
58 PS
Engine power
1415 kg
Hitch lift capacity
A compact tractor that balances power with maneuverability
Take on tough jobs in tight spaces with the T58C. This tractor brings you the best features from our compact and utility ranges, balancing high power output with maximized maneuverability.
*Images on this page are for illustrative purposes only. The actual product may vary.
4-cylinder TYM diesel engine with high output
Equipped with a powerful 4-cylinder, Stage V engine, this tractor boasts the power of a mid-sized tractor while maintaining a compact size.
Deluxe cabin with AC and heater
Standard AC and heater and helps operators work comfortably regardless of the season. It also increases the work efficiency by increasing visibility.
Rear LED work lights
The rear LED work lights provides visibility of the rear of the tractor and the attached implement even in the darkest conditions.
Telescopic check-link and hitch stabilizer
The telescopic link and hitch stabilizer allows easy installation of all types of implements and accessories.

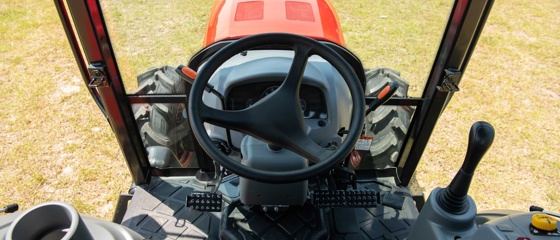

Driver oriented controls
The ergonomically designed cabin increases the operator's command of the tractor.
Low optimal height
The lowest vehicle height in its class makes increases visibility around the tractor.
High visibility during work
The wide forward view increases safety and easy of use for loader work.
Standard high-quality LED bar work light
The horizontal LED bar work light greatly increases visibility in the front of the tractor.
A compact tractor that balances power with maneuverability
Take on tough jobs in tight spaces with the T58C. This tractor brings you the best features from our compact and utility ranges, balancing high power output with maximized maneuverability.
Designed for applications in and around your property
The Series 3 tractor is a masterpiece of workmanship. Boasting an operator-centric design from every angle, this mid-sized machine offers optimal comfort, while the superior performance of its lift and hydraulic systems maximize productivity.
Guaranteed to get the job done on any terrain, the Series 3 is loaded with a variety features to power through every season on the farm.
Arable Farming
Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.
Construction
Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.
Snow Clearing
TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.
Landscaping
Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.
Tractors Model | K57C | K57E | K58 |
Engine manufacturer | TYM T2300T | TYM T2300T | TYM T2300T |
Engine power | 58 PS | 42.5 kW | 58 PS | 42.5 kW | 58 PS | 42.5 kW |
Rated engine speed | 2600 rpm | 2600 rpm | 2600 rpm |
Displacement | 2287 cc | 2287 cc | 139.5 cu. in. | 2287 cc | 139.5 cu. in. |
No. of speeds | F24 × R24 | F16 × R16 | F24 × R24 |
Hitch lift capacity | 1415 kg | 3120 lb | 1231 kg | 2714 lb | 1963 kg | 4328 lb |
PTO rear | 540/750/1000 rpm | 540/750/1000 rpm | 540/750/1000 rpm |
Fuel tank | 45 L | 11.88 gal | 45 L | 11.88 gal | 58 L | 15.32 gal |
Overall length with 3-point hitch | 3280 mm | 129.13 in. | 3200 mm | 125.98 in. | 3570 mm | 140.55 in. |
Overall width | 1540 mm | 60.62 in. | 1540 mm | 60.62 in. | 1750 mm | 68.89 in. |
Wheelbase | 1805 mm | 71.06 in. | 1805 mm | 71.06 in. | 2005 mm | 78.93 in. |
Height to top of ROPS | - | 2490 mm | 98.03 in. | 2660 mm | 104.72 in. |
Min. ground clearance | 380 mm | 14.96 in. | 380 mm | 14.96 in. | 460 mm | 8.11 in. |
Weight with cab | 2040 kg | 5299.91 lb | - | - |
Weight with ROPS | - | 1720 kg | 3791.95 lb | 2110 kg | 4651.75 lb |
Agricultural - Front | 9.5-16 | 9.5-16 | 9.5-20 |
Agricultural - Rear | 13.6-26 | 13.6-26 | 14.9-28 |
