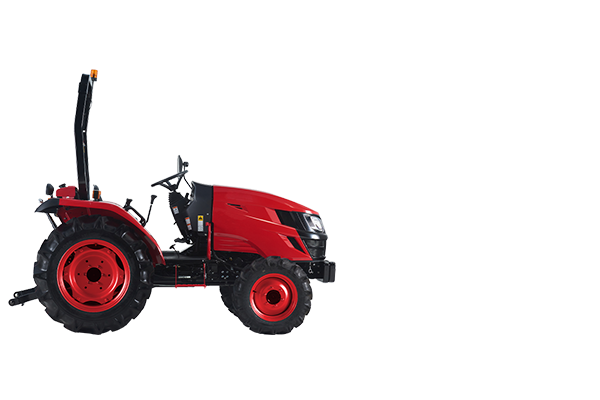

T36

Series 2 , Compact Tractors

REQUEST QUOTE

Engine manufacturer

34.2 PS

Engine power

1197 kg

Hitch lift capacity

Build My Tractor

Explore Tractor in 3D

Technical Specification

Compatible Attachments

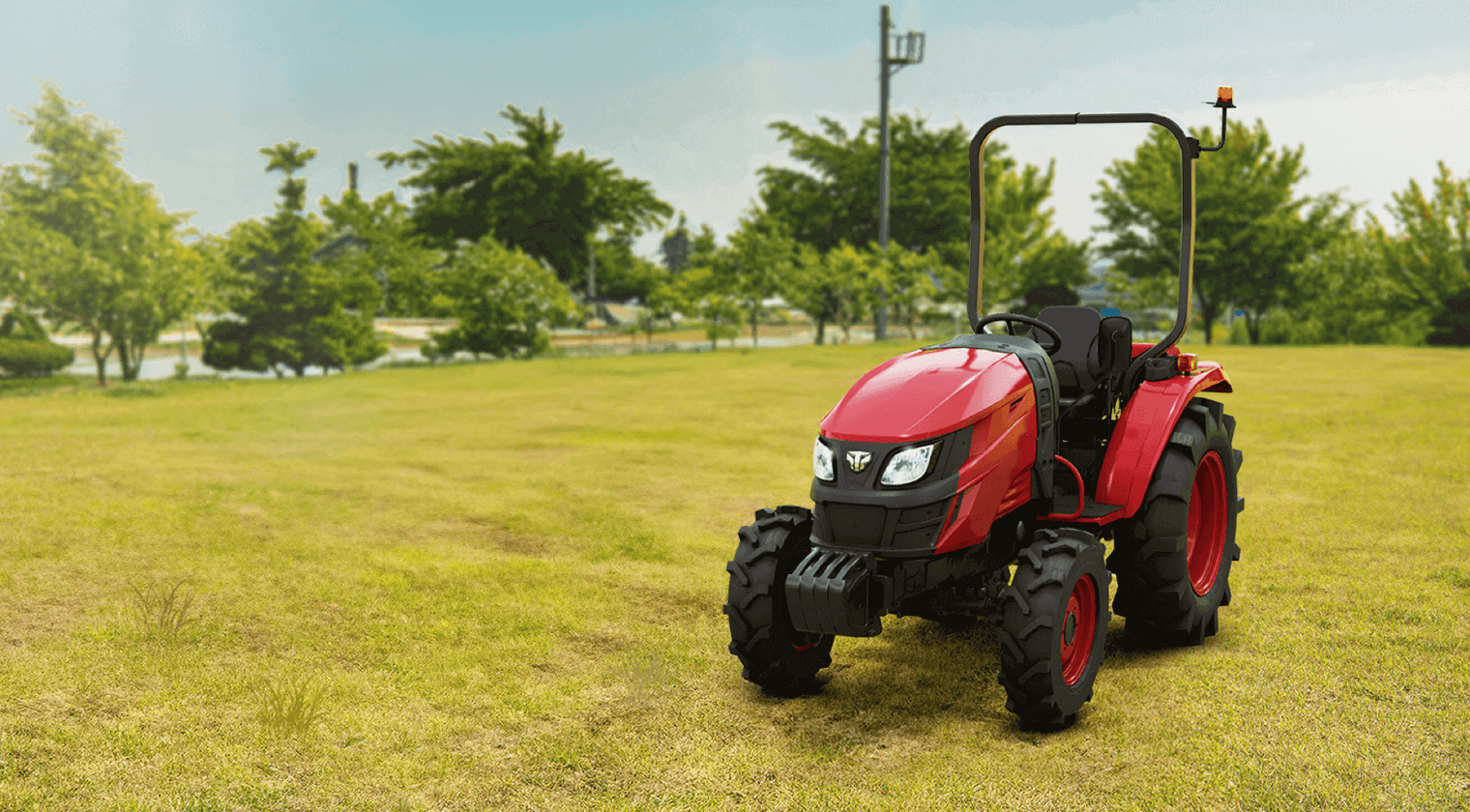

A compact tractor built for tough work in tight spaces

Take on harder tasks in smaller spaces with the T36. Designed to be compact, proven to be durable, and engineered to be efficient, this tractor is a workhorse in greenhouses, orchards and more.

DOWNLOAD BROCHURE

*Images on this page are for illustrative purposes only. The actual product may vary.

Yanmar diesel engine

This engine maximizes fuel efficiency by delivering high torque and efficient revs compared to similar models in its class. The water-cooled engine warms up quickly and effectively stabilizes the temperature while the tractor is running.

Dual filter air cleaner for engine longevity

The tractor comes with an additional filter to protect the engine from harmful dust and particles, drastically extending the engine life.

Cast iron components for stronger connections

The rear of the rear of this tractor features sturdy cast-iron components to connect a range of attachments and perform with heavier loads,. The material enhances efficiency of the hydraulics and helps increase component lifecycles.

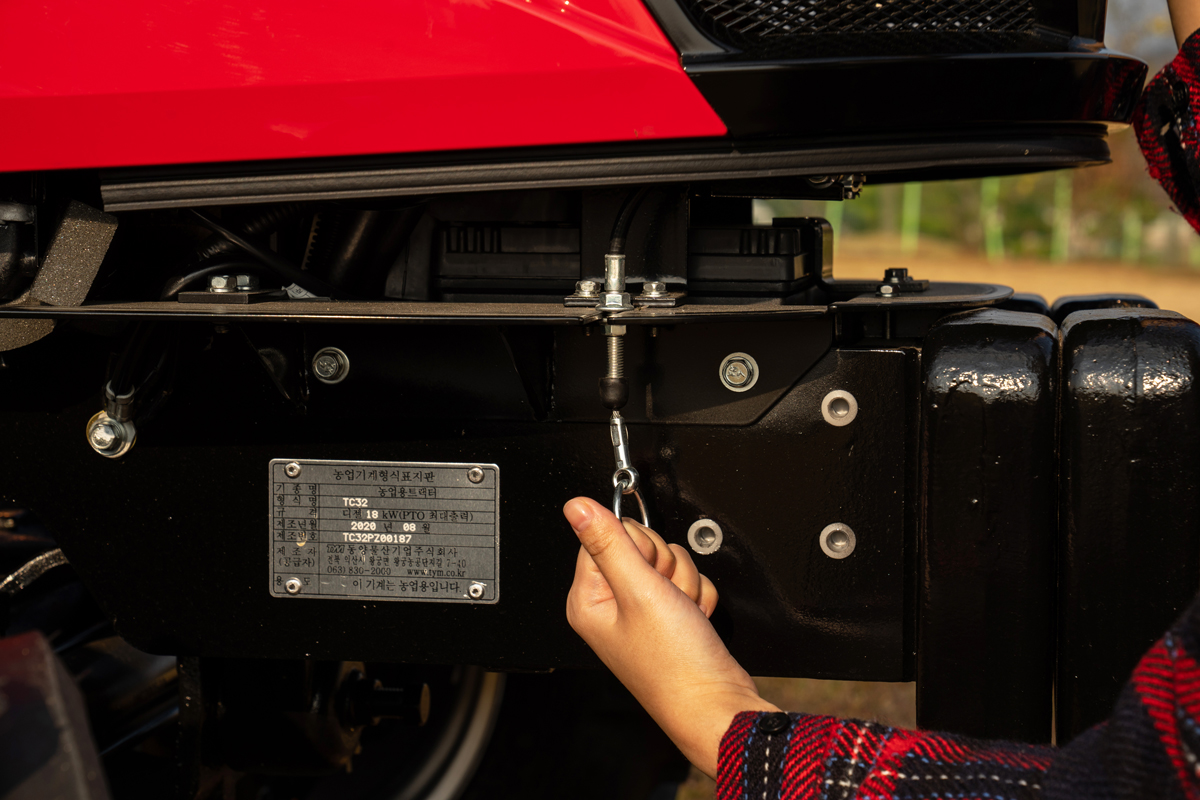

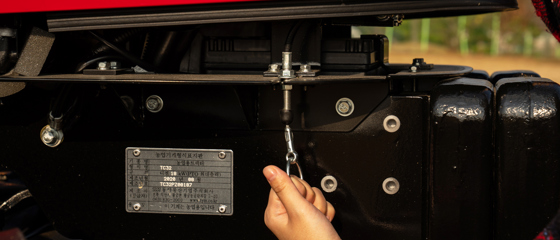

Convenient one-touch hood open

The tractor hood can be opened with the pull of a lever, providing easy access for routine inspection and maintenance of the engine and systems.

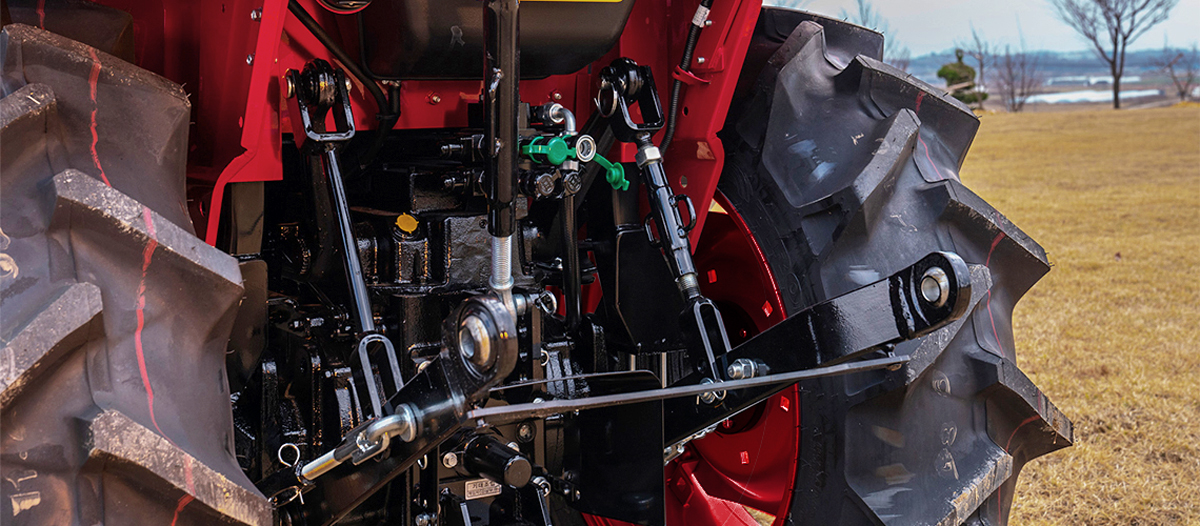

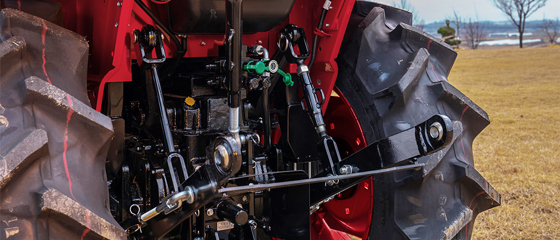

3-point hitch with powerful lift capacity

The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joints. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.

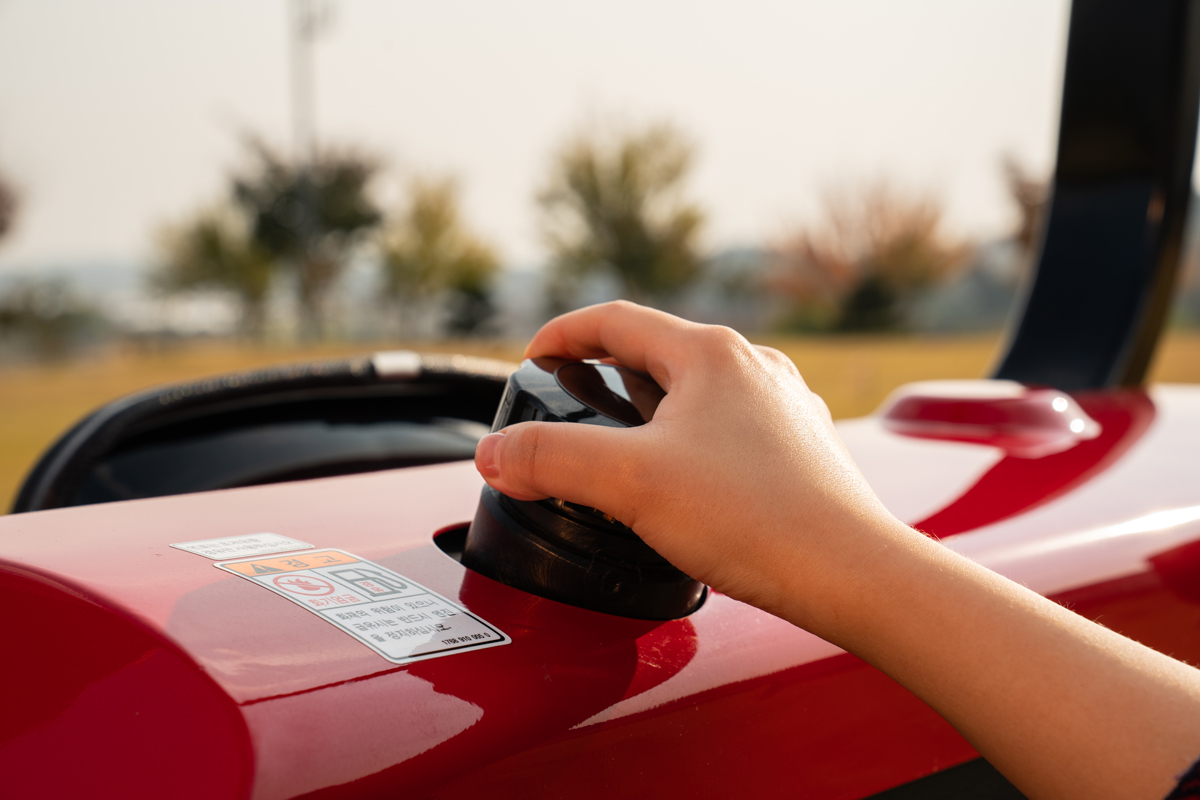

High-capacity fuel tank for time-intensive work

The high-capacity fuel tank allows the tractor to operate for longer periods without stopping to refuel. Paired with a fuel-efficient engine, this enables uninterrupted and efficient operations during the busiest seasons.

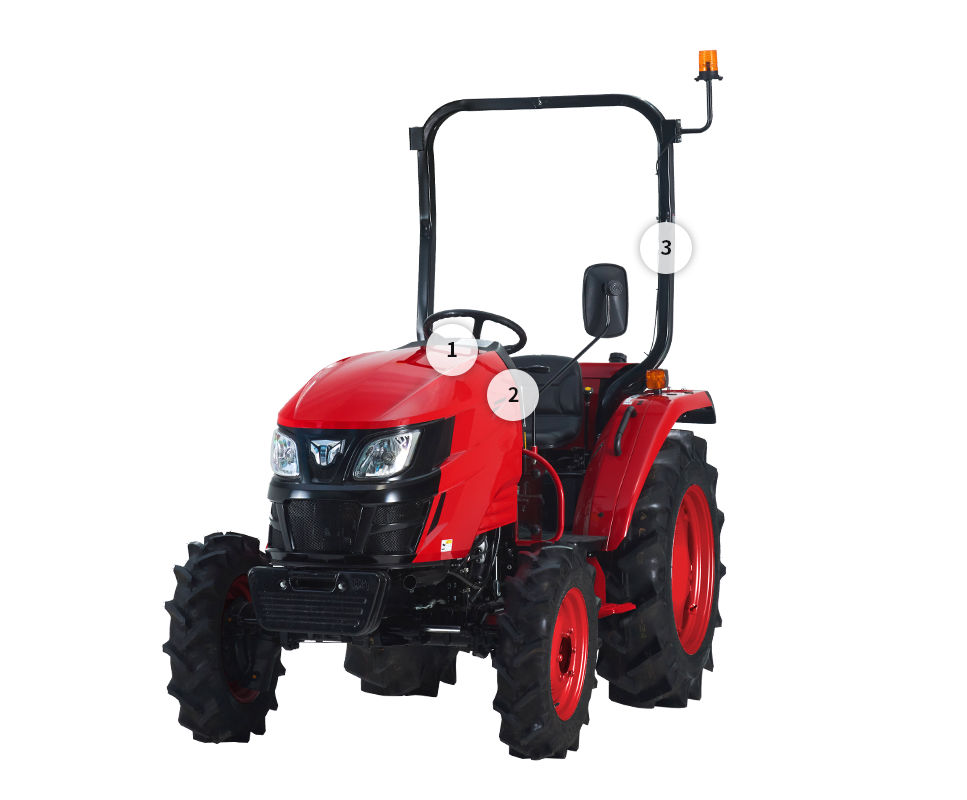

POWERFUL FEATURES TO DRIVE TRACTOR PERFORMANCE

Leverage a range of features to complete a variety of jobs, quickly and effectively. Available with a foldable ROPS or heated cabin, this Series 2 tractor keeps operators comfortable to take on challenges in warm or cold weather.

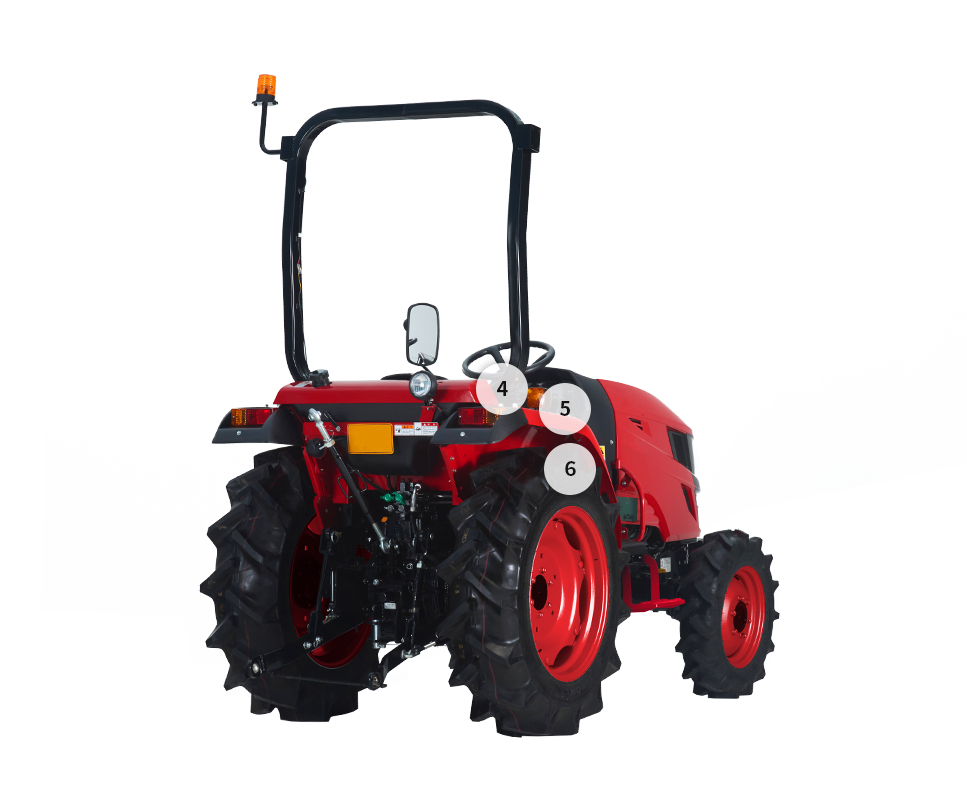

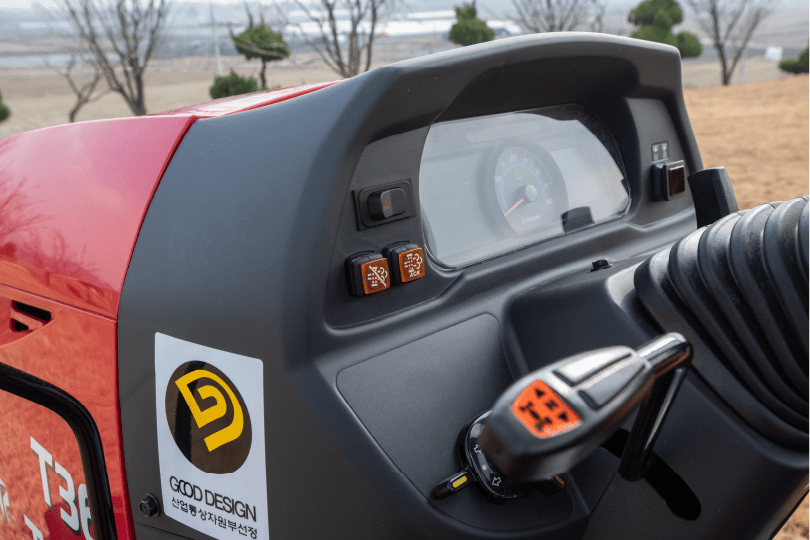

1. DPF Regeneration

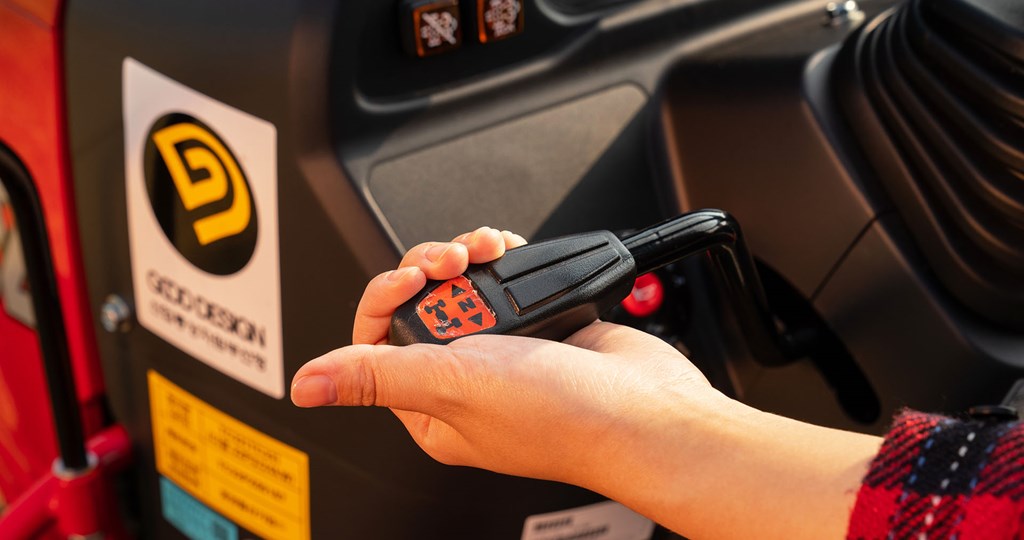

2. Forward/reverse shuttle lever

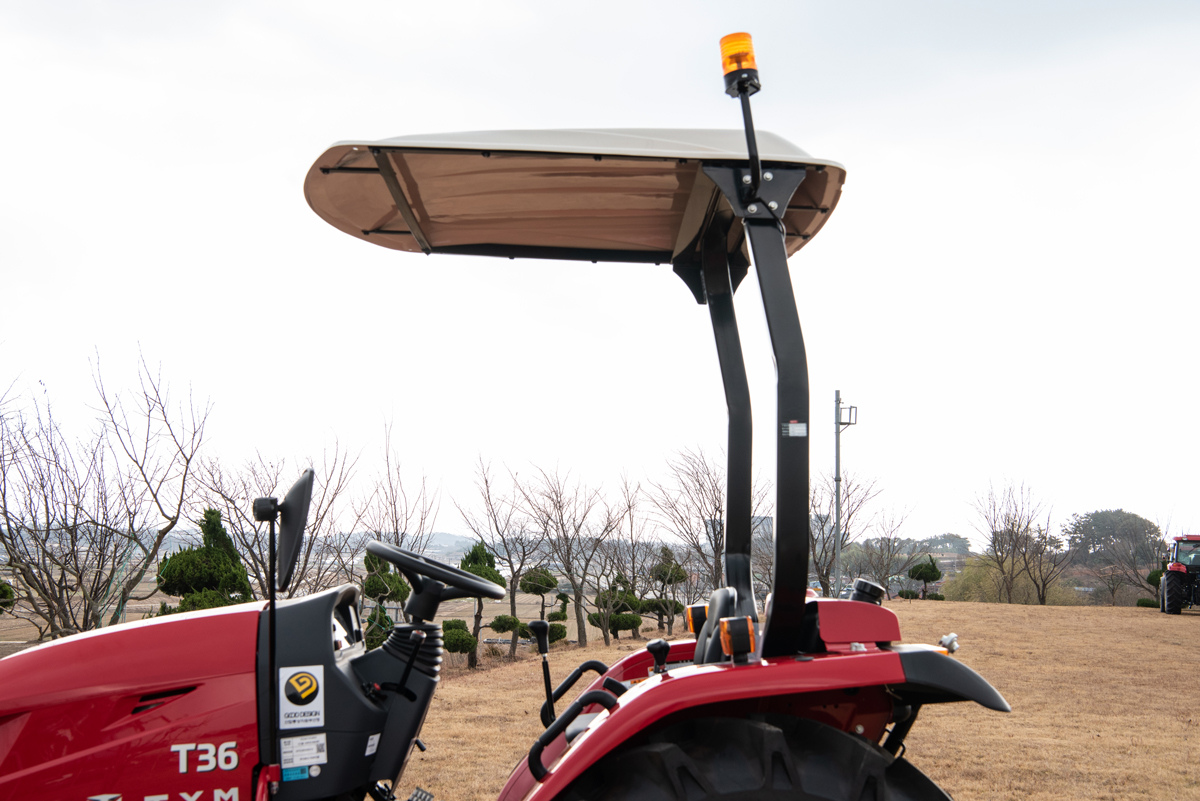

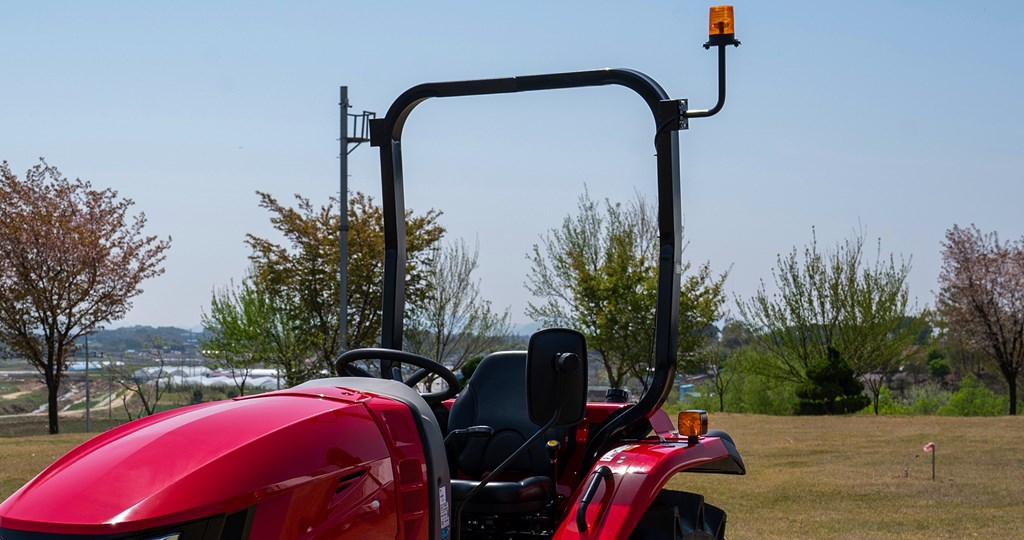

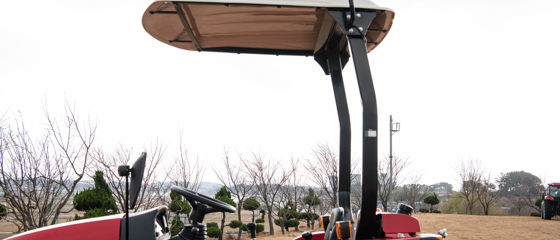

3. ROPS

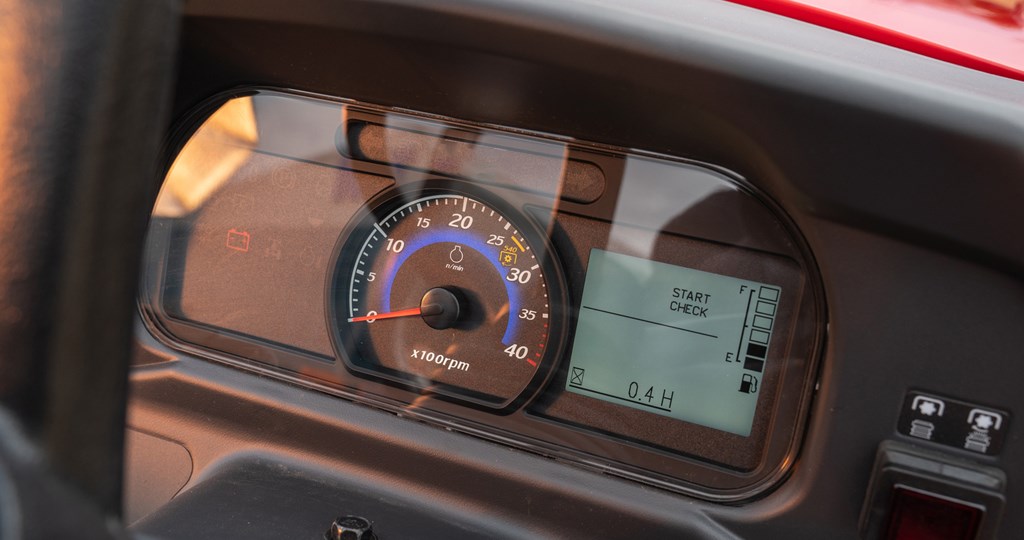

4. Digital Instrument Panel

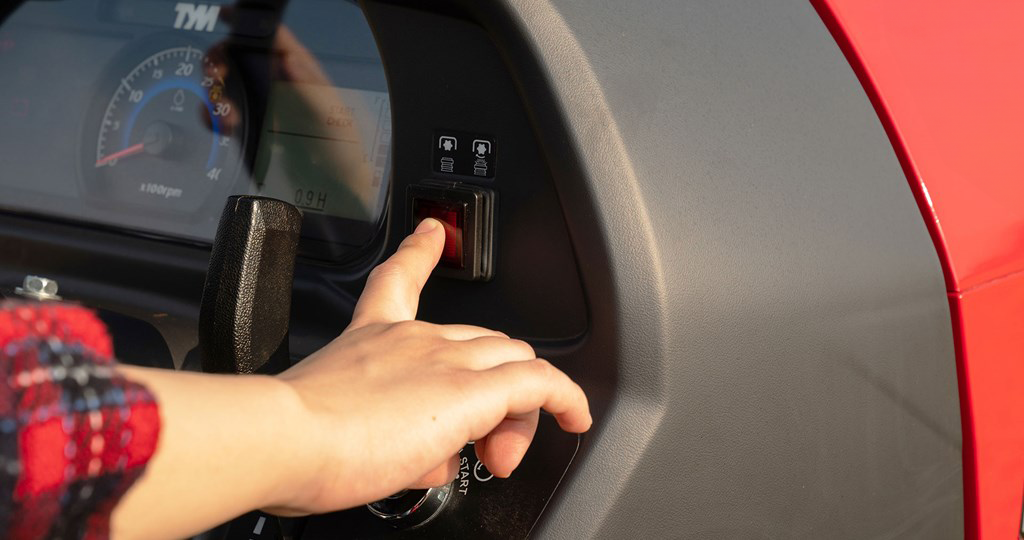

5. PTO on/off switch

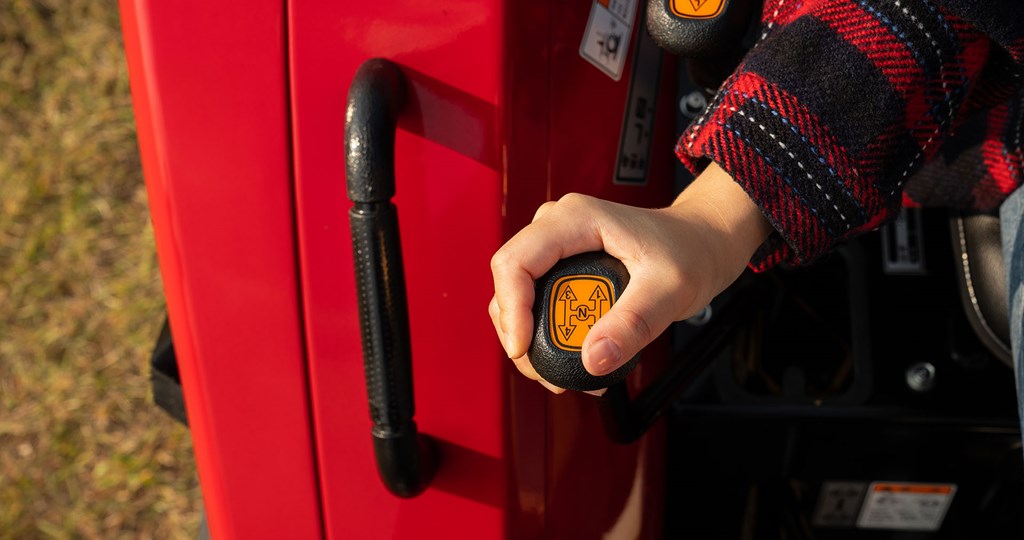

6. Main shift lever

Designed for applications in and around your property

The Series 2 tractor is both compact and powerful and delivers workhorse performance time after time.

The Stage V engine is powerful and efficient, and the cab is ergonomically designed with the operator in mind.

With a wide range of attachments suitable for managing orchards, greenhouses, and more, the Series 2 tractor meets the highest expectations while delivers satisfying results.

Arable Farming

Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.

Construction

Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.

Snow Clearing

TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.

Landscaping

Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

STORIES FROM THE FIELD

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

SEE TYM’S CUSTOMER STORIES

Technical Specification

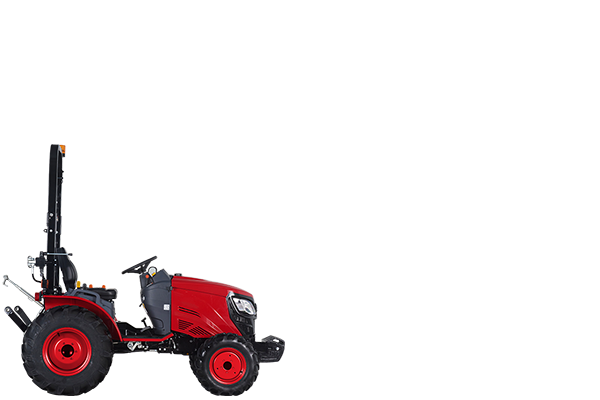

Tractors Model	T36	T25	T48
Engine manufacturer	Yanmar 3TNV88C (KKTF)	Yanmar 3TNV80F (NXDKTFX)	TYM T2300
Engine power	34.2 PS \| 25.5 kW	24.6 PS \| 18.4 kW	48.3 PS \| 35.5 kW
Rated engine speed	2800 rpm	3000 rpm	2600 rpm
Displacement	1642 cc \| 100.2 cu. in.	1267 cc \| 77.3 cu. in.	2286 cc \| 139.5 cu. in.
No. of speeds	F12 x R12	F2 x R2	F12 × R12
Hitch lift capacity	1197 kg \| 2639 lb	704 kg \| 1552 lb	1220 kg \| 2689.64 lb
PTO rear	540/750/1000 rpm	540 rpm	540/750 rpm
Fuel tank	33 L \| 8.71 gal	25 L \| 6.60 gal	34 L \| 9.0 gal
Overall length with 3-point hitch	3010 mm \| 118.5 in.	2660 mm \| 104.72 in.	3220 mm \| 126.77 in.
Overall width	1410 mm \| 55.5 in.	1390 mm \| 54.72 in.	1330 mm \| 54.5 in.
Wheelbase	1640 mm \| 64.6 in.	1550 mm \| 61.02 in.	2155 mm \| 84.84 in.
Height to top of ROPS	2590 mm \| 101.9 in.	2615 mm \| 102.95 in.	2560 mm \| 100.78 in.
Min. ground clearance	360 mm \| 14.2 in.	260 mm \| 10.24 in.	345 mm \| 13.58 in.
Weight with ROPS	1475 kg \| 3252 lb	1025 kg \| 2259.74 lb	1520 kg \| 3351.02 lb
Weight with cab	-	-	-
Agricultural - Front	8.0-16	6.0-12	7-16
Agricultural - Rear	12.4-24	9.5-20	11.2-24
Download	Technical Brochure	Technical Brochure	Technical Brochure
