K48

Series 2 , Compact Tractors

REQUEST QUOTE

Engine manufacturer

48 PS

Engine power

1365 kg

Hitch lift capacity

Build My Tractor

Explore Tractor in 3D

Technical Specification

Compatible Attachments

A compact tractor that doesn’t compromise on performance

This compact tractor makes an impact with its remarkable performance in a small package. The K42 combines a powerful engine and productivity features that make quick work of a variety of tasks.

DOWNLOAD BROCHURE

*Images on this page are for illustrative purposes only. The actual product may vary.

4-cylinder high-output TYM diesel engine

Equipped with a powerful 4-cylinder, Stage V engine, this tractor boasts the power of a mid-sized tractor while maintaining a compact size.

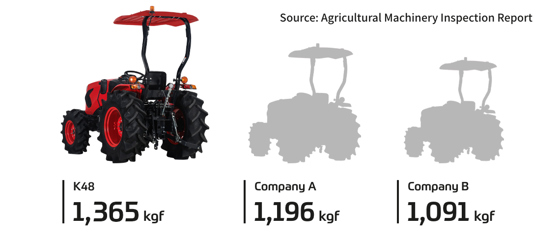

Excellent lift capacity

The three-point lift makes it easy to lift even the heaviest tools and allows for a wide range of attachments.

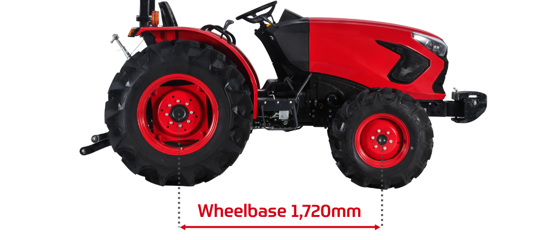

Maximized wheelbase

The wheelbase has been maximized for increased stability and towing power.

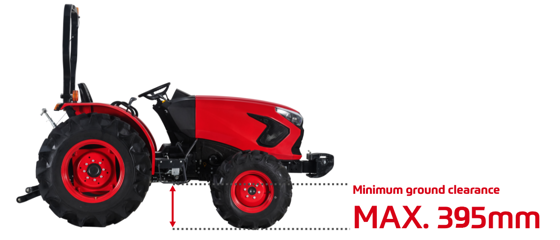

High ground clearance in class

A high ground clearance means that you can prevent damage to crops in the field and work more efficiently. (Up to 395 mm)

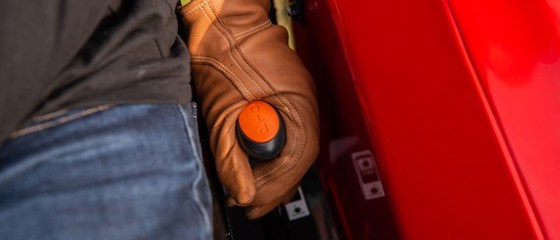

PTO lever

Control the RPM of the implement during operation with the PTO lever.

Wide/low tires

Wider tires with low walls allows higher maneuverability in low-ceiling greenhouses.

Yanmar diesel engine

The narrow turning radius makes it easy to make turns in tight spaces.

41 HP PTO

Best-in-class PTO output makes even plowing quick and easy.

All the right features to get the job done

Complete a range of jobs with a TYM Series 2 tractor. Achieve results faster with a powerful high-torque engine, control implements easily with a PTO switch, and stay energized with an ergonomically designed operator station.

1. Tilt steering wheel

2. Digital Instrument Panel

3. PTO switch

4. External hydraulic control lever

5. Rear LED work light

6. Rear external hydraulic valve

Designed for applications in and around your property

The Series 2 tractor is both compact and powerful and delivers workhorse performance time after time.

The Stage V engine is powerful and efficient, and the cab is ergonomically designed with the operator in mind.

With a wide range of attachments suitable for managing orchards, greenhouses, and more, the Series 2 tractor meets the highest expectations while delivers satisfying results.

Arable Farming

Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.

Construction

Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.

Snow Clearing

TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.

Landscaping

Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

STORIES FROM THE FIELD

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

SEE TYM’S CUSTOMER STORIES

Technical Specification

Tractors Model	K48	K42	K48C
Engine manufacturer	TYM T2300	TYM T2000	TYM T2300
Engine power	48 PS \| 35.5 kW	43 PS \| 31.5 kW	48 PS \| 35.5 kW
Rated engine speed	2600 rpm	2600 rpm	2600 rpm
Displacement	2287 cc \| 139.56 cu. in.	2084 cc \| 127.17 cu. in.	2287 cc \| 139.56 cu. in.
No. of speeds	F12 × R12	F12 × R12	F12 × R12
Hitch lift capacity	1365 kg \| 3009 lb	1340 kg \| 2954 lb	1365 kg \| 3009 lb
PTO rear	540/750/1000 rpm	540/750 rpm	540/750/1000 rpm
Fuel tank	27 L \| 7.13 gal	27 L \| 7.13 gal	50 L \| 13.20 gal
Overall length with 3-point hitch	3160 mm \| 124.40 in.	3090 mm \| 121.65 in.	3325 mm \| 130.90 in.
Overall width	1535 mm \| 60.43 in.	1415 mm \| 55.70 in.	1550 mm \| 61.02 in.
Wheelbase	1720 mm \| 67.71 in.	1670 mm \| 65.74 in.	1750 mm \| 68.89 in.
Height to top of ROPS	2450 mm \| 96.45 in.	2360 mm \| 92.91 in.	-
Min. ground clearance	395 mm \| 15.55 in.	365 mm \| 14.37 in.	395 mm \| 15.55 in.
Weight with ROPS	1580 kg \| 3483.30 lb	1535 kg \| 3384.09 lb	-
Weight with cab	-	-	1810 kg \| 3990.36 lb
Agricultural - Front	9.5-16	8-16	9.5-16
Agricultural - Rear	13.6-24	12.4-24	13.6-24
Download	-	Technical Brochure	Technical Brochure
