6M145
John Deere , Import Tractors

Engine manufacturer
165 PS
Engine power
Command quad
Transmission type

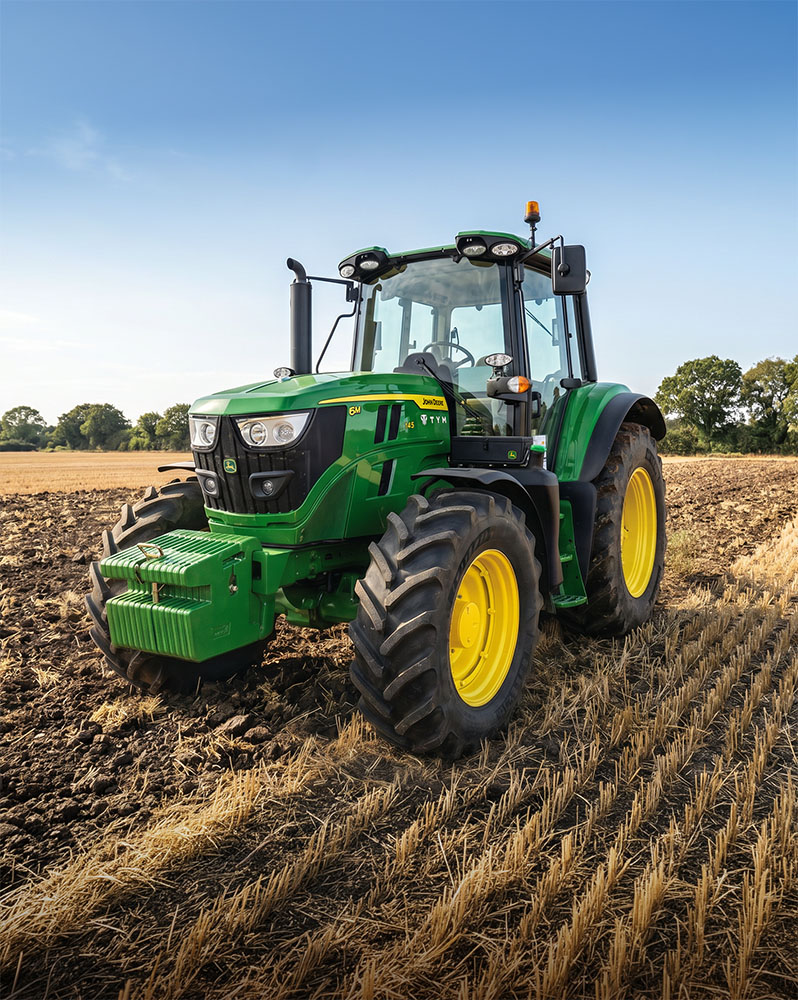

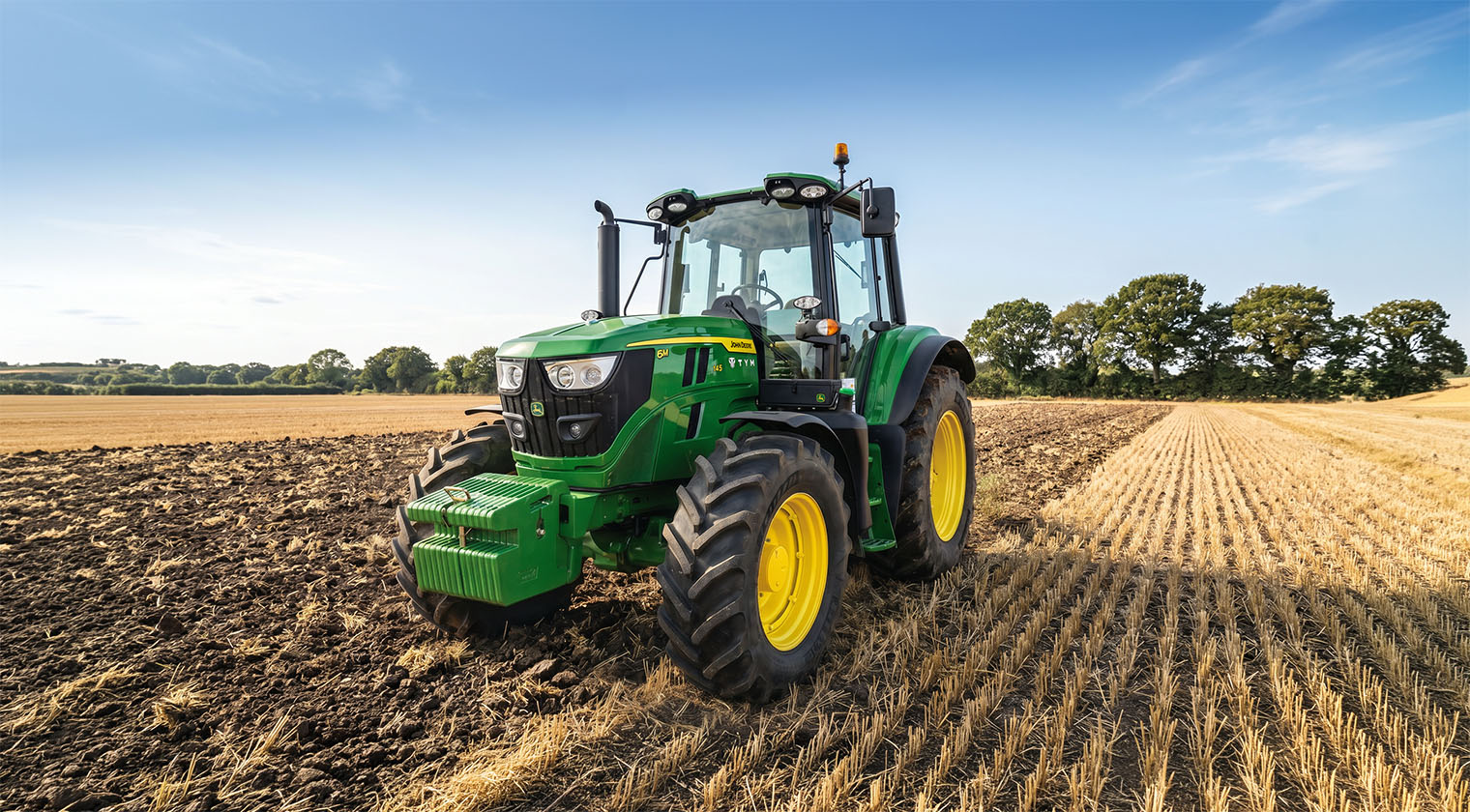

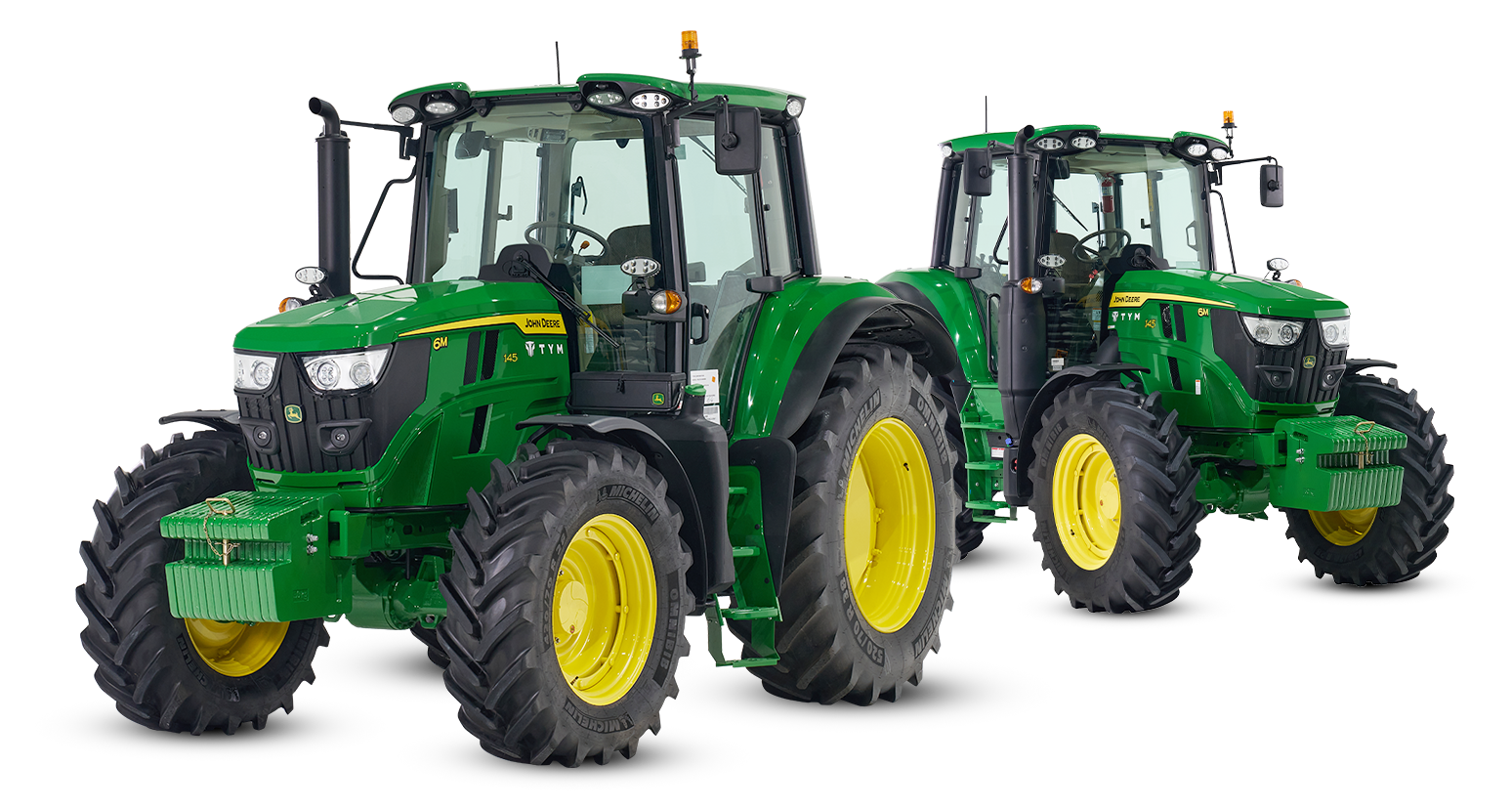

Powerful Performance, the Beginning of Premium
The 6M145 is a premium tractor optimized for mid- to large-scale working environments. Equipped with Korea’s first CommandQuad transmission and a 6-cylinder engine, it delivers precise power control, strong traction, and outstanding durability.
*Images on this page are for illustrative purposes only. The actual product may vary.

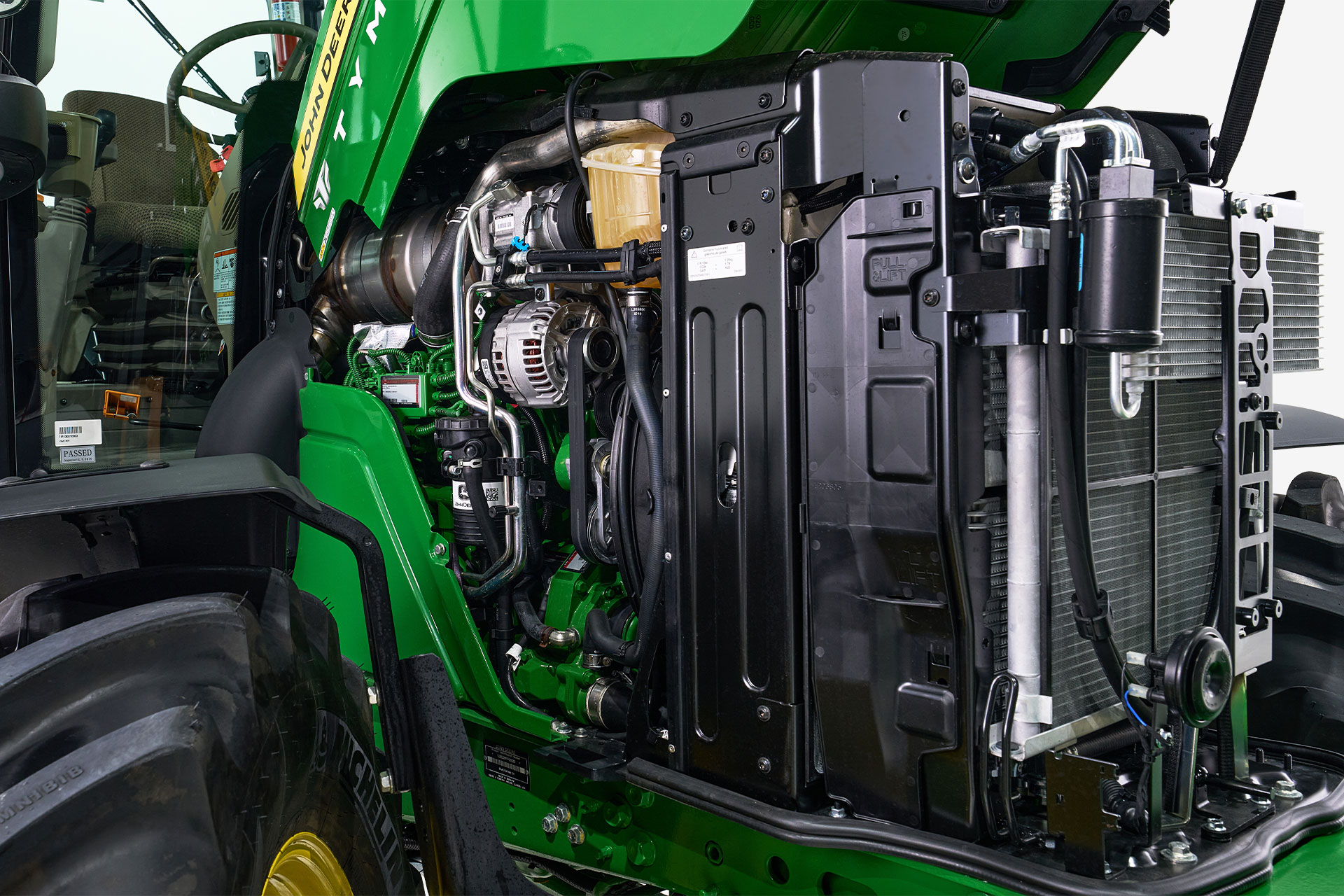

owerful Performance with a High-Output 6-Cylinder Engine
Equipped with a 6-cylinder John Deere engine, it delivers exceptional power for large-scale fields and high-load working environments.

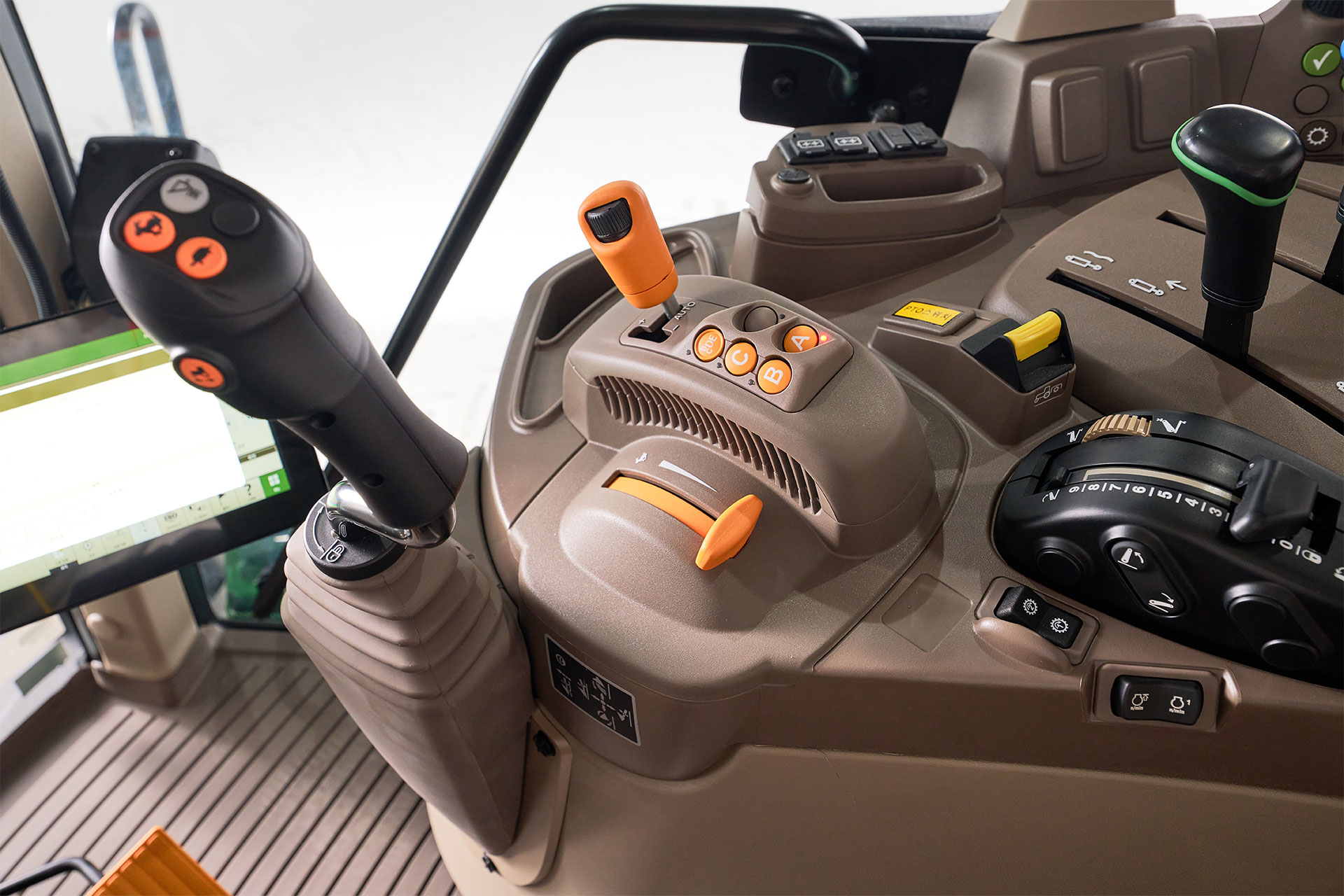

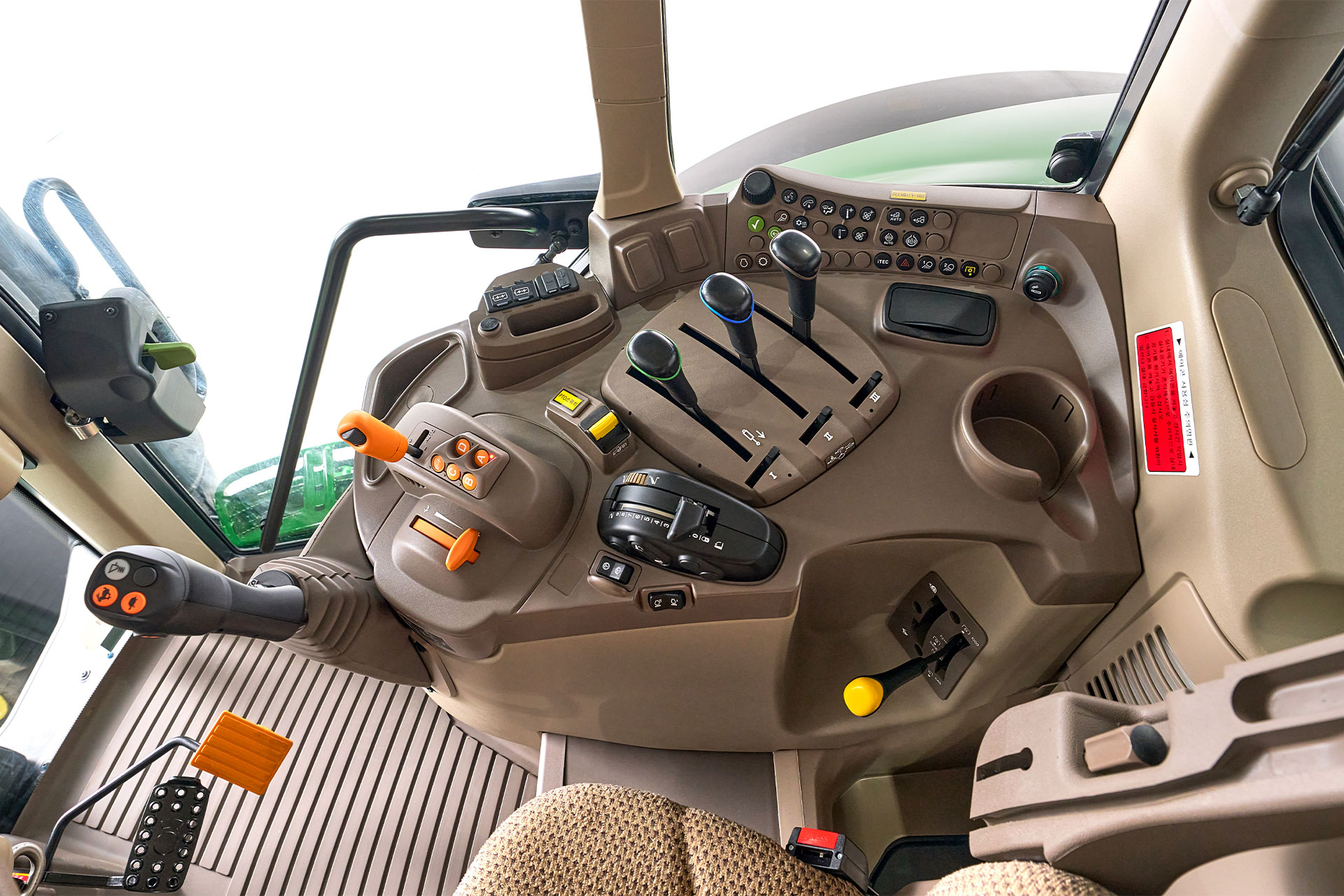

Korea’s First CommandQuad Transmission
Featuring Korea’s first CommandQuad electronic push-button shifting system, it allows operators to shift through 5 main gears × 4 range gears with a single touch, without using the clutch.

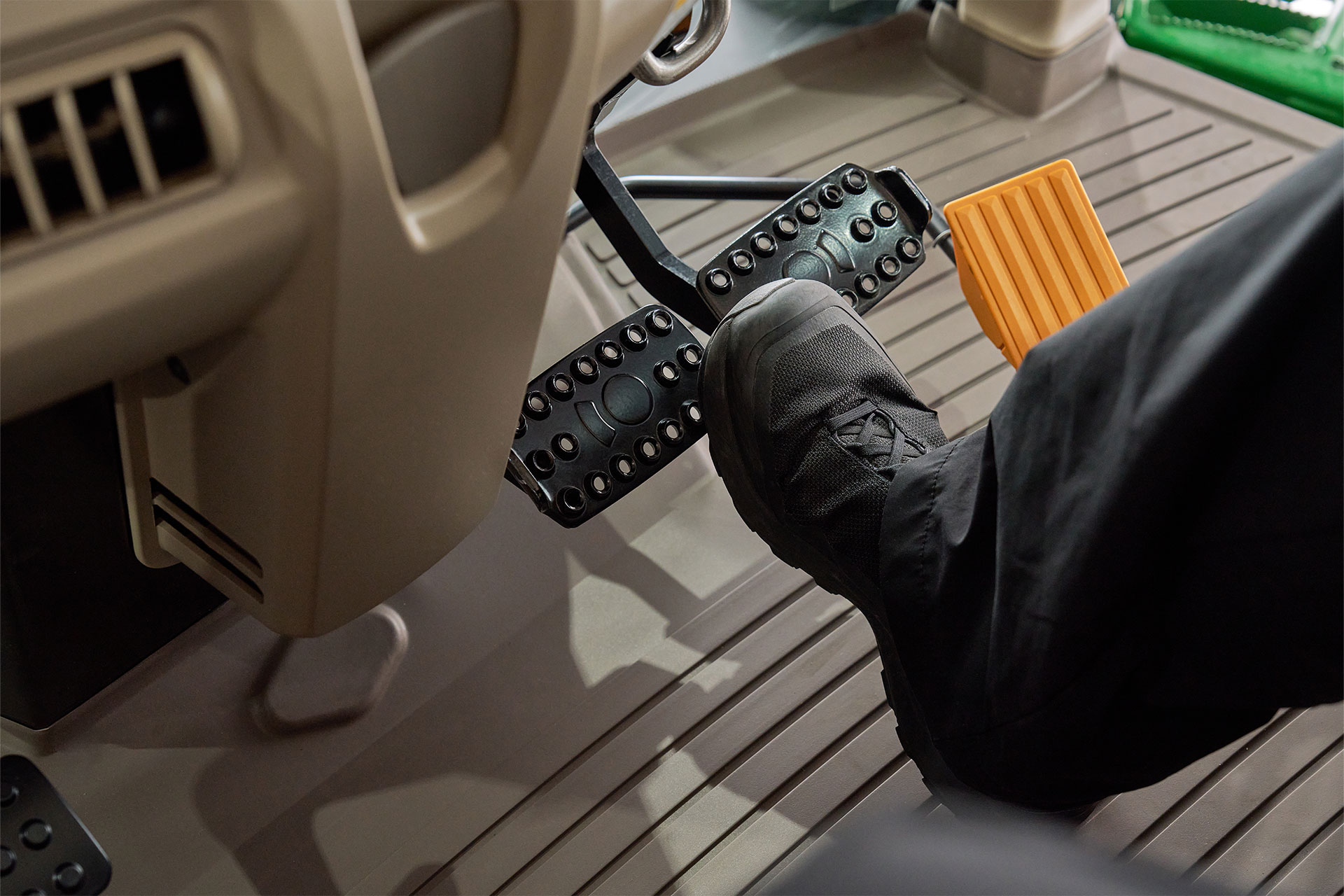

AutoClutch — Brake Without the Clutch
With the AutoClutch function, pressing only the brake pedal automatically disengages the drive, allowing the tractor to stop and start without clutch operation. This significantly reduces fatigue during repetitive work.

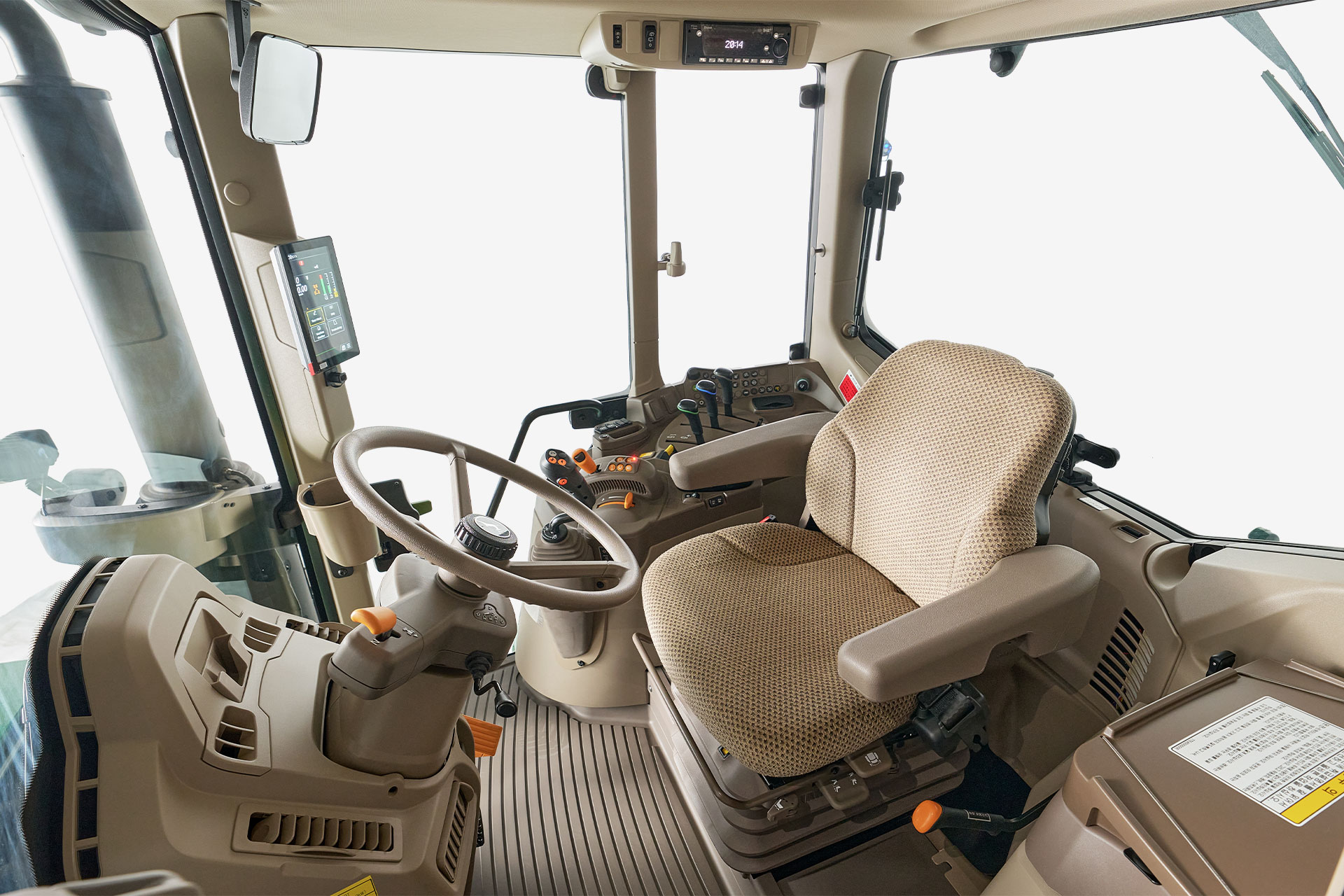

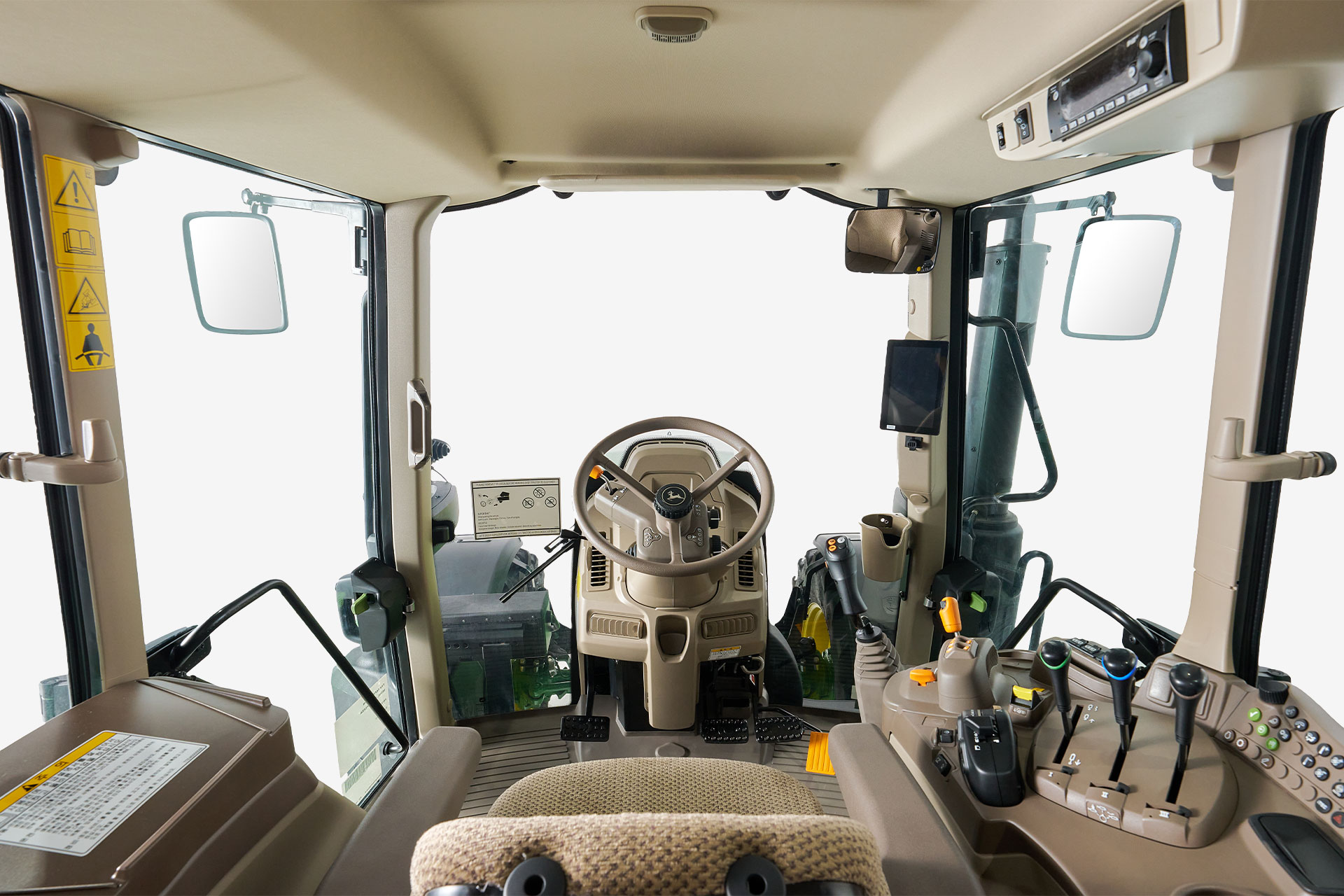

Spacious, Open Cabin
Its generous interior space and open design improve visibility and ease of control, creating a more comfortable working environment even during long hours of operation.

Full Frame Integrated Structure
John Deere’s signature integrated full-frame design minimizes twisting and stress during plowing and loader work, maximizing frame durability and handling long hours of heavy-duty operation with ease.

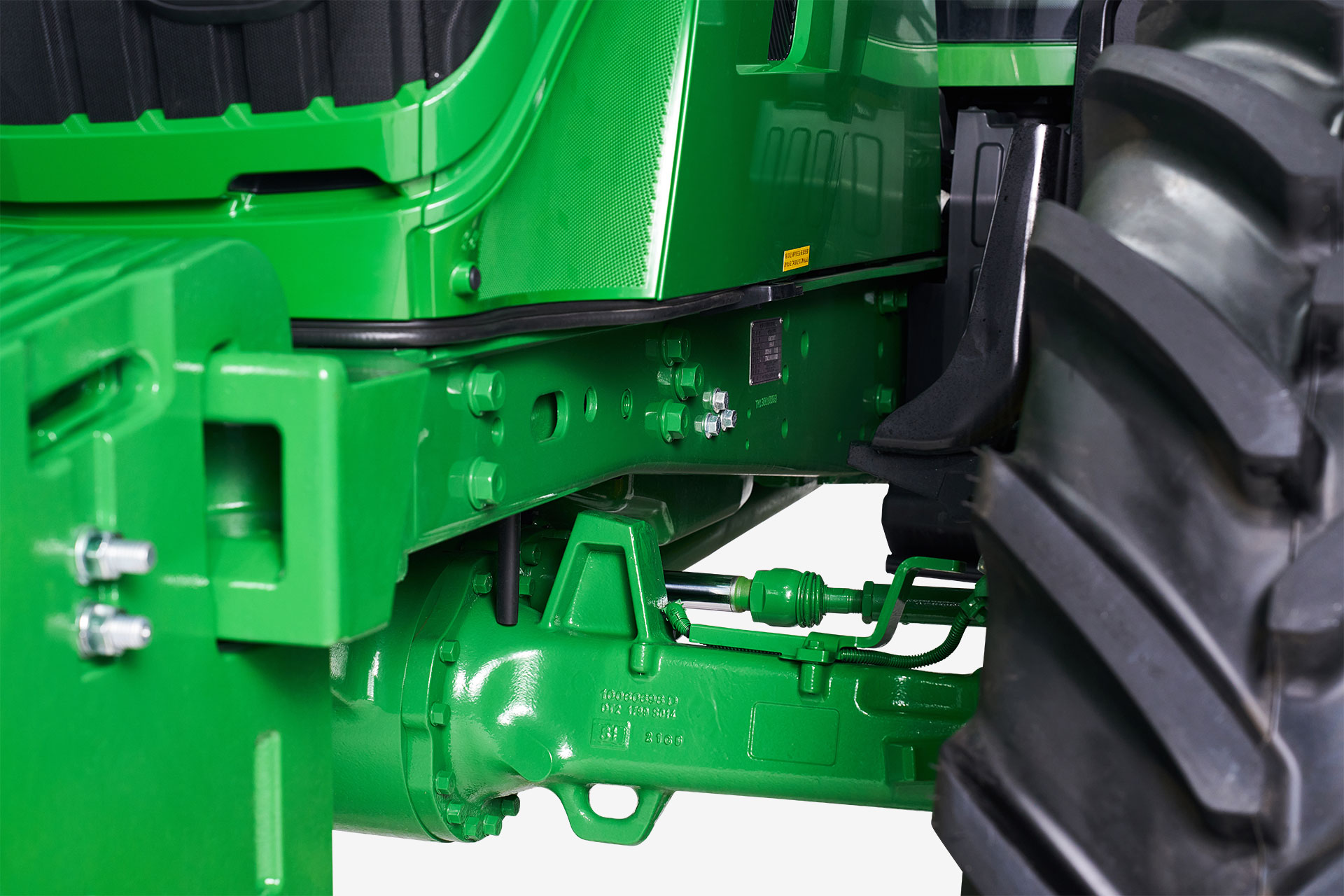

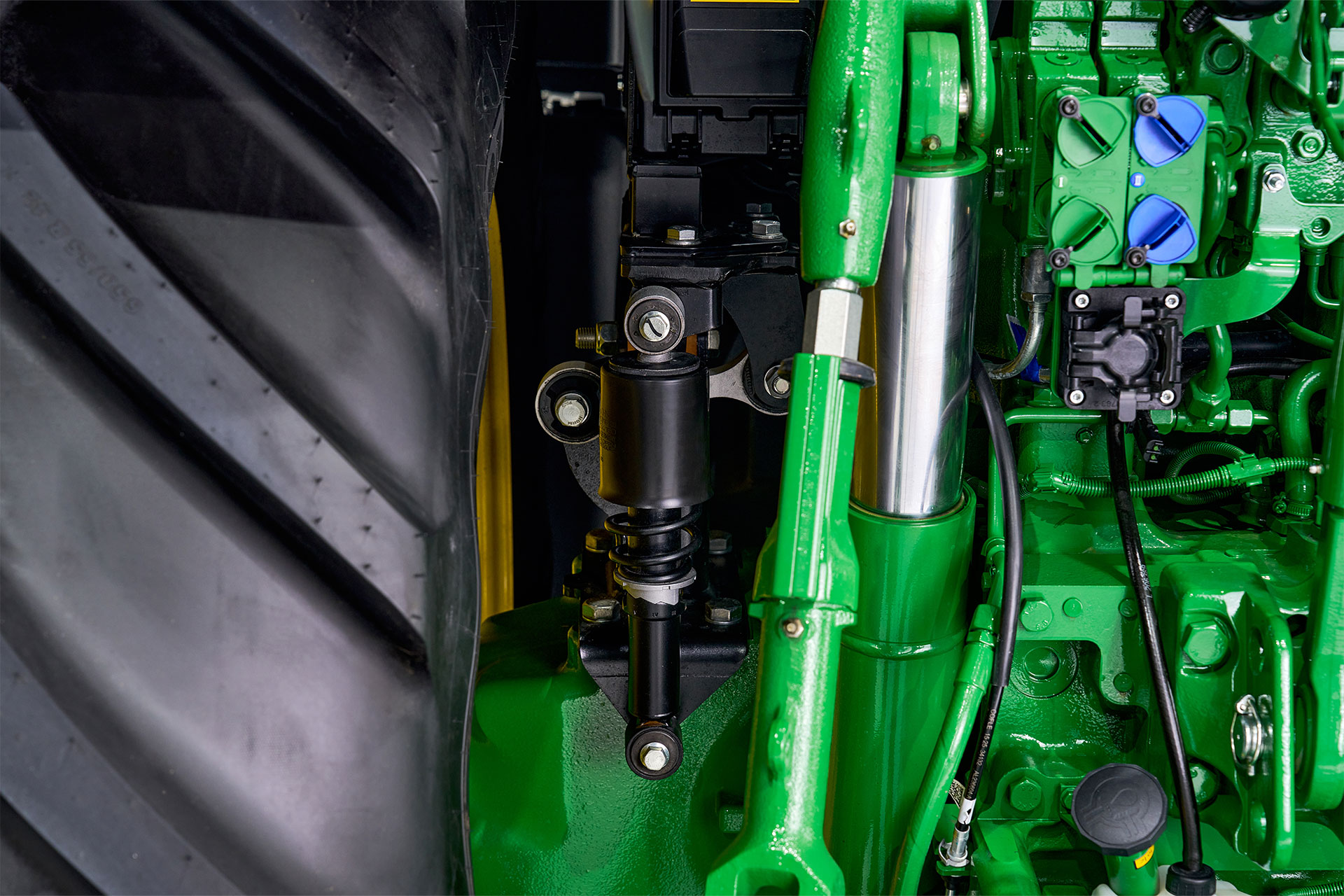

Mechanical Suspension
Equipped with mechanical suspension, it effectively absorbs shocks when traveling on rough farm roads or uneven terrain, helping reduce operator fatigue during extended work.

Simplified Repetitive Tasks with iTEC Automation
By automatically controlling shifting, PTO, and hydraulic functions according to preset conditions, iTEC automation improves convenience and efficiency during repetitive operations.

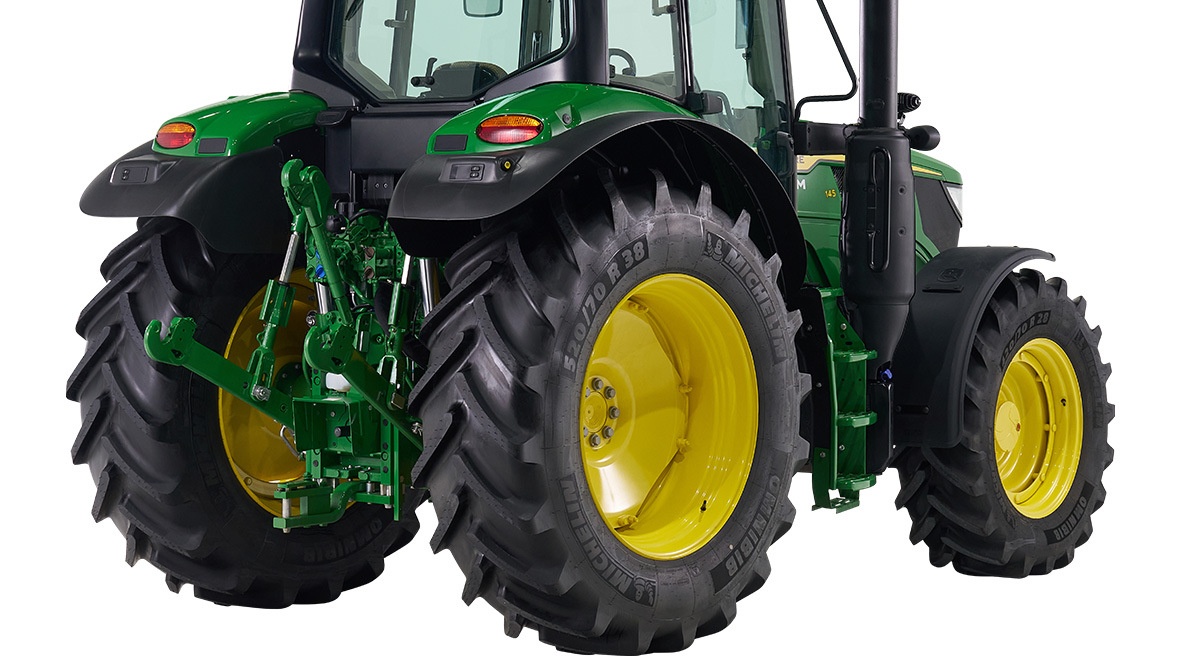

Large Tires That Deliver Stronger Traction
Fitted with the same tire size as Large Frame tractors, it offers improved ground contact and traction performance. Even under heavy loads, it delivers strong and stable driving power for excellent working performance.

Experience premium John Deere tractors with TYM, the first importer in the Korean market.
With a powerful John Deere engine and Korea’s first CommandQuad Plus transmission, it enables more precise, convenient shifting and highly efficient operation.







| Tractors Model | 6M145 ![]() | 6M115 ![]() | 6M130 ![]() | 6M130T ![]() | 6M180 ![]() |
Engine manufacturer | 6068HL555(K) | 4045HL292(G) | 4045HL555(L) | 4545HL555(L) | 6068HL558(G) |
Engine power | 165 PS | 121.3 kW | 135 PS | 99.4 kW | 150 PS | 110.3 kW | 150 PS | 110.3 kW | 200 PS | 147.1 kW |
Rated engine speed | 2100 rpm | 2100 rpm | 2100 rpm | 2100 rpm | 2100 rpm |
Displacement | 6788 cc | 4525 cc | 4525 cc | 4525 cc | 6788 cc |
Transmission type | Command quad | Power quad | Power quad | Commandquad | Command squad |
Overall length with 3-point hitch | 4990 mm | 4370 mm | 4510 mm | 4500 mm | 5750 mm |
Overall width | 2420 mm | 2400 mm | 2320 mm | 2320 mm | 2420 mm |
Height to top of cabin | 3010 mm | 2810 mm | 2830 mm | 2830 mm | 3150 mm |
Wheelbase | 2765 mm | 2400 mm | 2580 mm | 2580 mm | 2420 mm |
Min. ground clearance | 445 mm | 420 mm | 380 mm | 395 mm | 445 mm |
Weight with cab | 7067 kg | 5445 kg | 5580 kg | 5654 kg | 7702 kg |
Fuel tank | 285 L | 175 L | 225 L | 210 L | 285 L |
No. of speeds | 전진 20단 × 후진 20단 | 전진 24단 × 후진 24단 | 전진 24단 × 후진 24단 | 전진 24단 × 후진 24단 | 전진 20단 × 후진 20단 |
PTO rear | 540 / 540E / 1000 | 540 / 540E / 1000 | 540 / 540E / 1000 | 540 / 540E / 1000 | 540 / 540E / 1000 |
