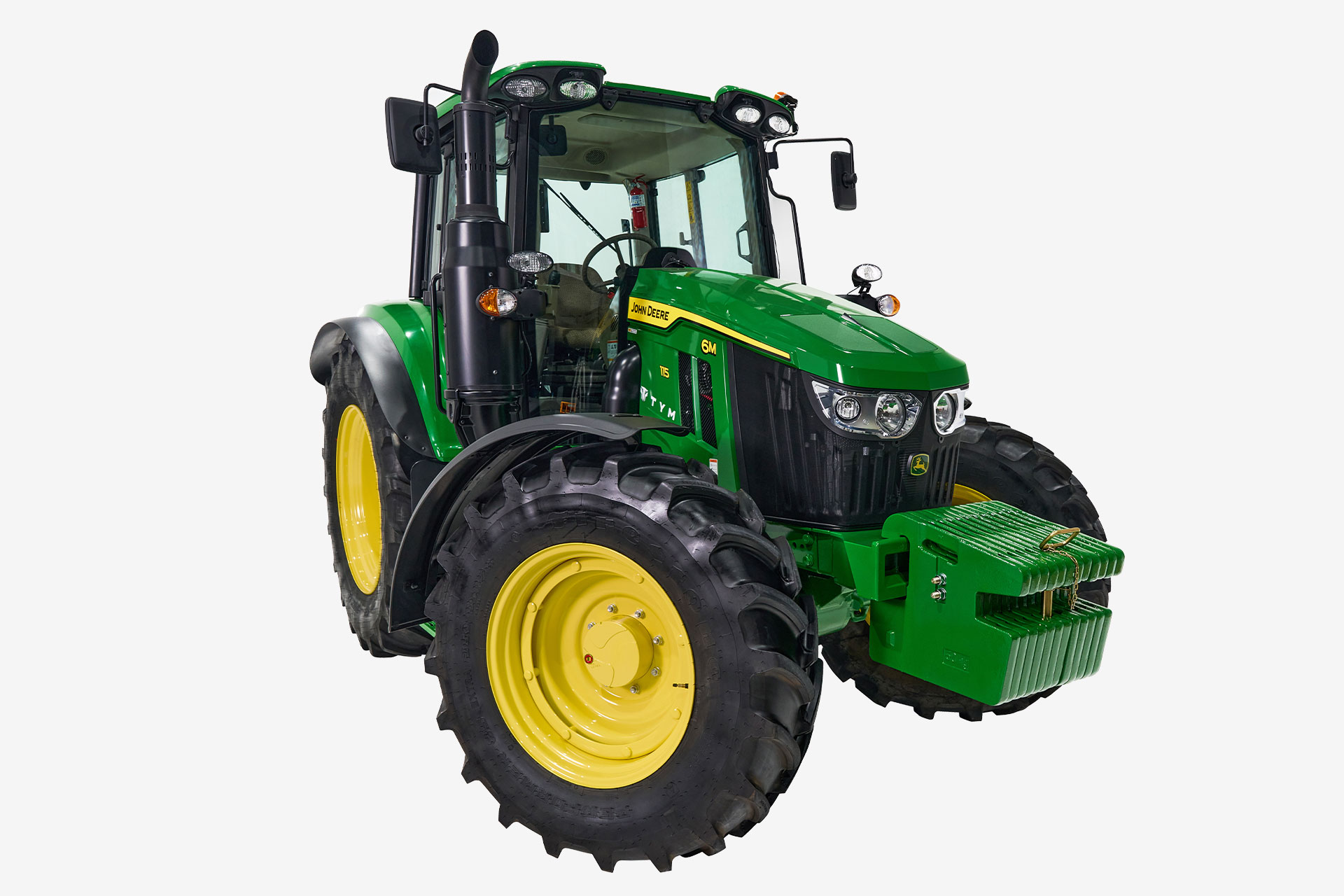

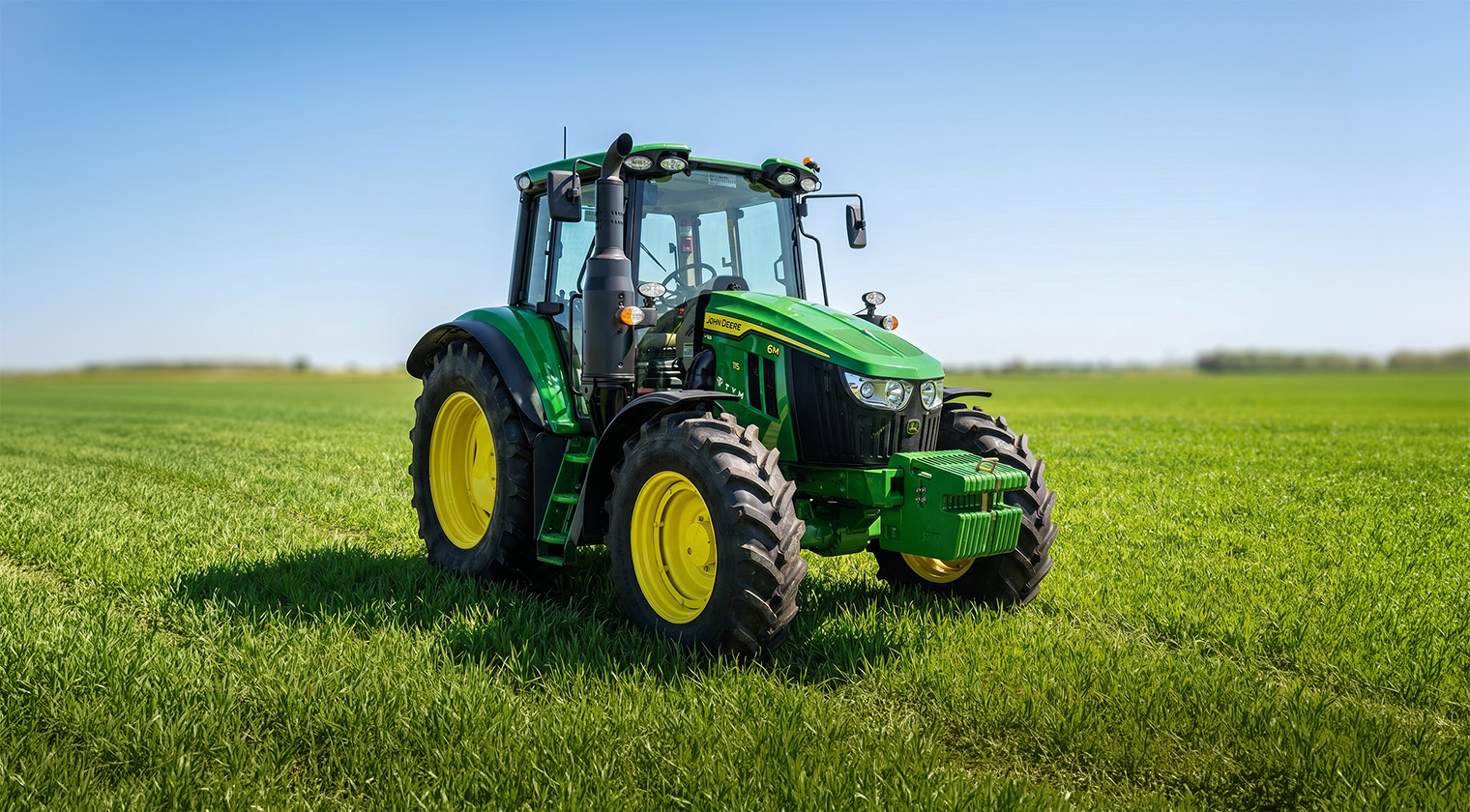

6M115

New

John Deere , Import Tractors

REQUEST QUOTE
Engine Manufacturer

Engine manufacturer

135 PS

Engine power

Power quad

Transmission type


Familiar Reliability, Proven Performance

The practical 6M115 is built to support stable and efficient operation even in tight spaces, based on its proven PowrQuad transmission, compact body, and excellent forward visibility.

DOWNLOAD BROCHURE

*Images on this page are for illustrative purposes only. The actual product may vary.


Experience premium John Deere tractors with TYM, the first importer in the Korean market.

The powerful John Deere engine and PowrQuad Plus transmission, the operator can work smoothly and comfortably.

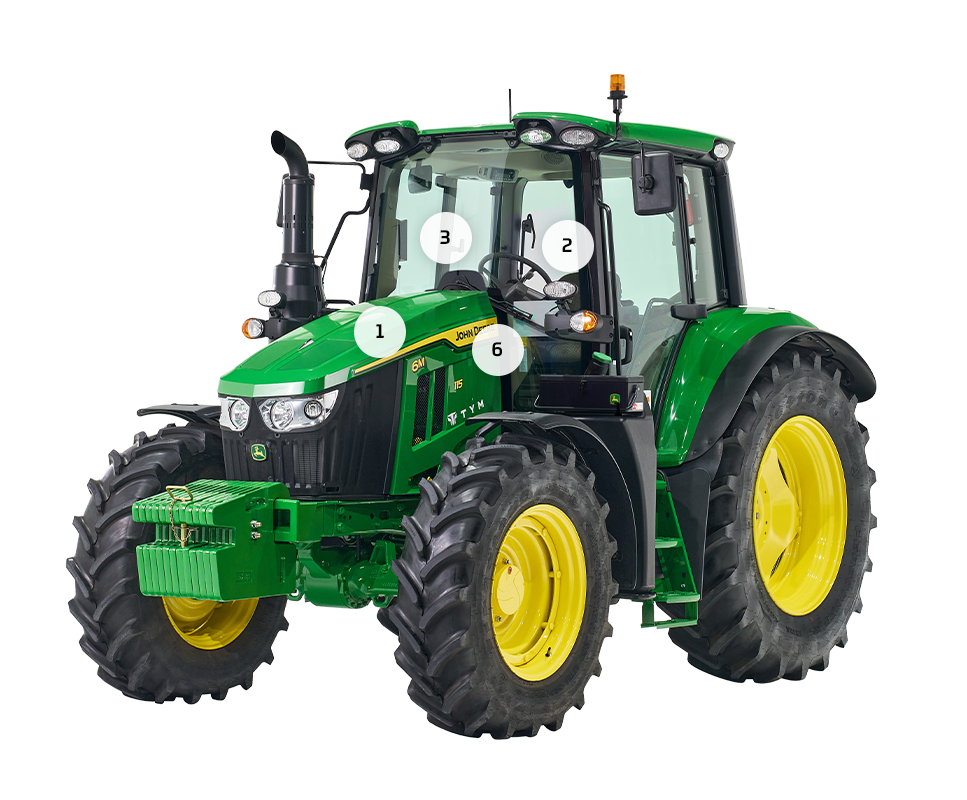

Rotate Image
Rotate Image

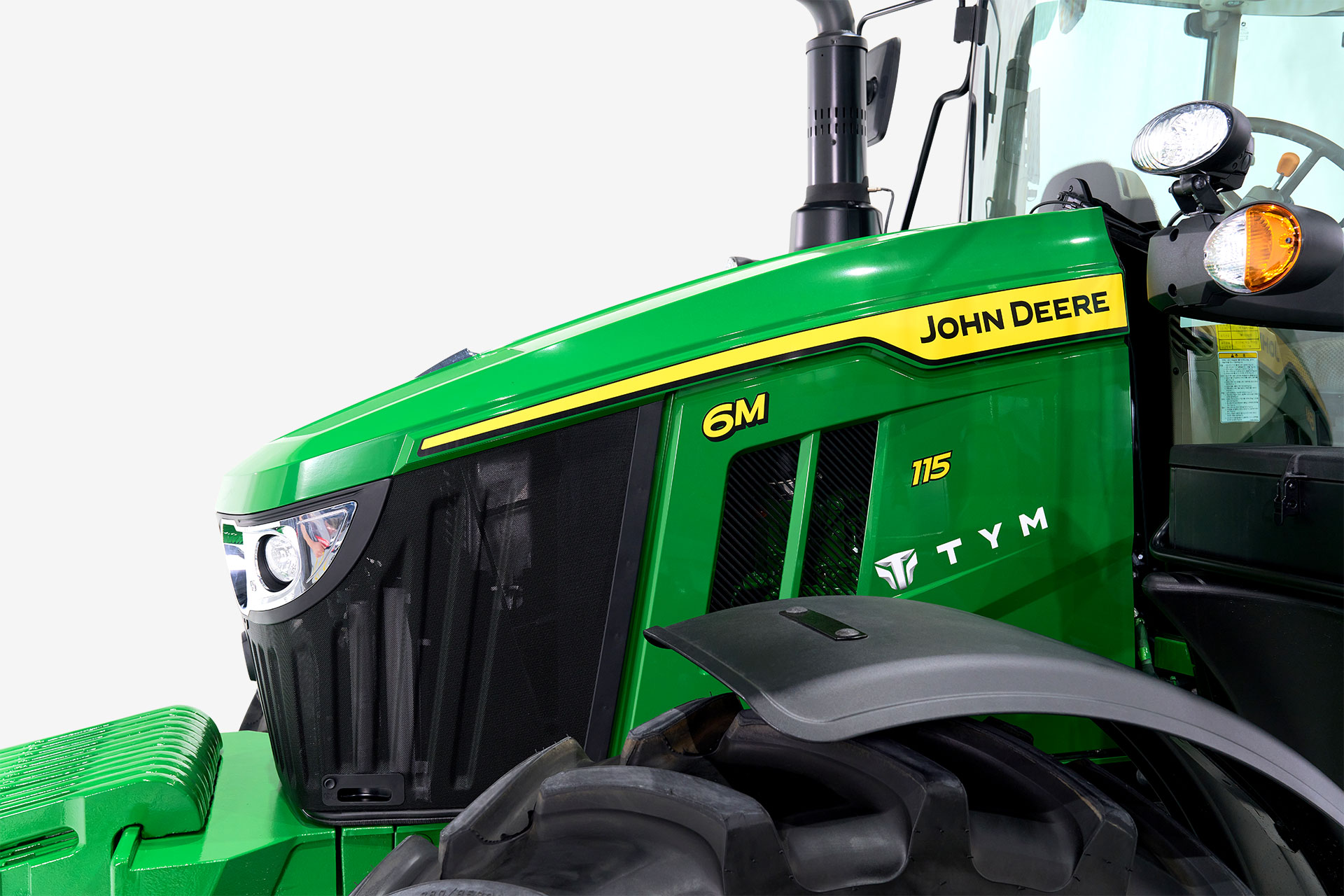

1. Sloped Hood Design
1. Sloped Hood Design

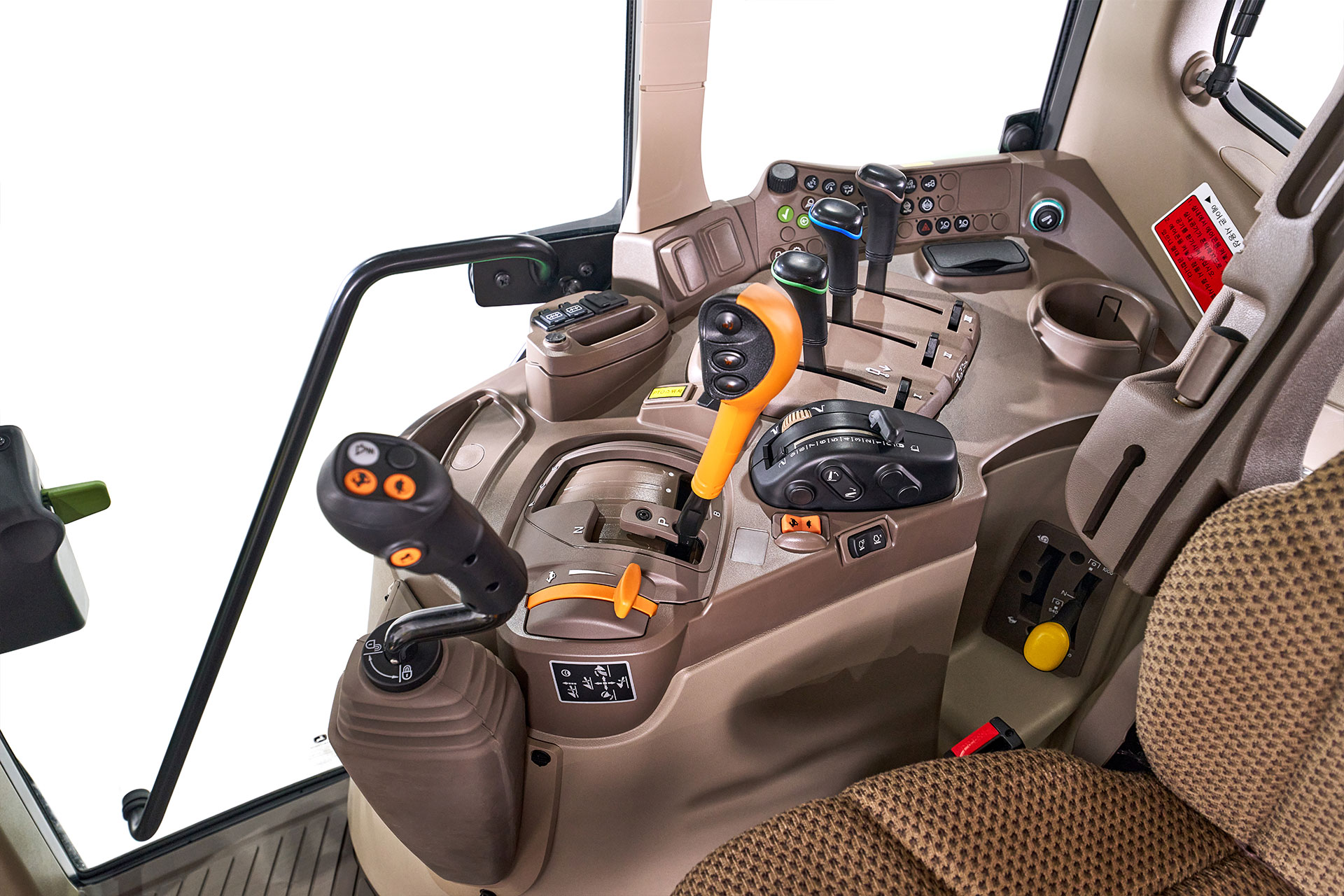

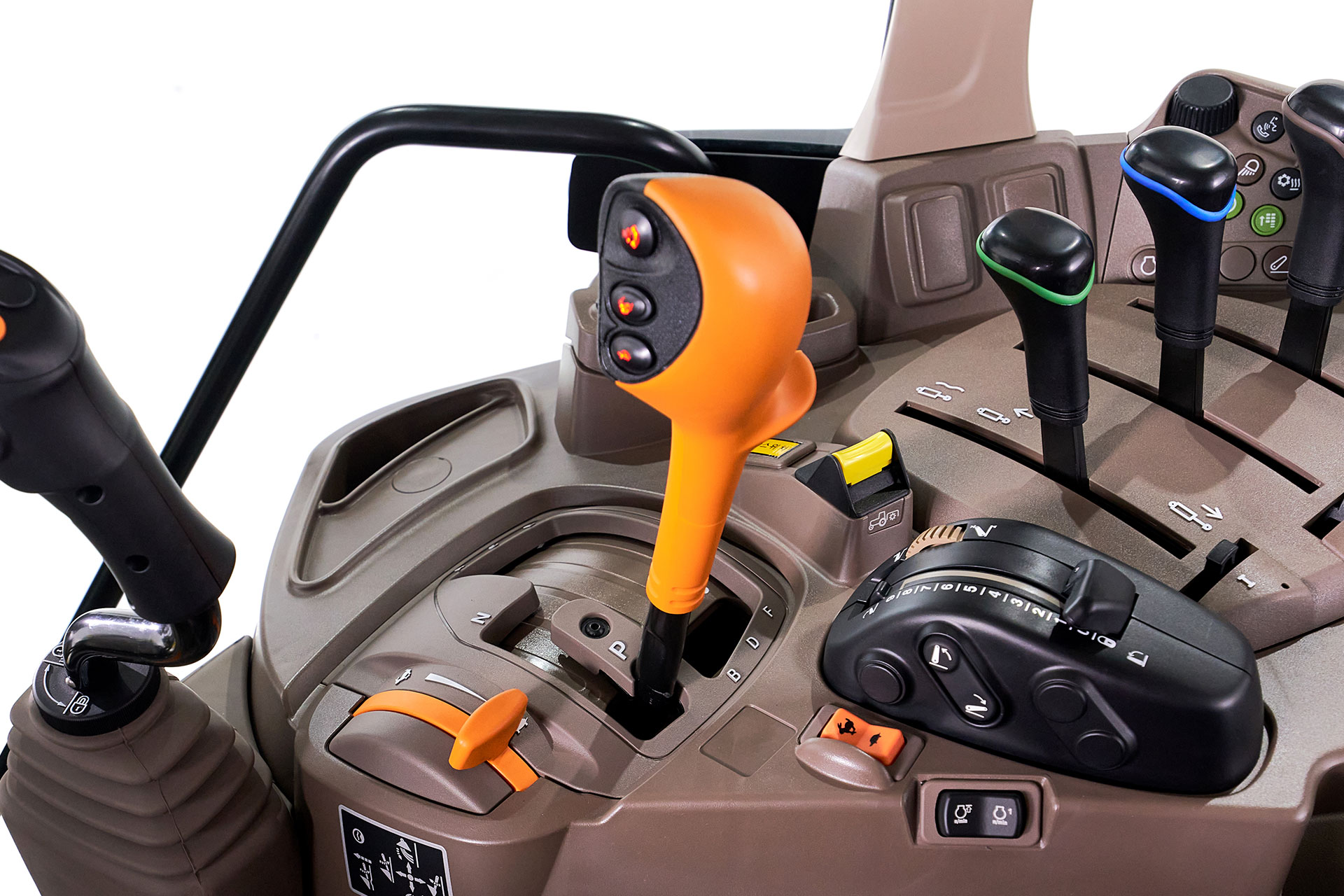

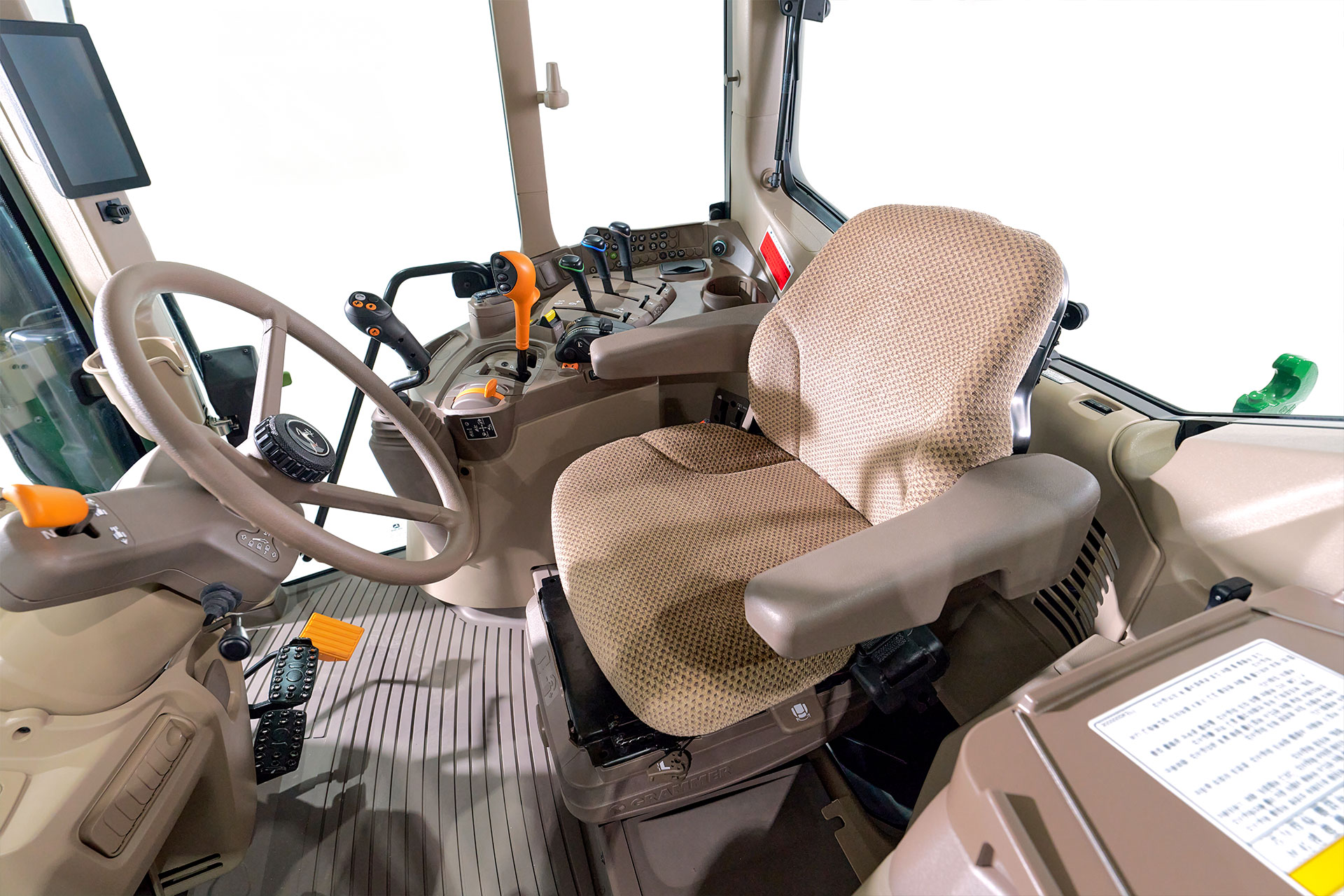

2. Control Panel
2. Control Panel

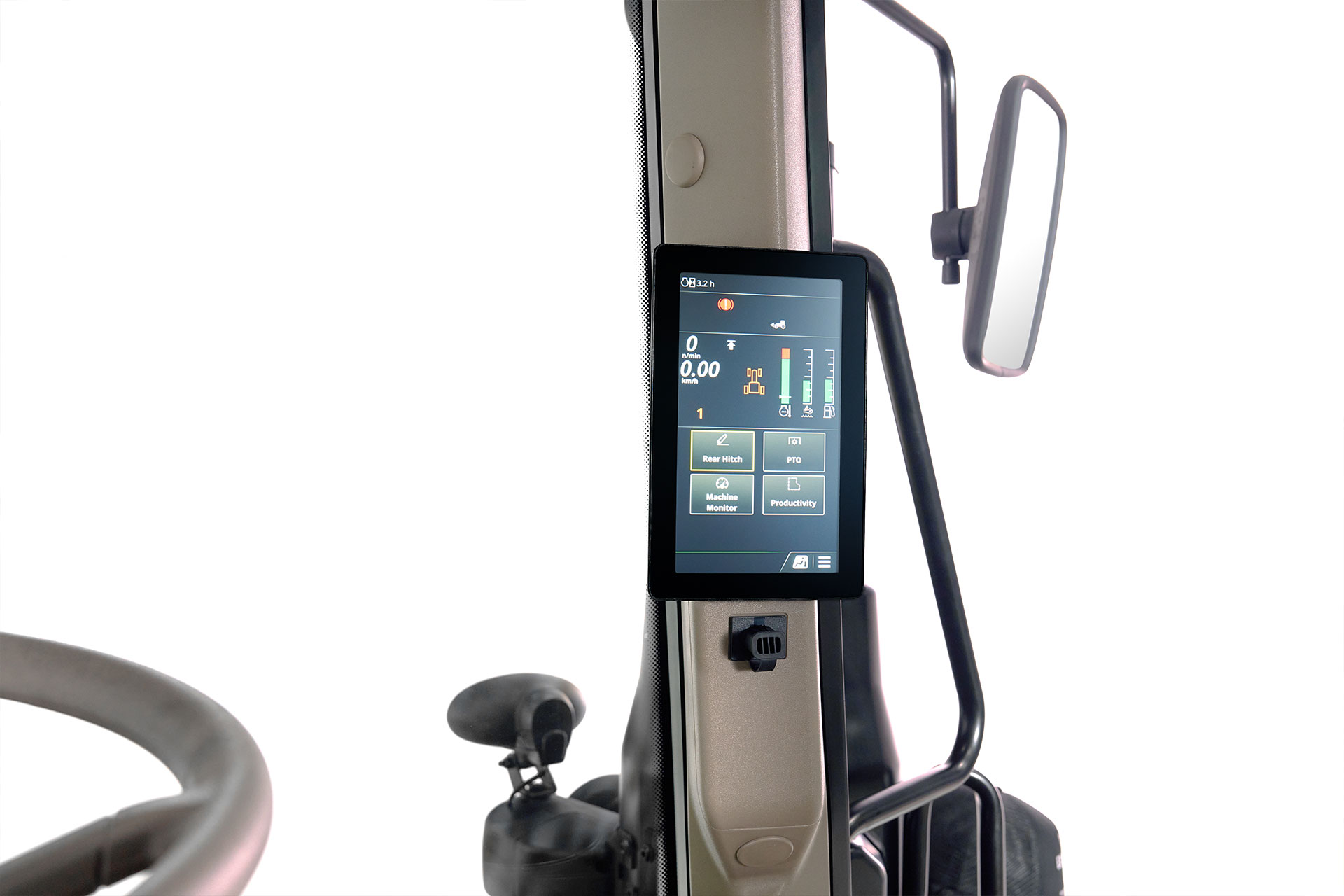

3. Digital Instrument Cluster
3. Digital Instrument Cluster

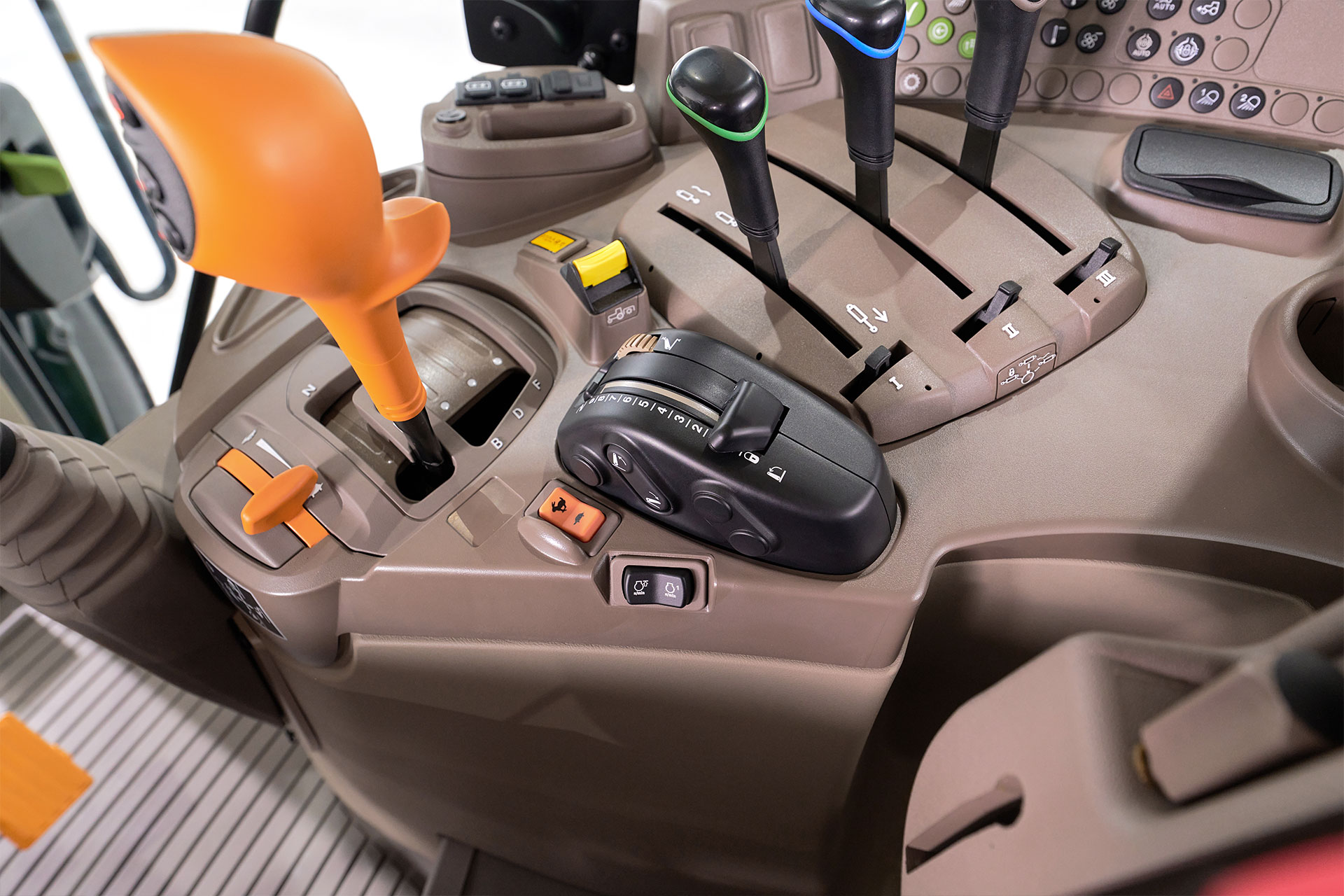

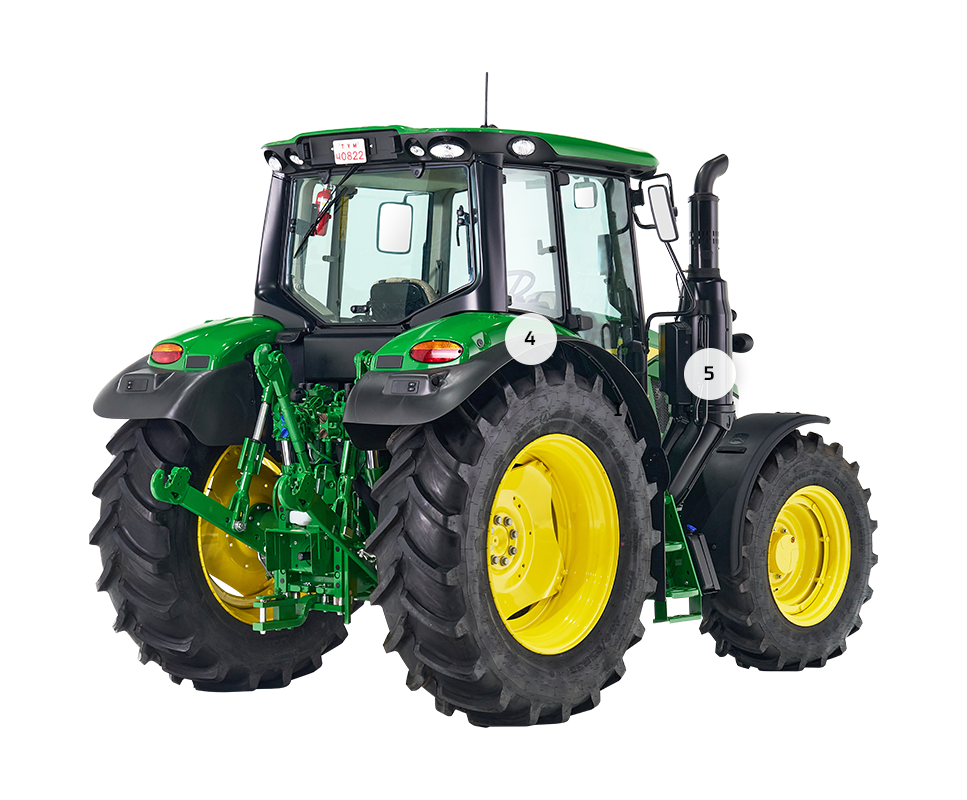

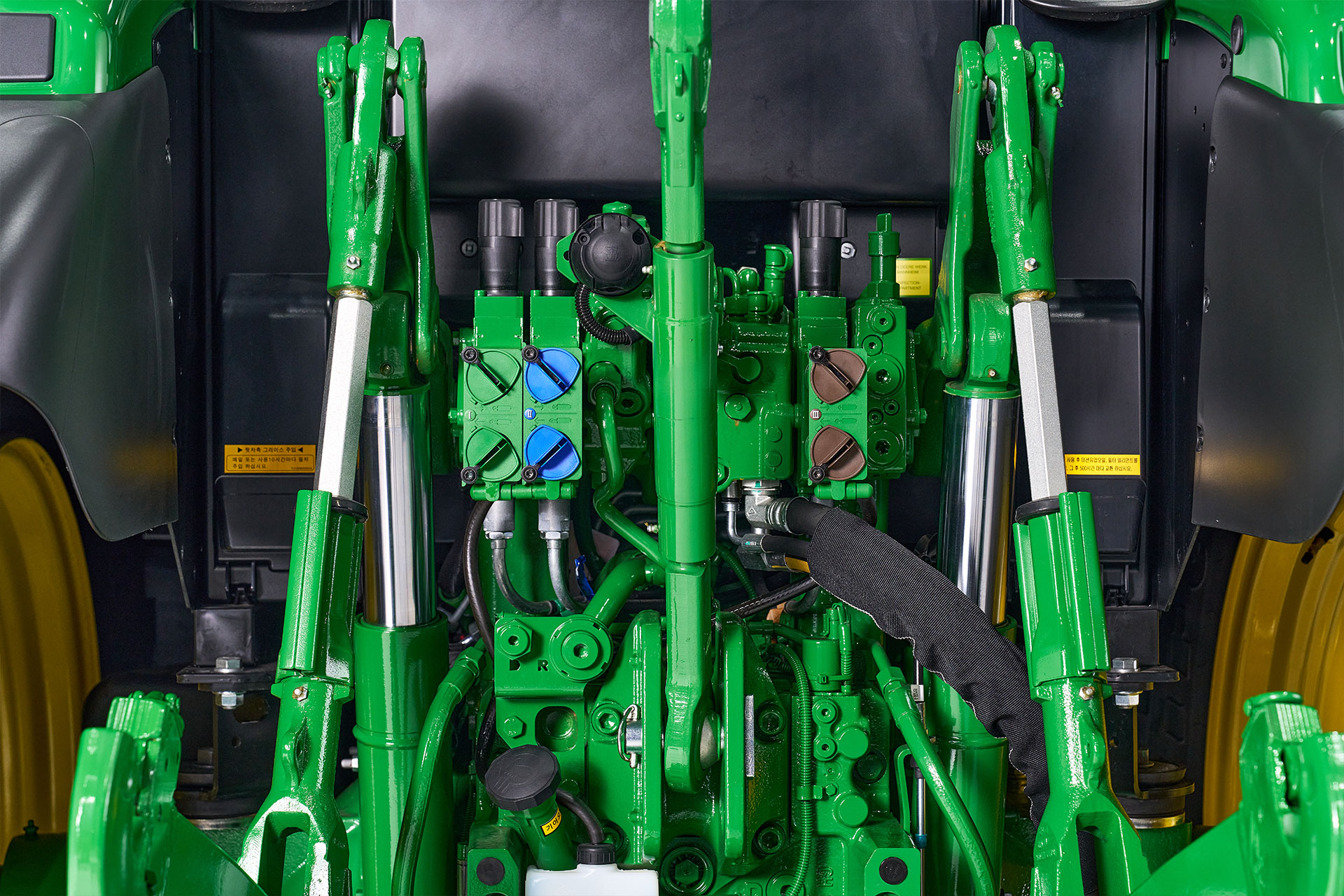

4. Electronic Lift Control
4. Electronic Lift Control

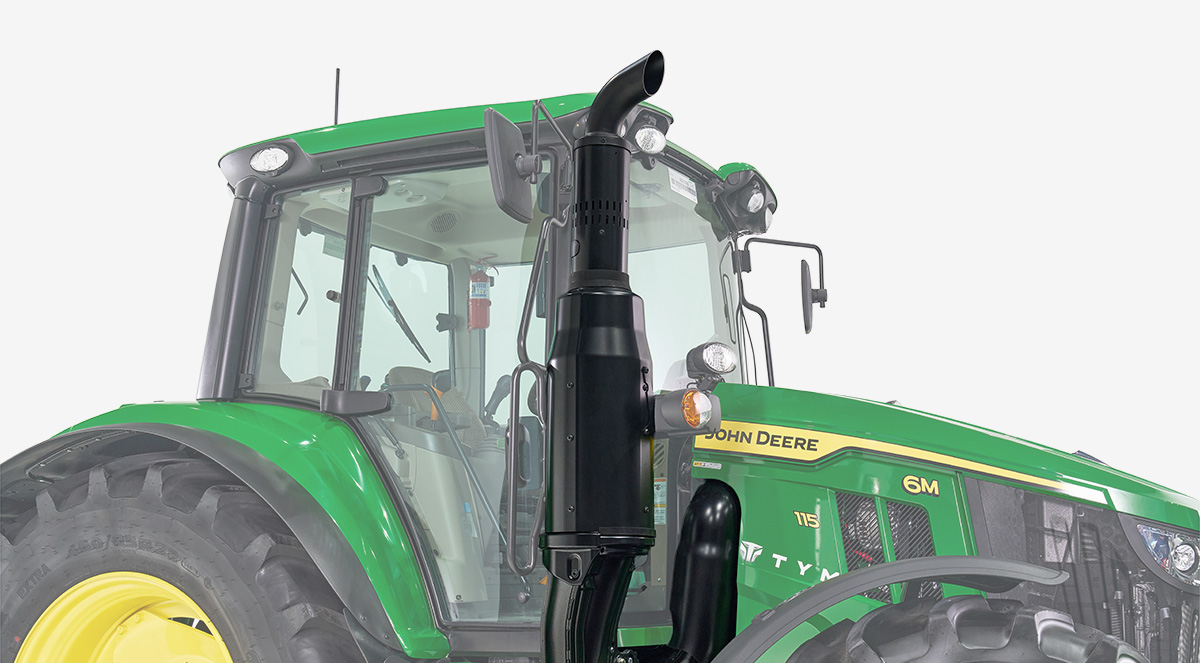

5. Large-Capacity SCR Exhaust Pipe
5. Large-Capacity SCR Exhaust Pipe

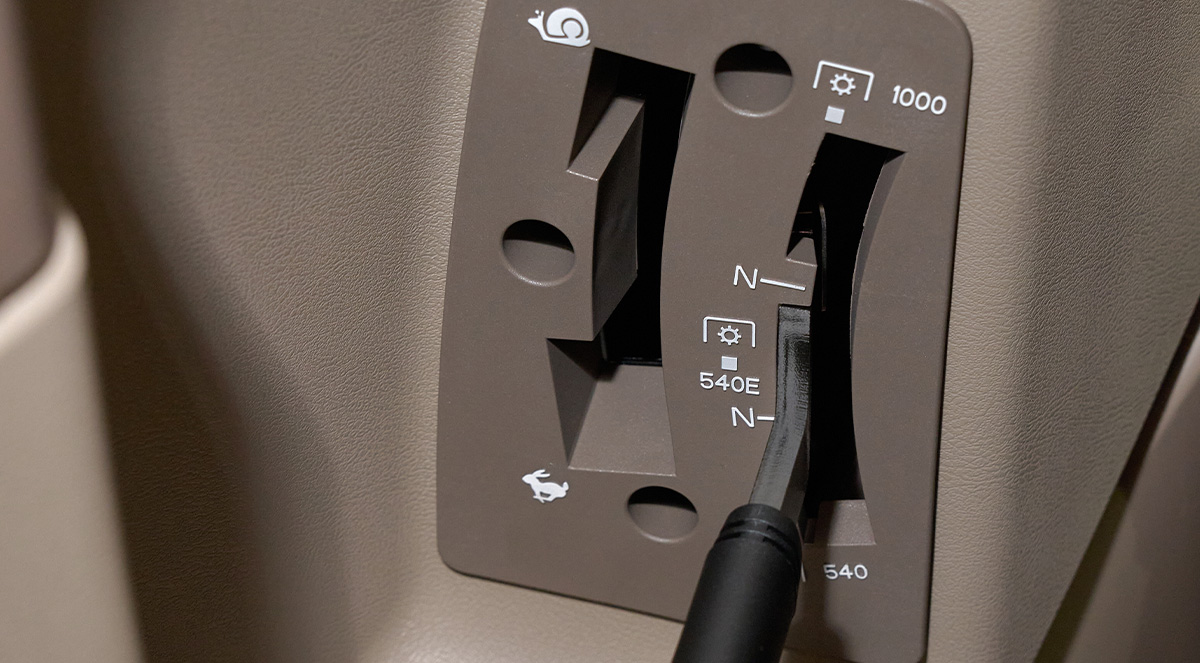

6. 3-Speed PTO
6. 3-Speed PTO

STORIES FROM THE FIELD

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

STORIES FROM THE FIELD
Technical Specification
Tractors Model
6M115
6M115
6M130
6M130
6M130T
6M130T
6M145
6M145
6M180
6M180
Engine manufacturer
4045HL292(G)
4045HL555(L)
4545HL555(L)
6068HL555(K)
6068HL558(G)
Engine power
135 PS | 99.4 kW
150 PS | 110.3 kW150 PS | 110.3 kW165 PS | 121.3 kW200 PS | 147.1 kW
Rated engine speed
2100 rpm
2100 rpm
2100 rpm
2100 rpm
2100 rpm
Displacement
4525 cc
4525 cc
4525 cc
6788 cc
6788 cc
Transmission type
Power quad
Power quad
Commandquad
Command quad
Command squad
Overall width
2400 mm
2320 mm
2320 mm
2420 mm
2420 mm
Height to top of cabin
2810 mm
2830 mm
2830 mm
3010 mm
3150 mm
Wheelbase
2400 mm
2580 mm
2580 mm
2765 mm
2420 mm
Min. ground clearance
420 mm
380 mm
395 mm
445 mm
445 mm
Weight with cab
5445 kg
5580 kg
5654 kg
7067 kg
7702 kg
Track width
F: 380/85R 28
R: 460/85R 38
F: 380/85R 28
R: 460/85R 38
F: 420/70R 28
R: 520/70R 38
F: 540/65R 30
R: 650/65R 42
F: 540/65R 30
R: 650/65R 42
Fuel tank
175 L
225 L
210 L
285 L
285 L
No. of speeds
전진 24단 × 후진 24단
전진 24단 × 후진 24단
전진 24단 × 후진 24단
전진 20단 × 후진 20단
전진 20단 × 후진 20단
PTO rear
540 / 540E / 1000
540 / 540E / 1000
540 / 540E / 1000
540 / 540E / 1000
540 / 540E / 1000
