TJW1233
ISEKI , Import Tractors

Engine manufacturer
124 PS
Engine power
5036 kg
Hitch lift capacity
An imported utility tractor that offers power at an unbeatable value
The TJW1233 is the standard imported tractor resulting from TYM's partnership with Iseki, one of Japan's largest and most established agricultural manufacturers. This utility tractor delivers the power you need without compromising quality.
*Images on this page are for illustrative purposes only. The actual product may vary.

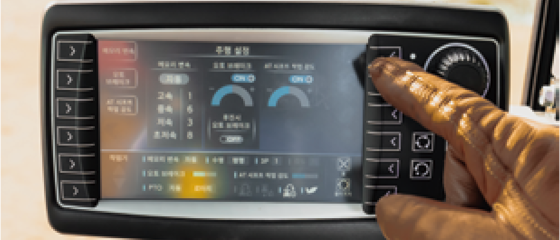

IMLT monitor
Use the monitor to collect and utilize data about your tractor or the task at hand.

Escort light
The work lamp stays on for an additional 30 seconds after turning off the engine to ensure safe disembarkation during night work.

3-point hitch with increased lift capacity
Take advantage of the enhanced lift capacity to tackle challenging tasks such as rotary tilling and weeding by effectively controlling the attachment's RPM using the PTO lever.

Ergonomic interior for operator comfort
The main control panel, designed specifically for driver comfort and productivity, makes combine operation effortless with key controls within easy reach. The digital instrument panel provides notifications and diagnostic information at a glance. Spacious seats and the flat floor, equipped with rubber mats, ensure safe, comfortable, and easy entry and exit from the operator cabin.

Electric/Hydro hitch control system
This tractor comes equipped with a Bosch electro-hydraulic control (EHC) system for the rear hitch, The system allows for faster and more accurate responses to changes in power and position, enabling operators to lift and lower the hitch gear to exacting specifications. The system is especially useful for row crop farming, allowing more precise tillage and boosting the quality of harvest.

Power steering with hydraulic tilt for optimal ergonomics
The power steering of this tractor comes with a tilt function that allows operators to move the steering vertically to find the ideal position for easier turning. Other features like adjustable suspension seating and the hydraulic axle configuration also minimize fatigue and contribute to a more comfortable driving experience.

Super full turn
The dial allows for convenient operation, reduces dirt movement, and has a short turning radius.

Features that combine optimal power, lift, transmission and dimensions for greater results
With an efficient engine, robust transmission, powerful implement controls and deluxe operator comfort, this utility tractor is built to help you complete the toughest tasks with greater productivity.






Designed for applications in and around your property
Exclusively supplied by TYM, ISEKI tractors offer reliable performance at a low cost. They come equipped with a Deutz engine with common rail system, boasting impressive power and high efficiency.
ISEKI tractors provide optimal performance for heavy-duty applications such as construction, land clearing, and forestry.

Material Handling
Maximized front and hitch lift capabilities allow you to carry large volumes of material at once, minimizing the number of trips and promoting operational efficiency.ting operational efficiency.

Construction
Use this tractor as your primary piece of machinery for an entire project, or in tandem with other construction equipment to build your vision.

Land Clearing & Forestry
From flattening large mounds of soil to clearing shallow-rooted trees, this tractor is equipped to crush, tow and lift away the hurdles for your operations.

Arable Farming
Equipped with versatile functionality in a heavy-duty design, this tractor promotes productivity from soil preparation and seeding to irrigation and harvest.

Tractors Model | TJW1233 ![]() | TJV755 ![]() | TJV985 ![]() |
Engine manufacturer | Deutz TCD 4.1L4 | Deutz TCD 2.9L4 | Deutz TCD 3.6L4 |
Engine power | 124 PS | 91 kW | 74.3 PS | 55.4 kW | 101 PS | 74.5 kW |
Rated engine speed | 2100 rpm | 2200 rpm | 2200 rpm |
Displacement | 4038 cc | 246.4 cu. in. | 2925 cc | 178.5 cu. in. | 3621 cc | 221 cu. in. |
No. of speeds | F32 × R32 | F24 × R24 | F32 × R32 |
Hitch lift capacity | 5036 kg | 11102.5 lb | 2090 kg | 4607.7 lb | 2775 kg | 6117.9 lb |
PTO rear | 540/540E/1000 rpm | 565/793/1014/540(Reverse) rpm | 565/793/1014/540(Reverse) rpm |
Fuel tank | 160 L | 42.3 gal | 120 L | 31.7 gal | 120 L | 31.7 gal |
Overall length with 3-point hitch | 4285 mm | 168.7 in. | 3395 mm | 133.7 in. | 4190 mm | 164.9 in. |
Overall width | 2070 mm | 81.5 in. | 1895 mm | 74.6 in. | 2010 mm | 79.1 in. |
Wheelbase | 2525 mm | 99.4 in. | 2215 mm | 87.2 in. | 2295 mm | 90.3 in. |
Height to top of ROPS | - | - | - |
Min. ground clearance | 440 mm | 17.3 in. | 445 mm | 17.5 in. | 480 mm | 18.9 in. |
Weight with cab | 4585 kg | 10108 lb | 3230 kg | 7120.9 lb | 3790 kg | 8355.5 lb |
Agricultural - Front | 12.4-24 | 11.2-20 | 12.4-24 |
Agricultural - Rear | 16.9-38 | 16.9-30 | 16.9-34 |
Download | Technical Brochure | Technical Brochure | Technical Brochure |
