K75E Series 4, Compact Utility Tractor
-
Engine power
73.9 ps
-
Hitch lift capacity
2375 kg
The K75E features car-like comfort on top of its formidable performance specs. Equipped with a powerful 3.4 liter turbo engine rated at 75 horsepower, this is the most powerful tractor in its class.
Equipping you to manage animals efficiently
With powerful lift capabilities and a premium operator cabin, TYM compact utility tractors allow you to accomplish all types of poultry work on the farm. Dig holes to build enclosures with a post-hole digger, unload feed in troughs using a front-end loader, lift and haul hay with bale spears, and clear waste with a back-blade. Whether you want to build and maintain a chicken coop, barn or stable, a TYM compact utility tractor brings you the multi-functional capabilities to cover the entire farm.
Clearing your land to maintain and grow your development
With greater lift capabilities, a sturdy axle configuration and a smaller frame, a TYM compact utility tractor is equipped to maneuver around and lift obstacles in your path. From grappling dead plants and rocks to lifting away debris and uprooted tree stumps, this tractor helps maintain your land or clear it for your next development.
Moving the material you need to get the job done
With impressive front and hitch lift capabilities and equivalent forward and reverse transmission gears, a TYM compact utility tractor equips you with the power and control to complete all types of material handling jobs. Compatible with implements like front-end loaders, pallet forks, grapples, trailers and more, this tractor can move gravel for road building, palleted bricks for construction, hay bales for livestock and much more.
Delivering the power you want on your turf
With higher fuel capacity, a more efficient engine, enhanced implement controls and faster traveling speeds, a TYM compact utility tractor covers turf care from community parks to golf courses. In addition to maintenance with mowers and sprayers, this tractor helps develop bare land into growing lawns. Clear weeds with a rotary cutter, level bare ground with a rake, prepare soil with an aerator and spread seeds evenly with a spreader.

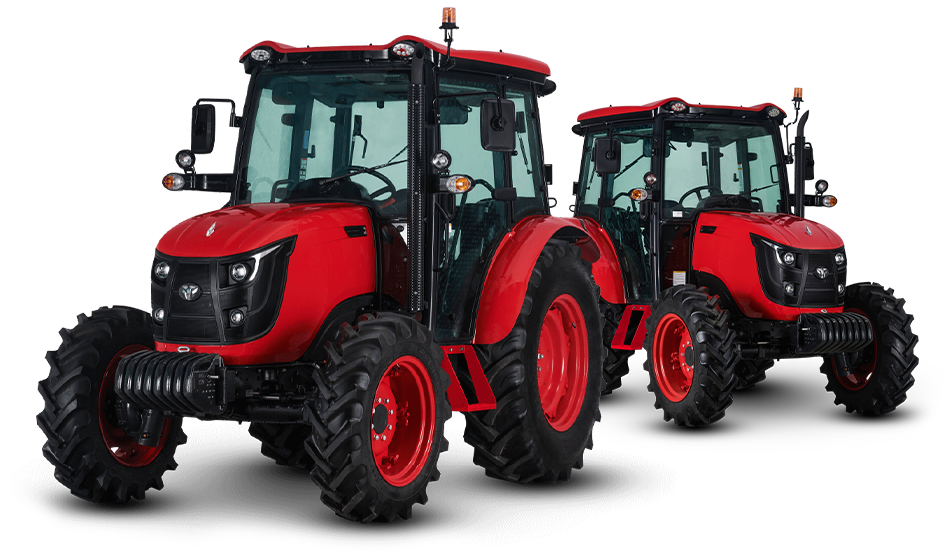

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
Features to enhance versatility and productivity

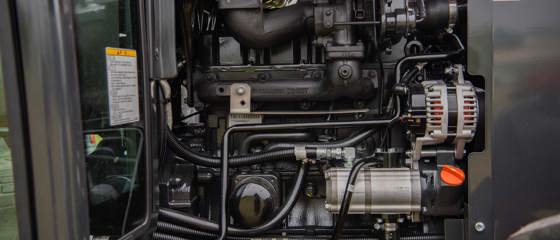

With its powerful Cummins engine and economic benefits, this tractor has the capabilities to complete a variety of jobs, whether big or small. The standard package offers all the functionalities and performance at exceptional value.
Technical specifications
Not sure which tractor is right for you? Compare the specifications of each tractor model.
K75E |
|
|---|---|
|
engine
|
|
| Engine manufacturer | TYM D3400T |
| Type | Turbocharger |
| Gross engine power | 73.9 ps | 54.4 kW |
| PTO power | 63.9 ps | 47 kW |
| Rated engine speed | 2500 rpm |
| No. of cylinders | 4 |
| Displacement | 3409 cc |
| Air cleaner | Dry element |
| Alternator | 12V-70A |
| Fuel system | Direct Injection |
|
powertrain
|
|

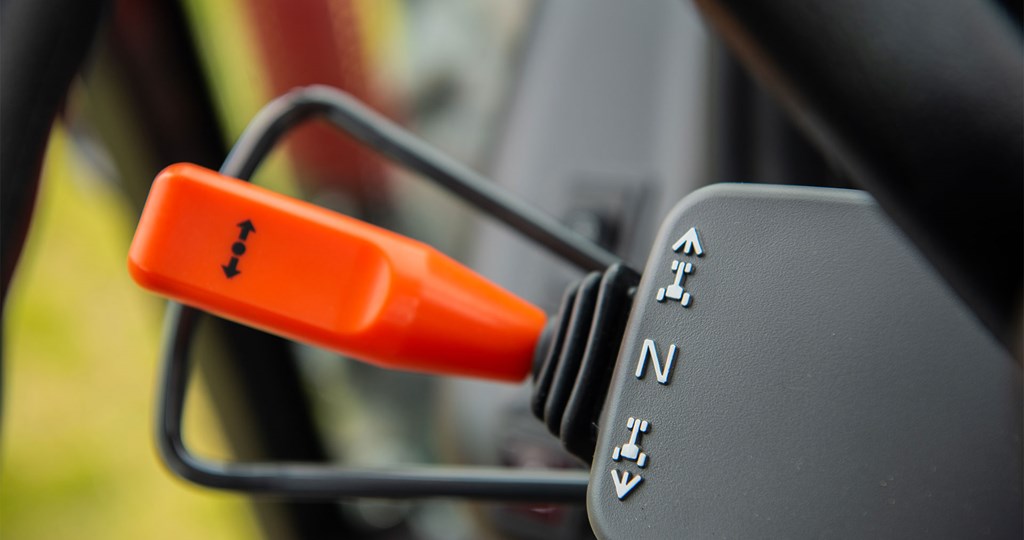

| Transmission type | Power Shuttle |
| No. of speeds | F16 x R16 |
| Max. traveling speed | 33.18 km/h |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | Wet Disc |
|
hydraulic system
|
|
| Pump type | Gear Pump |
| Implement flow | 50 lpm |
| Steering flow | 30 lpm |
| Total flow | 80 lpm |
| Category, 3-point hitch | Cat 2 |

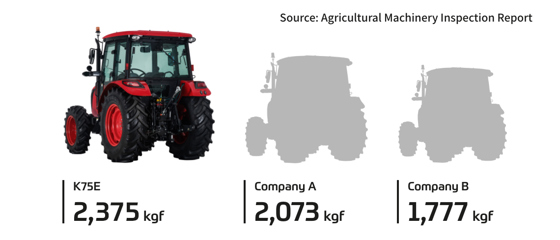

| Hitch lift capacity | 2375 kg |
| Hitch lift capacity at 24 inches behind link ends | 1808 kg |
| Lift control type | Position,Draft,TBS |
| No. of standard remote valves | 6 |
|
PTO
|
|
| PTO type | Independent |
| PTO control | Electric/Hydro |
| PTO rear | 540/750/1000 rpm |
|
capacities
|
|
| Fuel tank | 90 L |
| Coolant | 8.6 L |
| Crankcase | 9 L |
| Transmission/Hydraulics system | 63 L |
| Front axle | 14 L |
|
dimensions & weights
|
|
| Overall length with 3-point hitch | 3660 mm |
| Overall width | 1890 mm |
| Wheelbase | 2200 mm |
| Height to top of ROPS | 2720 mm |
| Min. ground clearance | 420 mm |
| Min. turn radius with brakes | 3610 mm |
| Min. turn radius without brakes | 4530 mm |
| Track width | F: 1445 mm / R: 1440 mm |
| Weight with cab | 2935 kg |
|
standard tires
|
|
| Agricultural - Front | 11.2 - 24 |
| Agricultural - Rear | 16.9 - 30 |
| Request Quote Build Your Own |
Downloads and useful resources
TYM machines are renowned for their reliability and economy. Find useful files such as parts catalogs and operator manuals for your tractor, or read through our series of useful resources for your TYM tractor.
