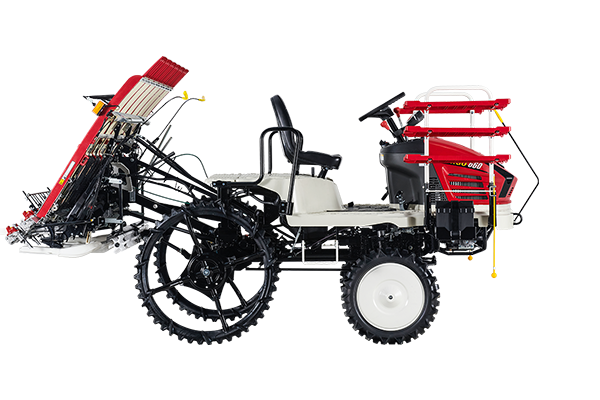

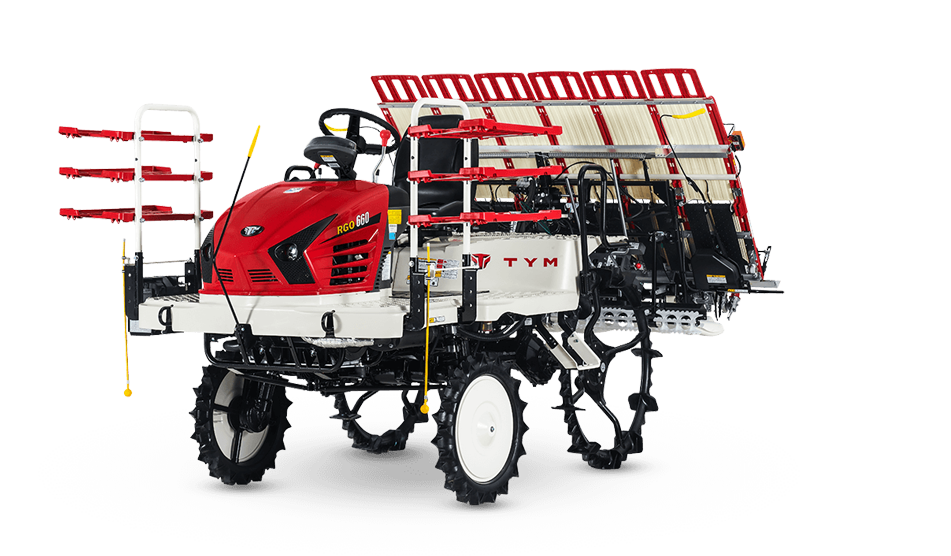

RGO-660DL Rice Transplanters

  • Engine power
    22 ps
  • Planting speed
    1.8 m/s

Reduce seedling and labor costs with this high-density transplanting-capable rice transplanter.

Reap the rewards from your wet farmland

Our transplanters enable you to navigate your paddy fields for faster planting across different types of wet soil. These machines have a high ground clearance and automated mechanisms to transplant seedlings across several rows at once. Cruise through the seeding process, so you can grow your crop and get to the harvest stage faster.

Image Verticle

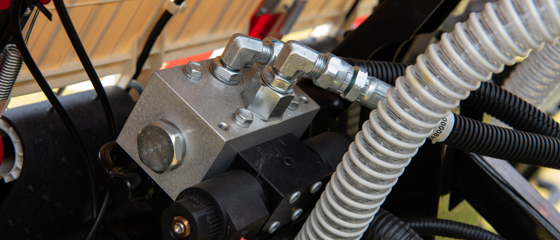

The RGO rice transplanter's gear-type transmission minimizes belt slip and maintenance costs, while the independent front suspension provides a comfortable and less fatiguing ride during long hours of operation. The electronic dashboard also enables easy monitoring of the vehicle vitals and operation status, ensuring reliable and cost-effective operation every time.
Image Wide

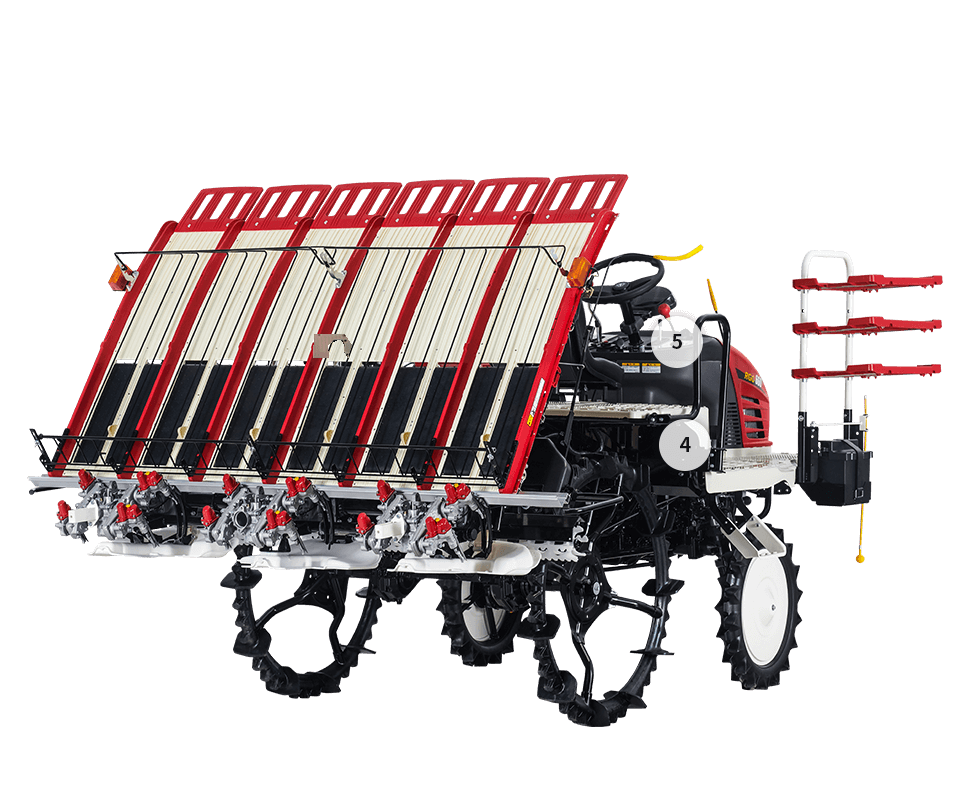

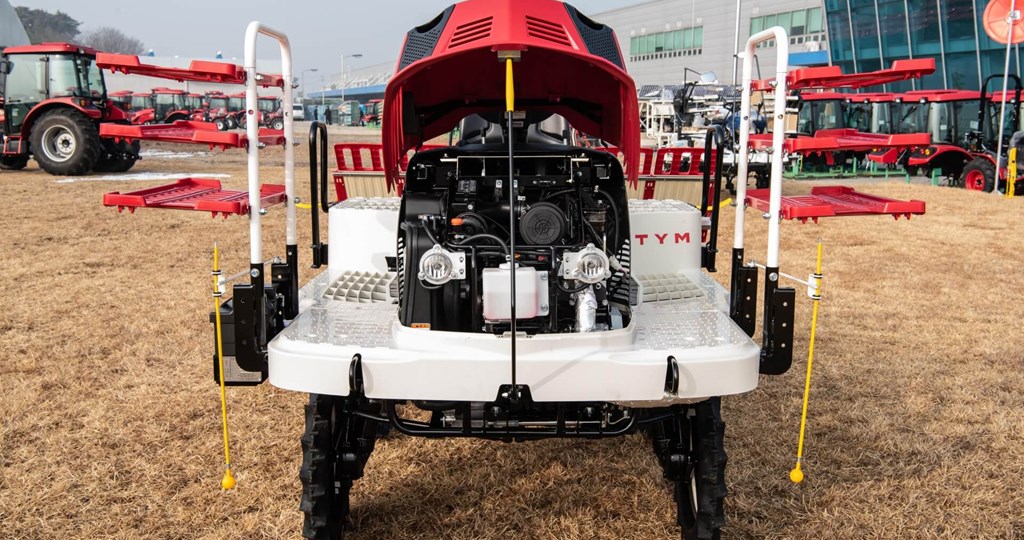

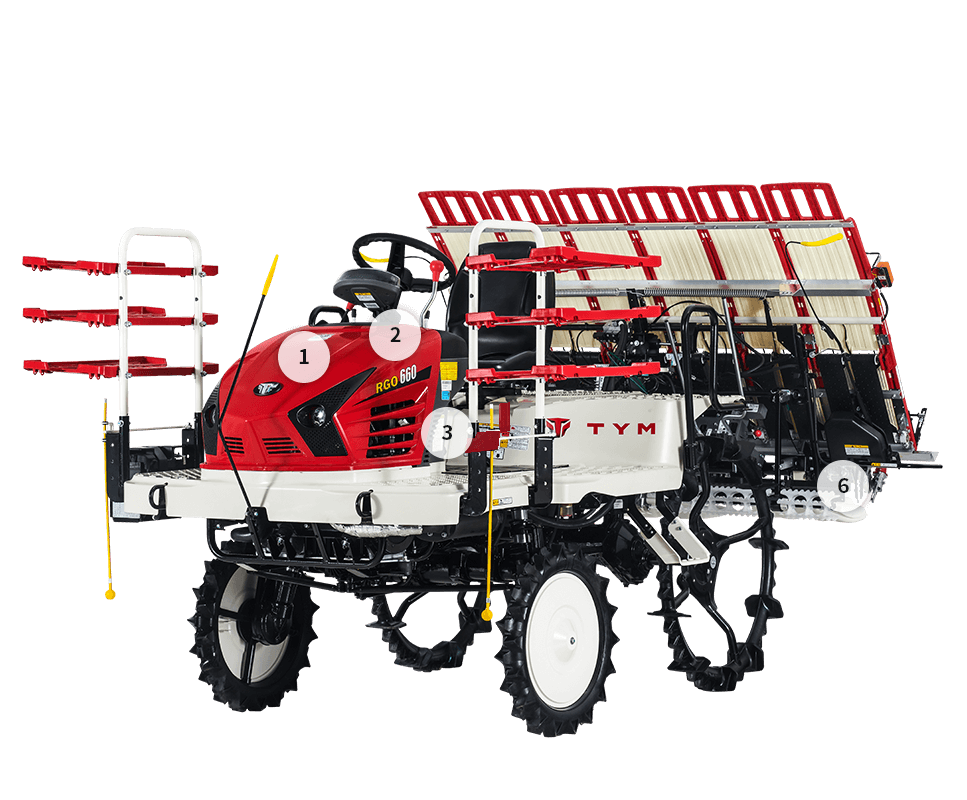

1. One-touch open hood

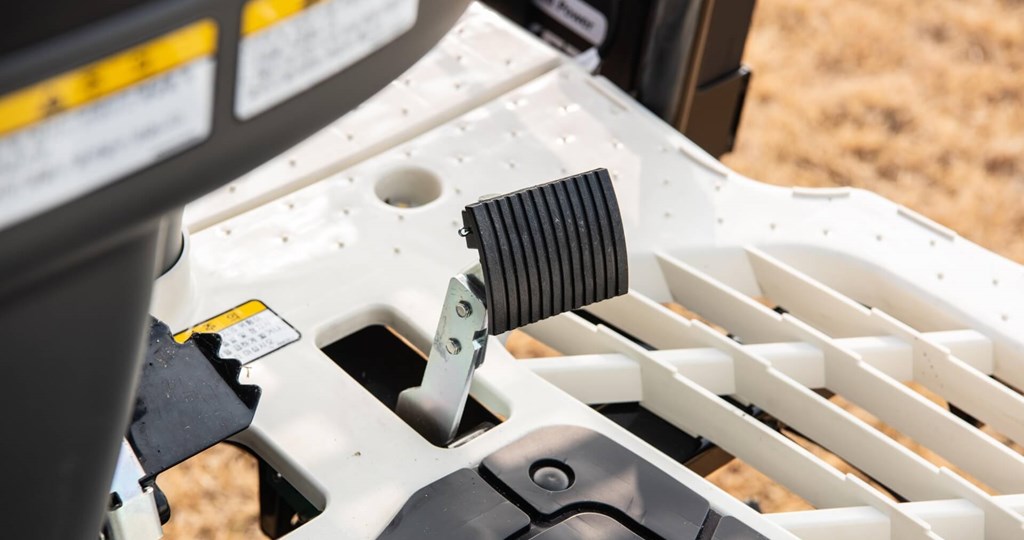

2. Throttle pedal (HMT)

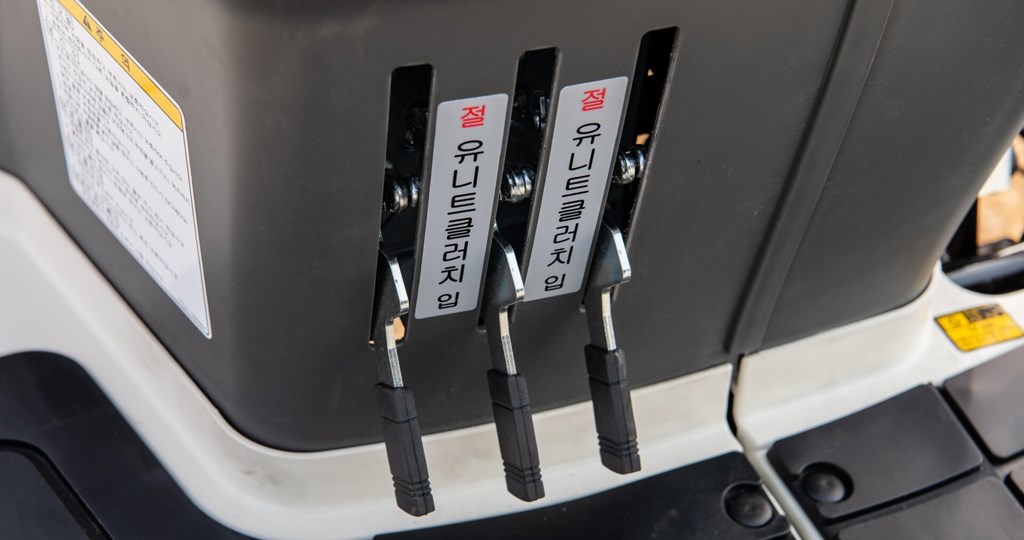

3. 2-row clutch control

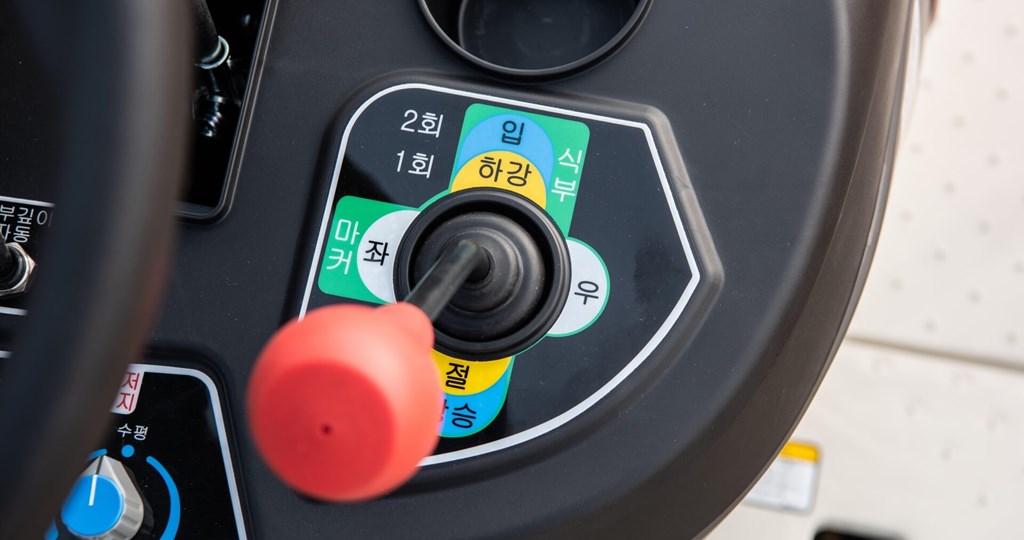

4. Electronic transplanter control
5. Automatic planting depth control

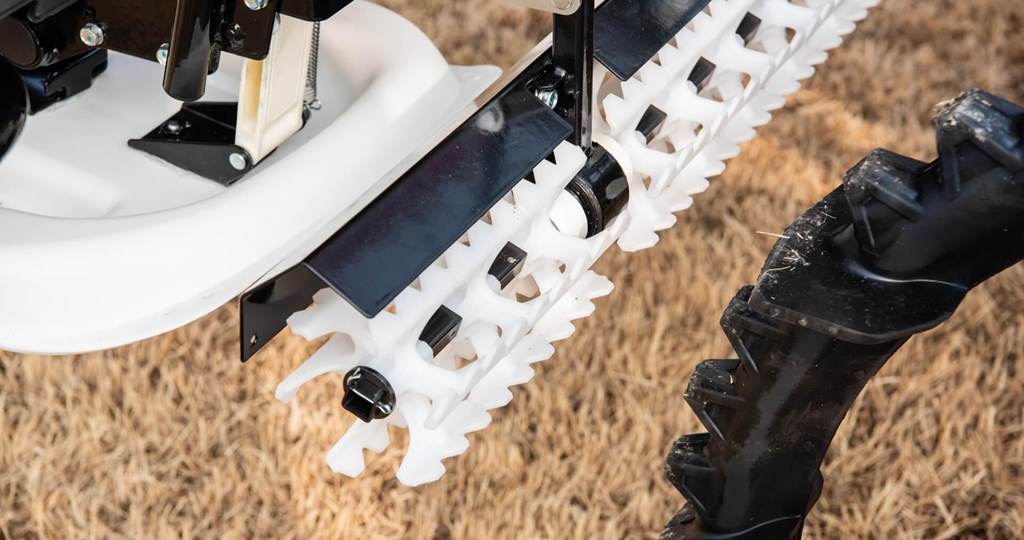

6. Standard harrow
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

All the right features to speed up transplanting

Equipped with a high-efficiency engine and a functional design centered on the planting process, this transplanter allows you to complete tasks quickly and effectively.

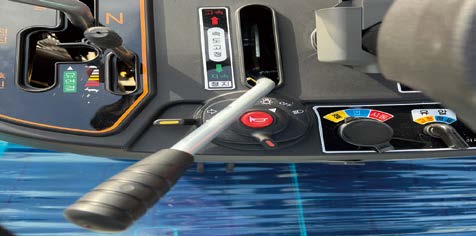

The combination of the digital instrument panel, ergonomic controls, and wide flat steps ensures efficient operation.
Operator-centered design
The transplanter automatically raises and lowers during turns to increase work efficiency.
Automatic Turn-Up
The transplanter device automatically raises lowers when reversing to increase work efficiency.
Automatic Back-Up
The inside wheel brake does not engage during turns, preventing mud build-up and ensuring smooth maneuvers.
No-brake turns
The high-capacity hopper and the transparent air tank allows convenient monitoring of fertilizer levels.
Side-dress fertilizer applicator (RGO-660DLF)
The hopper folds back and the spreader can be removed effortlessly for easy maintenance.
Easy maintenance fertilizer applicator (RGO-660DLF)
MGT-800A: Sprays herbicide on the soil surface
RMR6-N: Sprays insecticide on the seedling
MGT-800A / RMR6-N (Optional)

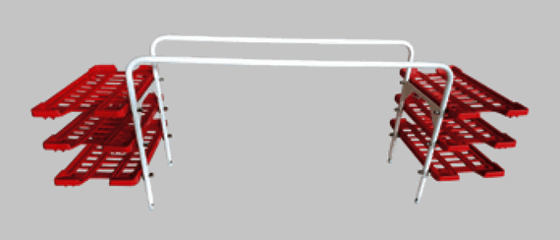

An additional three spare seedling racks can be selected as an option to increase seedling capacity.
Spare seedling racks (Optional)

Technical specifications

Compare specifications between similar machines.







Engine manufacturer Yanmar 3TNM72-BKTP2 ISEKI E3112 Kawasaki FD620D
Type Water-cooled, 3-cylinder diesel engine Water-cooled, 3-cylinder diesel engine Water-cooled, 2-cylinder gasoline engine
Gross engine power 22 ps | 16.2 kW 23.7 ps | 17.7 kW 18.62 ps | 13.7 kW
Rated engine speed 3400 rpm 3000 rpm 3800 rpm
Transmission type Hydraulic Mechanical Hydrostatic Hydrostatic
No. of speeds Continuously variable Continuously variable Continuously variable
Fuel tank 35 L 28 L 28 L
Fertilizer 90 L
planter section
Planting method Rotary type Rotary type Rotary type
Planting spacing 30 cm 30 cm 30 cm
Row Spacing 14, 16, 18, 22, 24, 30 (6 settings) cm 14, 16, 18, 22, 26, 30 (6 settings) cm 14, 16, 18, 22, 26, 30 (6 settings) cm
Planting rows 6 rows 8 rows 6 rows
Planting density 37, 45, 50, 60, 70, 80
(6 settings, ea/3.3 m2)
37, 45, 50, 60, 70, 80
(6 settings, ea/3.3 m2)
37, 45, 50, 60, 70, 80
(6 settings, ea/3.3 m2)
Planting depth 10 - 45 (8 settings) mm 10 - 50 (9 settings) mm 10 - 50 (9 settings) mm
Planting speed 1.8 m/s 1.86 m/s 1.81 m/s
Work efficiency 12 min/10a 7 min/10a 12.48 min/10a
dimensions & weights
Overall length 3470 mm 3290 mm 3270 mm
Overall width 2070 mm 2770 mm 2110 mm
Overall height 1680 mm 2300 mm 2050 mm
Wheelbase 1200 mm 1200 mm 1200 mm
Track width F: 1220 mm / R: 1225 mm F: 1200 mm / R: 1220 mm F: 1200 mm / R : 1220 mm
Tire diameter F: 650 mm / R: 950 mm F: 650 mm / R: 950 mm F : 650 mm / R : 950 mm
Weight 788 kg 998 kg 730 kg
Model option
RGO-660DL: Diesel+Automatic harrow
RGO-660DLF: Diesel+Automatic harrow+Side-dress fertilizer applicator
PRJ83DL: Diesel+Automatic harrow
PRJ83DLF: Diesel+Automatic harrow+Side-dress fertilizer applicator
PRJ83DLGF: Diesel+Automatic harrow+Side-dress fertilizer applicator+Powered seedling rack+GPS (straight-line and turn assistance)
PR63GL: Gasoline+Automatic harrow
PR63GLF: Gasoline+Automatic harrow+Side-dress fertilizer applicator
