PR63DL
TYM Transplanter, 6 Rows
Engine manufacturer
23.7 PS
Engine power
1.25 m/s
Planting speed
Efficient transplanter for large rice fields with versatile planting options
The high-efficiency engine, automatic turning, and motorized slide spare tines allow you to plant 6 rows at once. This tranplanter is both economical and environmentally friendly, allowing for side fertilization and seeds cultivation, while its solid structure combines durability and productivity.
*Images on this page are for illustrative purposes only. The actual product may vary.
GPS with straight assist
When a deviation occurs from the specified path, a direction indicator lights up on the dashboard and prompts operators to course correct.
Smart assistant for U-turns and reversing
During turning maneuvers, the buzzer sounds to control the transplanter at a medium speed. After a correct turn, the planting attachment automatically descends and begins operation. In addition, the straight assist keeps the transplanter in a specified lane.
Z rotor to prevent wheel marks
The transplanter is equipped with a robust and lightweight Z rotor device, preventing wheel marks on floating grain.
6-row planting capabilities with step control
At the touch of a button, this transplanter can plant 6 rows of seedlings, or use step control for individual row planting.

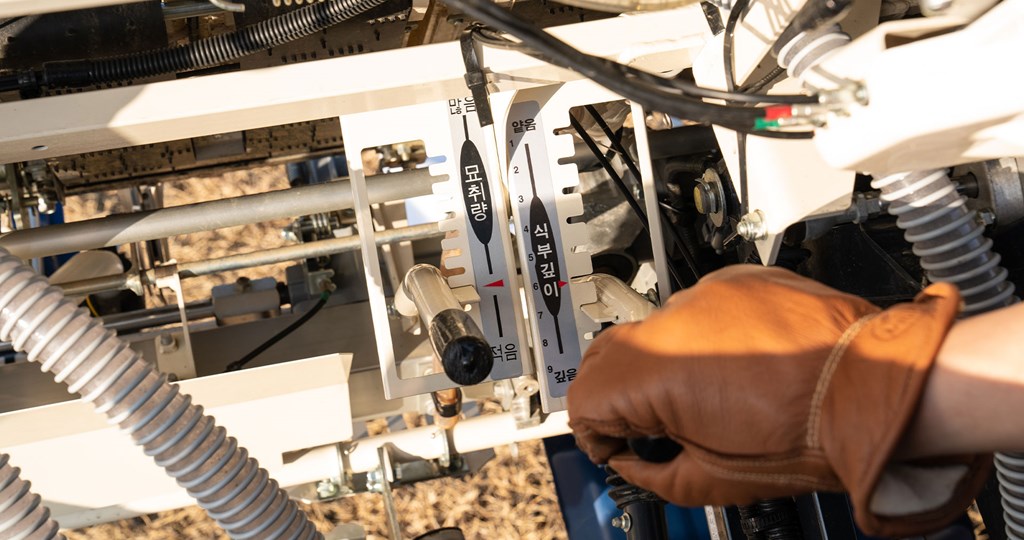

Fertilizer volume control switch
Reduce fertilizer insertion volume when transplanting reaches deeper into the soil, or whenever required, at the touch of a single button.
Wide side step
Accounting for operator movements, the widened cabin floor facilitates better supply of seedlings and fertilizers. Additionally, the slatted floor allows the operator to inspect the alignment and position of the transplanter for efficient operation.
All the right features to speed up transplanting
This transplanter is capable of high-precision transplanting, bringing together enhanced design, a wide operator station and advanced technology.

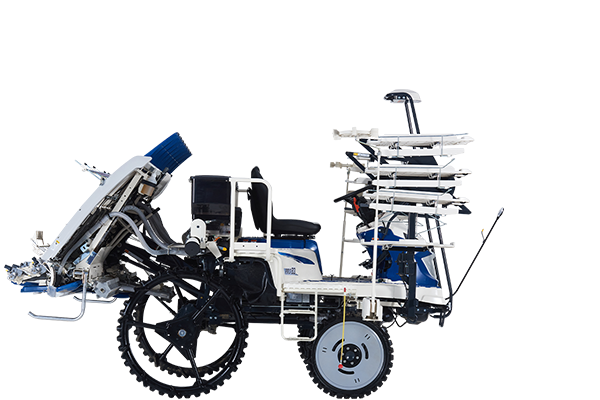

| Rice Transplanters Model | PR63DL  | PRJ83DL  | PR63GL |
Engine manufacturer | ISEKI E3112 | ISEKI E3112 | Kawasaki FD620D |
Engine power | 23.7 PS | 17.7 kW | 23.7 PS | 17.7 kW | 18.62 PS | 13.7 kW |
Planting speed | 1.25 m/s | 2.80 mph | 1.25 m/s | 2.80 mph | 1.22 m/s | 2.73 mph |
Rated engine speed | 3000 rpm | 3000 rpm | 3800 rpm |
Fuel tank | 28 L | 28 L | 28 L |
Planting rows | 6 rows | 8 rows | 6 rows |
Planting density | 37, 45, 50, 60, 70, 80 (6 settings) ea/3 m² | 37, 45, 50, 60, 70, 80 (6 settings) ea/3.3 yd² | 37, 45, 50, 60, 70, 80 (6 settings) ea/3.3 m² | 37, 45, 50, 60, 70, 80 (6 settings) ea/3.3 yd² | 37, 45, 50, 60, 70, 80 (6settings) ea/3.3 m² | 37, 45, 50, 60, 70, 80 (6settings) ea/3.3 yd² |
Planting depth | 10 - 50 (9 settings) mm | 0.39 - 1.96 (9 settings) in. | 10 - 50 (9 settings) mm | 0.39 - 1.96 (9 settings) in. | 10 - 50 (9 settings) mm | 0.39 - 1.96 (9 settings) in. |
Overall length | 3290 mm | 129.5 in. | 3290 mm | 129.5 in. | 3270 mm | 128.7 in. |
Overall width | 2110 mm | 83.1 in. | 2770 mm | 109.1 in. | 2110 mm | 83.1 in. |
Overall height | 2300 mm | 90.6 in. | 2300 mm | 90.6 in. | 2050 mm | 80.7 in. |
Wheelbase | 1200 mm | 47.24 in. | 1200 mm | 47.24 in. | 1200 mm | 47.24 in. |
Track width | F: 1200 mm / R: 1220 mm | F: 1200 mm / R: 1220 mm | F: 1200 mm / R : 1220 mm |
Tire diameter | F : 650 mm / R : 950 mm | F : 650 mm / R : 950 mm | F : 650 mm / R : 950 mm |
Weight | 849 kg | 1871.7 lb | 998 kg | 2200.2 lb | 730 kg | 1609.4 lb |
