T2400T4

Engine power

Bore x Stroke

Displacement

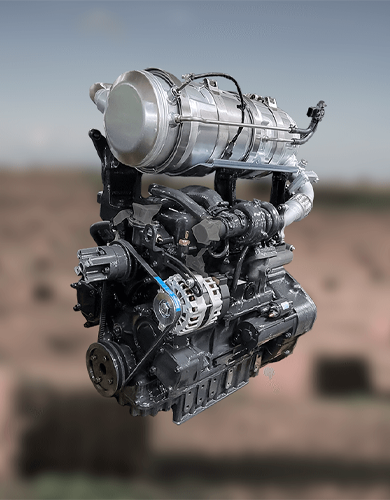

The T2400T4 engine is high-output, easy-to-use, and eco-friendly with a Tier-4 rating.

*Images on this page are for illustrative purposes only. The actual product may vary.

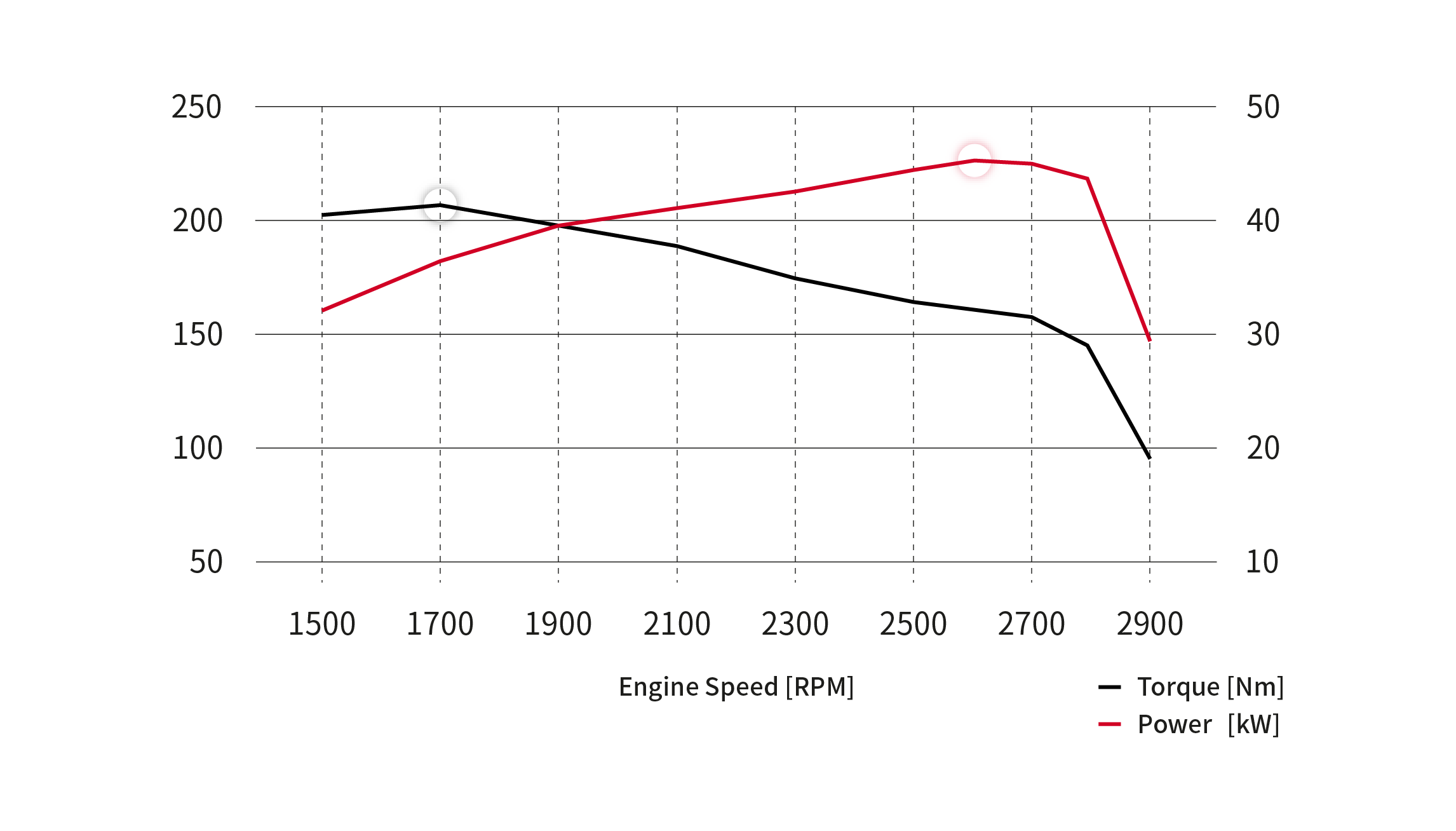

62 ps / 2600 rpm

Best-in-class power with low vibration and noise to enhance driving experience.

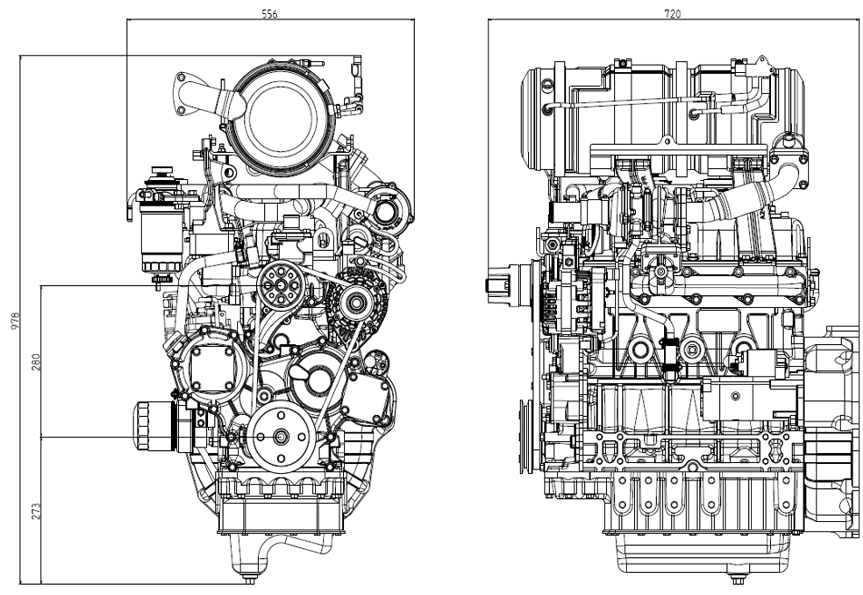

Engine size (length × width × height)

720 × 556 × 978 mm

Technical Specification

Diesel Engines Model	T2400T4	T1100N2	T1700N6
Engine power	62 PS	24 PS	24 PS
Bore x Stroke	90 × 94 mm \| 3.5 × 3.7 in.	78 × 82 mm \| 3 × 3.2 in.	88 × 94 mm \| 3.5 x 3.7 in.
Displacement	2392 cc \| 145.9 cu. in.	1175 cc \| 71.7 cu. in.	1715 cc \| 104.6 cu. in.
Type	Direct injected water-cooled 4-stroke diesel engine	Direct injected water-cooled 4-stroke diesel engine	Direct injected water-cooled 4-stroke diesel engine
Emissions standard	KOREA Stage 5	EPA Tier-4 / EC Stage 5 / KOREA Stage 5	EPA Tier-4 / EC Stage 5 / KOREA Stage 5
No. of cylinders	4	3	3
Combustion system	DI	IDI (Swirl chamber)	IDI (Swirl chamber)
Intake system	Turbocharged	Natural aspirated	Natural aspirated
Rated engine speed	2600 rpm	2800 rpm	2100 rpm
Direction of rotation	Counterclockwise (From flywheel)	Counterclockwise (From flywheel)	Counterclockwise (From flywheel)
Cooling system	Pressurized radiator	Pressurized radiator	Pressurized radiator
Lubricant capacity	4.5 L \| 1.2 gal	2.8 L \| 0.7 gal	4.3 L \| 1.1 gal
Starter	12 V, 2.2 kW	12 V, 1.4 kW	12 V, 1.4 kW
Alternator	12 V, 50 A (70)	12 V, 50 A	12 V, 50 A
Length	767 mm \| 30.2 in.	489 mm \| 19.3 in.	615 mm \| 24.2 in.
Width	553 mm \| 21.8 in.	417 mm \| 16.4 in.	539 mm \| 21.2 in.
Height	978 mm \| 38.5 in.	643 mm \| 25.3 in.	620 mm \| 24.4 in.
