TH1200
TYM Harvester, Multi-crops
Engine manufacturer
120 PS
Engine power
1.62 m/s
Working speed
Faster. More precise. Even less loss.

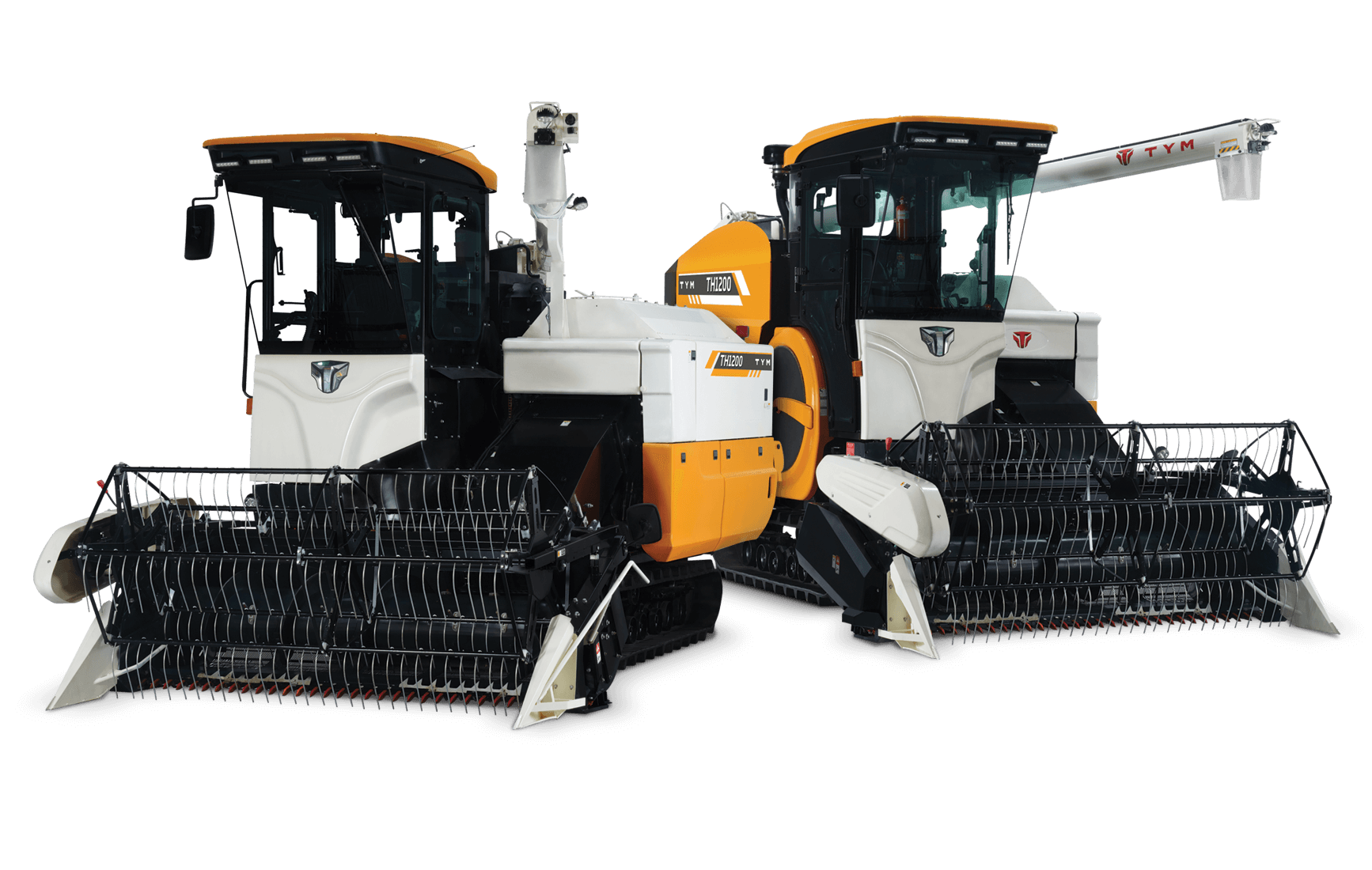

The standard combine harvester engineered by TYM.
The TH1200 standard combine features a powerful 120-horsepower engine and an automatic hydraulic transmission with proportional control, engineered on a 6-row platform to deliver outstanding straight-line stability, smooth turning, and robust traction. Its wide reaping width and high-efficiency threshing system ensure fast, stable, and reliable harvesting across all crop types.
*Images on this page are for illustrative purposes only. The actual product may vary.

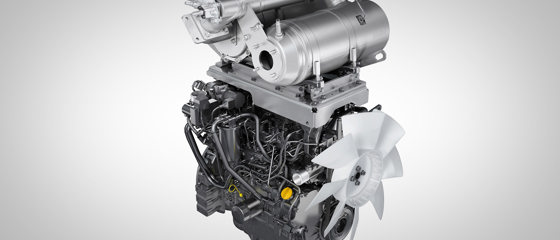

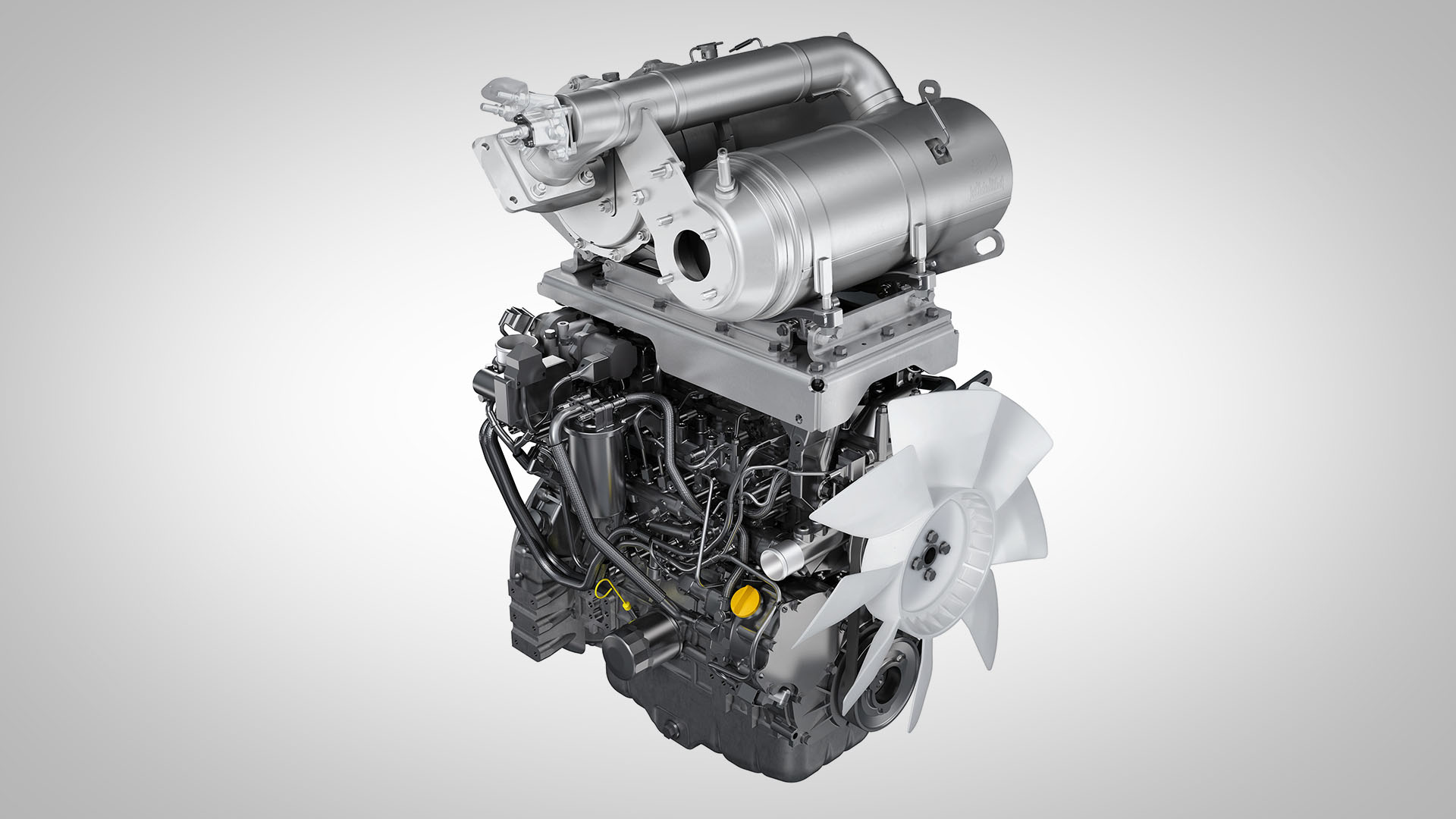

Powerful Yanmar Engine
Featuring a 120-horsepower common rail engine, it provides high output, low fuel consumption, and reduced noise simultaneously. This combination enables efficient and rapid harvesting with ease.

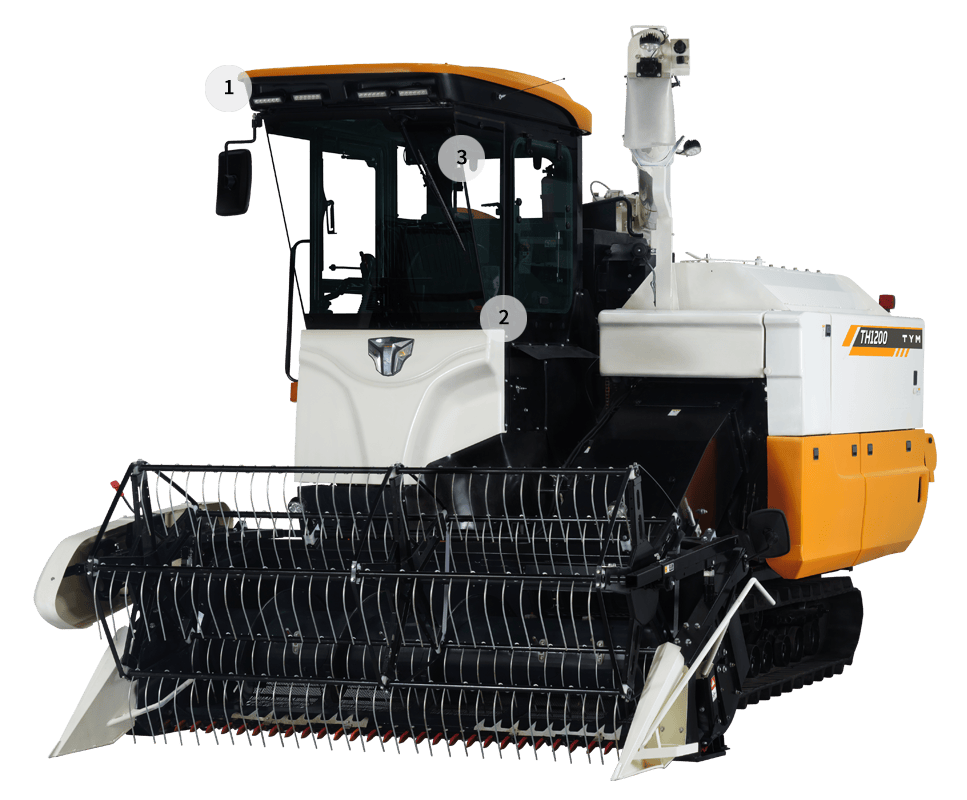

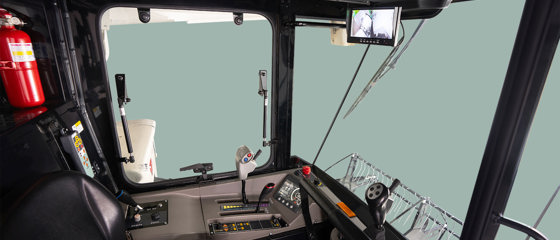

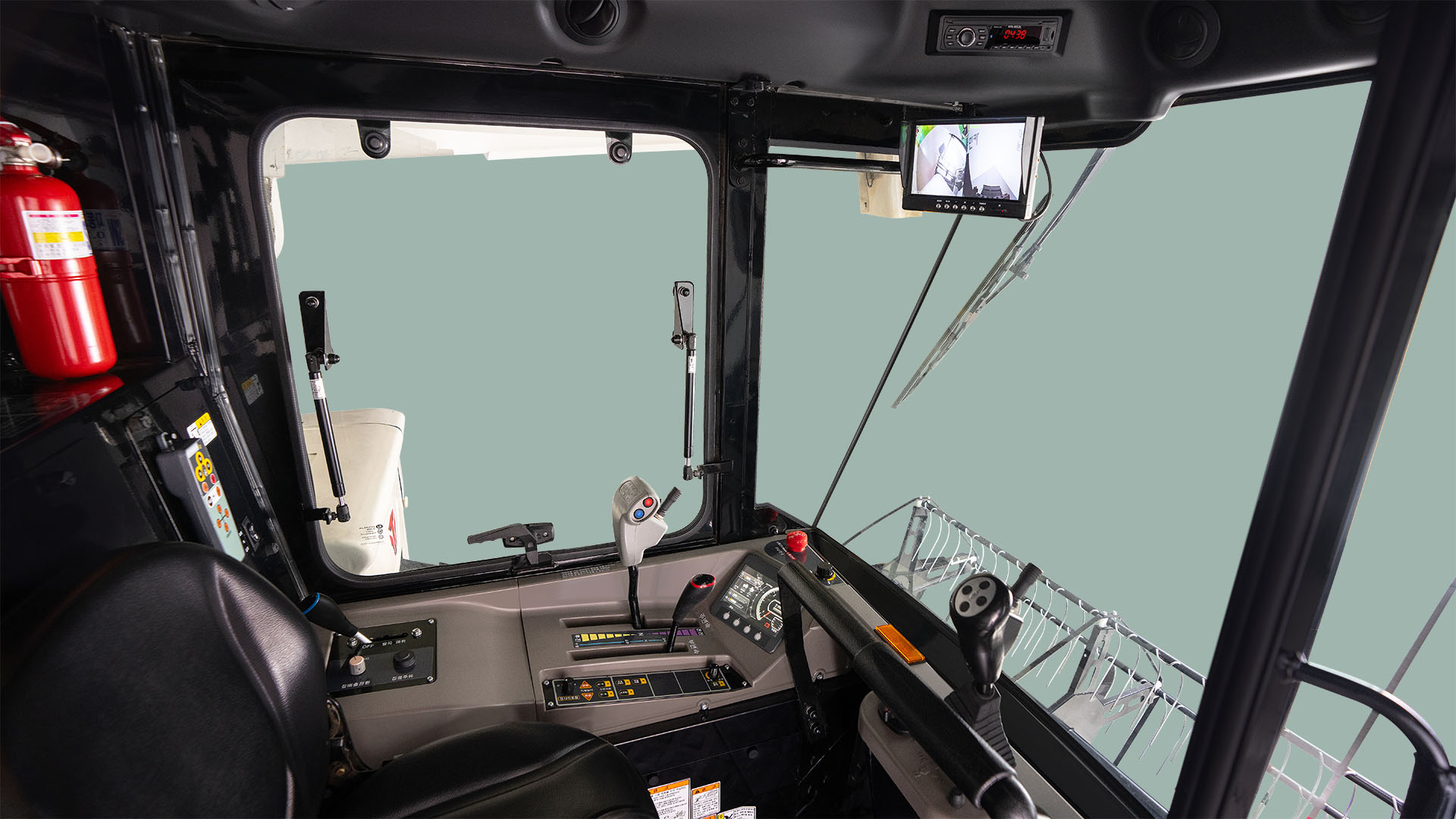

Front glass area / New roof
The front visibility has been enhanced by expanding the roof, increasing the field of view by 15%.

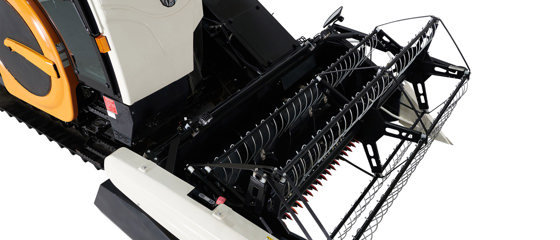

Class-Leading 2,600 mm reaping width
The wide cutting width enables 4-row operation, allowing a large amount of crops to be harvested in a short period of time.

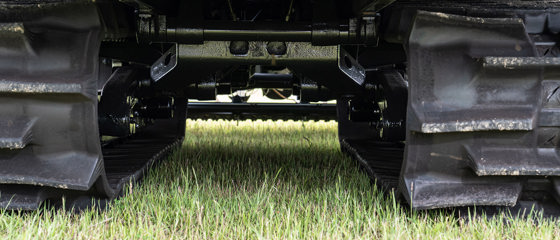

Hydraulic automatic transmission with 6-row combine harvester technology
Equipped with two HSTs, one for driving and one for turning, this model offers excellent durability, smooth maneuverability, and high operational efficiency. The arched drive frame improves mud clearance and enhances overall field performance.

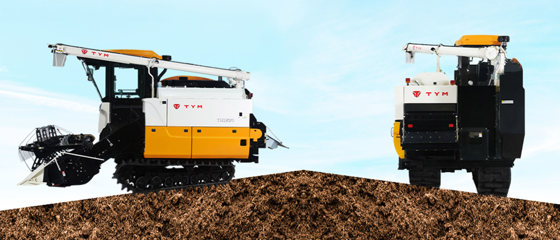

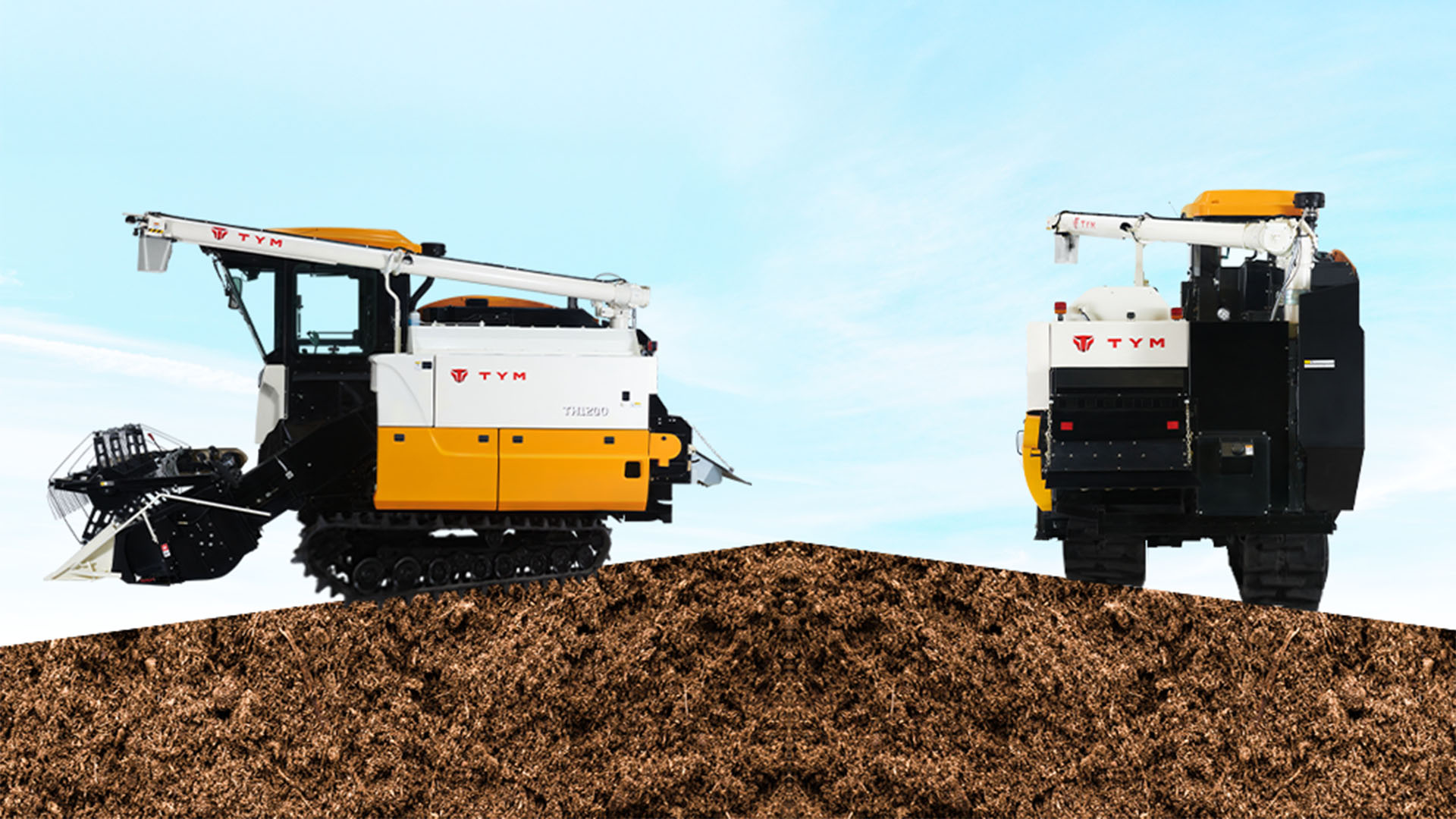

Automatic leveling control (pitch/roll)
Keeps the header level regardless of chassis height, delivering stable harvesting performance when entering wet paddies or working across uneven terrain.

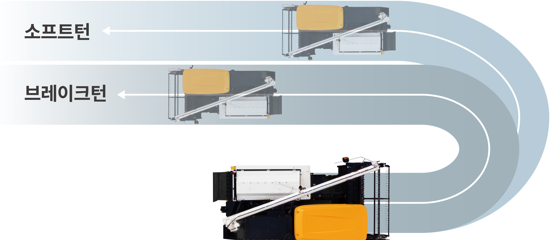

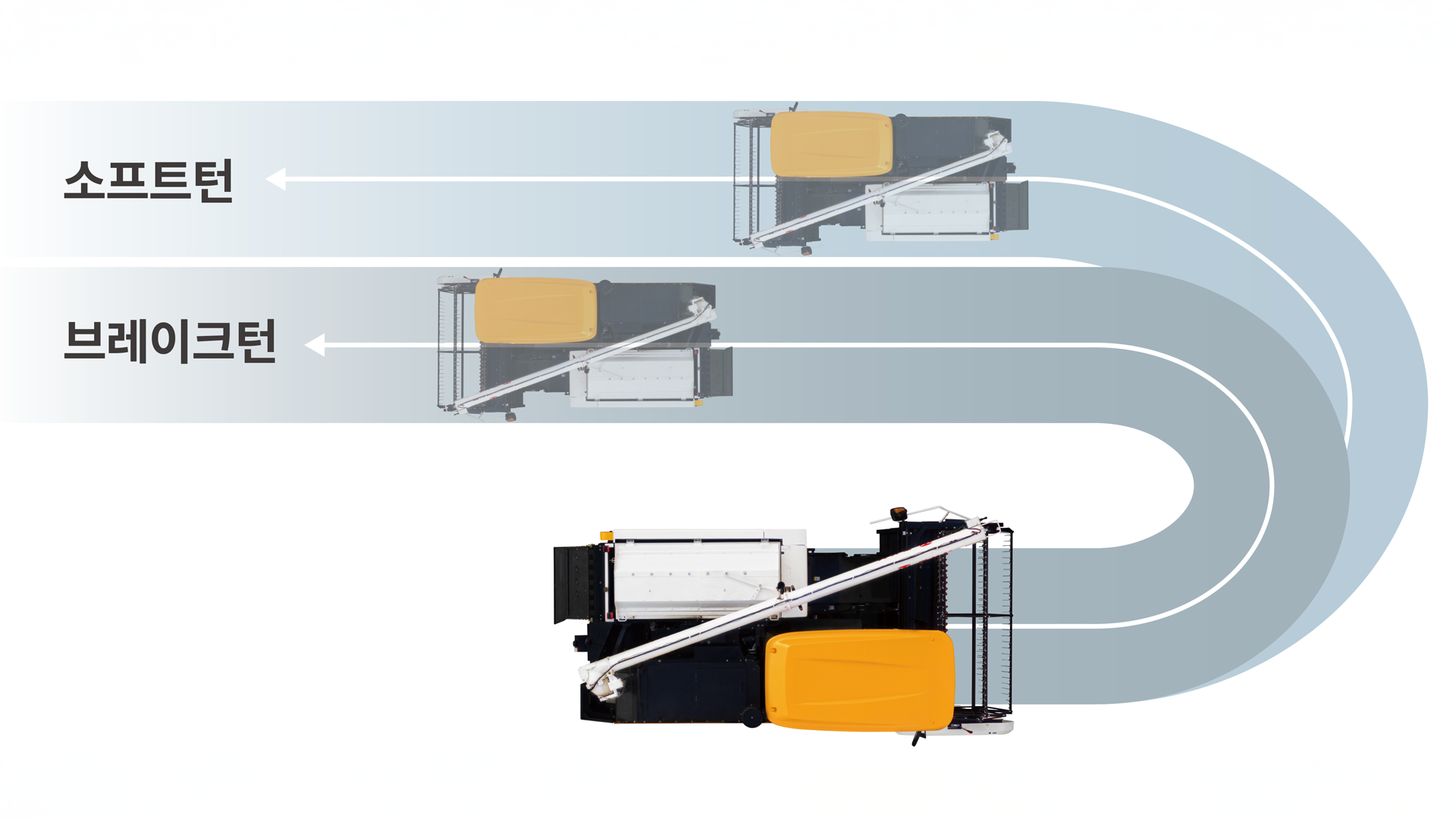

Soft turn / brake turn
Soft turn ensures smooth handling, while brake turn enables sharp pivoting from a stop.
Optional kits for multi-crop harvesting
Optional kits can be easily attached or removed to harvest soybeans, barley, buckwheat, and other crops.
Fast, precise, and efficient harvesting with minimal crop loss
Powered by a Yanmar engine and automatic hydraulic transmission, this machine provides strong traction and maneuverability. Its wide reaping width and efficient threshing system enable fast, effective harvesting with minimal crop loss across various crops.
| Harvesters Model | TH1200  | CX6130  | HJ6135  |
Engine manufacturer | Yanmar 4TNV94FHT (NKK) | Yanmar 4TNV94FHT | Deutz TCD3.6L4 |
Engine power | 120 PS | 88.4 kW | 120 PS | 88.4 kW | 136 PS | 100 kW |
Working speed | 1.62 m/s | 3.6 mph | 1.74 m/s | 3.89 mph | 2.04 m/s | 4.6 mph |
Displacement | 3054 cc | 186 cu. in. | 3054 cc | 186.4 cu. in. | 3621 cc | 221 cu. in. |

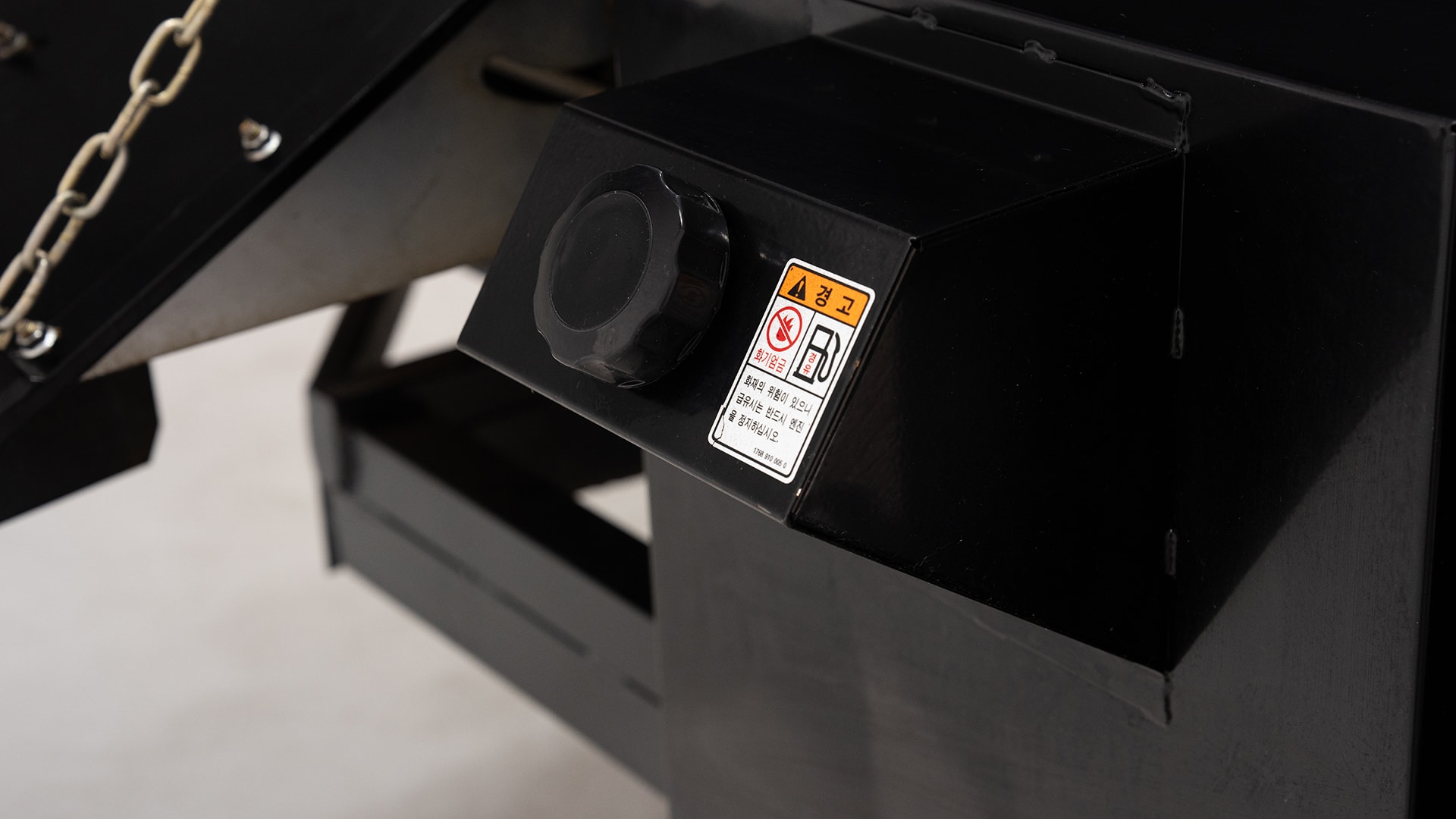

Fuel tank | 80 L | 21.1 gal | 100 L | 26.4 gal | 105 L | 27.7 gal |
Crawler grounding length | 1800 mm | 70.87 in. | 1800 mm | 70.9 in. | 1825 mm | 71.9 in. |
Reaping width | 2600 mm | 102.3 in. | 1980 mm | 78 in. | 1991 mm | 78.3 in. |
Threshing drum (dia. x width) | 927 × 2444 mm | 36.5 × 96.2 in. | 420 × 1110 mm | 16.5 × 43.7 in. | 446 × 1250 mm | 17.6 × 49.2 in. |
Rated threshing speed | 269(Bean) / 584(Rice) rpm | 520 rpm | 527 rpm |
Grain tank capacity | 1650 L | 435.8 gal | 2000 L | 528.3 gal | 2000 L | 528.3 gal |
Overall length | 5080 mm | 200 in. | 4600 mm | 181.1 in. | 4830 mm | 190.2 in. |
Overall width | 2620 mm | 103.1 in. | 2240 mm | 88.2 in. | 2270 mm | 88 in. |
Overall height | 2800 mm | 110.2 in. | 2860 mm | 112.6 in. | 2680 mm | 105.5 in. |
Min. ground clearance | 210 mm | 8.2 in. | 210 mm | 8.3 in. | 200 mm | 7.9 in. |
Weight | 4500 kg | 9920.8 lb | 4585 kg | 10108.2 lb | 5160 kg | 11375.9 lb |
