CX5130
TYM Harvester, 5 Rows
Engine manufacturer
120 PS
Engine power
1.73 m/s
Working speed
Combine harvester with an intelligent half-feeding
The powerful CX5130 combine is powered by a Yanmar engine, a convenience-focused design and wet-work optimization for reliable and efficient operation. Its durable parts and safety features ensure dependable performance and deliver impressive results.
*Images on this page are for illustrative purposes only. The actual product may vary.
120 HP Yanmar engine
The top-of-the-line 120-horsepower Yanmar engine gives you the power to take control in wet fields and during high-speed tasks.
Hydraulic automatic transmission
Exceptional straightline performance, increased turning capabilities, and 2 large capacity 45cc Servo HSTs.
Soft-Turn, Brake-Turn, Spin-Turn modes
Soft-Turn, Brake-Turn, Spin-Turn allows for easy turns at the end of planting rows.
Level control function
Horizontal (rolling) control maintains horizontal level in any terrain regardless of terrain, and horizontal (pitching) control is applied to make it easy to work even if the combine is tilted backward during work in wet fields and prevents the reaper from touching the ground when entering the field.

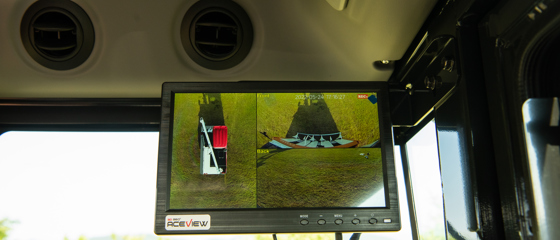

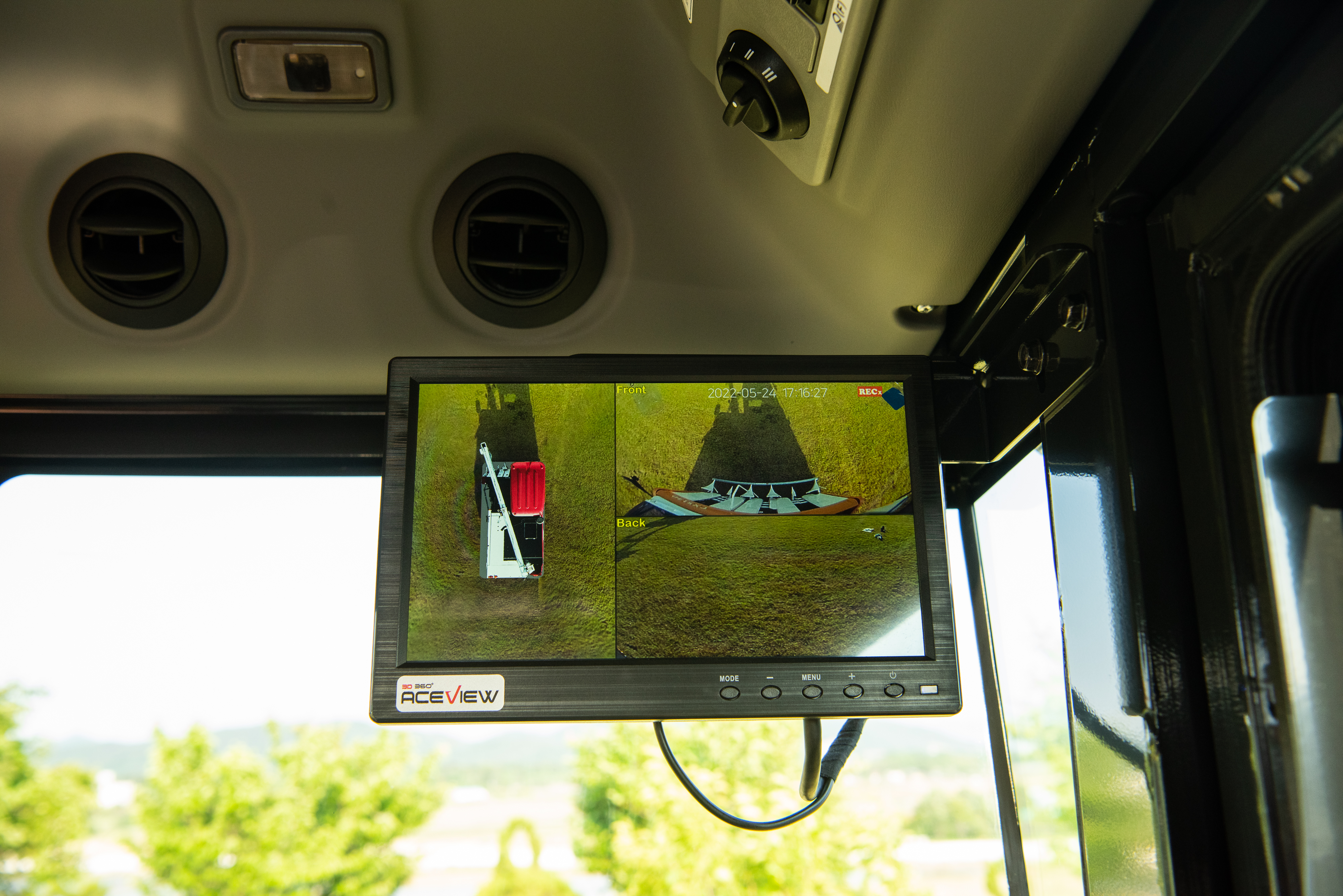

Vehicle monitoring cameras
Check conditions in and around the combine on an electronic monitor.
Rotating radiator screen
The screen spins to remove dust and particles to keep the radiator unobstructed.
All the right features to get the job done
Work effectively and maximize your yield with a TYM combine harvester. Achieve results faster with a powerful high-torque engine. Control implements easily with an easy-access operator panel. All while stay productive and energized in an ergonomically designed cabin.
| Harvesters Model | CX5130  | CX6130  | HJ6135  |
Engine manufacturer | Yanmar 4TNV94FHT | Yanmar 4TNV94FHT | Deutz TCD3.6L4 |
Engine power | 120 PS | 88.4 kW | 120 PS | 88.4 kW | 136 PS | 100 kW |
Working speed | 1.73 m/s | 3.87 mph | 1.74 m/s | 3.89 mph | 2.04 m/s | 4.6 mph |
Rated engine speed | 2500 rpm | 2500 rpm | 2000 rpm |
Displacement | 3054 cc | 186.4 cu. in. | 3054 cc | 186.4 cu. in. | 3621 cc | 221 cu. in. |
Fuel tank | 100 L | 26.4 gal | 100 L | 26.4 gal | 105 L | 27.7 gal |
Reaping width | 1740 mm | 68.5 in. | 1980 mm | 78 in. | 1991 mm | 78.3 in. |
Threshing drum (dia. x width) | 420 × 1110 mm | 16.5 x 43.7 in. | 420 × 1110 mm | 16.5 × 43.7 in. | 446 × 1250 mm | 17.6 × 49.2 in. |
Rated threshing speed | 520 rpm | 520 rpm | 527 rpm |
Grain tank capacity | 2000 L | 528.3 gal | 2000 L | 528.3 gal | 2000 L | 528.3 gal |
Overall length | 4600 mm | 181.1 in. | 4600 mm | 181.1 in. | 4830 mm | 190.2 in. |
Overall width | 2170 mm | 85.4 in. | 2240 mm | 88.2 in. | 2270 mm | 88 in. |
Overall height | 2860 mm | 112.6 in. | 2860 mm | 112.6 in. | 2680 mm | 105.5 in. |
Min. ground clearance | 210 mm | 8.3 in. | 210 mm | 8.3 in. | 200 mm | 7.9 in. |
Weight | 4515 kg | 9953.9 lb | 4585 kg | 10108.2 lb | 5160 kg | 11375.9 lb |
