CX4075
TYM Harvester, 4 Rows
Engine manufacturer
75 PS
Engine power
1.7 m/s
Working speed

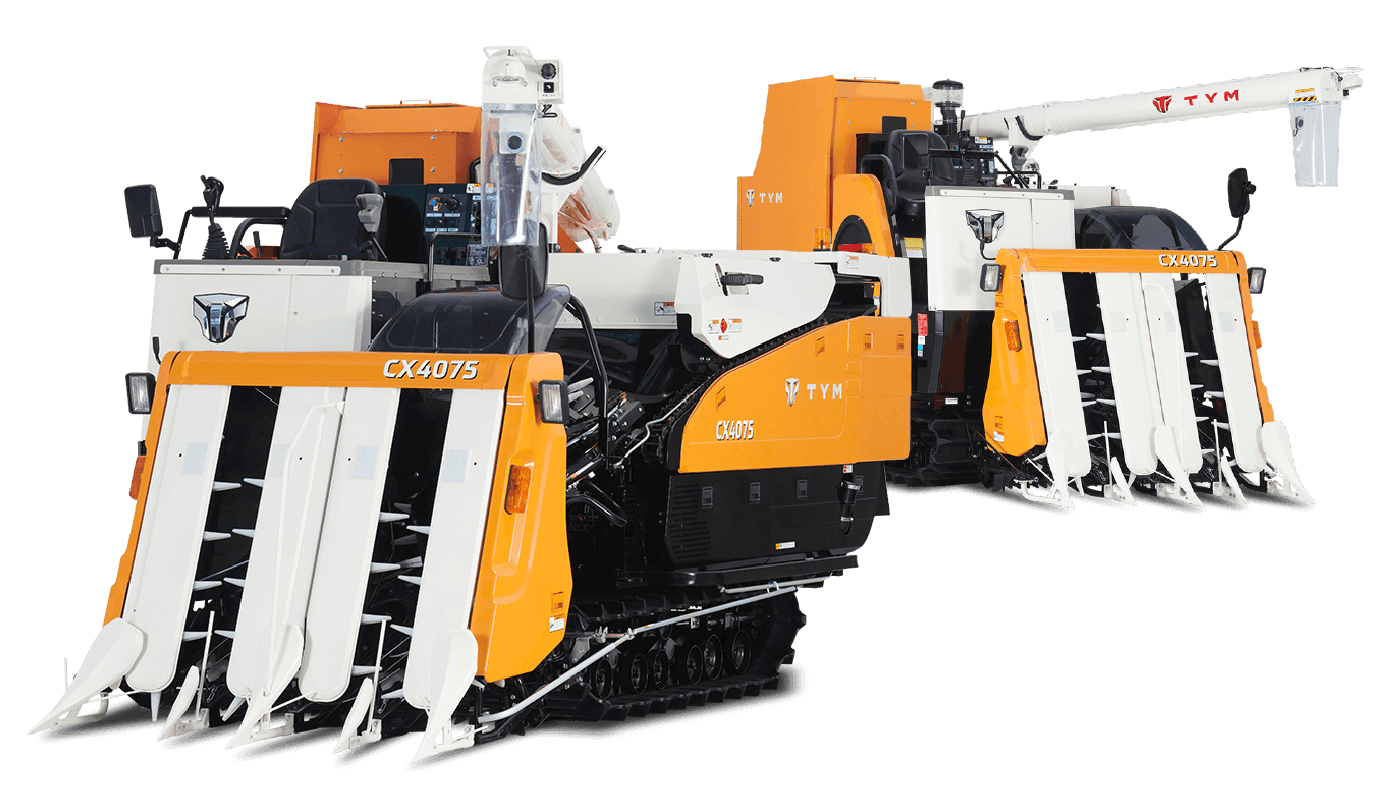

Combine harvester with an intelligent half-feeding
The CX4075 is a powerful 75-horsepower, four-row standard combine. In addition to its performance, it features one-touch opening of the screening and straw handling sections for convenient self-maintenance.
*Images on this page are for illustrative purposes only. The actual product may vary.

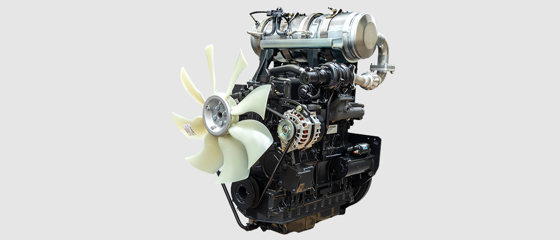

76 PS clean engine
Equipped with a top-of-the-line engine that meets emissions regulations. The engine delivers maximum output in its class, low vibration, and low noise for work.

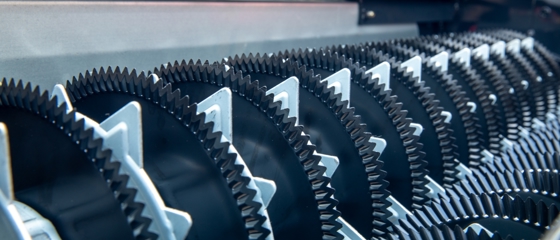

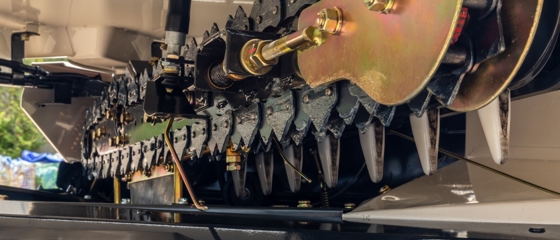

Super durable hay cutter
A specially heat-treated straw cutting blade wears out less often and cuts cleanly even over long hours of work.
Efficient hay discharge chain
The high performance straw discharge transport chain ejects hay faster after threshing without creating blockages.

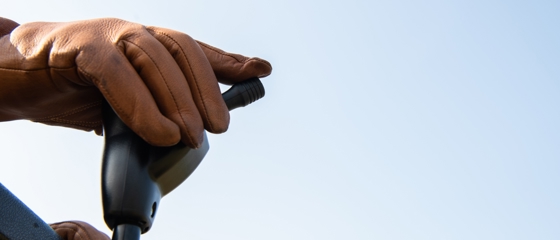

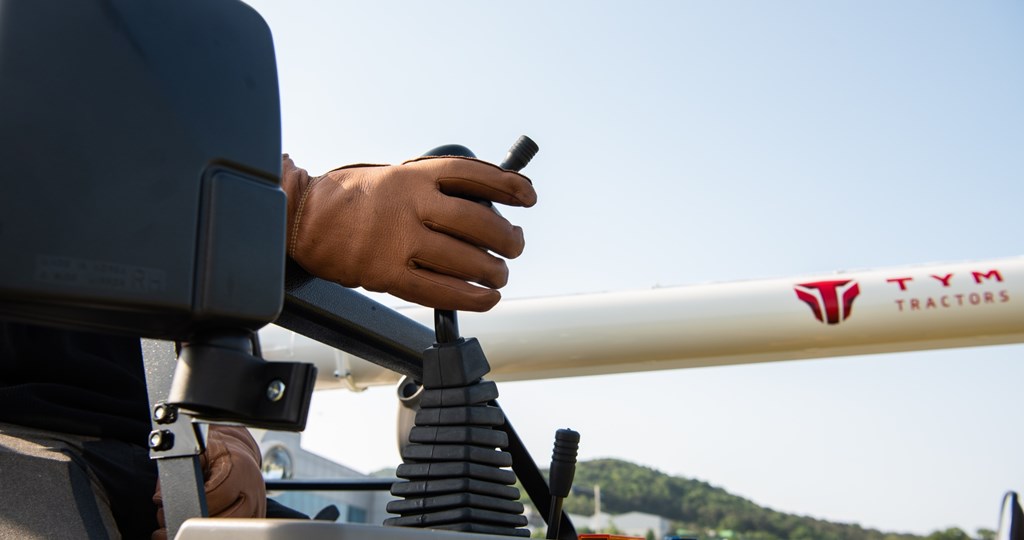

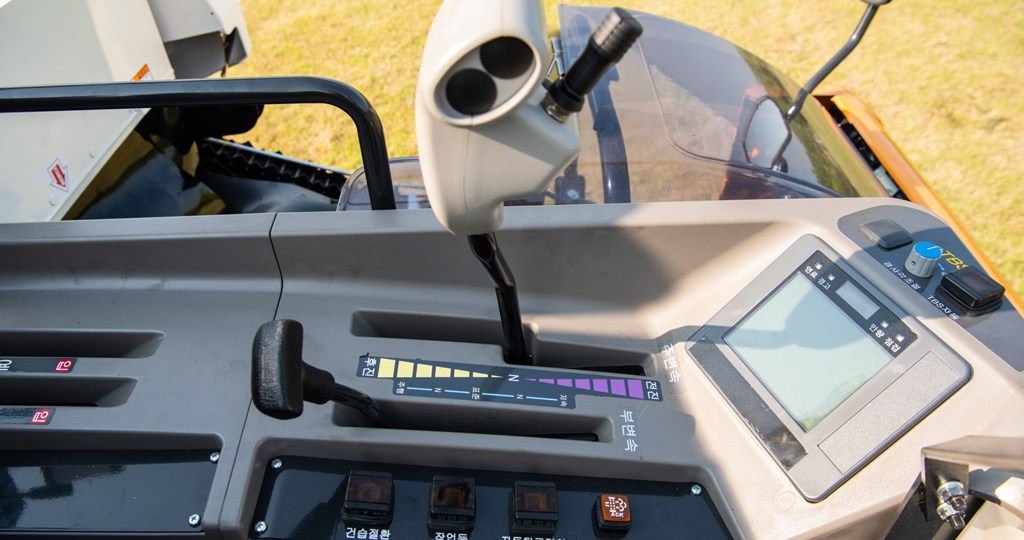

Fine adjustment lever
Finely control the reaper's height, and the direction of the reaper with the lever to allow for more complete harvesting

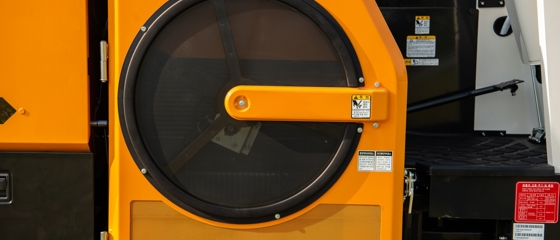

Rotating radiator screen
The screen spins to remove dust and particles to keep the radiator unobstructed.

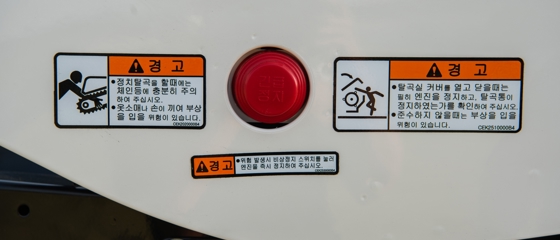

Emergency stop switch
In the event of an emergency, the engine can be stopped immediately by pressing the emergency stop switch for added safety.
All the right features to get the job done
Work effectively and maximize your yield with a TYM combine harvester. Achieve results faster with a powerful high-torque engine. Control implements easily with an easy-access operator panel. All while stay productive and energized in an ergonomically designed cabin.
| Harvesters Model | CX4075  | CX5130  | CX6130  |
Engine manufacturer | TYM T2400TCI | Yanmar 4TNV94FHT | Yanmar 4TNV94FHT |
Engine power | 75 PS | 55 kW | 120 PS | 88.4 kW | 120 PS | 88.4 kW |
Working speed | 1.7 m/s | 3.8 mph | 1.73 m/s | 3.87 mph | 1.74 m/s | 3.89 mph |
Rated engine speed | 2600 rpm | 2500 rpm | 2500 rpm |
Displacement | 2392 cc | 146 cu. in. | 3054 cc | 186.4 cu. in. | 3054 cc | 186.4 cu. in. |
Fuel tank | 65 L | 17.2 gal | 100 L | 26.4 gal | 100 L | 26.4 gal |
Crawler grounding length | 1500 mm | 59 in. | 1800 mm | 70.9 in. | 1800 mm | 70.9 in. |
Reaping row | 4 | 5 | 6 |
Reaping width | 1410 mm | 55.5 in. | 1740 mm | 68.5 in. | 1980 mm | 78 in. |
Threshing drum (dia. x width) | 420 × 810 mm | 16.5 × 31.9 in. | 420 × 1110 mm | 16.5 x 43.7 in. | 420 × 1110 mm | 16.5 × 43.7 in. |
Rated threshing speed | 520 rpm | 520 rpm | 520 rpm |
Grain tank capacity | 1400 L | 369.8 gal | 2000 L | 528.3 gal | 2000 L | 528.3 gal |
Overall length | 4385 mm | 172.6 in. | 4600 mm | 181.1 in. | 4600 mm | 181.1 in. |
Overall width | 2000 mm | 78.7 in. | 2170 mm | 85.4 in. | 2240 mm | 88.2 in. |
Overall height | 2440 mm | 96.1 in. | 2860 mm | 112.6 in. | 2860 mm | 112.6 in. |
Min. ground clearance | 170 mm | 6.7 in. | 210 mm | 8.3 in. | 210 mm | 8.3 in. |
Weight | 3235 kg | 7132.0 lb | 4515 kg | 9953.9 lb | 4585 kg | 10108.2 lb |
| Download | Technical Brochure | Technical Brochure | Technical Brochure |
