T130 Series 6, Utility Tractor
-
Engine power
127 hp
-
Hitch lift capacity
8262 lb
TYM's flagship tractor combines sophisticated design, powerful performance, and premium features for operator convenience.
-
Material Handling
-
Land Clearing & Forestry
-
Construction
-
Arable Farming
Lifting, hauling and moving heavy materials for your operations

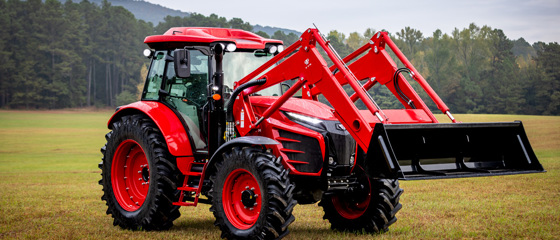

Built to maintain high productivity with maximized speed control and a deluxe operator cabin, a TYM utility tractor can help you accelerate material handling jobs for routine jobs and specialized projects. Maximized front and hitch lift capabilities allow you to carry large volumes of material at once, minimizing the number of trips and promoting operational efficiency.
Enabling you to take control of your commercial land
With a durable frame and powerful hitch lift capabilities, a TYM utility tractor has the traction, rpm and implement compatibility to power through tough land clearing task. From flattening large mounds of soil to clearing shallow-rooted trees, this tractor is equipped to crush, tow and lift away the hurdles for your operations.
Driving productive work for large developments
From preparing and foundation building to final assembly and finishing, productivity means faster completion at every construction stage. TYM utility tractors are designed to maximize productivity, with the highest possible lift capabilities to lift and haul more material with each repetition, a range of gears to promote efficient engine performance and a rugged body to maintain durability. Make this tractor your primary piece of machinery for an entire project, or working in tandem with other construction equipment.
Driving productivity for commercial farming operations
From row crops on wet land or permanent crops on dry land, TYM utility tractors are among the most preferred machines for commercial farming. Equipped with versatile functionality in a heavy-duty design, this tractor promotes productivity from soil preparation and seeding to irrigation and harvest. Enable faster and more efficient crop cycles with this tractor and maximize the use of your commercial farmland.

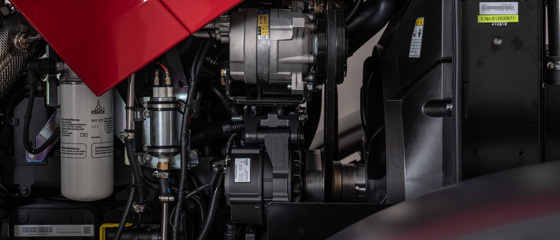

The T130 can perform high-intensity work reliably, powered by a Deutz Common Rail Engine and Bosch's state-of-the-art electronic hydraulic control system. It is ideal for use in commercial-scale rice and crop farming and livestock management. Automatic PTO with rotation and elevation functions adapt to the height of attachments, keeping the tractor stable and enabling a smooth ride.

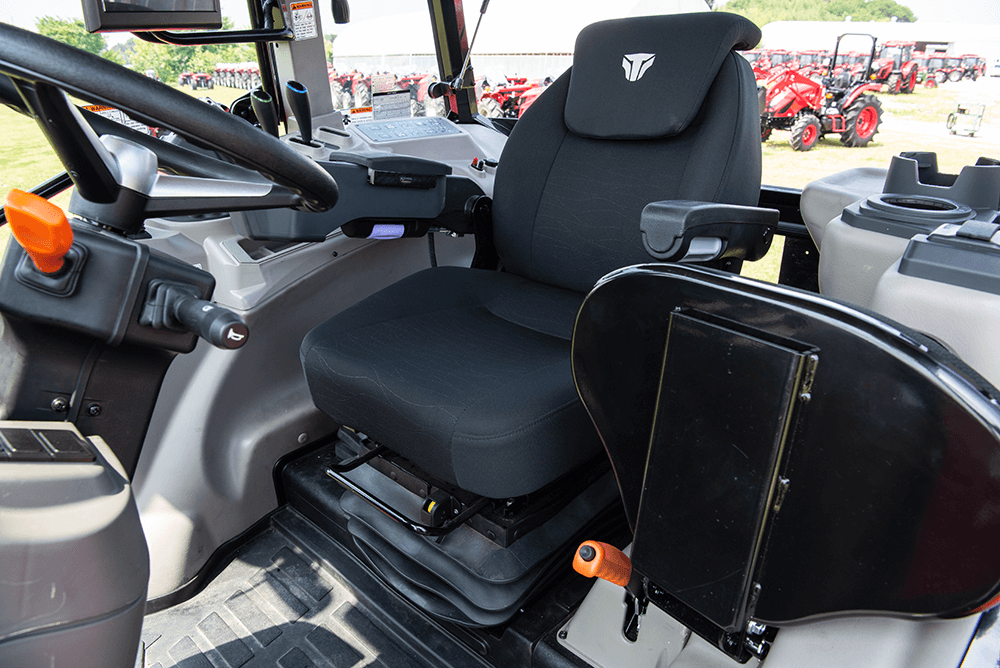

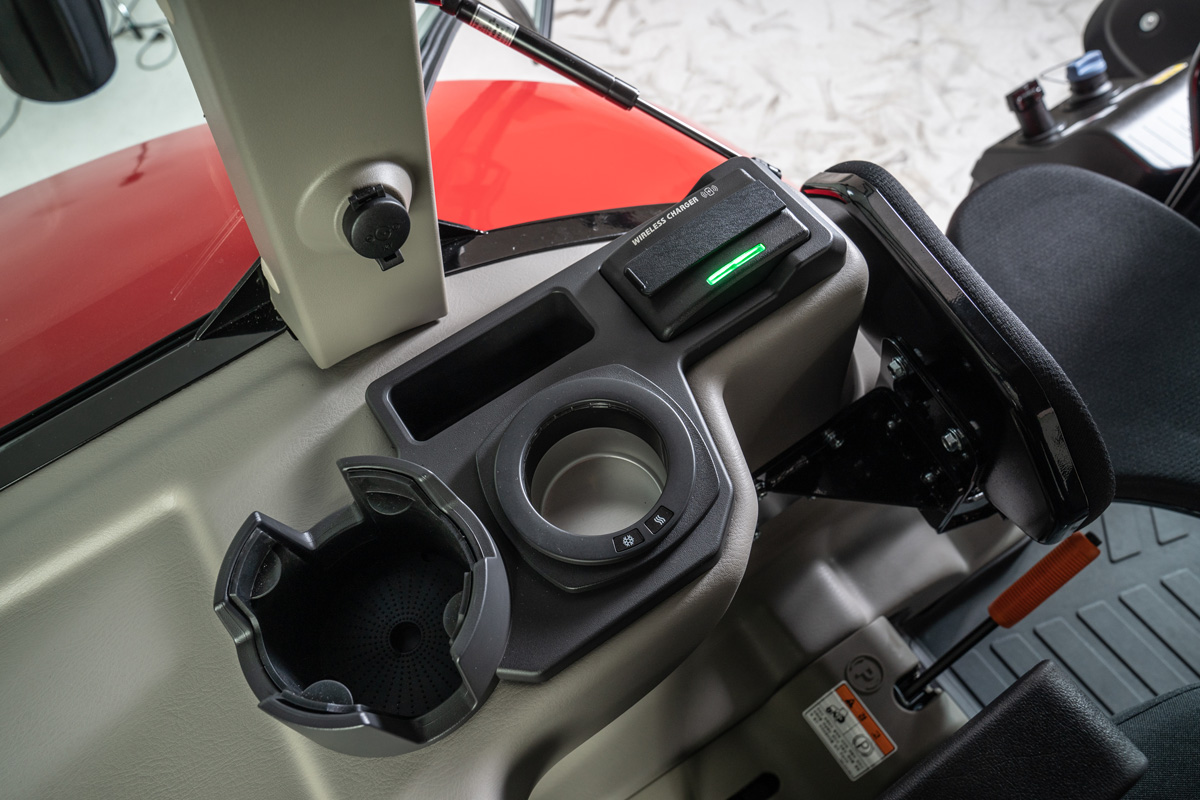

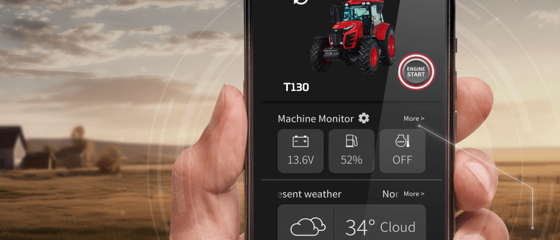

In addition, the basic specifications are differentiated by applying a backlit LED emblem and T-VISION LED headlamp for enhanced aesthetics. The cabin is fully equipped with TYM's premium operator features; remote engine start with a smart key, a smartphone wireless charger, and a heated and cooled cup holder
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
A productive and dynamic force to reckon with

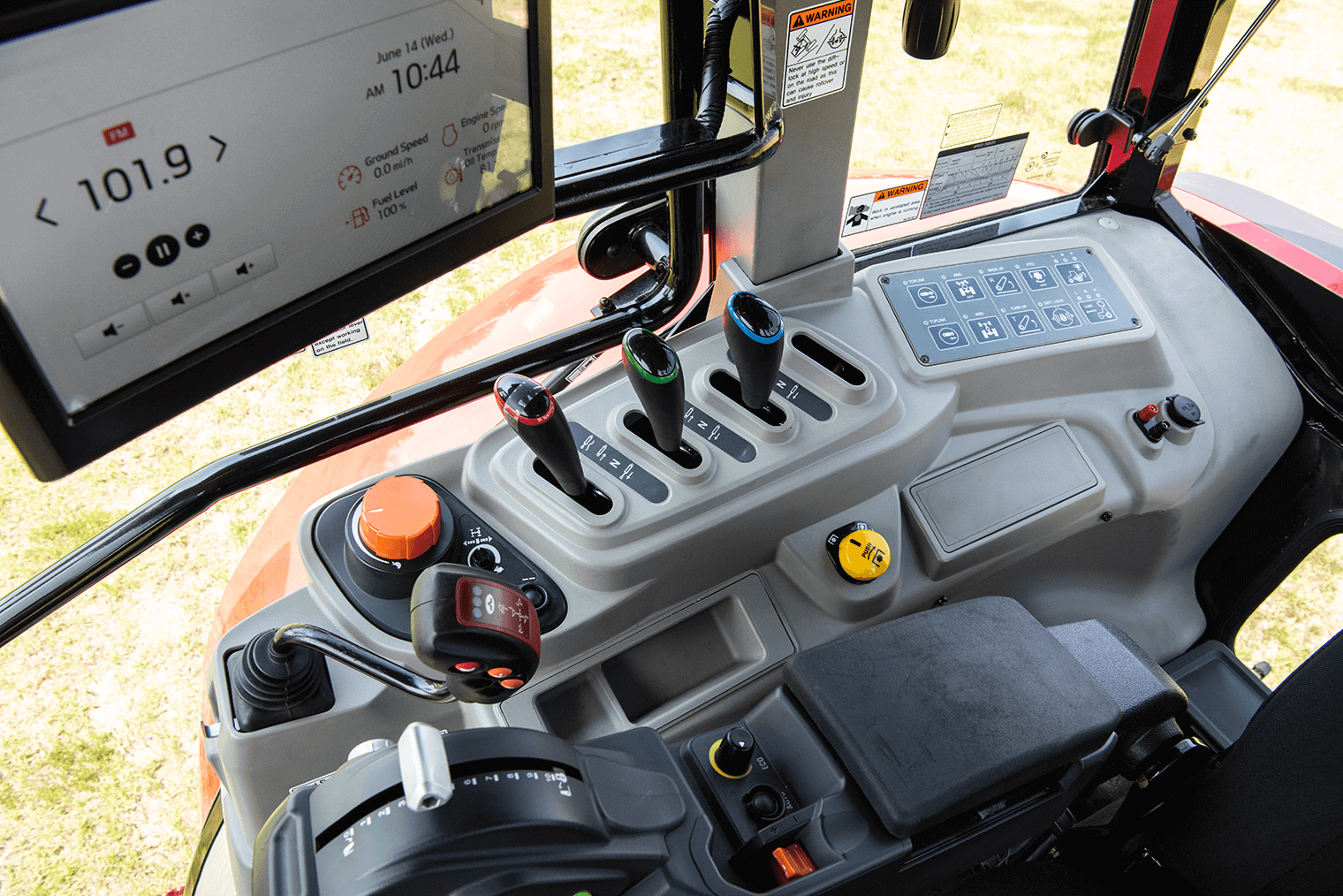

The T130 tractor boasts an extremely powerful engine and top-of-the-line engine performance, with intuitive controls, innovative technology and premium features that bring operator productivity and satisfaction.
Technical specifications
Not sure which tractor is right for you? Compare the specifications of each tractor model.
T130 |
|
|---|---|
|
engine
|
|
| Engine manufacturer | Deutz TCD3.6L4-CFXT95U |
| Type | Turbo charger |
| Gross engine power | 127 hp | 95 kW |
| PTO power | 118 hp | 87 kW |
| Rated engine speed | 2200 rpm |
| No. of cylinders | 4 |
| Displacement | 221 cu. in. |
| Air cleaner | Dual Dry |
| Alternator | 12V, 120A |
| Fuel system | CRDI |
|
powertrain
|
|

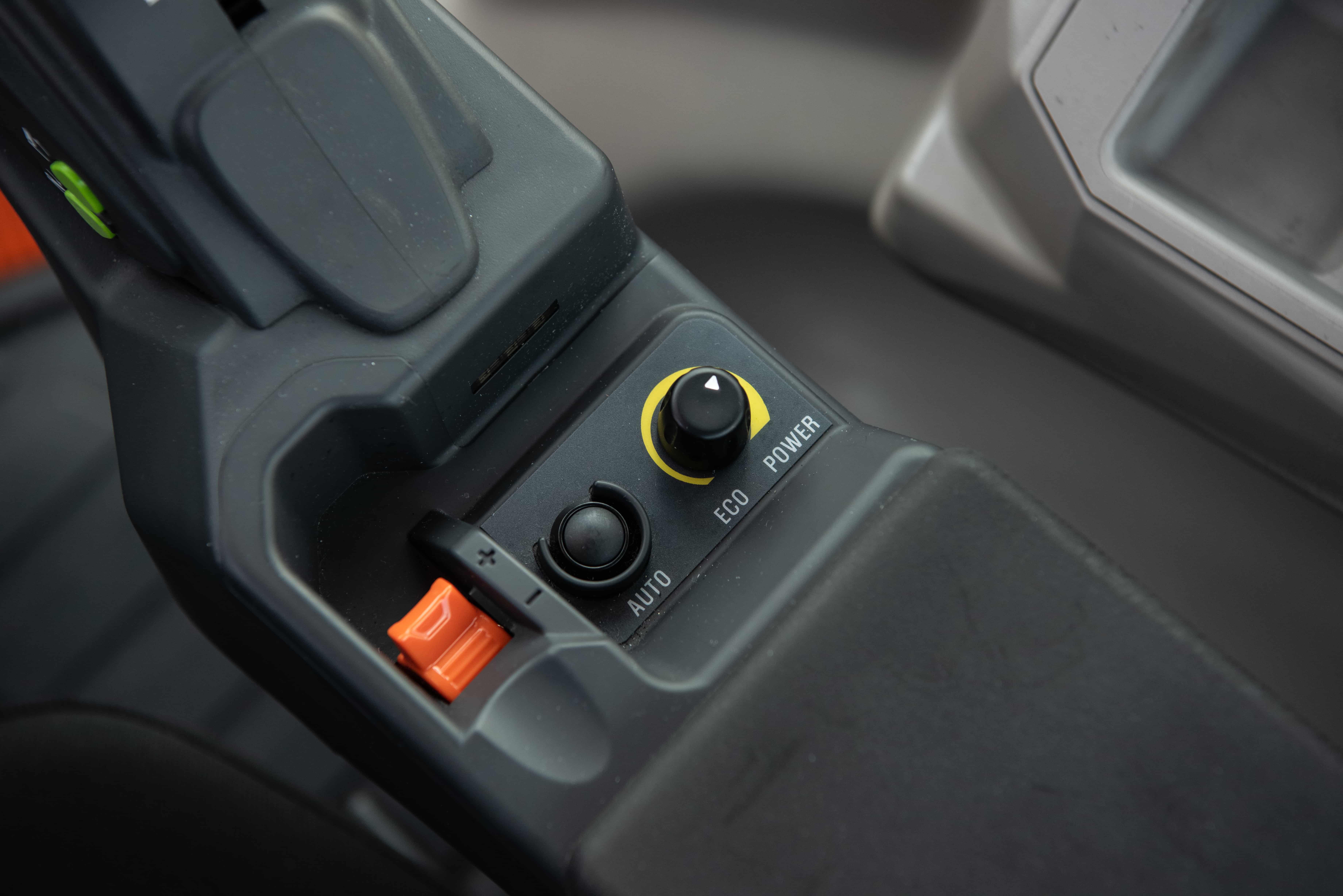

| Transmission type | Power Shuttle / 6-Speed Shift APS |
| No. of speeds | F36 x R36 w/Creep |
| Max. traveling speed | 23.1 mph |
| Brakes | Wet, Multi-disc |
| Steering | Hydrostatic |
| Clutch | Wet, Multi-plate |
|
hydraulic system
|
|
| Pump type | Dual gear pump |
| Implement flow | 20.1 gpm |
| Steering flow | 9.1 gpm |
| Total flow | 29.2 gpm |
| Category, 3-point hitch | II |
| Hitch lift capacity | 8262 lb |
| Hitch lift capacity at 24 inches behind link ends | 8014 lb |
| Lift control type | Position/Draft |

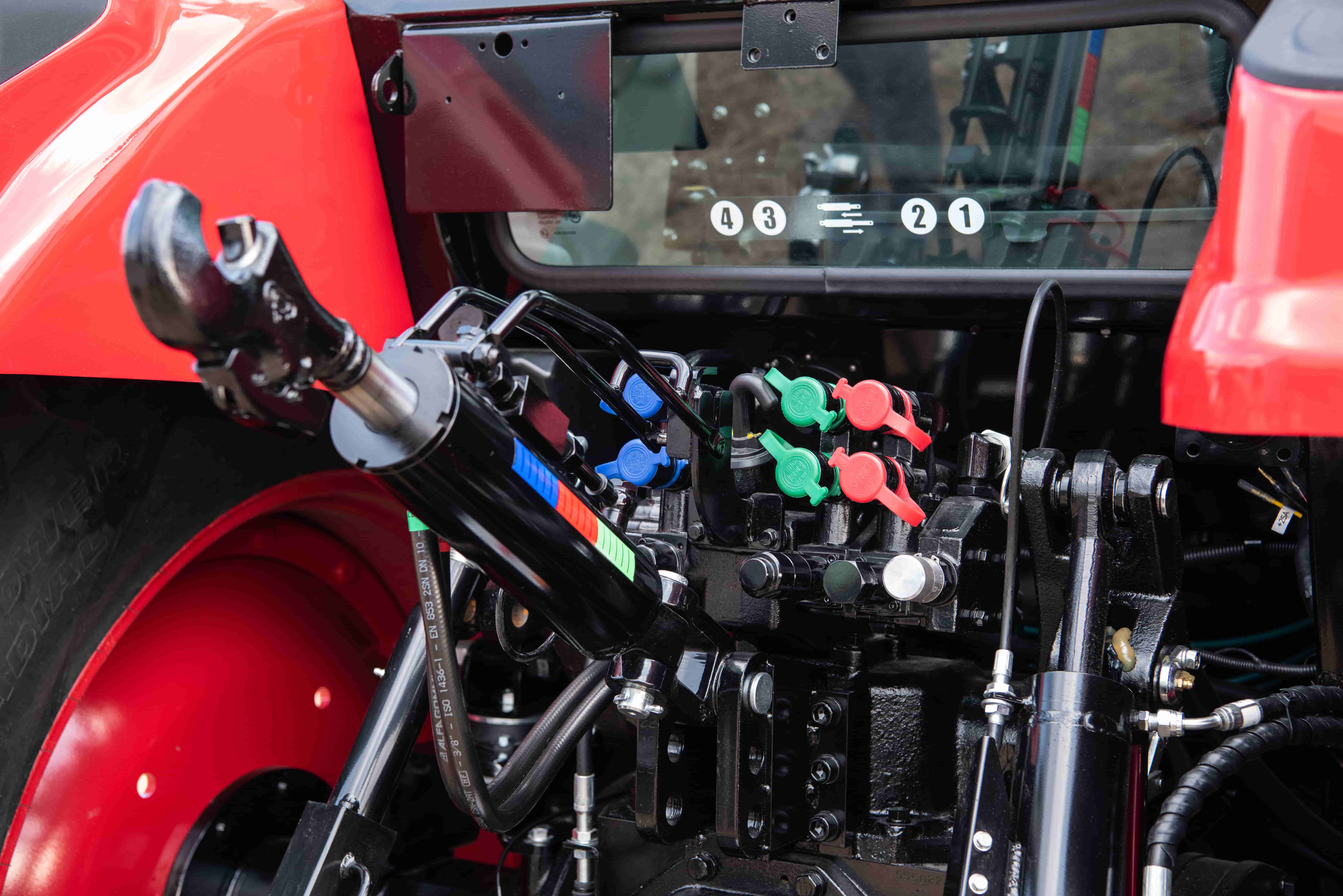

| No. of standard remote valves | 6 |
|
PTO
|
|
| PTO type | Independent |
| PTO control | Electro-hydraulic |
| PTO rear | 540/540E/1000 (Reversible shaft) |
|
capacities
|
|
| Fuel tank | 50.2 gal |
| Coolant | 19.1 qt |
| Crankcase | 2.1 gal |
| Transmission/Hydraulics system | 26.9 gal |
| Front axle | 1.9 gal |
|
dimensions & weights
|
|
| Overall length with 3-point hitch | 176.8 in. |
| Overall width | 92.9 in. |
| Wheelbase | 102 in. |
| Height to top of cabin | 115.7 in. |
| Min. ground clearance | 16.1 in. |
| Min. turn radius with brakes | 166.5 in. |
| Min. turn radius without brakes | 189 in. |
| Weight with cab | 10020 lb |
|
standard tires
|
|
| Agricultural - Front | 380/85 R 28 |
| Agricultural - Rear | 460/85 R 38(18.4R38) |
| Request Quote Build Your Own |
Upgrades for the Series 6, T130
Complement the capabilities of your TYM tractor with compatible options and accessories.
Accessories
| Front counterweights |
