T1104 Series 5, Utility Tractor
-
Engine power
111 hp
-
Hitch lift capacity
6860 lb
Take utilization to the next level with one of the largest TYM tractors. The T1104 is equipped to to tackle the toughest of jobs with maximized productivity.
-
Material Handling
-
Land Clearing & Forestry
-
Construction
-
Arable Farming
Lifting, hauling and moving heavy materials for your operations
Built to maintain high productivity with maximized speed control and a deluxe operator cabin, a TYM utility tractor can help you accelerate material handling jobs for routine jobs and specialized projects. Maximized front and hitch lift capabilities allow you to carry large volumes of material at once, minimizing the number of trips and promoting operational efficiency.
Enabling you to take control of your commercial land
With a durable frame and powerful hitch lift capabilities, a TYM utility tractor has the traction, rpm and implement compatibility to power through tough land clearing task. From flattening large mounds of soil to clearing shallow-rooted trees, this tractor is equipped to crush, tow and lift away the hurdles for your operations.
Driving productive work for large developments
From preparing and foundation building to final assembly and finishing, productivity means faster completion at every construction stage. TYM utility tractors are designed to maximize productivity, with the highest possible lift capabilities to lift and haul more material with each repetition, a range of gears to promote efficient engine performance and a rugged body to maintain durability. Make this tractor your primary piece of machinery for an entire project, or working in tandem with other construction equipment.
Driving productivity for commercial farming operations
From row crops on wet land or permanent crops on dry land, TYM utility tractors are among the most preferred machines for commercial farming. Equipped with versatile functionality in a heavy-duty design, this tractor promotes productivity from soil preparation and seeding to irrigation and harvest. Enable faster and more efficient crop cycles with this tractor and maximize the use of your commercial farmland.
As one of the largest in the TYM range, this Series 5 tractor is built to perform under the toughest taskmaster. Leverage heavy-duty capabilities and functional engineering, from the efficient engine and robust hydraulics to the deluxe operator cabin and rugged exteriors.

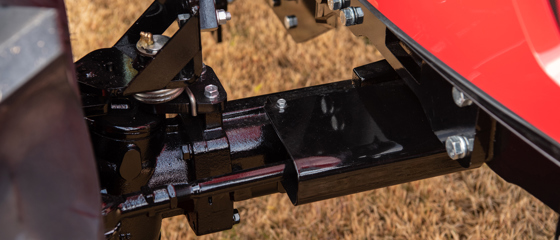

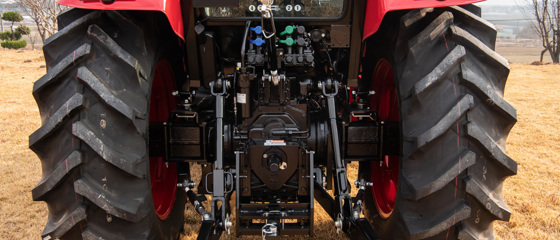

With powerful lift capabilities and an external lever to adjust the rear hitch, this tractor is ideal for applications that require multiple implements. The hitch linkage allows implements to be connected easily, swapped out, and positioned accurately from outside the operator cabin. Capable of handling implements of varying sizes and weights, this tractor embodies utility for every application.
Combining the ideal power, lift and dimensions for greater results

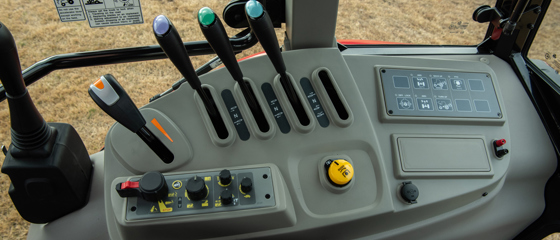

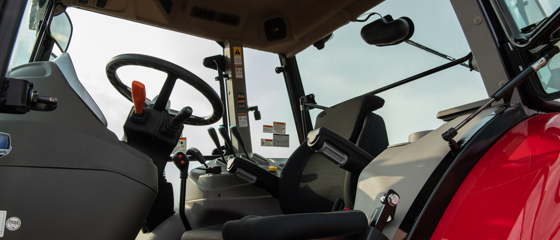

With an efficient engine, robust transmission, powerful implement controls, and deluxe operator comfort, this Series 5 tractor is built to help you complete the toughest tasks with greater productivity.
Technical specifications
Not sure which tractor is right for you? Compare the specifications of each tractor model.
T1104 |
|
|---|---|
|
engine
|
|

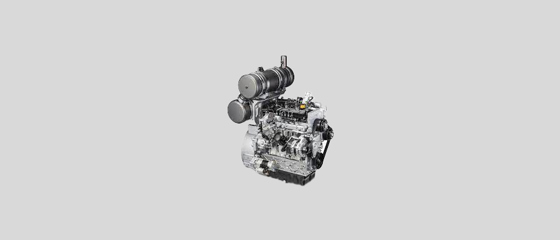

| Engine manufacturer | Doosan Infracore D34P |
| Type | Turbo |
| Gross engine power | 111 hp | 82 kW |
| PTO power | 98.8 hp | 73.7 kW |
| Rated engine speed | 2300 rpm |
| No. of cylinders | 4 |
| Displacement | 208 cu. in. |
| Air cleaner | Dual Dry |
| Alternator | 12V, 110A |
| Fuel system | CRDI |
|
powertrain
|
|
| Transmission type | Power Shuttle & Hi/Lo shift |
| No. of speeds | F32xR32 |
| Max. traveling speed | 24.6 mph |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | Wet Multi Plate |
|
hydraulic system
|
|
| Pump type | Dual Gear Pump |
| Implement flow | 14.2 gpm |
| Steering flow | 7.1 gpm |
| Total flow | 21.3 gpm |
| Category, 3-point hitch | II |
| Hitch lift capacity | 6860 lb |
| Hitch lift capacity at 24 inches behind link ends | 5490 lb |
| Lift control type | Position/Draft/Elec |

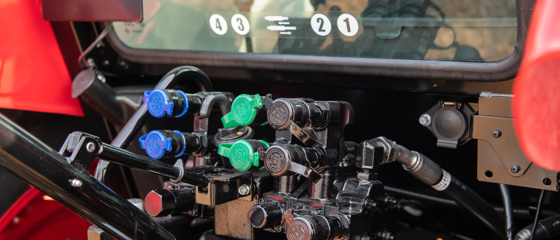

| No. of standard remote valves | 3 |
|
PTO
|
|
| PTO type | Independent |
| PTO control | Electric/Hydro |
| PTO rear | 540/750/1000 rpm |
|
capacities
|
|
| Fuel tank | 29.1 gal (DEF 5.3 U.S. gal.) |
| Coolant | 4.4 qt |
| Crankcase | 4.2 qt |
| Transmission/Hydraulics system | 19.8 gal |
| Front axle | 4.6 qt |
|
dimensions & weights
|
|
| Overall length with 3-point hitch | 167.32 in. |
| Overall width | 86 in. |
| Wheelbase | 90.55 in. |
| Height to top of ROPS | 107 in. |
| Min. ground clearance | 18.3 in. |
| Min. turn radius with brakes | 143.7 in. |
| Min. turn radius without brakes | 162 in. |
| Weight with cab | 8929 lb |
|
standard tires
|
|
| R1 Agricultural - Front | FSTR 380/85R24 TL (14.9R24) |
| R1 Agricultural - Rear | FSTR 460/85R34 TL (18.4R34) |
| Request Quote Build Your Own |
Upgrades for the Series 5, T1104
Complement the capabilities of your TYM tractor with compatible options and accessories.
Options
| Tire | R1 Agricultural Tires | F FSTR 380/85R24 TL (14.9R24) | R FSTR 460/85R34 TL (18.4R34) |
Accessories
| Block heater |
| Front counterweights |
