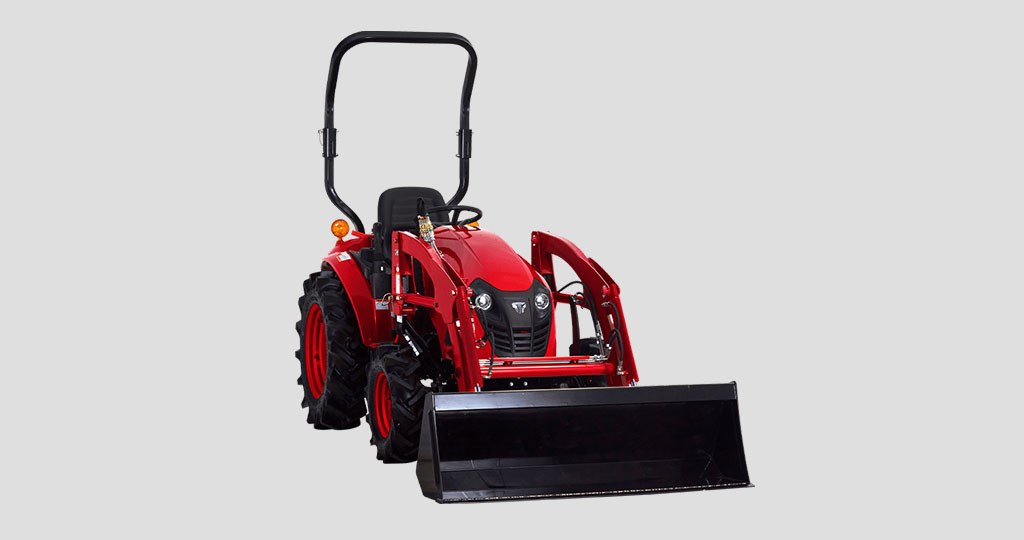

T264 Series 1, Sub-Compact Tractor
-
Engine power
24 hp
-
Hitch lift capacity
1534 lb
Get more work done quicker with this small-frame tractor. The T264 balances maximized lift capabilities and high maneuverability to be an all-round multi-tasking machine.
Helping you maintain a healthy lawn
With narrow dimensions, a small turning radius, intuitive controls and a lightweight design, a TYM sub-compact tractor is the ideal machine for any home with a yard. A dedicated mid-mount linkage allows easy attachment to a range of mowers in different sizes, while front-end and rear linkages allow for additional functionality compared to riding mowers.
Enabling you to build and maintain a home garden
With a TYM sub-compact tractor, you can leverage multi-functional capabilities and ease of maneuverability to build and maintain your home garden. From tilling the land and spreading fertilizer to aerating and seeding your soil, this tractor is easy to operate and swap implements, enabling you to grow all types of plant life, simply and effectively.
Making yardwork easier and more enjoyable
Complete chores around your property quickly and affordably. From brushing dust and dirt from your driveway to lifting and dumping fallen leaves and other waste, a TYM sub-compact offers the right mix of size and power for maneuverability and efficient engine performance.
Creating space for a lively home farm
Comfortable to sit in and easy to operate, a TYM sub-compact tractor has the light design and small turning radius to assist with maintaining animal life at home. Level the yard, trim grass, spread feed, move hay bales, clear waste and much more.
This tractor was designed to have an optimal height and a heavier structure, enhancing robustness and durability for increased superior hitch lift capabilities. A larger turning radius and higher traveling speeds enable greater ground coverage, backed by an engine that generates more power at lower rpms.

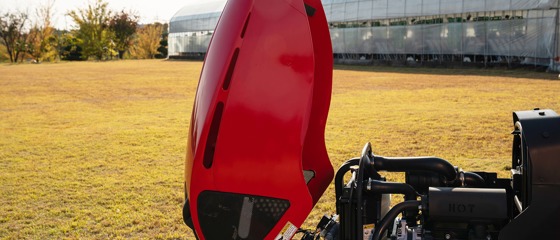

With a Tier 4 certification, the engine is built for efficient fuel burn. Combined with ergonomics to enable driver productivity and additional functionality with a third function valve, this tractor is ready to take on outdoor challenges on any property and demonstrate lifetime value for its owners.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
All the right features to get the job done

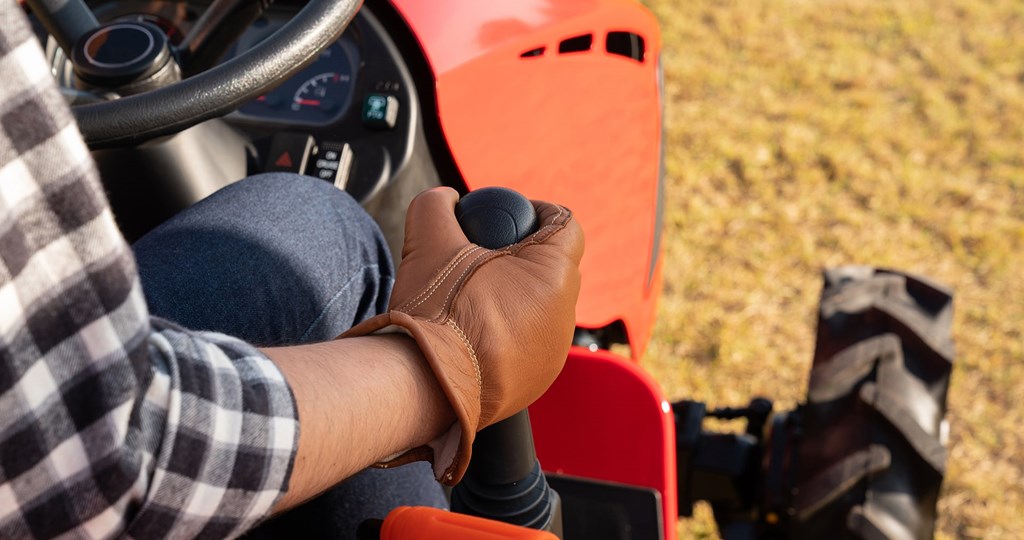

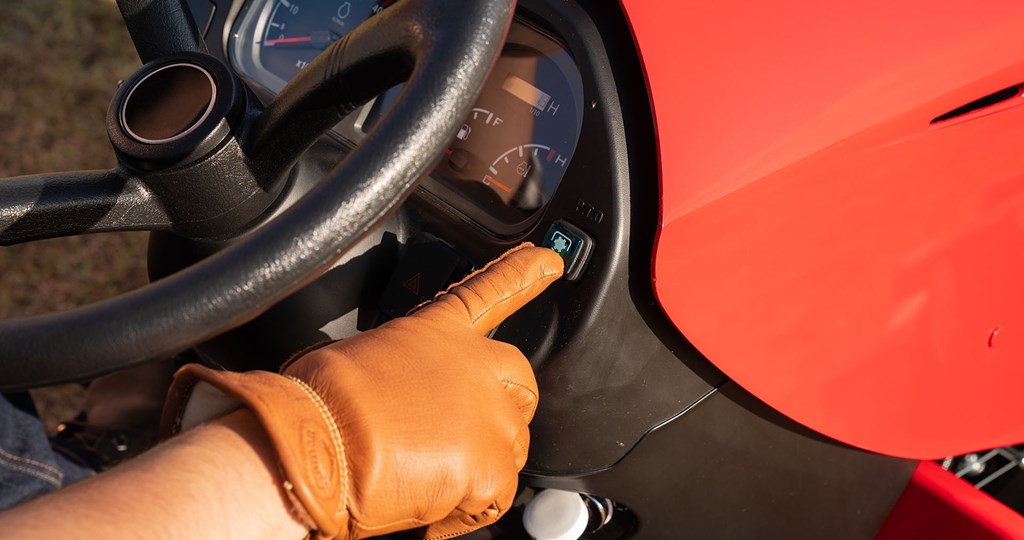

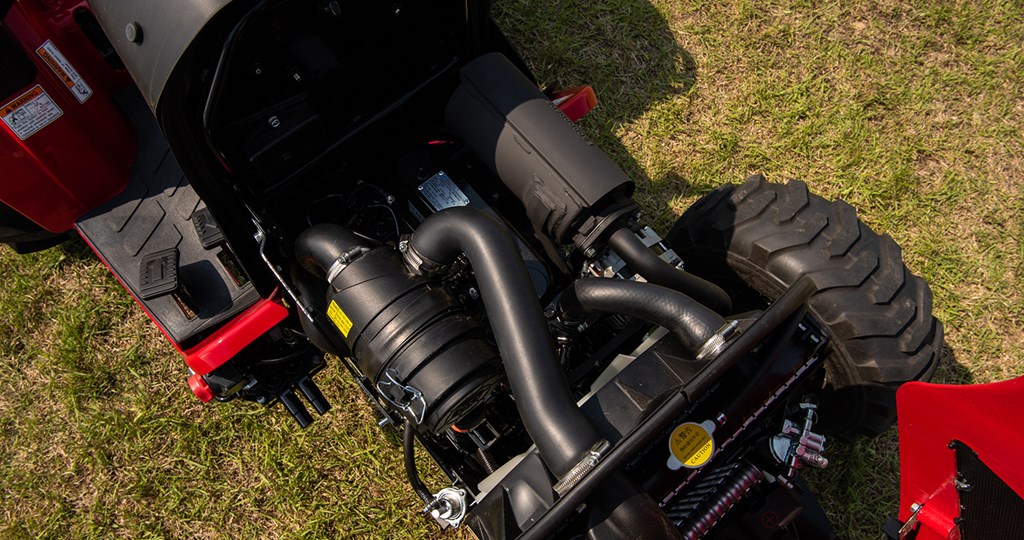

Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control implements easily with a PTO switch, and stay energized with an ergonomically designed operator station.
Technical specifications
Not sure which tractor is right for you? Compare the specifications of each tractor model.
T264 |
|
|---|---|
|
engine
|
|

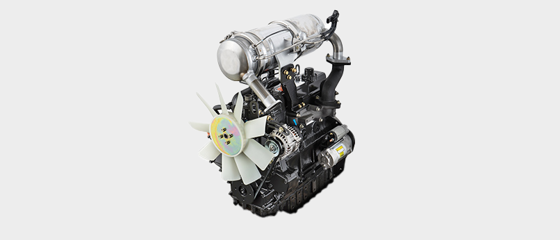

| Engine manufacturer | TYM A1100N2 |
| Type | Natural Aspiration |
| Gross engine power | 24 hp | 18 kW |
| PTO power | 18.3 hp | 13.6 kW |
| Rated engine speed | 2800 rpm |
| No. of cylinders | 3 |
| Displacement | 71.7 cu. in. |
| Air cleaner | Single Dry |
| Alternator | 12V, 50A |
| Fuel system | IDI |
|
powertrain
|
|
| Transmission type | HST |
| No. of speeds | Infinite 2-Range |
| Max. traveling speed | 12.9 mph |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | Dry Single Plate |
|
hydraulic system
|
|
| Pump type | Dual Gear Pump |
| Implement flow | 4.4 gpm |
| Steering flow | 2.7 gpm |
| Total flow | 7.1 gpm |
| Category, 3-point hitch | I |
| Hitch lift capacity | 1534 lb |
| Hitch lift capacity at 24 inches behind link ends | 1102 lb |
| Lift control type | Position |
| No. of standard remote valves | Optional (1) |
|
PTO
|
|
| PTO type | Independent |
| PTO control | Electric/Hydro |
| PTO rear | 540 rpm |
|
capacities
|
|
| Fuel tank | 6.6 gal |
| Coolant | 5.9 qt |
| Crankcase | 4.5 qt |
| Transmission/Hydraulics system | 4.7 gal |
| Front axle | 4.7 qt |
|
dimensions & weights
|
|
| Overall length with 3-point hitch | 107.8 in. |
| Overall width | 52.8 in. |
| Wheelbase | 58.3 in. |
| Height to top of ROPS | 89.8 in. |
| Min. ground clearance | 7.71 in. |
| Min. turn radius with brakes | 98.5 in. |
| Min. turn radius without brakes | 105.5 in. |
| Weight with ROPS | 1881 lb |
| Weight with cab | 2399 lb |
|
standard tires
|
|
| R3 Turf - Front | Turf Master 23x8.50-12 NHS TL 4PR |
| R3 Turf - Rear | Multi-Trac CS 33x12.50-16.5 NHS TL 4PR |
| R4 Industrial - Front | Trac Chief 23x8.50-14 NHS TL 4PR |
| R4 Industrial - Rear | Trac Chief 12-16.5 NHS TL 6PR |
| R4 Large Industrial - Front | Trac Chief 23x8.50-14 NHS TL 4PR |
| R4 Large Industrial - Rear | Trac Chief 14-17.5 NHS TL 6PR |
| Request Quote Build Your Own |
