2400 Series 1, Sub-Compact Tractor
-
Engine power
24 hp
-
Hitch lift capacity
1499 lb
A versatile and highly maneuverable Series 1 tractor perfect for hobbyists to groundskeepers. Enjoy the size of a riding mower with the capabilities of a full-size tractor.
Helping you maintain a healthy lawn
With narrow dimensions, a small turning radius, intuitive controls and a lightweight design, a TYM sub-compact tractor is the ideal machine for any home with a yard. A dedicated mid-mount linkage allows easy attachment to a range of mowers in different sizes, while front-end and rear linkages allow for additional functionality compared to riding mowers.
Enabling you to build and maintain a home garden
With a TYM sub-compact tractor, you can leverage multi-functional capabilities and ease of maneuverability to build and maintain your home garden. From tilling the land and spreading fertilizer to aerating and seeding your soil, this tractor is easy to operate and swap implements, enabling you to grow all types of plant life, simply and effectively.
Making yardwork easier and more enjoyable
Complete chores around your property quickly and affordably. From brushing dust and dirt from your driveway to lifting and dumping fallen leaves and other waste, a TYM sub-compact offers the right mix of size and power for maneuverability and efficient engine performance.
Creating space for a lively home farm
Comfortable to sit in and easy to operate, a TYM sub-compact tractor has the light design and small turning radius to assist with maintaining animal life at home. Level the yard, trim grass, spread feed, move hay bales, clear waste and much more.
If you need the power and maneuverability to take on a range of projects, along with the reliability of an everyday tractor, the 2400 is for you. The highly efficient engine empowers you to tackle challenging tasks at home and beyond, while the hydrostatic steering with dual hydraulic pumps and cruise control on the HST model ensure a smooth road ahead.

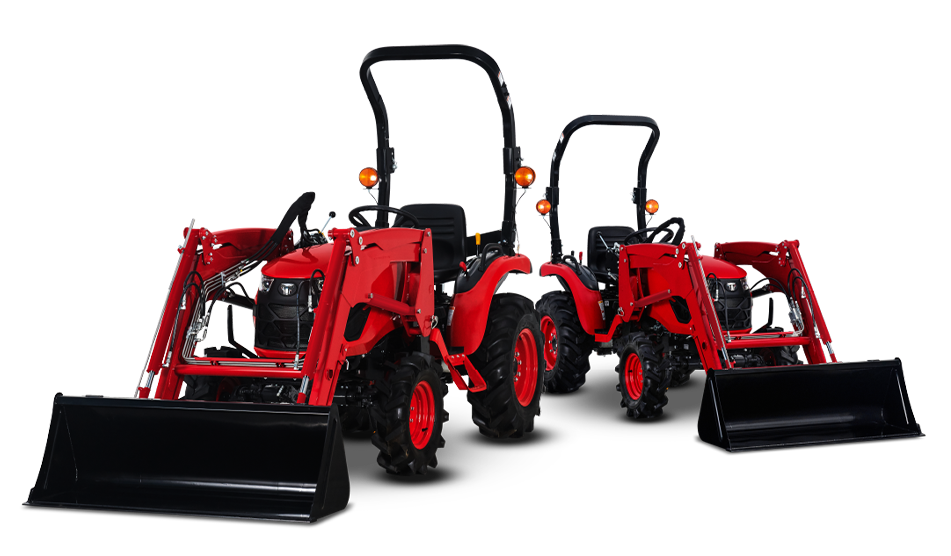

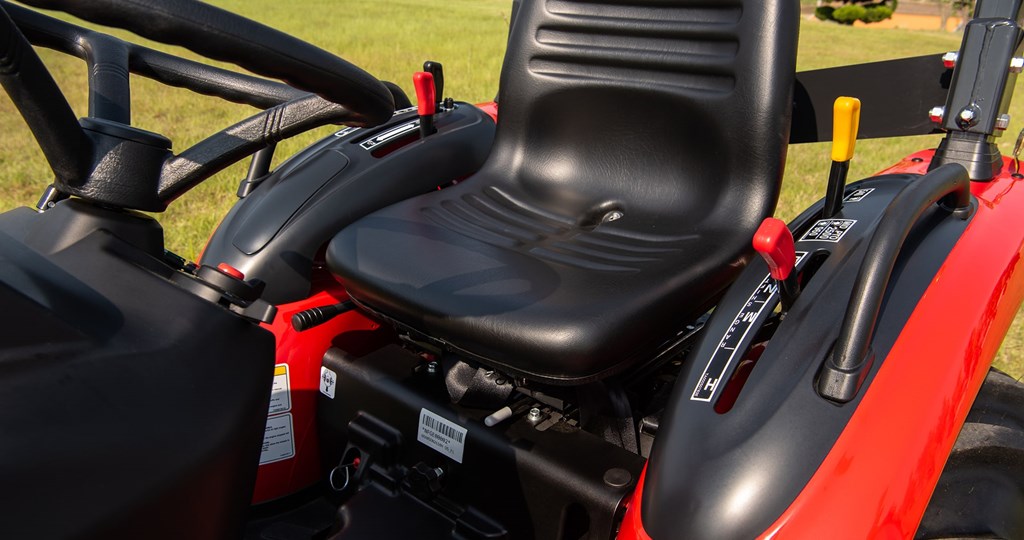

From routine grooming to major landscaping projects, the standard 4WD improves efficiency across any terrain. The semi-automatic pop-up hood allows easy access for regular checks and maintenance, while the comfortable suspension seat and ergonomically designed controls put the driver first. Pair the tractor with the optional cabin and a high-capacity front-end loader to get more done with greater versatility.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
All the right features to get the job done

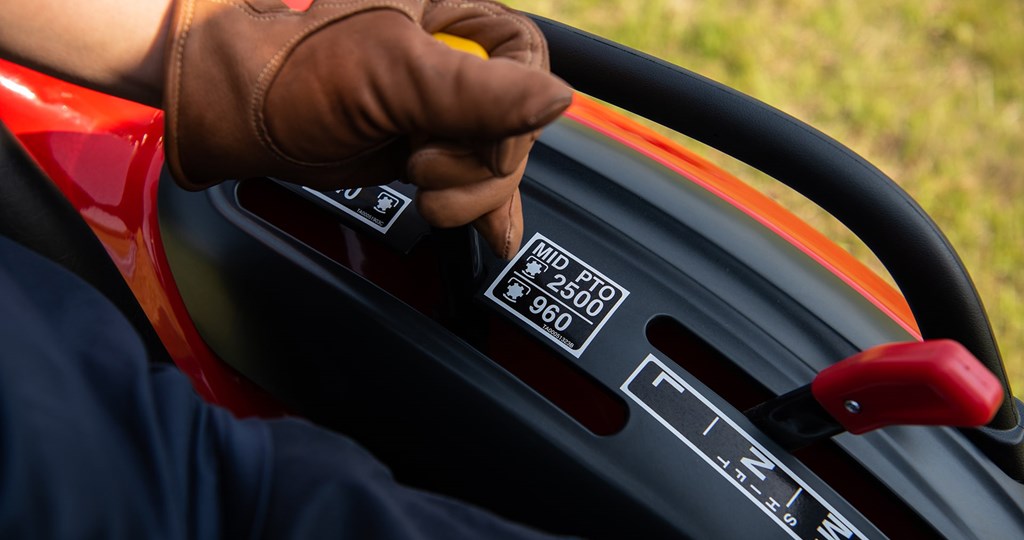

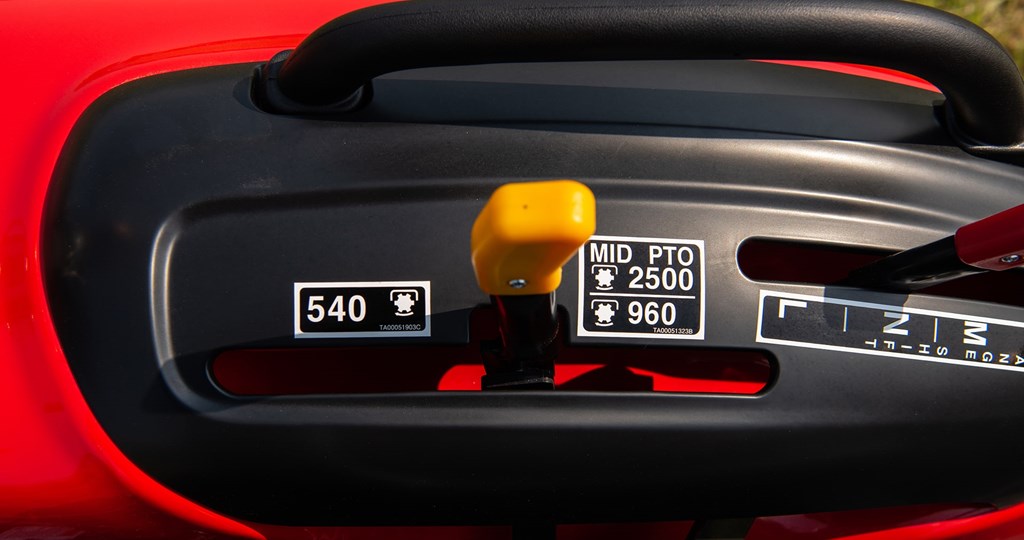

Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control implements easily with a PTO switch, and stay energized with an ergonomically designed operator station.
Technical specifications
Not sure which tractor is right for you? Compare the specifications of each tractor model.
|
||
|---|---|---|
|
2400R |
2400H |
|
|
engine
|
||
| Engine manufacturer | TYM A1100N2 IDI NA | TYM A1100N2 IDI NA |
| Type | Natural Aspiration | Natural Aspiration |
| Gross engine power | 24 hp | 17.9 kW | 24 hp | 17.9 kW |
| PTO power | 21 hp | 15.7 kW | 18 hp | 13.5 kW |
| Rated engine speed | 2800 rpm | 2800 rpm |
| No. of cylinders | 3 | 3 |
| Displacement | 71.7 cu. in. | 71.7 cu. in. |
| Air cleaner | Dry Element | Dry Element |
| Alternator | 12V, 60A | 12V, 60A |
| Fuel system | IDI | IDI |
|
powertrain
|
||
| Transmission type | ConstantMesh | HST |
| No. of speeds | F6xR2 | 2-Range |
| Max. traveling speed | 9.9 mph | 11.1 mph |
| Brakes | Wet, Multi-disc | Wet, Multi-disc |
| Steering | Hydrostatic | Hydrostatic |
| Clutch | Dry Single Plate | Dry Single Plate |
|
hydraulic system
|
||
| Pump type | Single Gear Pump | Single Gear Pump |
| Implement flow | 3.1 gpm | 3.1 gpm |
| Steering flow | 4.3 gpm | 4.3 gpm |
| Total flow | 7.4 gpm | 7.4 gpm |
| Category, 3-point hitch | I | I |
| Hitch lift capacity | 1499 lb | 1499 lb |
| Hitch lift capacity at 24 inches behind link ends | 974 lb | 974 lb |
| Lift control type | N/A | Position |

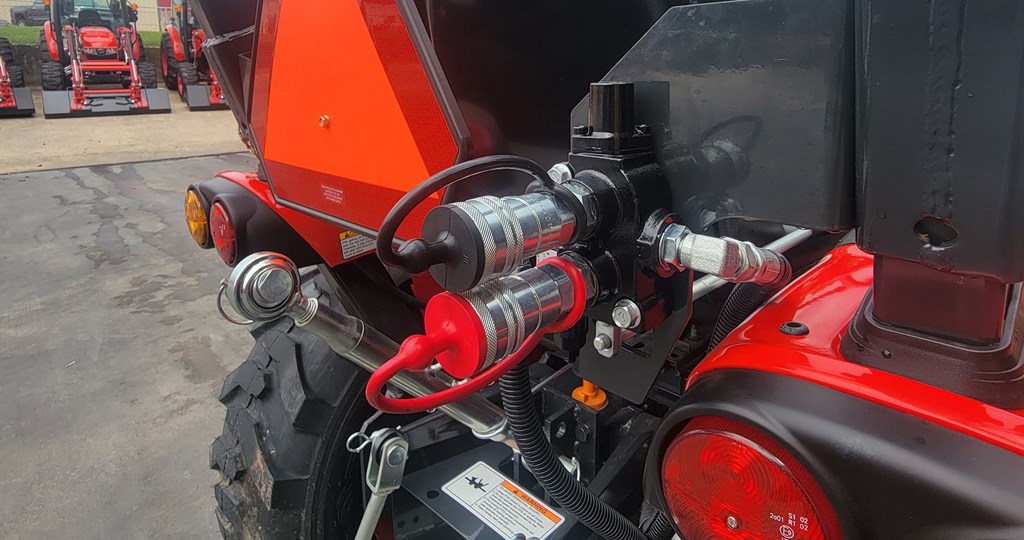

| No. of standard remote valves | N/A | Optional (2) |
|
PTO
|
||
| PTO type | Live | Live |
| PTO rear | 540 rpm | 540 rpm |
|
capacities
|
||
| Fuel tank | 6.0 gal | 6.0 gal |
| Coolant | 5.3 qt | 5.3 qt |
| Crankcase | 3.2 qt | 3.2 qt |
| Transmission/Hydraulics system | 2.9 gal | 2.6 gal |
| Front axle | 0.8 qt | 0.8 qt |
|
dimensions & weights
|
||
| Overall length with 3-point hitch | 120.3 in. | 120.3 in. |
| Overall width | 44.2 in. | 44.2 in. |
| Wheelbase | 59.1 in. | 59.1 in. |
| Height to top of ROPS | 87.3 in. | 87.3 in. |
| Min. ground clearance | 12.1 in. | 12.1 in. |
| Min. turn radius with brakes | 9.61 ft | 9.61 ft |
| Min. turn radius without brakes | 9.6 ft | 9.6 ft |
| Weight with ROPS | 1792 lb | 1892 lb |
|
standard tires
|
||
| R1 Agricultural - Front | 6-12 | 6-12 |
| R1 Agricultural - Rear | 9.5-16 | 9.5-16 |
| R3 Turf - Front | 23x8.50-12 | 23x8.50-12 |
| R3 Turf - Rear | 33x12.50-16.5 | 33x12.50-16.5 |
| R4 Industrial - Front | 23x8.50-12 | 23x8.50-12 |
| R4 Industrial - Rear | 12-16.5 | 12-16.5 |
| Request Quote Build Your Own | Request Quote Build Your Own | |
Upgrades for the Series 1, 2400
Complement the capabilities of your TYM tractor with compatible options and accessories.
Options
| Tire | R1 Agricultural Tires | F 6-12 | R 9.5-16 |
| Tire | R3 Turf Tires | F 23x8.50-12 | R 33x12.50-16.5 |
| Tire | R4 Industrial Tires | F 23x8.5-12 | R 12-16.5 |
