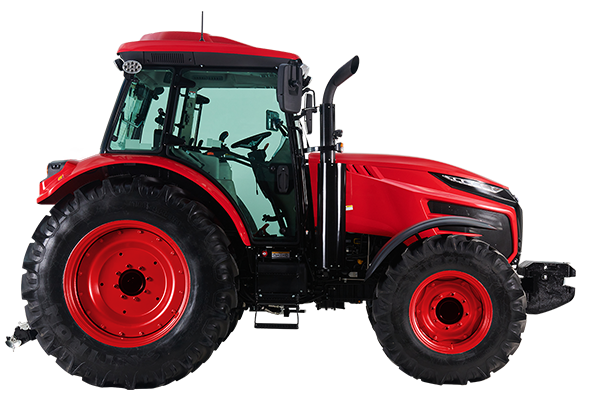

T130

New

Telematics

Series 6 , Utility Tractors

REQUEST QUOTE

Engine manufacturer

127 hp

Engine power

8260.7 lb

Hitch lift capacity

Build My Tractor

Explore Tractor in 3D

Technical Specifications

Compatible Attachments

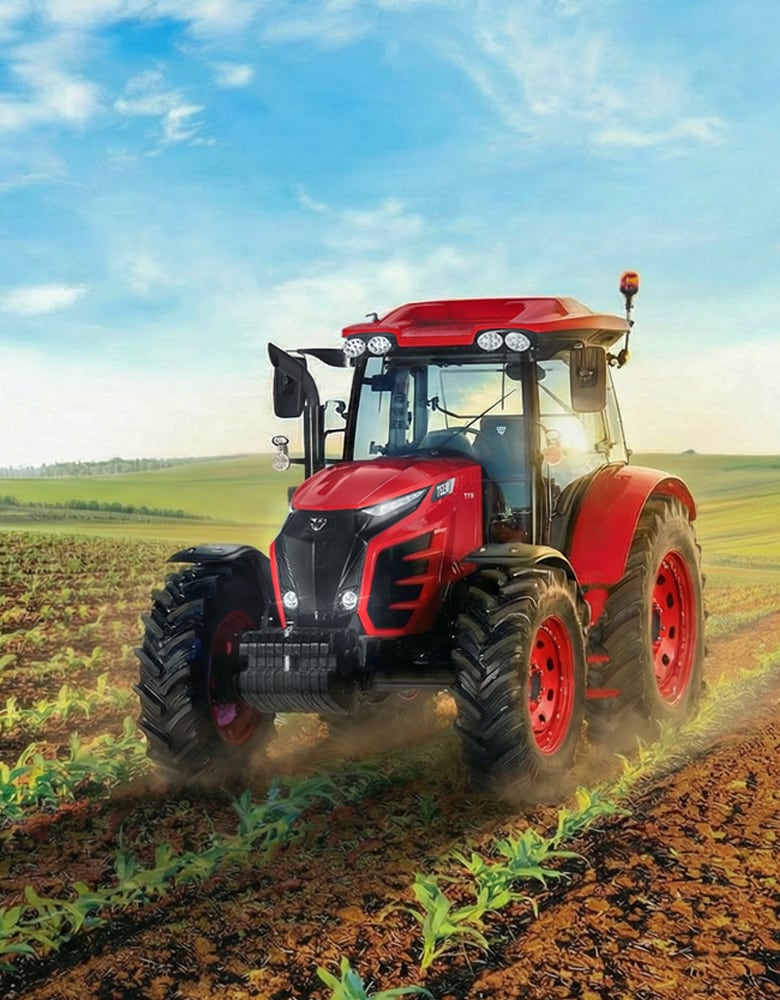

The premium utility tractor redefining excellence through innovation

Meet TYM's flagship tractor, the T130. This utility tractor seamlessly merges sophisticated design with powerful performance, incorporating cutting-edge smart technology and premium features to provide the ultimate tractor experience.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

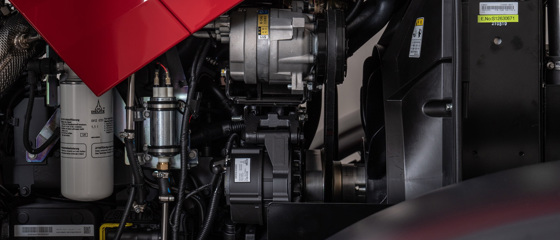

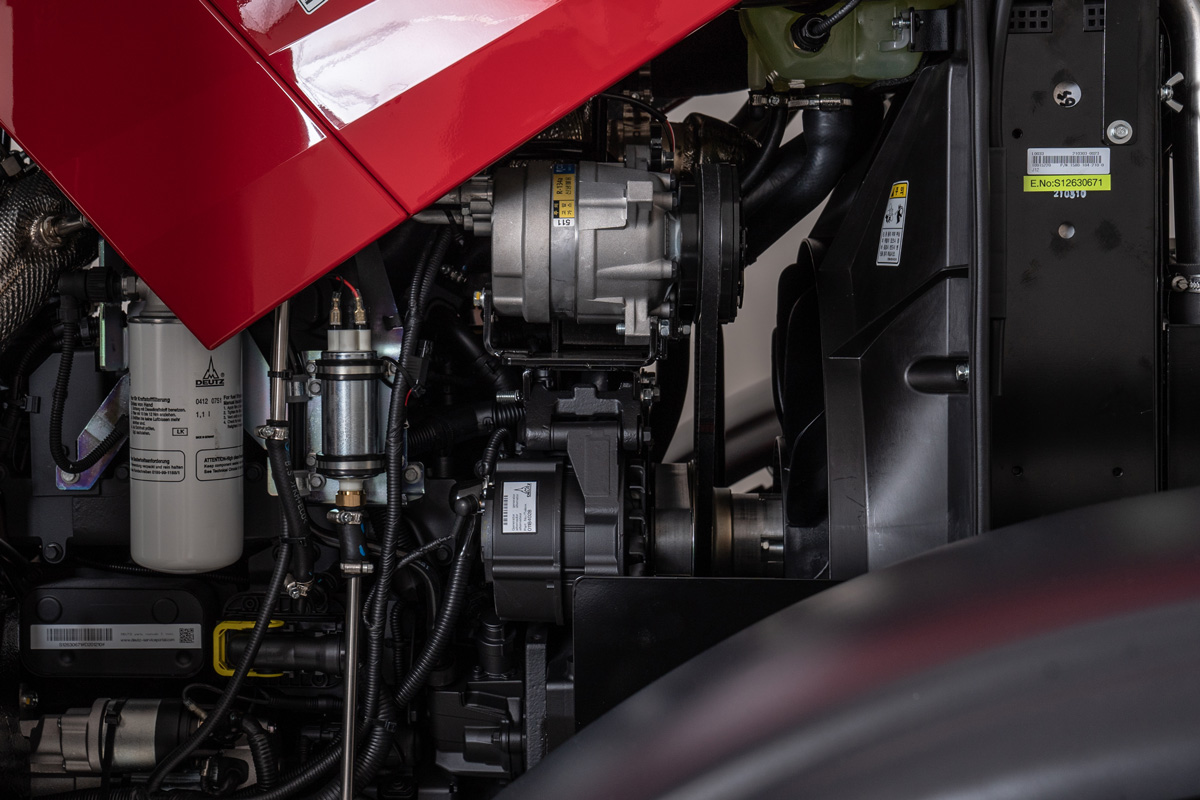

High-powered Deutz engine

The T130 is fitted with the TCD 3.6 L4, Deutz Common Rail Engine with Bosch's advanced electronic hydraulic control system, which excels in high-intensity tasks. This engine delivers exceptional power and torque at a lower rpm, promoting durability and productivity over a longer lifespan.

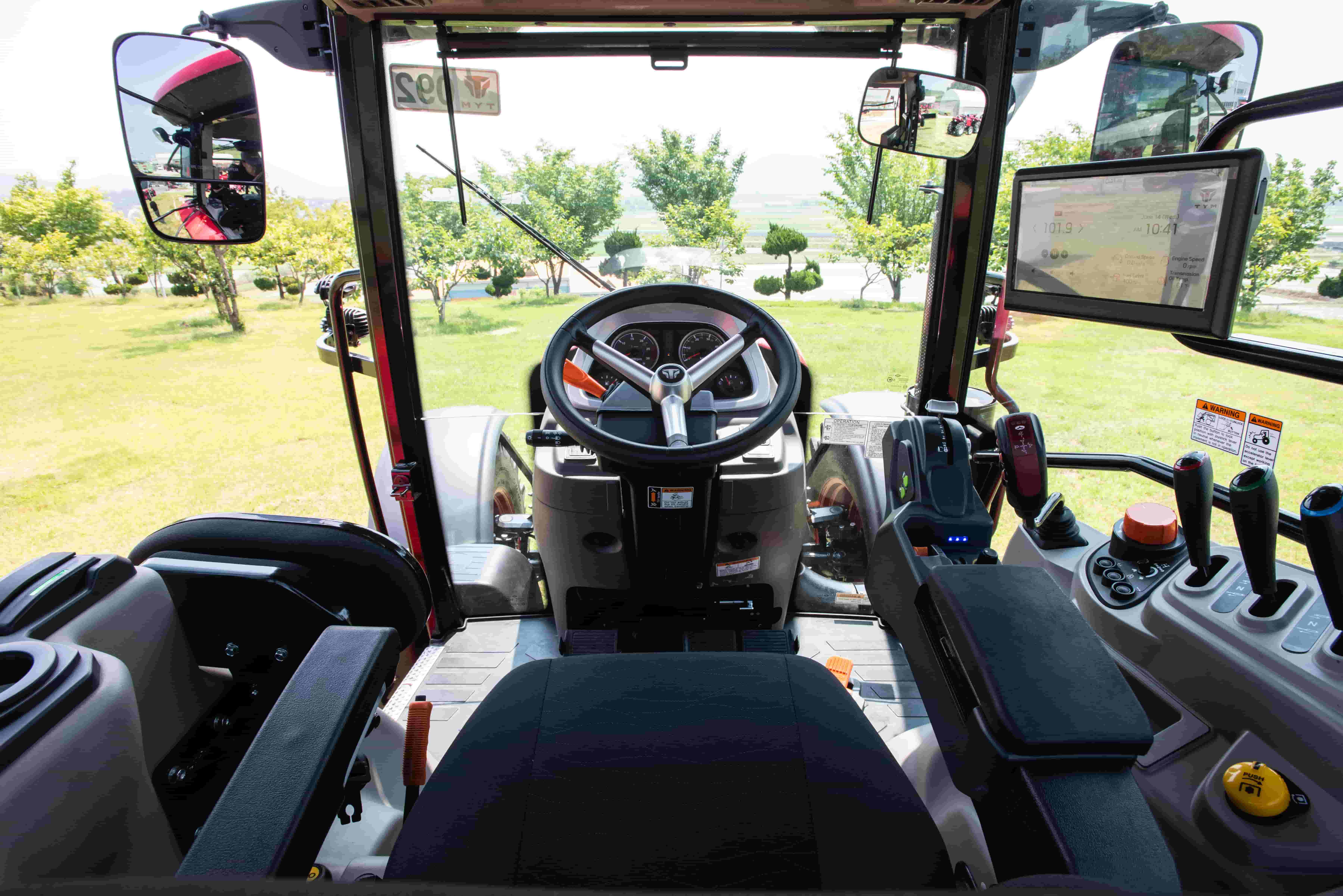

Premium cabin

Enjoy panoramic views, easy entry and exit through both side doors, and a suite of premium cabin amenities that boost productivity while prioritizing safety and well-being.

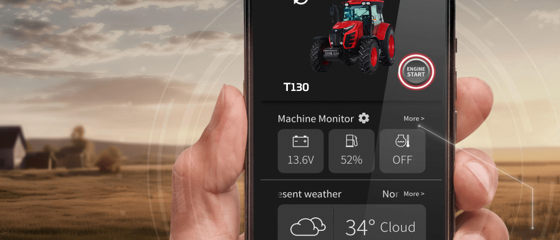

Telematics (S.A.M.)

Telematics come standard on the T130, enabling owners and operators to monitor and manage tracking location, optimize fuel usage, and receive maintenance alerts, among many other features. TYM's S.A.M. (Smart Agricultural Management) technology boosts efficiency and informs data-driven decisions for both individual tractors and equipment fleets.

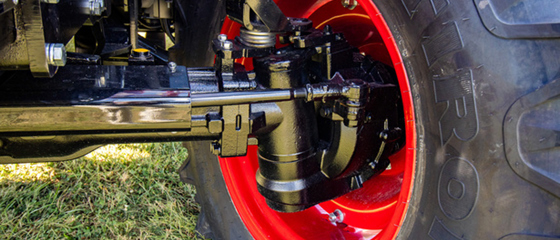

Durable, shock-absorbing axle configuration

The front axle of the T130 excels in tough conditions, consistently offering robust load-bearing and long-lasting outboard planetary gear design and a limited-slip differential. The rugged front axle features a 4 Wheel Auto mode and generous 47-degree steering angle for precise control, maneuverability, and reduced tire wear.

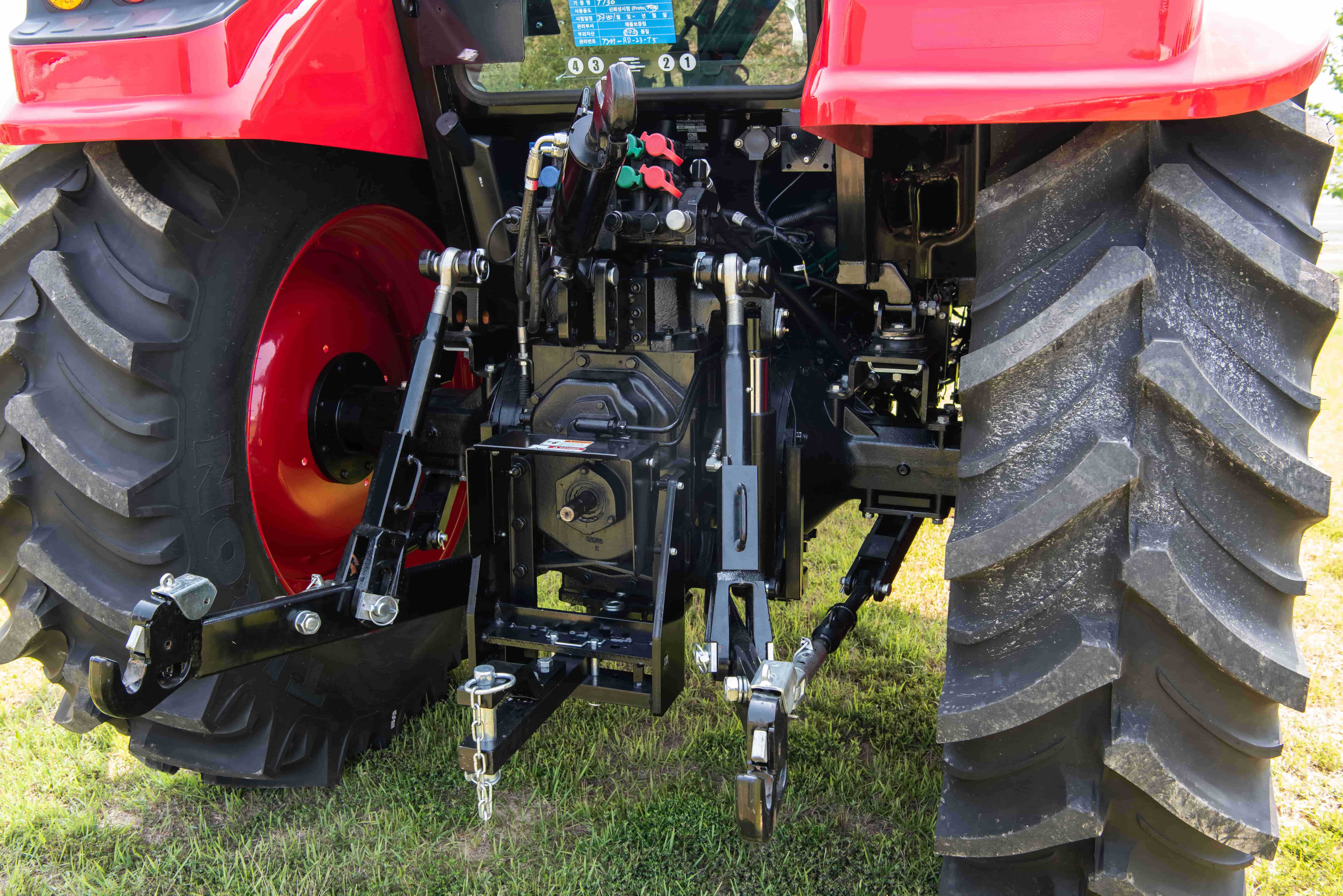

High-capacity 3-point hitch

Equipped with a high-capacity 3-point hitch and designed to handle heavy loads up to 8,262 lb. or a variety of attachments, this tractor ensures secure and optimal performance for your agricultural tools. The high-capacity heavy-duty category 2 hitch allows you to quickly connect various attachments.

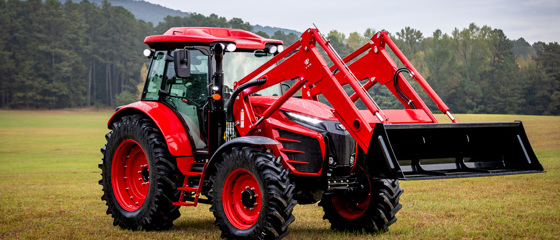

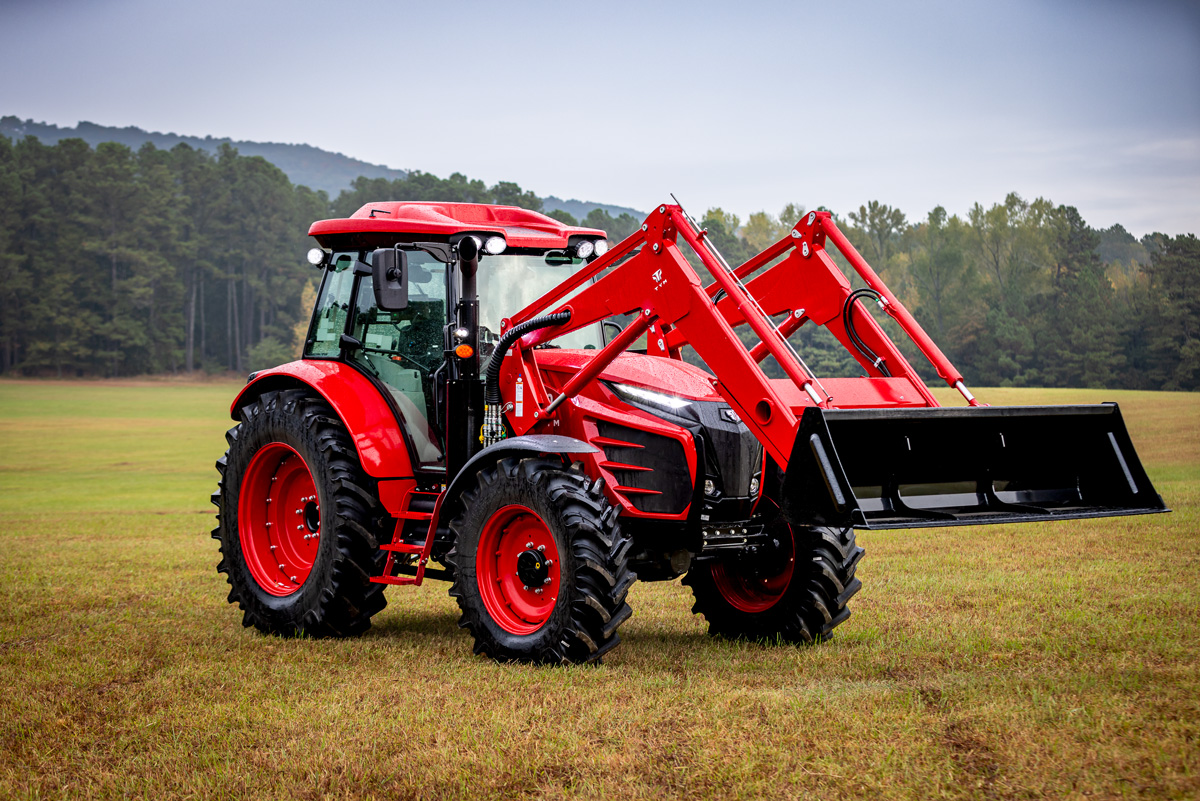

Front-end loader

Engineered to lift higher and lift heavier materials, the TYM TL130SL is a self-leveling front-end loader optimized for superior material handling with a lift capacity of 5,414 lb.

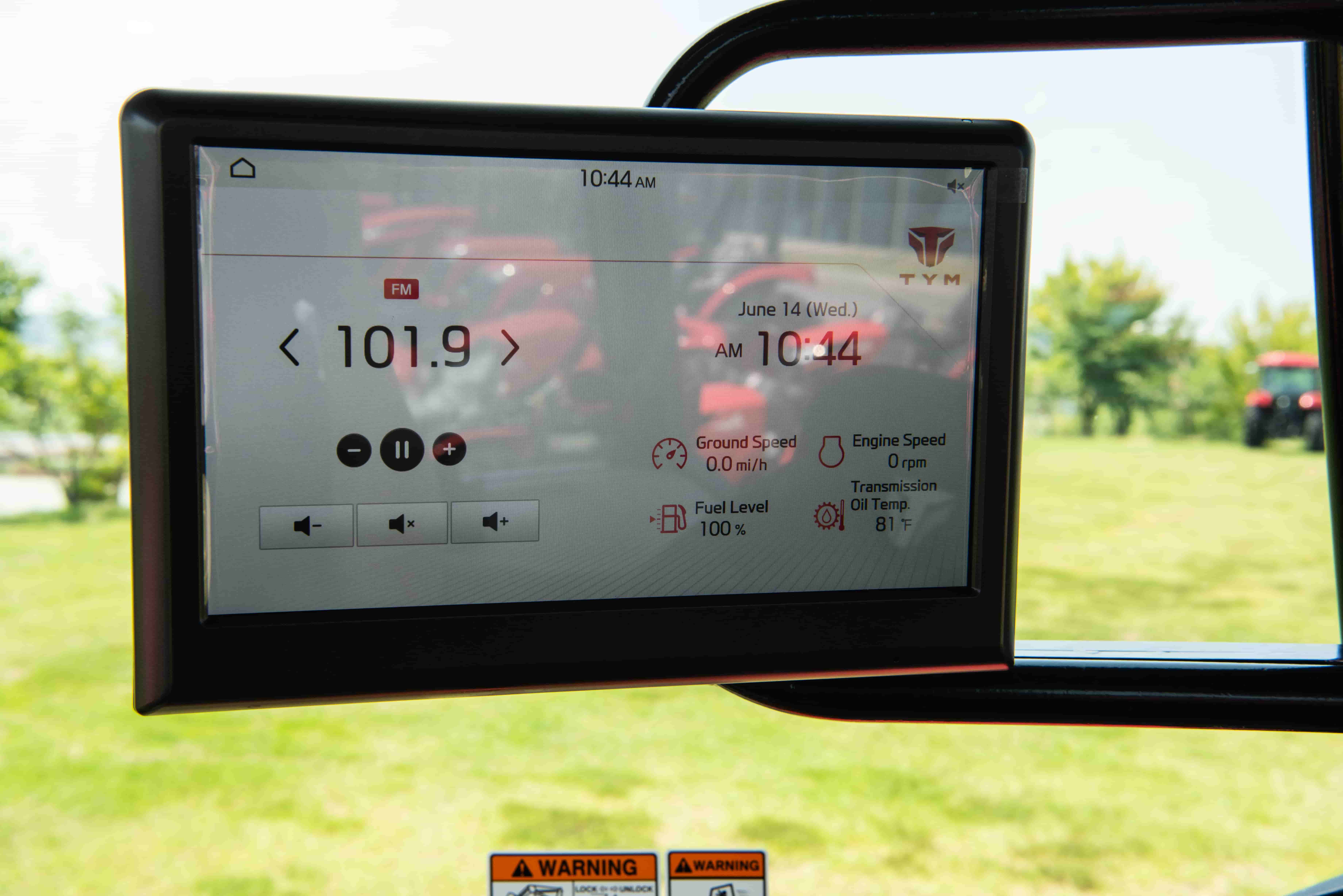

10.1-inch touchscreen monitor

The 10.1-inch Bluetooth-enabled monitor gives you easy access to the tractor’s control center. In-depth monitoring pages allow you to focus on the engine output, transmission, and 3-point hitch settings, along with diagnostics alerts. The large display is perfect for viewing front- and rear-mounted cameras (rear comes standard).

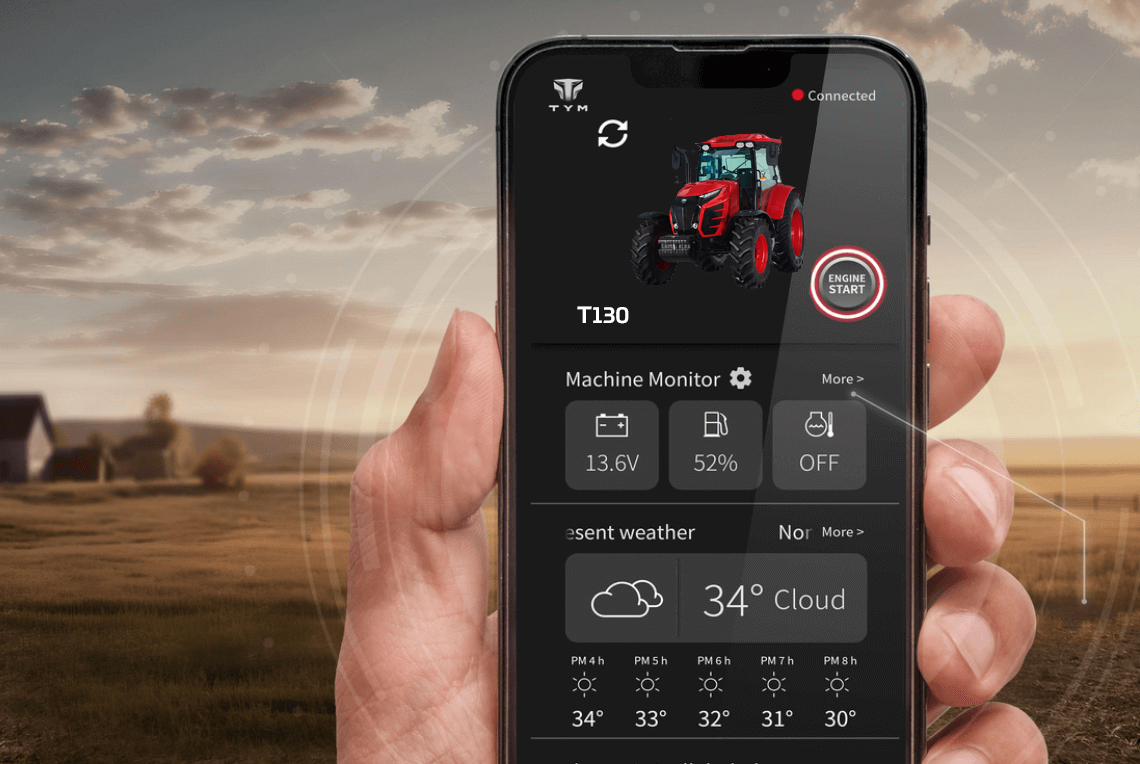

Smart key with remote start and control

The T130 smart key enables remote engine starts, hitch control, and push-button start/stop for added convenience.

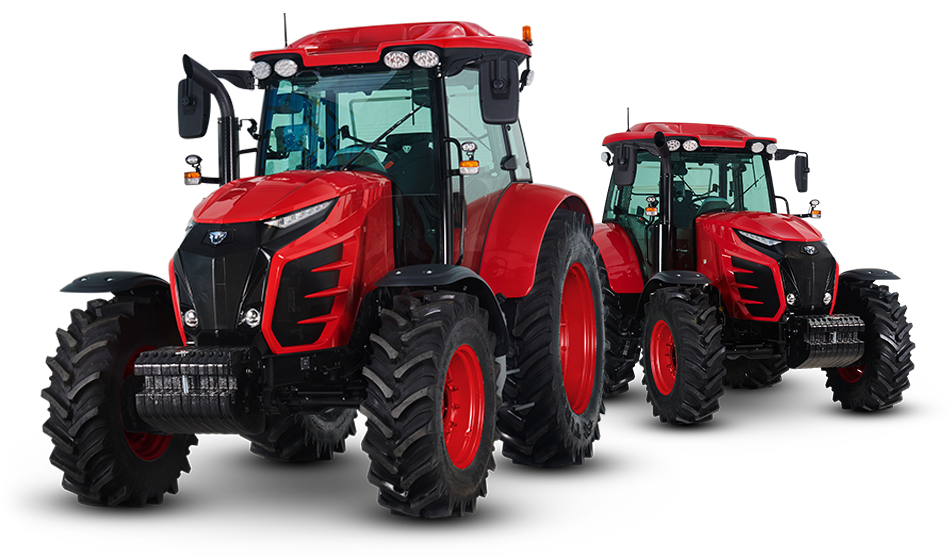

A productive and dynamic force in action

The T130 tractor boasts a remarkably powerful engine and delivers top-of-the-line performance that exceeds expectations. With intuitive controls, innovative technology, and premium features, the T130 redefines utility tractors.

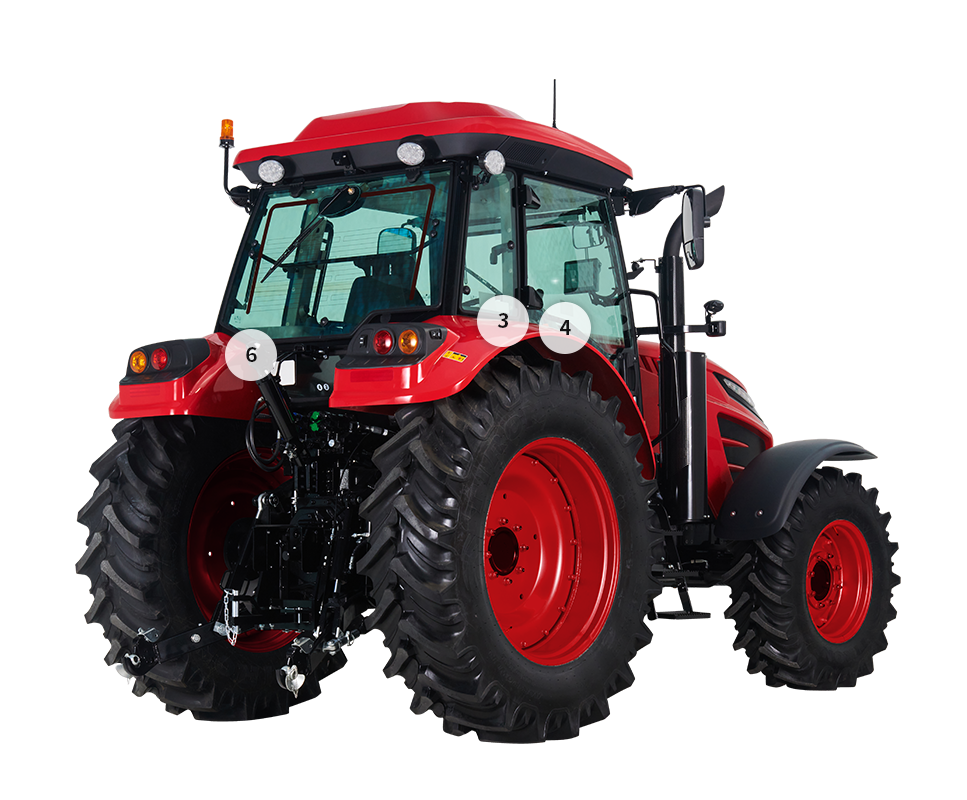

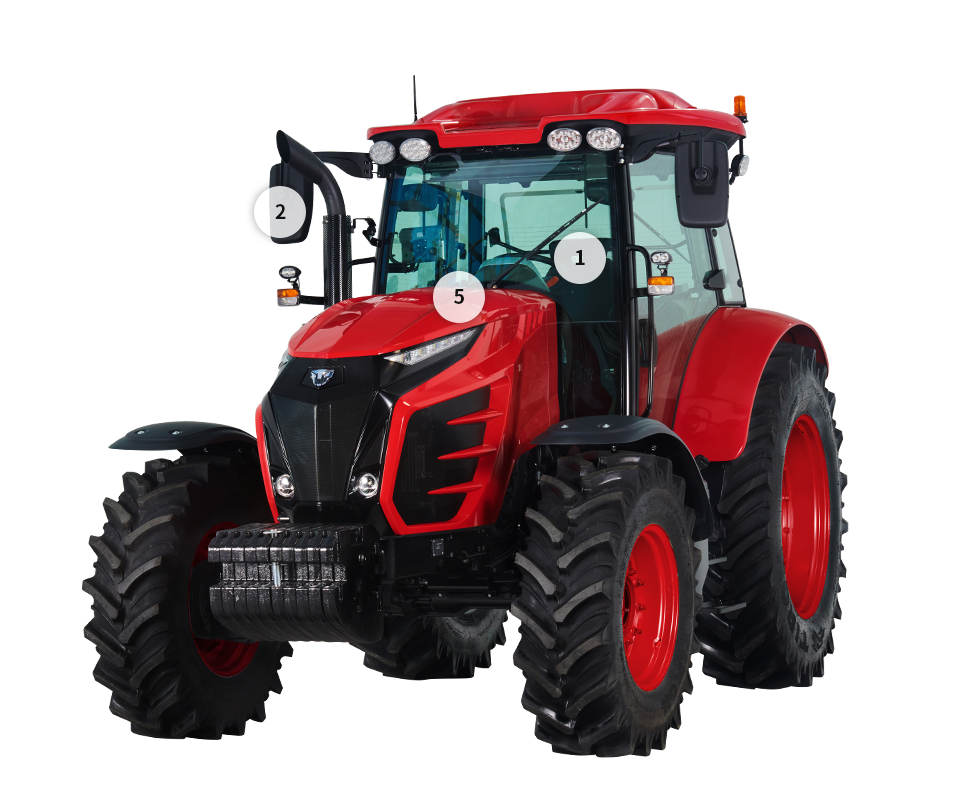

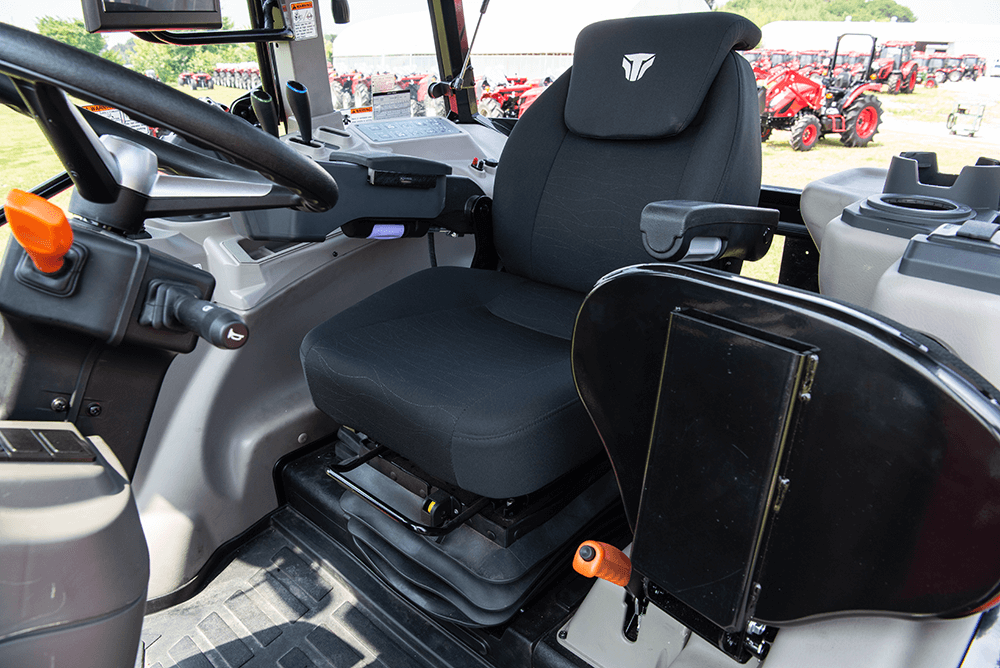

1. Air-ride full suspension seat

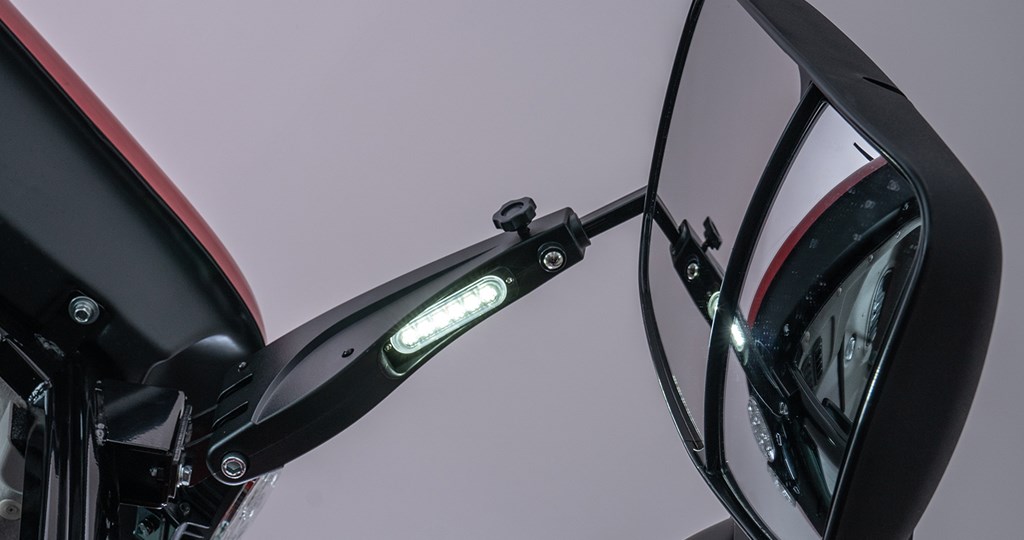

2. Side view mirrors

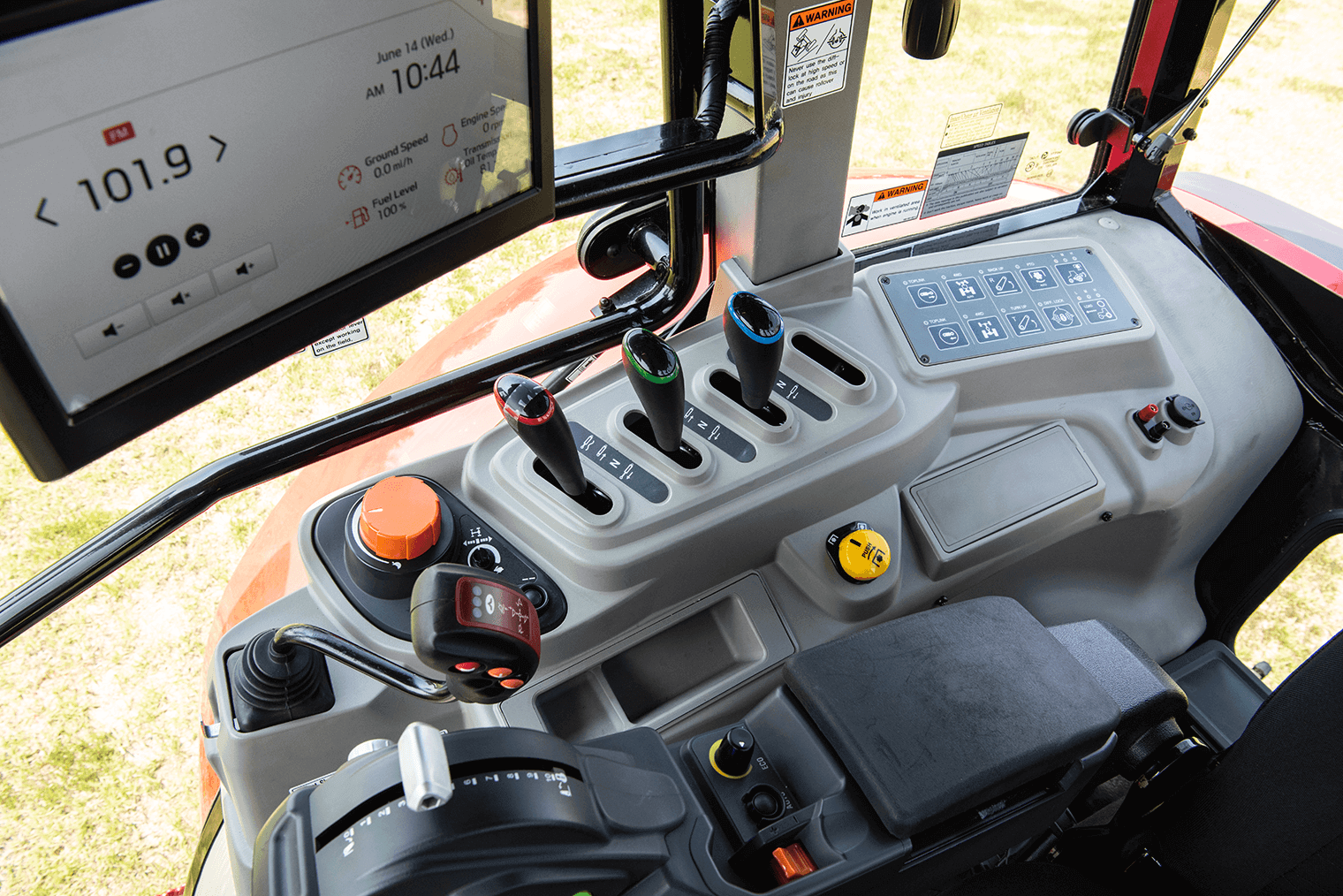

3. Ergonomic operational control center

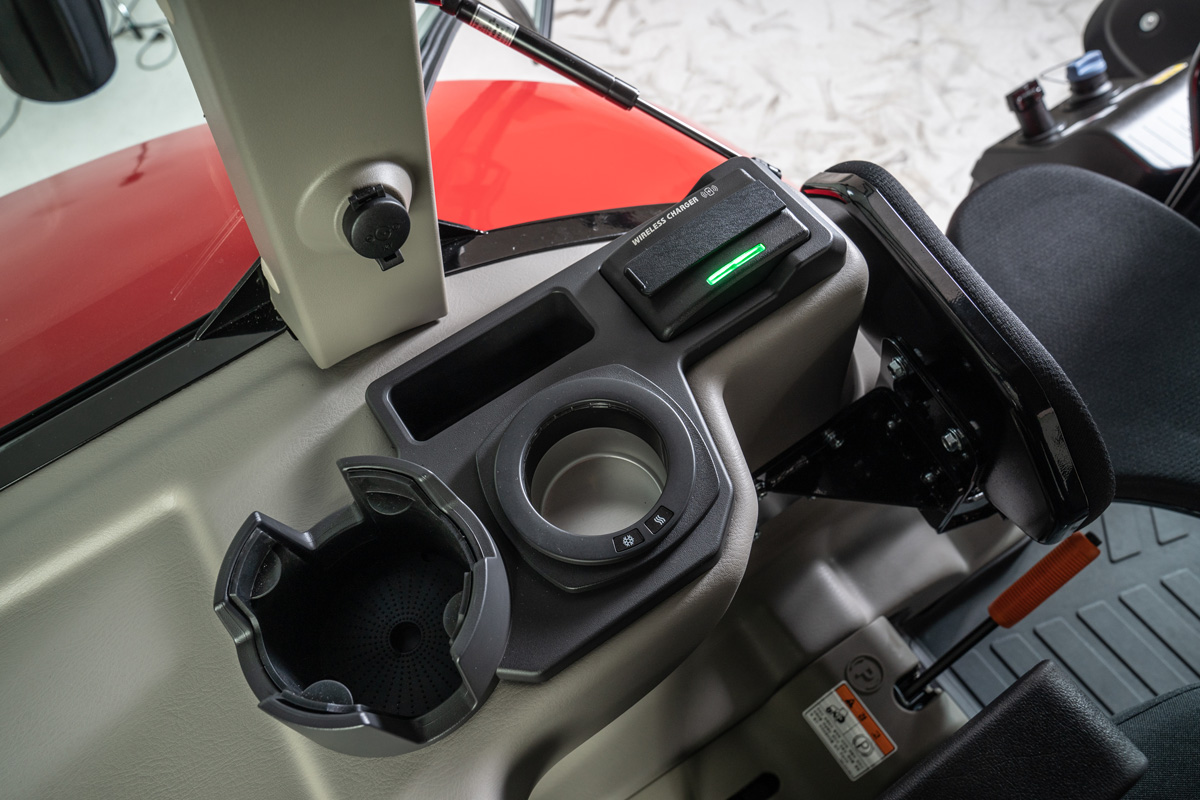

4. Smart charger and cup holder

5. Shift controller, APS & drive mode dial

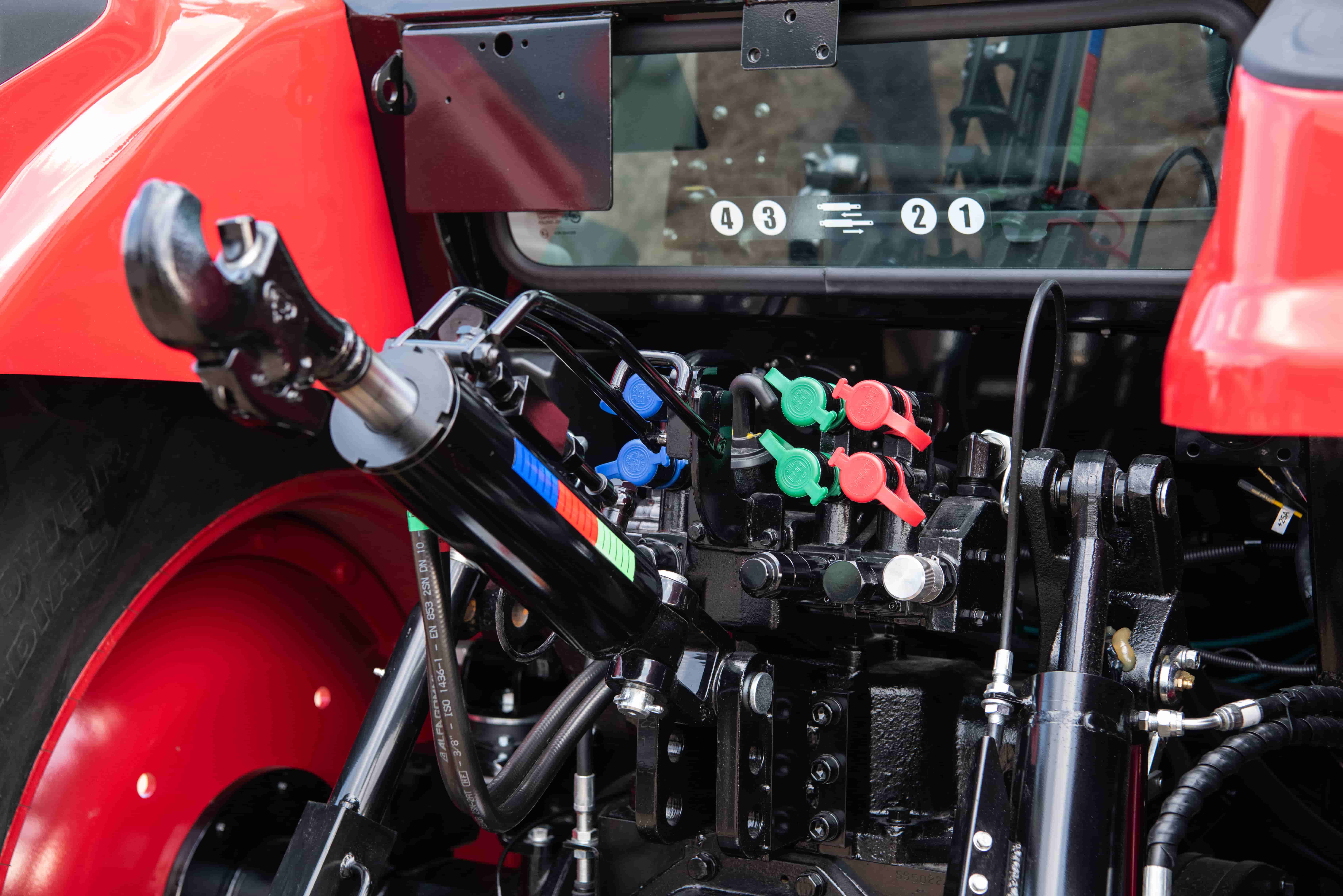

6. Telescopic top link

Designed for applications in and around your property

Introducing the T130, your ultimate power source. This utility tractor offers higher capacity for peak performance with minimal fuel consumption. Not only is it eco-friendly, it also features advanced technology for low maintenance, ensuring uninterrupted productivity.

Perfect for farming and livestock management, the T130 features an automatic PTO with lift and lower functions to maintain stability and provide a smooth ride.

Material Handling

Maximized front and hitch lift capabilities allow you to carry large volumes of material at once, minimizing the number of trips and promoting operational efficiency.

Land Clearing & Forestry

From grappling dead plants to removing uprooted tree stumps, this tractor can maintain your land or clear it for your next big project.

Construction

Use this tractor as your primary piece of machinery for an entire project, or in tandem with other construction equipment to build your vision.

Arable Farming

Equipped with versatile functionality in a heavy-duty design, this tractor promotes productivity from soil preparation and seeding to irrigation and harvest.

STORIES FROM THE FIELD

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

SEE TYM’S CUSTOMER STORIES

Technical Specification

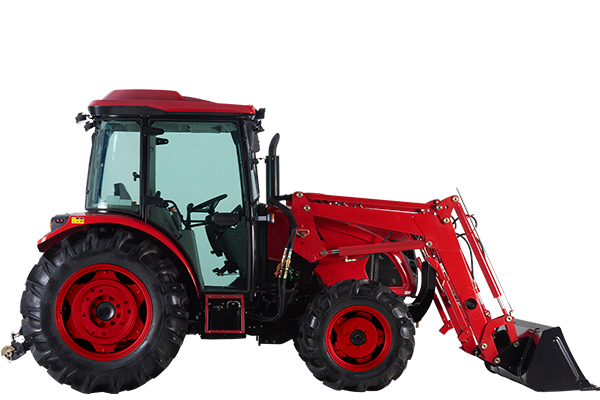

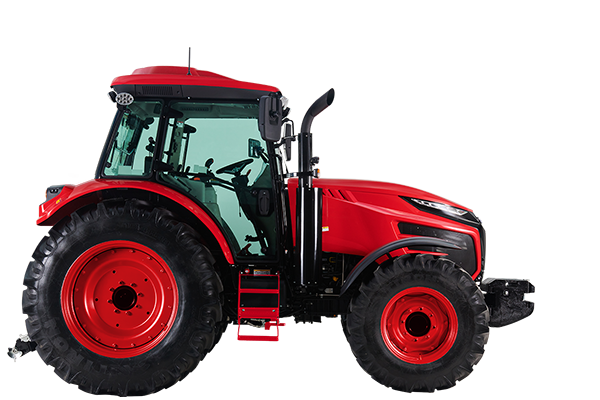

Tractors Model	T130	T115	T754
Engine manufacturer	Deutz TCD3.6L4	Deutz TCD 3.6L4-C5VT83E	Deutz TCD2.9L4
Engine power	127 hp \| 95 kW	111 hp \| 83 kW	74 hp \| 55.4 kW
Rated engine speed	2200 rpm	2200 rpm	2200 rpm
Displacement	221 cu. in. \| 3621.5 cc	221 cu. in. \| 3621.5 cc	177 cu. in. \| 2900 cc
No. of speeds	F36 × R36 w/Creep	F32 × R32 w/Creep	F16 x R16 (Creep interlock)
Hitch lift capacity	8260.7 lb \| 3747 kg	7294.9 lb \| 3309 kg	5115 lb \| 2320 kg
PTO rear	540/540E/1000 rpm (Reversible shaft)	540/540E/1000 rpm (Reversible shaft)	540/750 540/1000 (Opt) rpm
Fuel tank	50.2 gal \| 190 L	31.7 gal \| 120 L	23.8 gal \| 90 L
Overall length with 3-point hitch	176.8 in. \| 4490.7 mm	175.2 in. \| 4450 mm	155.7 in. \| 4002 mm
Overall width	92.9 in. \| 2359.7 mm	89.4 in. \| 2270.8 mm	76.4 in. \| 1940 mm
Wheelbase	102 in. \| 2938.8 mm	93.7 in. \| 2380 mm	86.1 in. \| 2188 mm
Height to top of cabin	115.7 in. \| 2359.7 mm	112.2 in. \| 2850 mm	103.3 in. \| 2624 mm
Min. ground clearance	16.1 in. \| 410 mm	16.7 in. \| 424.2 mm	18.3 in. \| 465 mm
Weight with cab	10020 lb \| 4545 kg	8940 lb \| 4055.1 kg	6052 lb \| 2745 kg

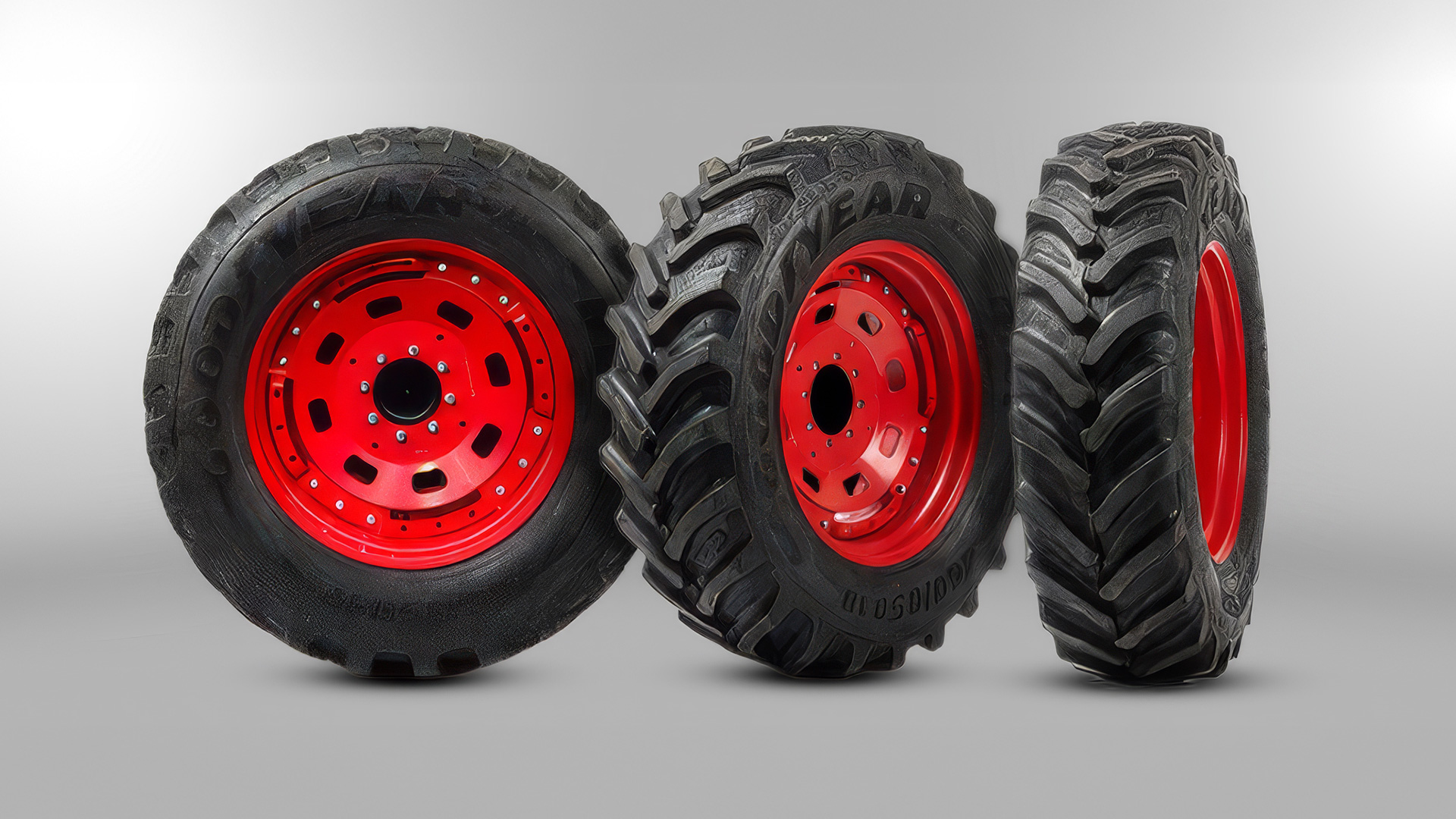

R1 Agricultural - Front	380/85 R28	13.6-24	FSTR 280/85R24 TL (11R24)
R1 Agricultural - Rear	460/85 R38(18.4R38)	18.4-34	FSTR 420/85R30 TL (16.9R30)
Download	Technical Brochure	Technical Brochure	Technical Brochure
