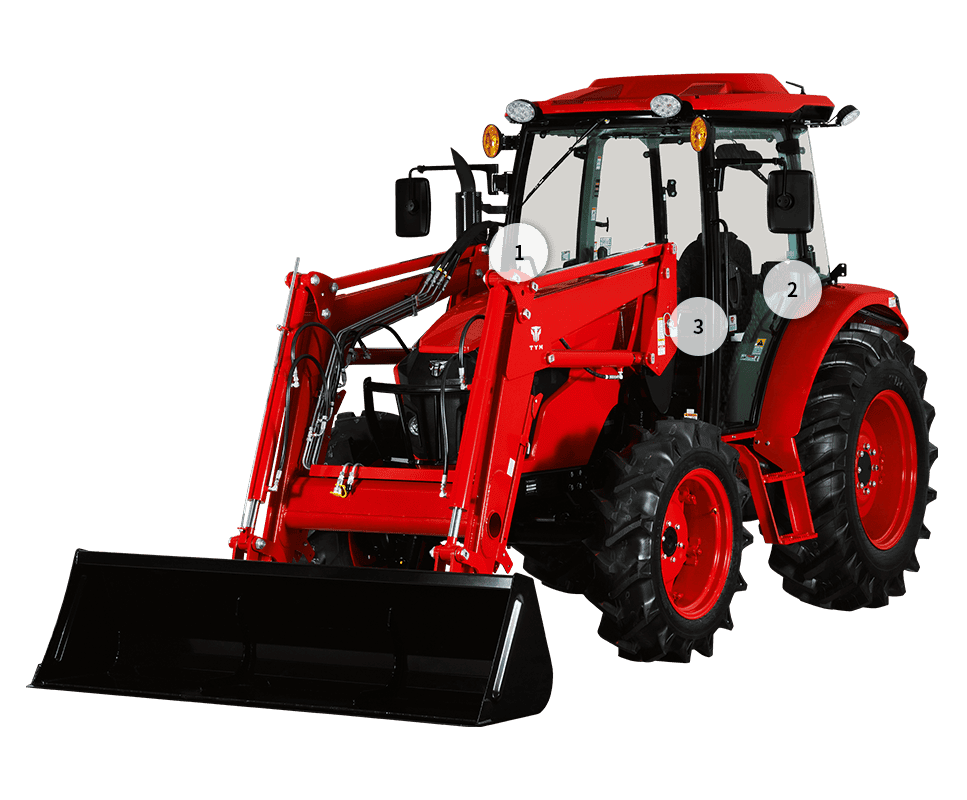

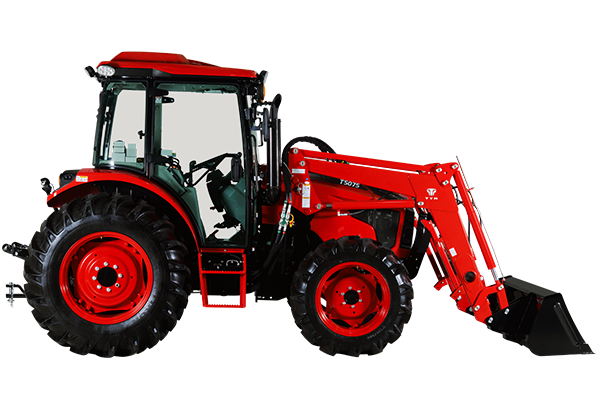

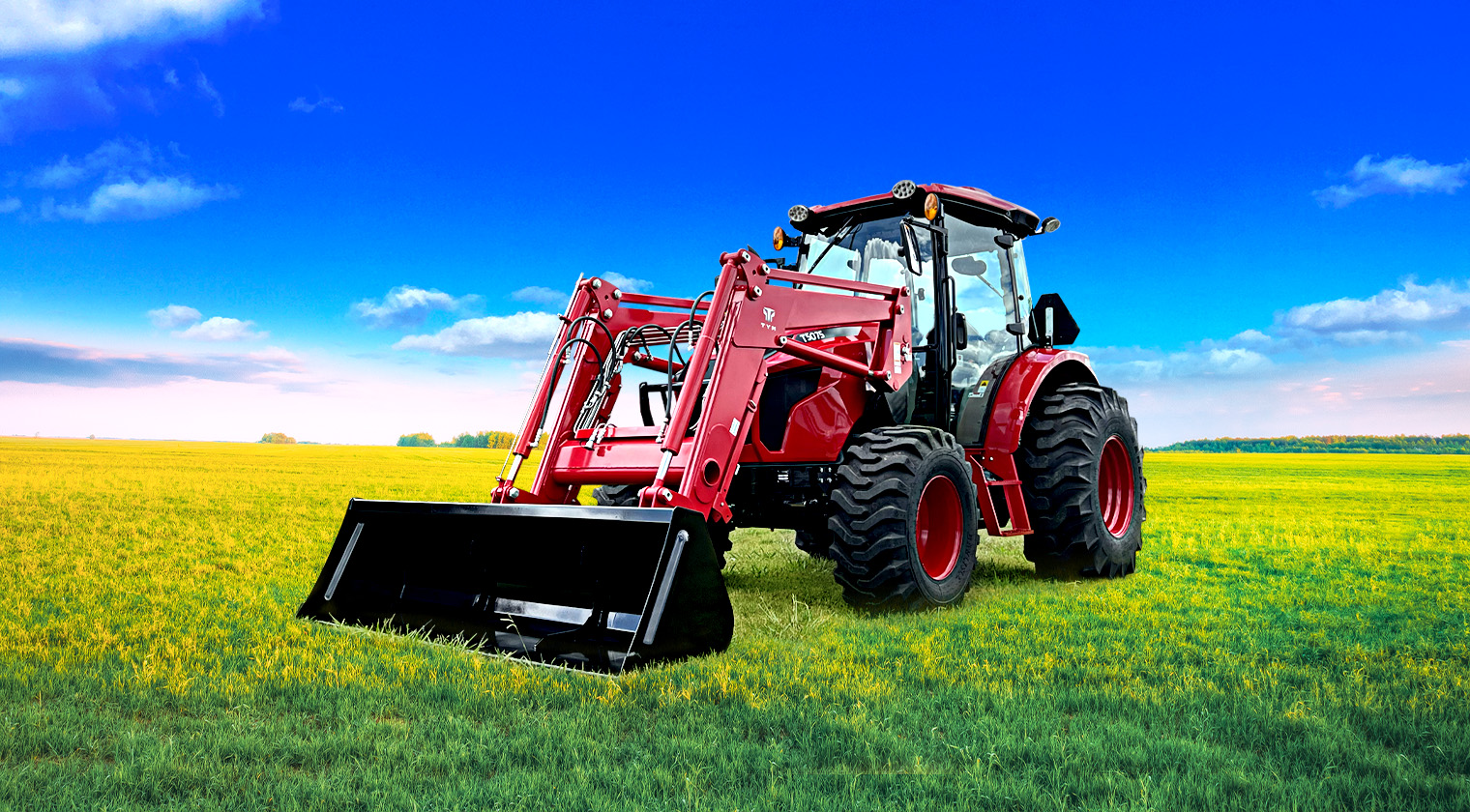

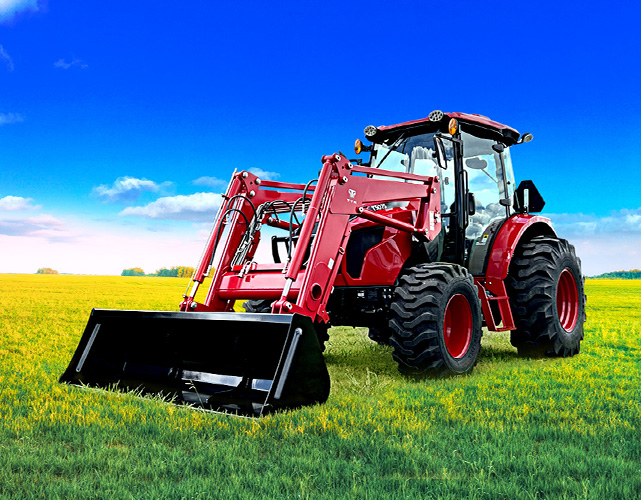

T5075
Series 5 , Compact Utility Tractors

Engine manufacturer
74.3 hp
Engine power
5515 lb
Hitch lift capacity
BUILT STRONGER, SMARTER, AND MORE COMFORTABLE
Increased power output and maximized lift capabilities define the Series 5 tractors and enable you to achieve your goals. This compact utility tractor is designed to boost output, delivering impressive efficiency and deluxe features that have become the hallmark of TYM.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

4-cylinder, liquid-cooled Deutz diesel engine
Built on precise German engineering, the Deutz engine uses Diesel Oxidation Catalysts (DOC) to convert carbon and particulate matter into less harmful emissions. This eliminates the need for regeneration cycles, minimizing maintenance requirements, downtime, and the risk of repair.

New designed steel hood
The new steel hood offers both larger side vents to keep the engine cool, but also protects your engine from falling debris for added protection and durability.

Upgraded loader valve
Upgraded Walvoil® hydraulic valves come standard with 6 port true 3rd function. This will ensure efficient and precise hydraulic operations for all of your attachments.

Relocated 3-point external switch
You will have an easier time connecting rear attachments with the 3-point switch placed on the rear fender.

Increased radiator capacity
The upsized radiator holds about 2.8 gallons (10.5 liters), keeping your components under the hood cooler under heavy loads to extend engine life.

Standard TYM Telematics
TYM’s proprietary telematics system and smartphone app lets you monitor vital tractor systems, offers remote start for cold mornings, GPS route guidance and more.

New defrost HVAC vents
No more wiping the inside windshield of your cab on hot, humid days or frost on cold mornings. Plus, we’ve increased cab space, improved the user-friendly cockpit design, and more.

Power, precision & comfort in one
The T5075 is designed to meet the demands of modern operators who need power, precision, and comfort all in one package.






Designed for applications in and around your property
This compact utility tractor has a high lift capacity for the hitch and optional loader, making it ideal to carry heavier loads and connect to larger attachments. With a premium operator cabin complete with joystick controls for front-end loaders and remote valves for rear attachments, it offers all the comforts you need to help you perform tasks productively.
Maneuverability and power come together in this machine, so you can take on a range of medium- to heavy-duty applications with utmost confidence. This tractor can help you manage farm animals, clear land, move material, power larger turf care projects, and so much more.

Livestock & Poultry
Whether you want to build and maintain a modest chicken coop, a functional barn or a expansive stable, a TYM compact utility tractor brings you the multi-functional capabilities to cover the entire farm.

Land Clearing & Forestry
From grappling dead plants to removing uprooted tree stumps, this tractor can maintain your land or clear it for your next big project.

Material Handling
Compatible with attachments like front-end loaders that help you do more in less time, this tractor equips you with the power and control to complete all types of material handling jobs.

Landscaping
Bring your vision to life with the right tools. With higher fuel capacity, enhanced attachment controls, and faster traveling speeds, this tractor helps develop bare land into flourishing lawns.

Tractors Model | T5075 ![]() | T654 ![]() | T1104 ![]() |
Engine manufacturer | Deutz TCD 2.9L | Deutz TCD2.9L4 | Doosan Infracore D34P |
Engine power | 74.3 hp | 55.4 kW | 67 hp | 50 kW | 111 hp | 82 kW |
Rated engine speed | 2200 rpm | 2200 rpm | 2300 rpm |
Displacement | 178.5 cu. in. | 2925 cc | 177 cu. in. | 2900 cc | 208 cu. in. | 3409 cc |
No. of speeds | F16 x R16 (Creep interlock) | F24 x R24 | F32 x R32 |
Hitch lift capacity | 5515 lb | 2320 kg | 4270 lb | 1937 kg | 6860 lb | 3112 kg |
PTO rear | 540/750 rpm | 540/750/1000 rpm | 540/750/1000 rpm |
Fuel tank | 23.7 gal | 90 L | 18.5 gal | 70 L | 29.1 (DEF 5.3) gal | 110 (DEF 20) L |
Overall length with 3-point hitch | 168.1 in. | 4269 mm | 155.6 in. | 3952 mm | 167.3 in. | 4250 mm |
Overall width | 92.3 in. | 2345 mm | 72.4 in. | 1840 mm | 86 in. | 2185 mm |
Wheelbase | 86.1 in. | 2188 mm | 84.6 in. | 2150 mm | 90.6 in. | 2300 mm |
Height to top of ROPS | - | - | - |
Min. ground clearance | 18.4 in. | 467 mm | 17.1 in. | 435 mm | 18.3 in. | 465 mm |
Weight with cab | 6316.2 lb | 2865 kg | 5555 lb | 2520 kg | 8929 lb | 4050 kg |
R1 Agricultural - Front | 280/85R24 | FSTR 9.5 R20 TL | FSTR 380/85R24 TL (14.9R24) |
R1 Agricultural - Rear | 420/85R30 | FSTR 380/85R28 TL (14.9R28) | FSTR 460/85R34 TL (18.4R34) |
