T5074
Series 5, Compact Utility Tractors
Engine manufacturer
71.5 hp
Engine power
4329 lb
Hitch lift capacity
DO MORE, GET MORE
T5074 delivers dependable power and strong loader performance with a reliable Yanmar diesel engine. Simple, easy to maintain, and built for serious work—without paying for premium extras.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

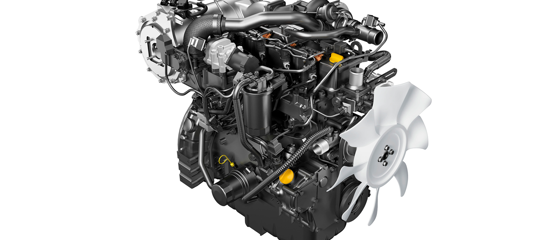

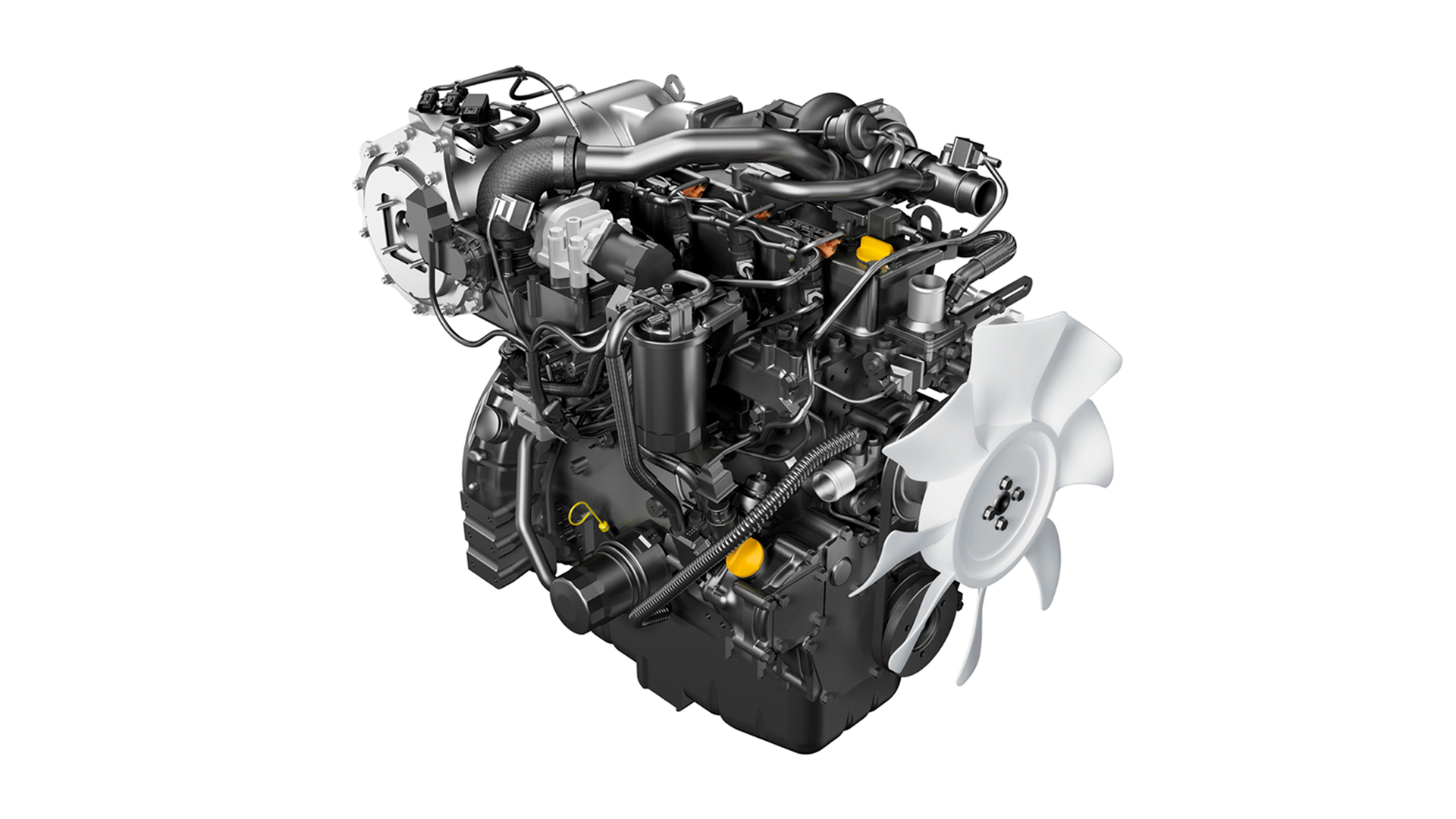

Yanmar diesel performance
Powered by a 4-cylinder, water-cooled, turbocharged Yanmar diesel engine that meets stringent Tier 4 Final emissions standards. This engine delivers a powerful yet reliable performance, engineered for simplicity and durability. Built by Yanmar with a refined combustion process, it ensures precise fuel delivery for improved efficiency.

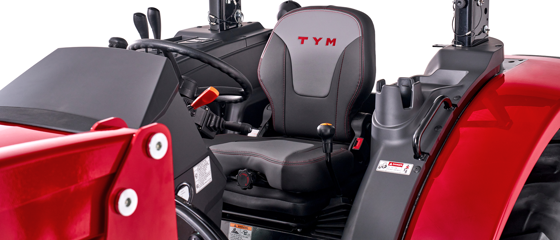

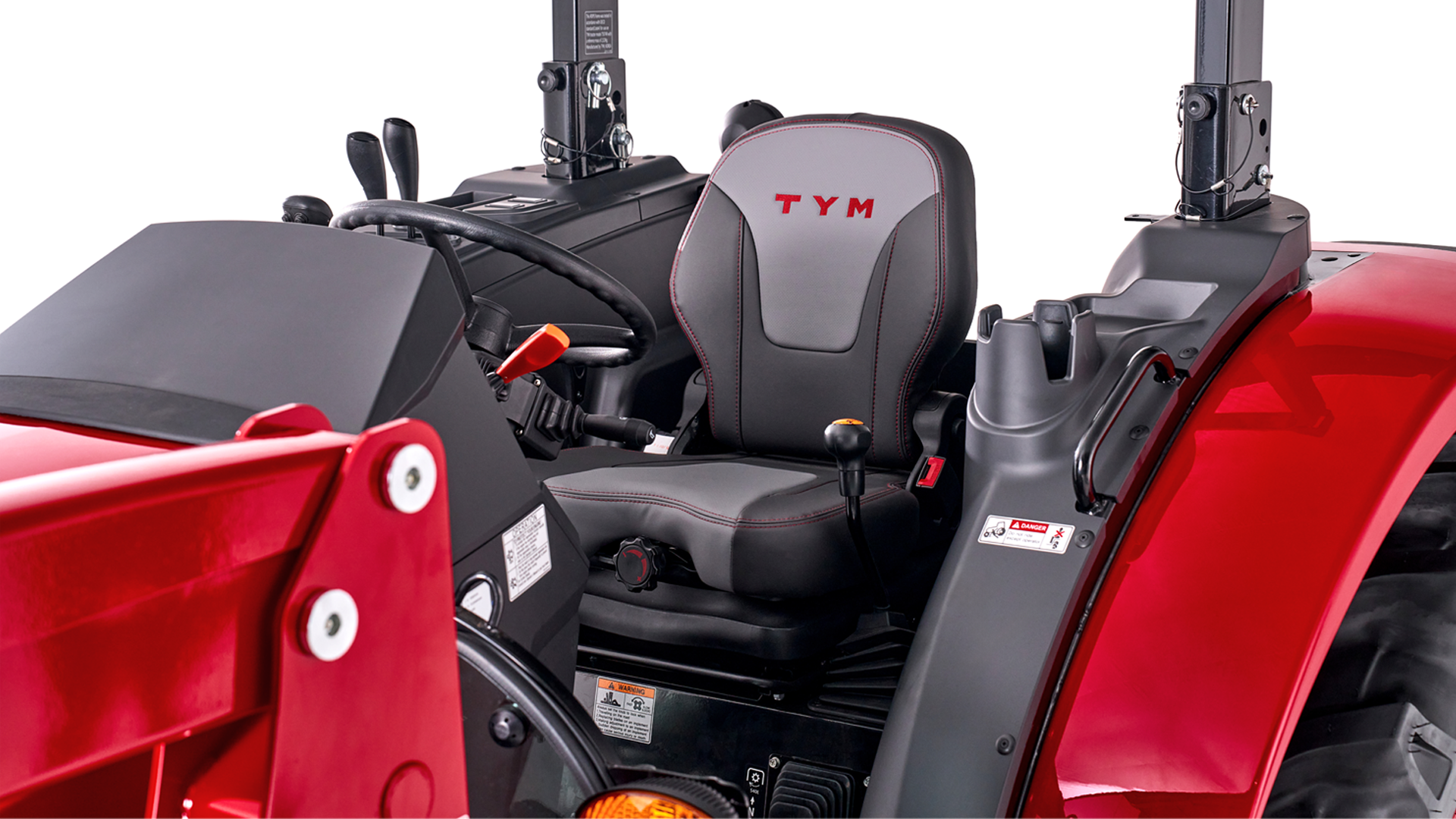

Adjustable seating for operator comfort
The T5074 comes equipped with an adjustable sliding seat, complete with backrest angle and cushion firmness adjustments for enhanced comfort during operation.

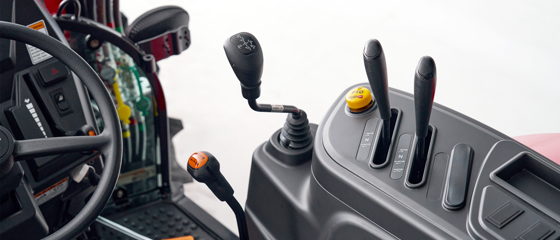

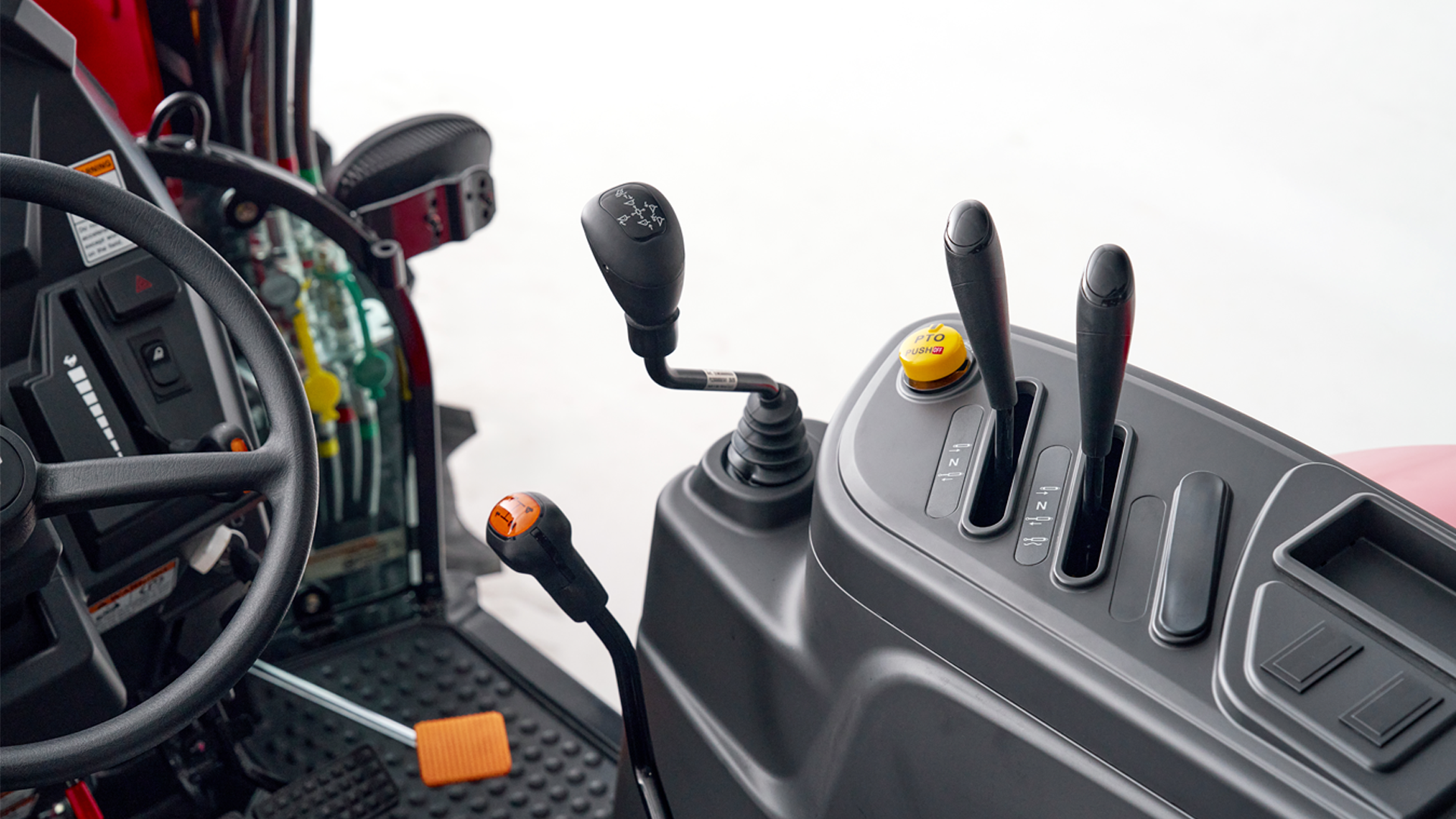

Standard 2-button loader joystick

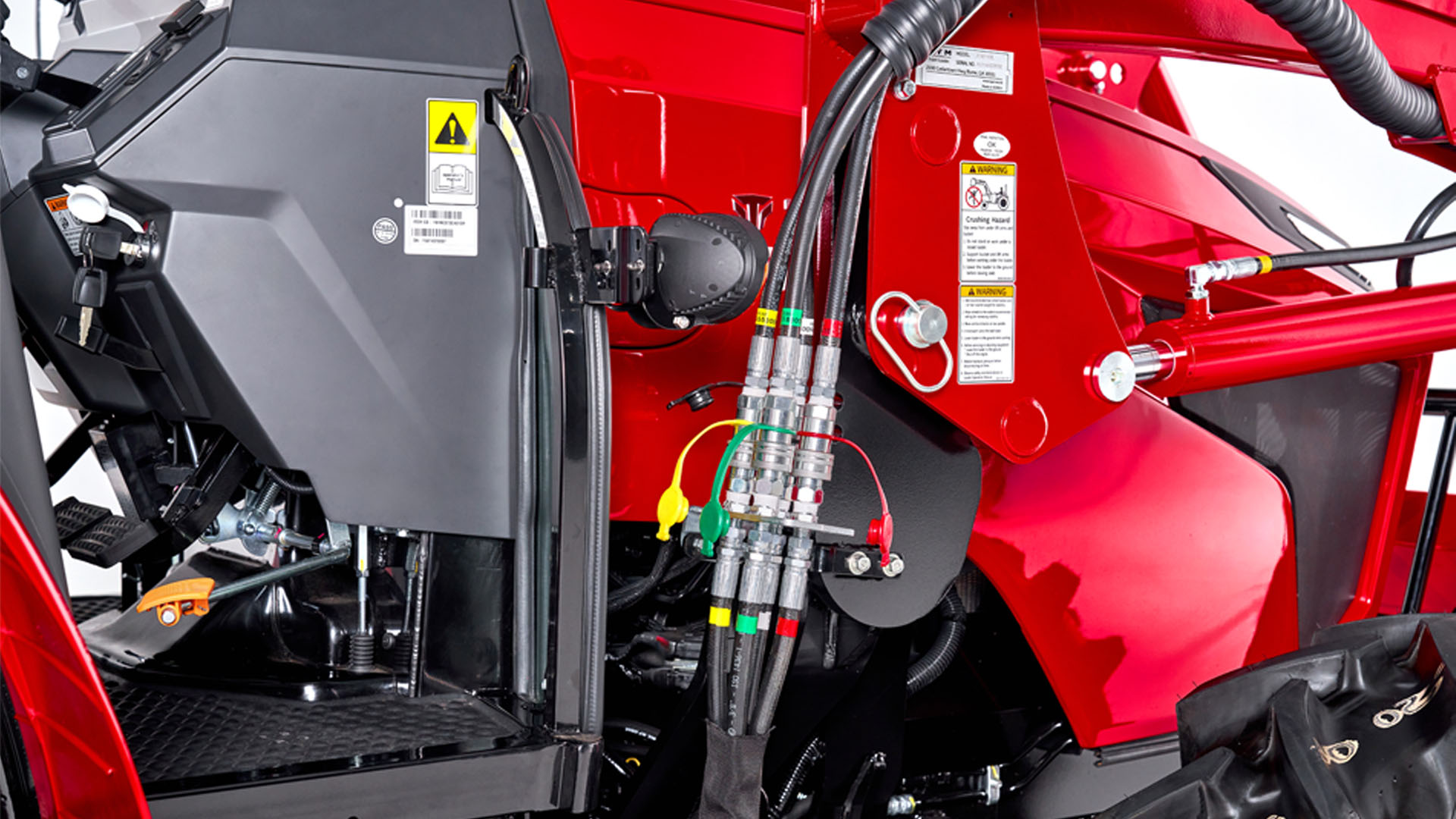

The T5074 comes standard with a 2-button loader joystick and 4-port loader valve but for greater versatility, an optional 3rd Function installation kit is available.

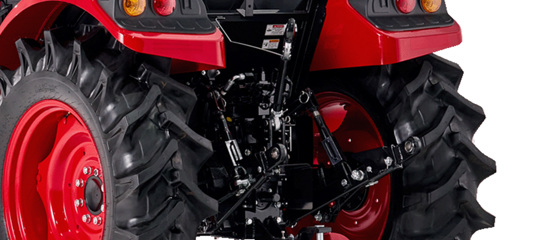

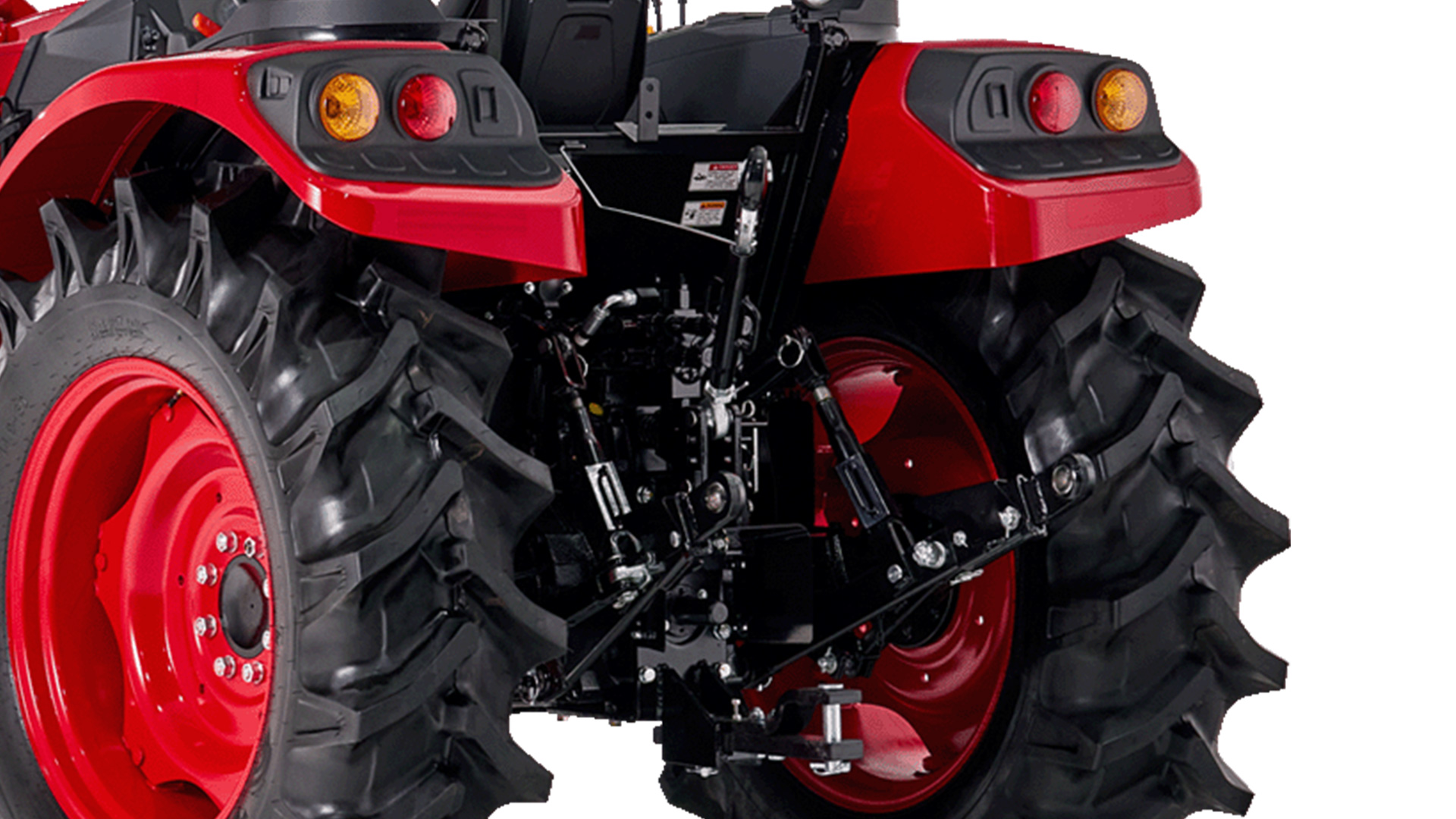

Mechanical 3P hitch
The T5074 comes equipped with a mechanical 3-point hitch featuring Position Control, Draft Control, and a Telescopic Lower Link.

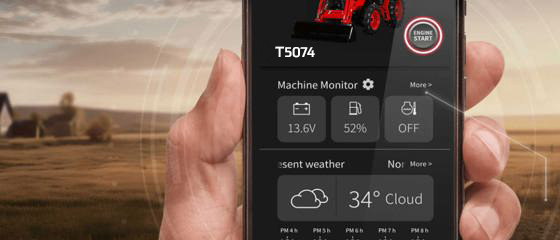

Standard TYM Telematics
TYM’s proprietary telematics system and smartphone app lets you monitor vital tractor systems, offers remote start for cold mornings, GPS route guidance and more.

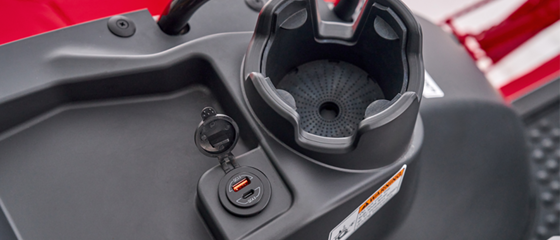

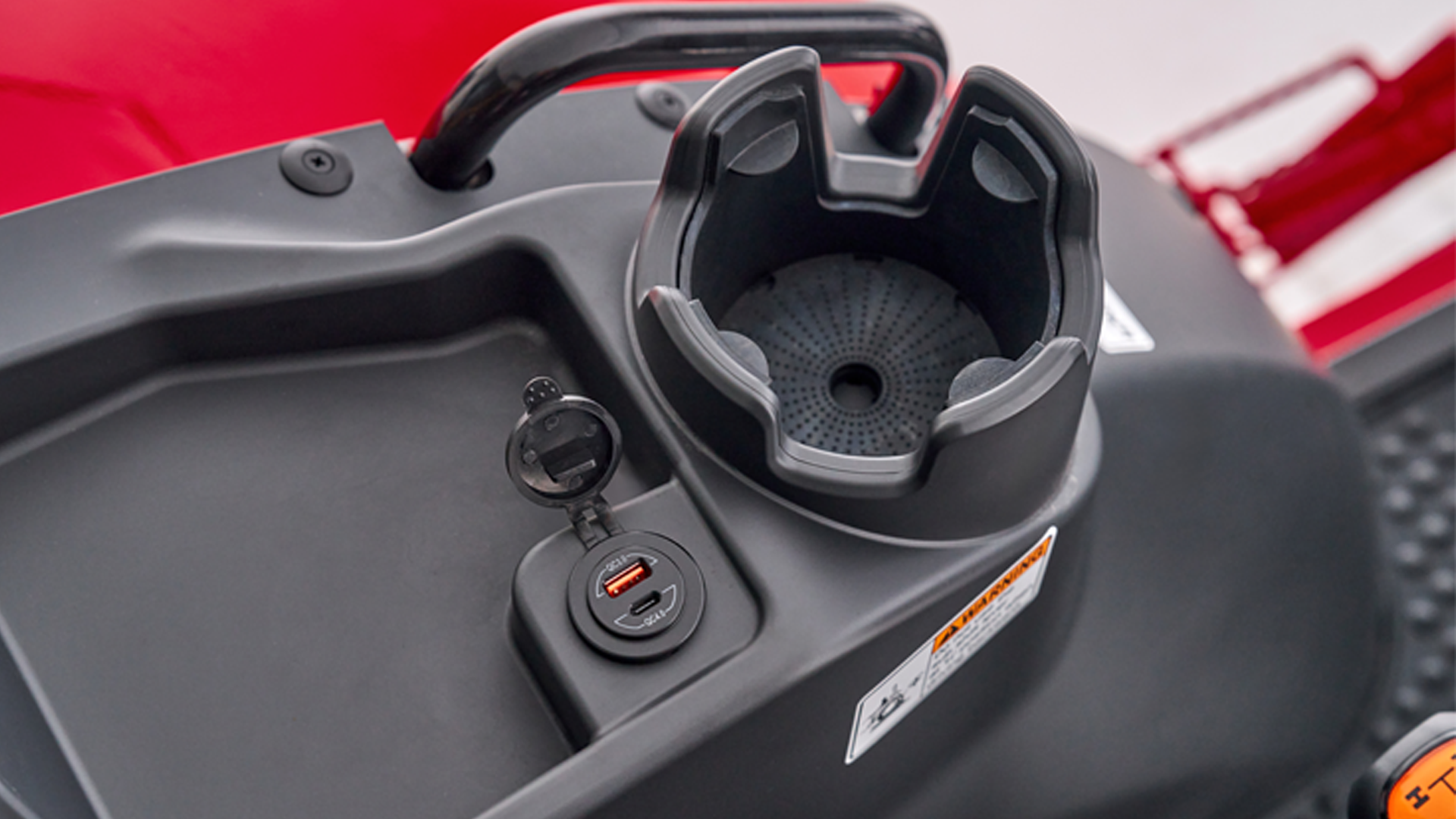

Built-In conveniences
Designed with operator comfort in mind, the tractor features a built-in USB charging port, a convenient cup holder, and a practical storage tray for bottles and personal belongings.
No Frills. All Performance.
T5074 delivers reliable power in a simple, easy-to-maintain design.
Designed for applications in and around your property
This compact utility tractor has a high lift capacity for the hitch and optional loader, making it ideal to carry heavier loads and connect to larger attachments. With a premium operator cabin complete with joystick controls for front-end loaders and remote valves for rear attachments, it offers all the comforts you need to help you perform tasks productively.
Maneuverability and power come together in this machine, so you can take on a range of medium- to heavy-duty applications with utmost confidence. This tractor can help you manage farm animals, clear land, move material, power larger turf care projects, and so much more.
Livestock & Poultry
Whether you want to build and maintain a modest chicken coop, a functional barn or a expansive stable, a TYM compact utility tractor brings you the multi-functional capabilities to cover the entire farm.
Land Clearing & Forestry
From grappling dead plants to removing uprooted tree stumps, this tractor can maintain your land or clear it for your next big project.
Material Handling
Compatible with attachments like front-end loaders that help you do more in less time, this tractor equips you with the power and control to complete all types of material handling jobs.
Landscaping
Bring your vision to life with the right tools. With higher fuel capacity, enhanced attachment controls, and faster traveling speeds, this tractor helps develop bare land into flourishing lawns.
| Tractors Model | T5074  | T754  | T5075  |
Engine manufacturer | Yanmar 4TN98CT-7PKTF | Deutz TCD2.9L4 | Deutz TCD 2.9L |
Engine power | 71.5 hp | 53.3 kW | 74 hp | 55.4 kW | 74.3 hp | 55.4 kW |
Rated engine speed | 2400 rpm | 2200 rpm | 2200 rpm |
Displacement | 202.5 cu. in. | 3319 cc | 177 cu. in. | 2900 cc | 178.5 cu. in. | 2925 cc |
No. of speeds | F12 x R12 | F16 x R16 (Creep interlock) | F16 x R16 (Creep interlock) |
Hitch lift capacity | 4329 lb | 1964 kg | 5115 lb | 2320 kg | 5515 lb | 2320 kg |
PTO rear | 540/750 rpm | 540/750 540/1000 (Opt) rpm | 540/750 rpm |
Fuel tank | 19 gal | 72 L | 23.8 gal | 90 L | 23.7 gal | 90 L |
Overall length with 3-point hitch | 148.1 in. | 3764 mm | 155.7 in. | 4002 mm | 168.1 in. | 4269 mm |
Overall width | 81.4 in. | 2068 mm | 76.4 in. | 1940 mm | 92.3 in. | 2345 mm |
Wheelbase | 84.6 in. | 2150 mm | 86.1 in. | 2188 mm | 86.1 in. | 2188 mm |
Min. ground clearance | 17.6 in. | 447 mm | 18.3 in. | 465 mm | 18.4 in. | 467 mm |
Weight with ROPS | 5463 lb | 2478 kg | - | - |
R1 Agricultural - Front | 11.2-24 | FSTR 280/85R24 TL (11R24) | 280/85R24 |
R1 Agricultural - Rear | 16.9-30 | FSTR 420/85R30 TL (16.9R30) | 420/85R30 |
