T1104

Series 5 , Utility Tractors

REQUEST QUOTE

Engine manufacturer

111 hp

Engine power

6860 lb

Hitch lift capacity

Build My Tractor

Explore Tractor in 3D

Technical Specifications

Compatible Attachments

A robust utility tractor designed to take on your biggest challenges

Take your projects to the next level and bring your vision to life with the T1104. This utility tractor is designed to tackle the toughest of jobs, ensuring maximized productivity all year round.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

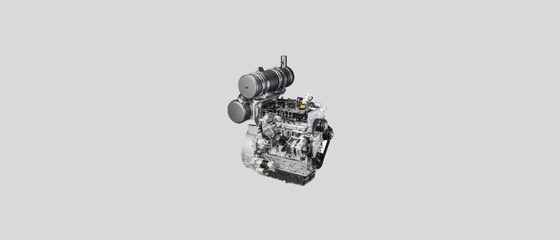

4-cylinder, Tier 4 HD Hyundai Infracore diesel engine

With high power output and low-end torque, this engine maintains the highest level of performance with enhanced efficiency. With an advanced fuel injection system and turbo charger, the engine drives tractor productivity in challenging conditions and applications.

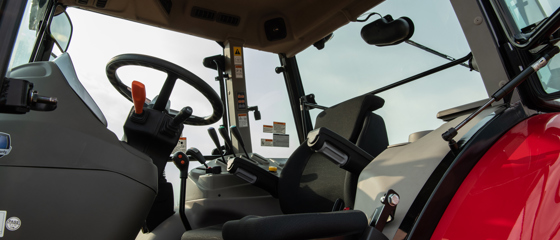

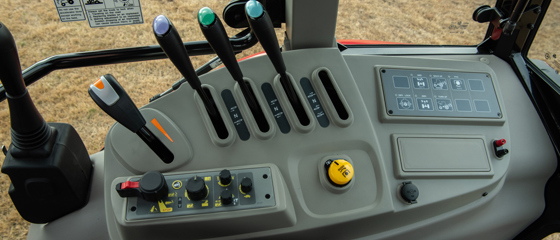

Interior detailing to promote operator comfort

Activate core functions such as the PTO on/off switch easily from the main console. Quickly receive alerts and diagnostic information via the digital display. The operator platform features a spacious and ergonomic seat and a flat floor with a rubber mat to enhance comfort during entry, exit, and driving.

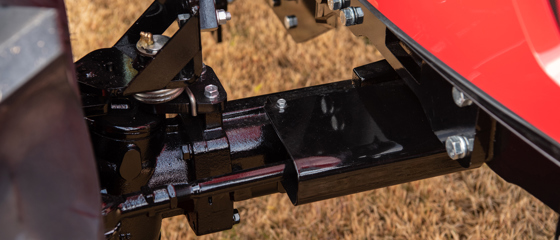

Durable, shock absorbing axle configuration

The heavy-duty 4WD front axle enables the tractor to lift heavy loads and tow large attachments while absorbing shock and maintaining stability. Powerful hydraulics support the power steering system, which uses a dual-action mechanism with a hydraulic cylinder and tandem-type hydraulic pump.

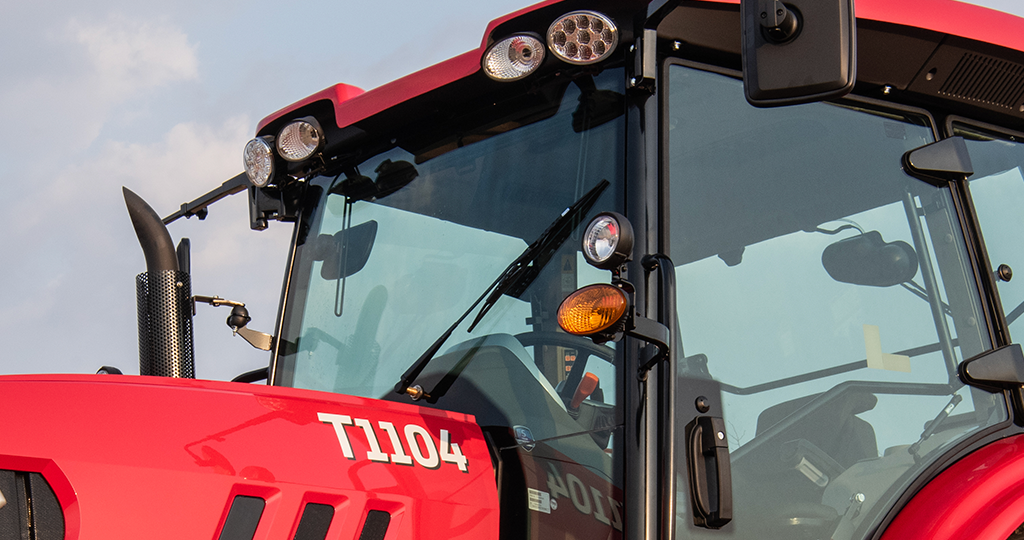

Deluxe cabin with climate control

Featuring easy entry and exit through both side doors and a host of modern amenities for maximum operator comfort, this tractor offers greater visibility with standard heating and AC.

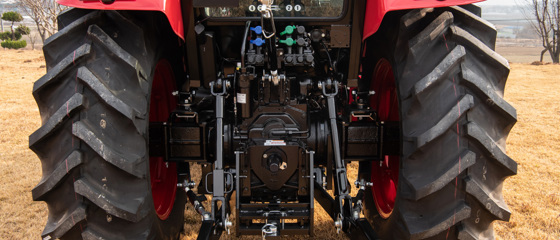

3-point hitch with powerful lift capacity

The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joint. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.

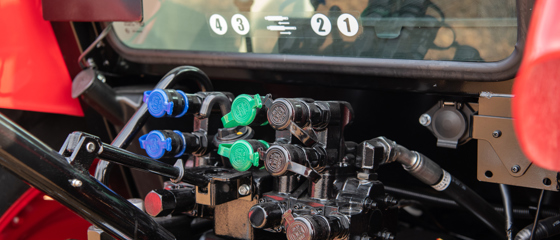

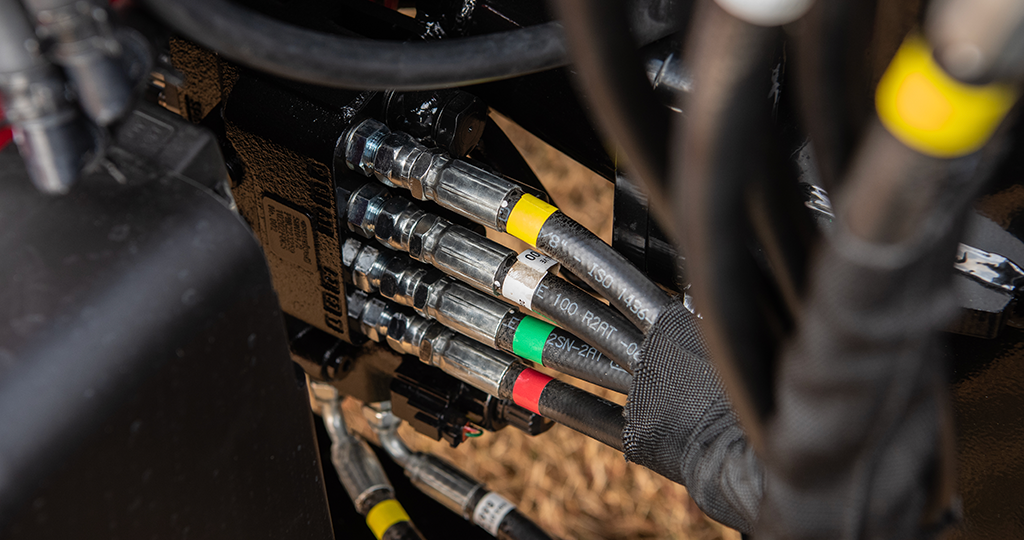

6-port rear hydraulic valve for add-on functions

The 6-port valve on the rear of the tractor allows attachments of different functions to be controlled easily. This is particularly beneficial for applications like row crop farming and material handling, as trailers are fit with an optional hydraulic brake.

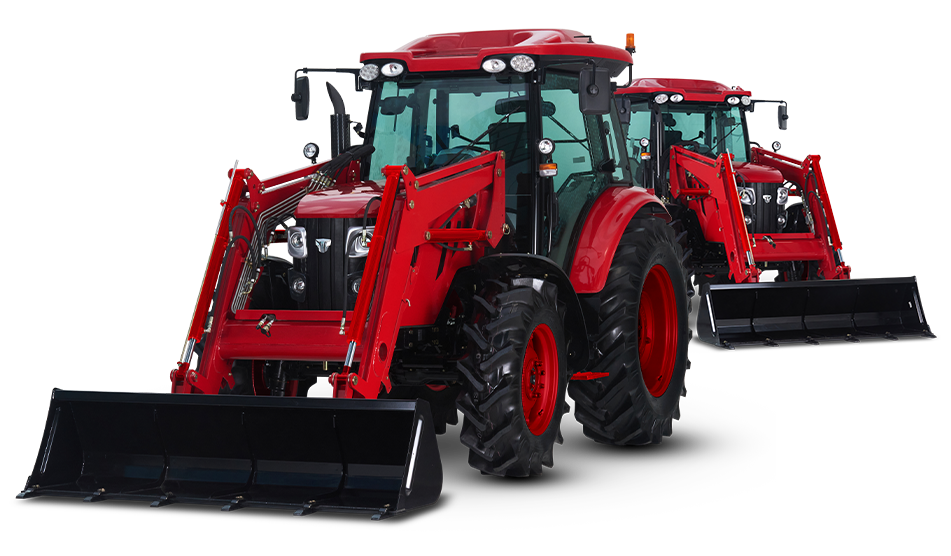

Combining optimal power and frame for greater results

With an efficient engine, robust transmission, powerful attachment controls, and deluxe operator amenities, this Series 5 tractor is built to help you complete the toughest tasks with greater ease and productivity.

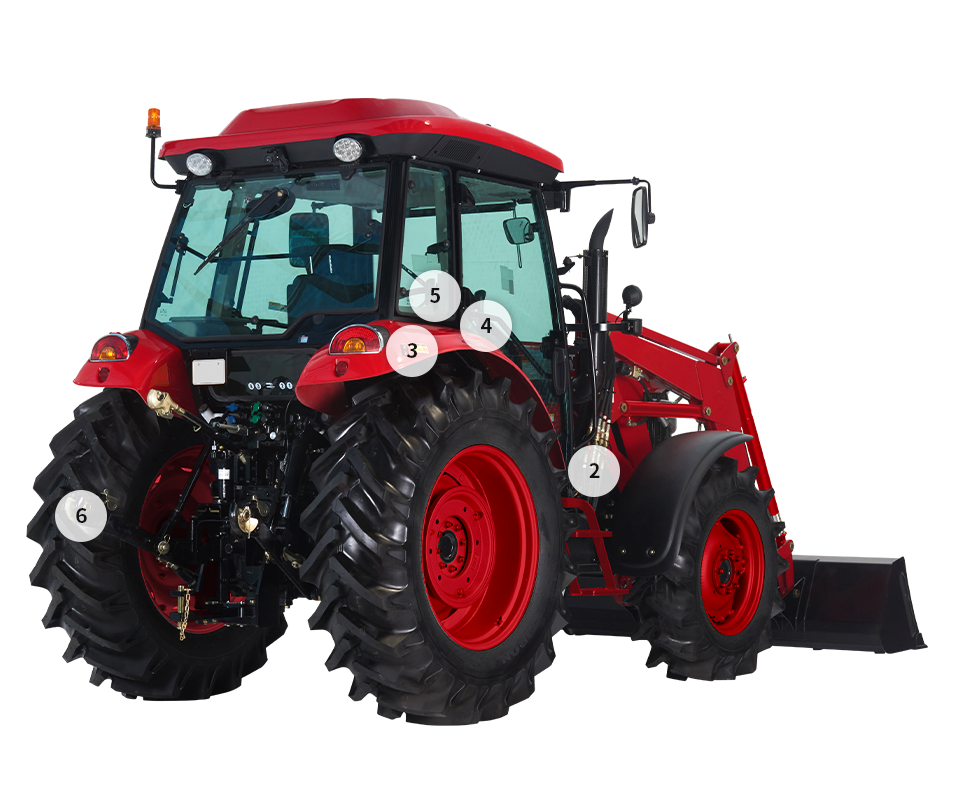

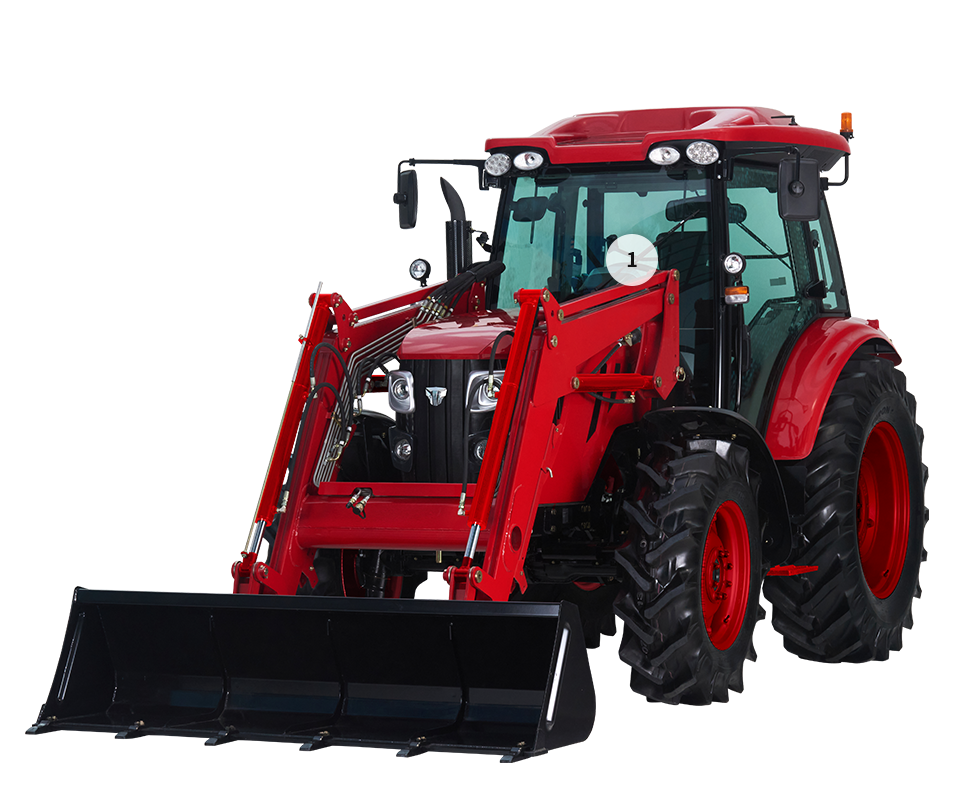

1. Front wipers

2. 3rd function

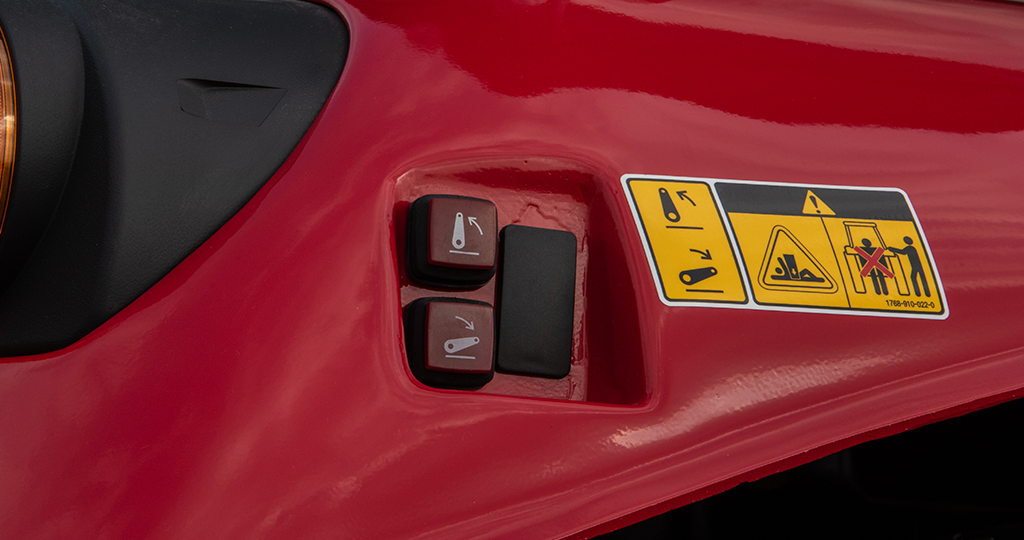

3. External hitch control buttons

4. Main shift D clutch

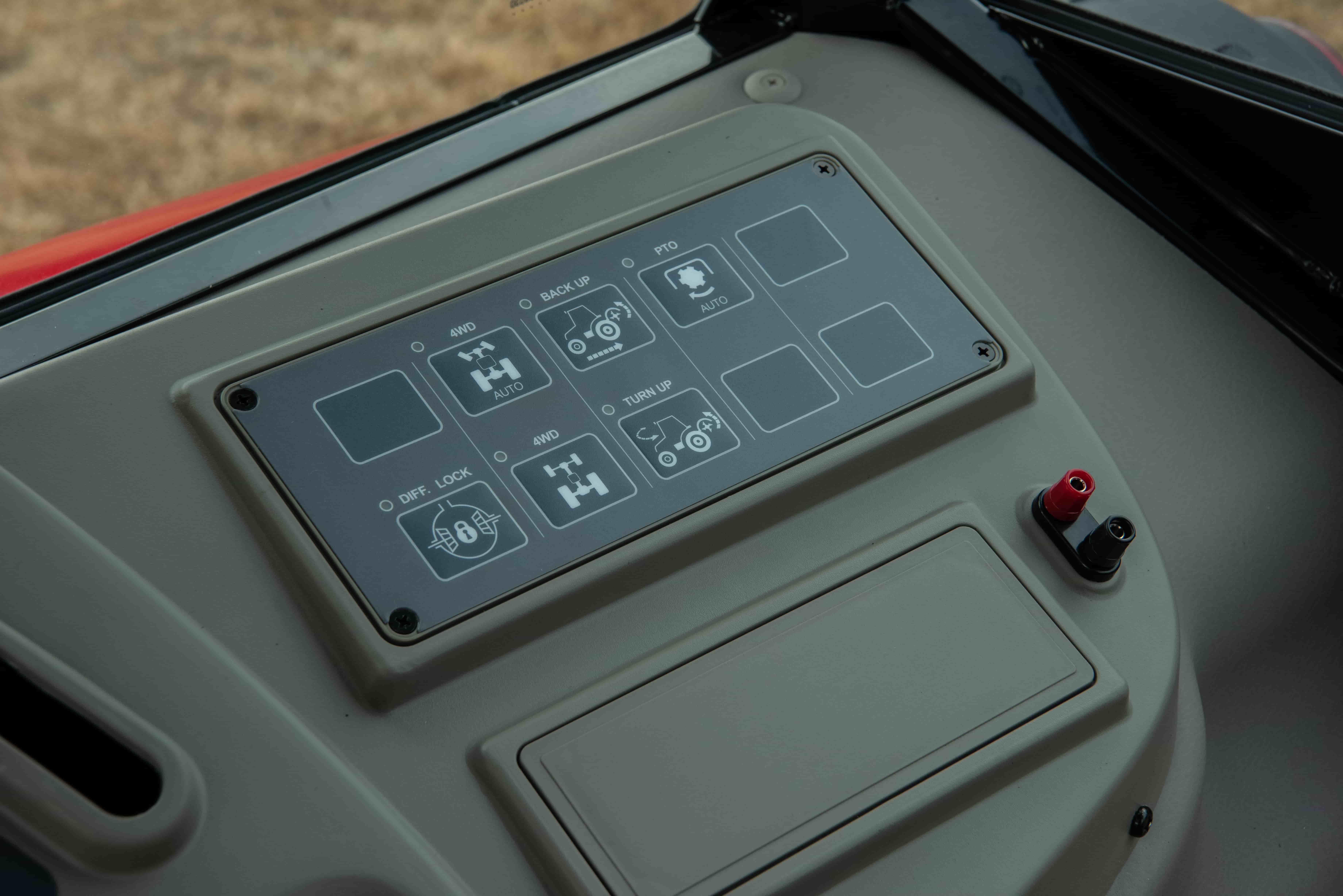

5. 4WD

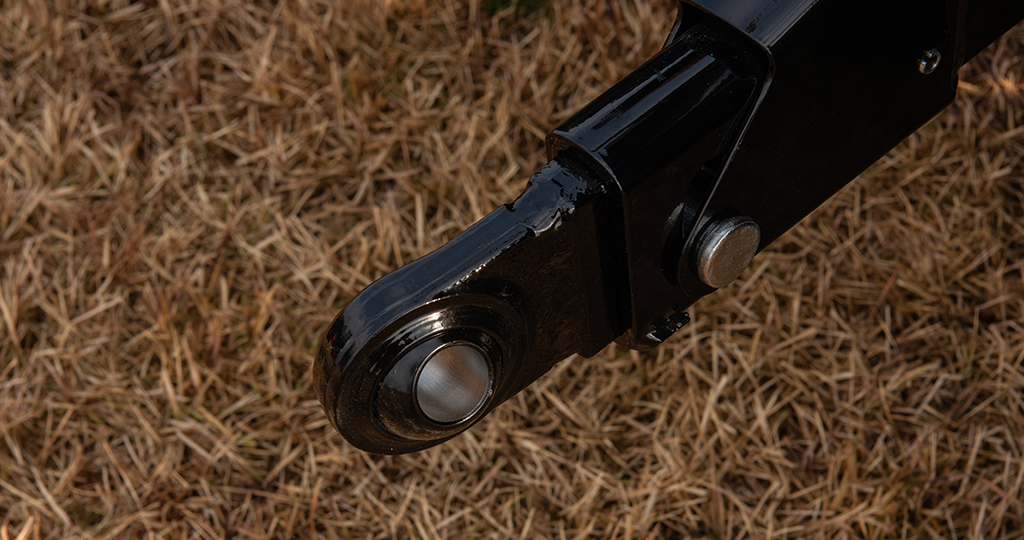

6. Extendable lower link ends

Designed for applications in and around your property

This utility tractor is designed with optimum dimensions for maximum maneuverability. This tractor has a less than 10% drop-off in power from the front to back, powered by a high-efficiency, liquid-cooled engine certified for Tier 4 standards.

Combined with a high-capacity fuel tank, this tractor is ready to take on any time-intensive, medium to heavy duty applications. To enable further productivity, the tractor is fitted with a premium operator cabin, complete with with full AC and heating and an intuitive console comprising all major controls.

Material Handling

Maximized front and hitch lift capabilities allow you to carry large volumes of material at once, minimizing the number of trips and promoting operational efficiency.

Land Clearing & Forestry

From grappling dead plants to removing uprooted tree stumps, this tractor can maintain your land or clear it for your next big project.

Construction

Use this tractor as your primary piece of machinery for an entire project, or in tandem with other construction equipment to build your vision.

Arable Farming

Equipped with versatile functionality in a heavy-duty design, this tractor promotes productivity from soil preparation and seeding to irrigation and harvest.

STORIES FROM THE FIELD

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

SEE TYM’S CUSTOMER STORIES

Technical Specification

Tractors Model	T1104	T115	T130
Engine manufacturer	Doosan Infracore D34P	Deutz TCD 3.6L4-C5VT83E	Deutz TCD3.6L4
Engine power	111 hp \| 82 kW	111 hp \| 83 kW	127 hp \| 95 kW
Rated engine speed	2300 rpm	2200 rpm	2200 rpm
Displacement	208 cu. in. \| 3409 cc	221 cu. in. \| 3621.5 cc	221 cu. in. \| 3621.5 cc
No. of speeds	F32 x R32	F32 × R32 w/Creep	F36 × R36 w/Creep
Hitch lift capacity	6860 lb \| 3112 kg	7294.9 lb \| 3309 kg	8260.7 lb \| 3747 kg
PTO rear	540/750/1000 rpm	540/540E/1000 rpm (Reversible shaft)	540/540E/1000 rpm (Reversible shaft)
Fuel tank	29.1 (DEF 5.3) gal \| 110 (DEF 20) L	31.7 gal \| 120 L	50.2 gal \| 190 L
Overall length with 3-point hitch	167.3 in. \| 4250 mm	175.2 in. \| 4450 mm	176.8 in. \| 4490.7 mm
Overall width	86 in. \| 2185 mm	89.4 in. \| 2270.8 mm	92.9 in. \| 2359.7 mm
Wheelbase	90.6 in. \| 2300 mm	93.7 in. \| 2380 mm	102 in. \| 2938.8 mm
Height to top of ROPS	-	-	-
Min. ground clearance	18.3 in. \| 465 mm	16.7 in. \| 424.2 mm	16.1 in. \| 410 mm
Weight with cab	8929 lb \| 4050 kg	8940 lb \| 4055.1 kg	10020 lb \| 4545 kg
R1 Agricultural - Front	FSTR 380/85R24 TL (14.9R24)	13.6-24	380/85 R28
R1 Agricultural - Rear	FSTR 460/85R34 TL (18.4R34)	18.4-34	460/85 R38(18.4R38)
Download	Technical Brochure	Technical Brochure	Technical Brochure
