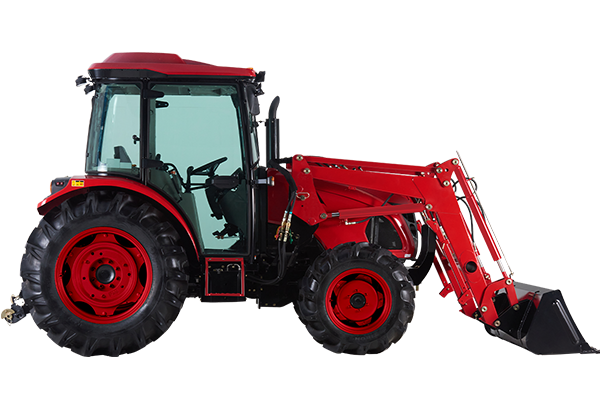

T654

Series 4 , Compact Utility Tractors

REQUEST QUOTE

Engine manufacturer

67 hp

Engine power

4270 lb

Hitch lift capacity

Build My Tractor

Explore Tractor in 3D

Technical Specification

Compatible Attachments

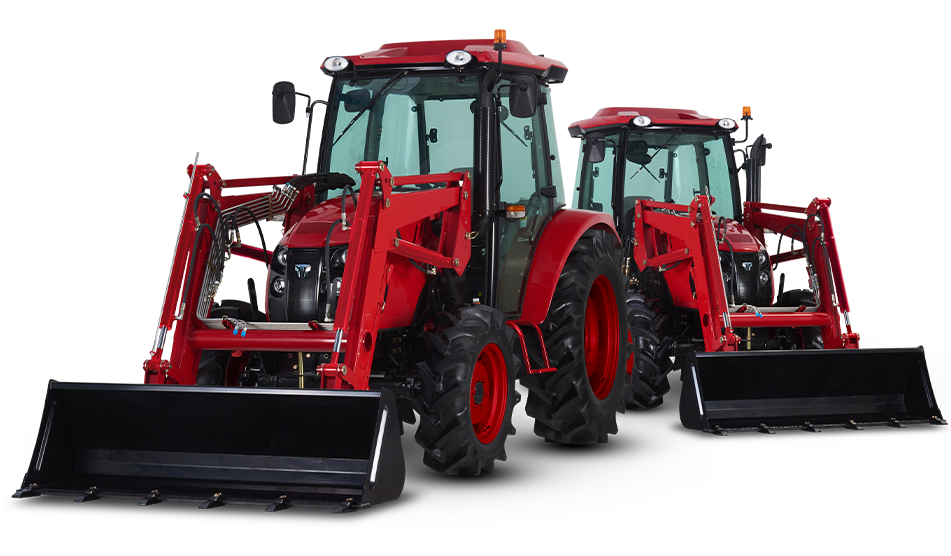

A compact utility tractor that exceeds expectations for performance

The T654 combines the power of a utility tractor with the maneuverability of a compact model. Offering maximized power and ease of control, this compact utility tractor truly delivers the best of both worlds.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

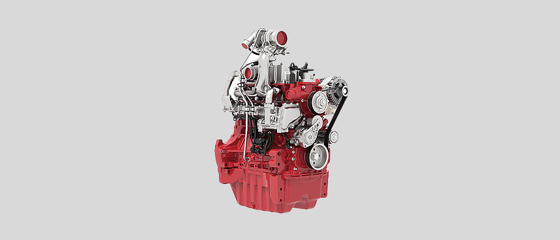

4-cylinder, liquid-cooled Deutz diesel engine

Built on precise German engineering, the Deutz engine uses Diesel Oxidation Catalysts (DOC) to convert carbon and particulate matter into less harmful emissions. This eliminates the need for regeneration cycles, minimizing maintenance requirements, downtime, and the risk of repair.

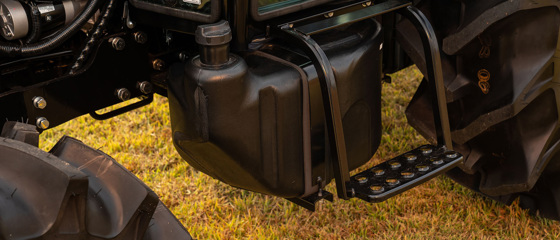

High-capacity fuel tank for time-intensive work

The high-capacity fuel tank allows the tractor to operate for longer periods without stopping to refuel. Paired with a fuel-efficient engine, this enables uninterrupted and efficient operations during the busiest seasons.

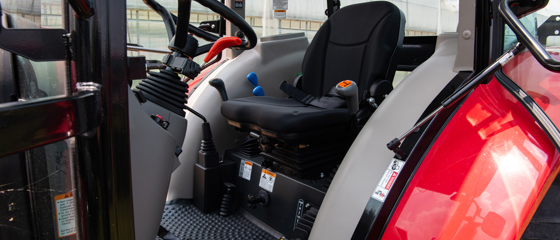

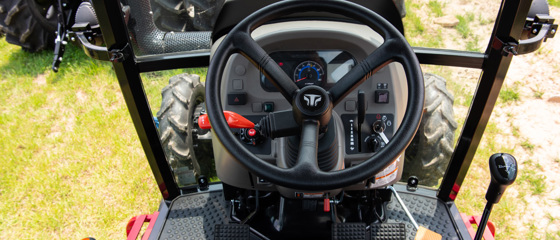

Interior detailing to promote operator comfort

Activate core functions such as the PTO on/off switch easily from the main console. Quickly receive alerts and diagnostic information via the digital display. The operator platform features a spacious and ergonomic seat and a flat floor with a rubber mat to enhance comfort during entry, exit, and driving.

Deluxe cabin with climate control

Featuring easy entry and exit through both side doors and a host of modern amenities for maximum operator comfort, this tractor offers greater visibility with standard heating and AC.

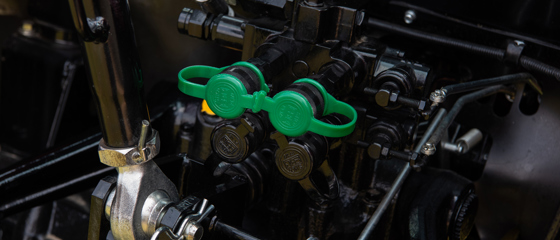

6-port rear hydraulic valve for add-on functions

The 6-port valve on the rear of the tractor allows implements of different functions to be controlled easily. This is particularly beneficial for applications like row crop farming and material handling, as trailers are fit with an optional hydraulic brake.

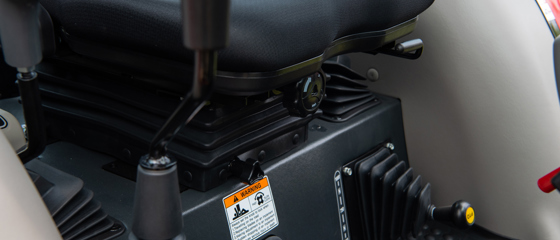

Suspension seat for operator comfort

Particularly beneficial for time-intensive jobs or work on uneven terrain, the cabin features a suspension seat that keeps vibrations to a minimum and promotes comfort, even during longer operations.

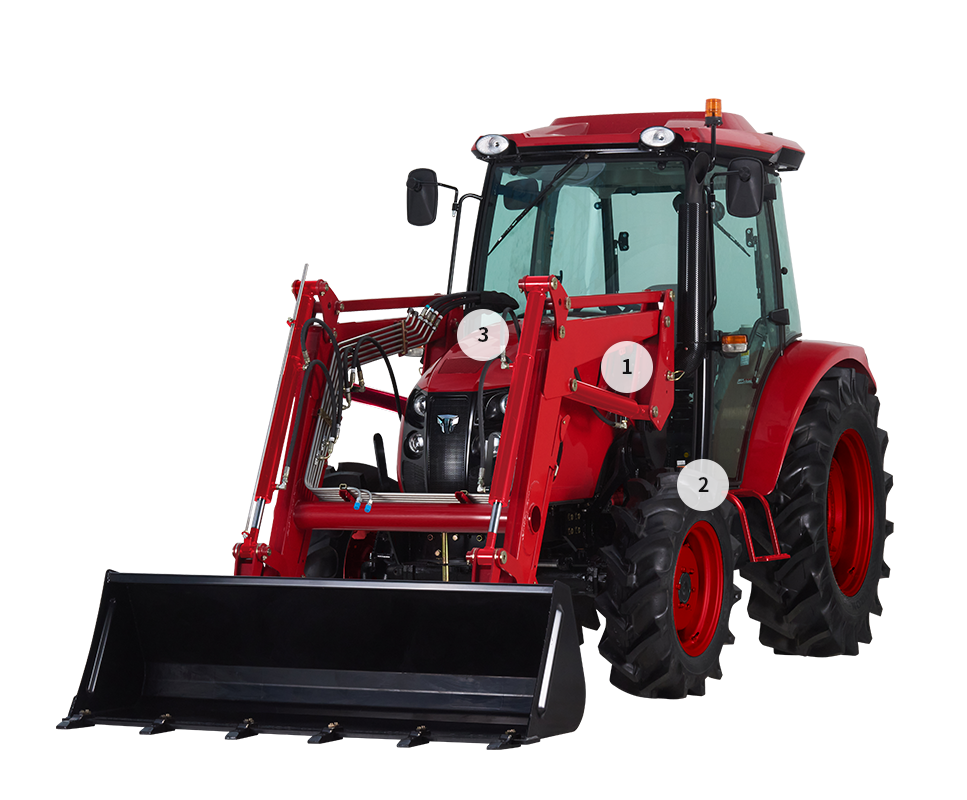

Equipped with features to elevate your productivity

With optimized attachment linkages and flexible controls, this tractor has the capabilities to complete a variety of jobs. Complete with an intuitive console and a premium cabin, operators have the tools and the comfort to drive productivity.

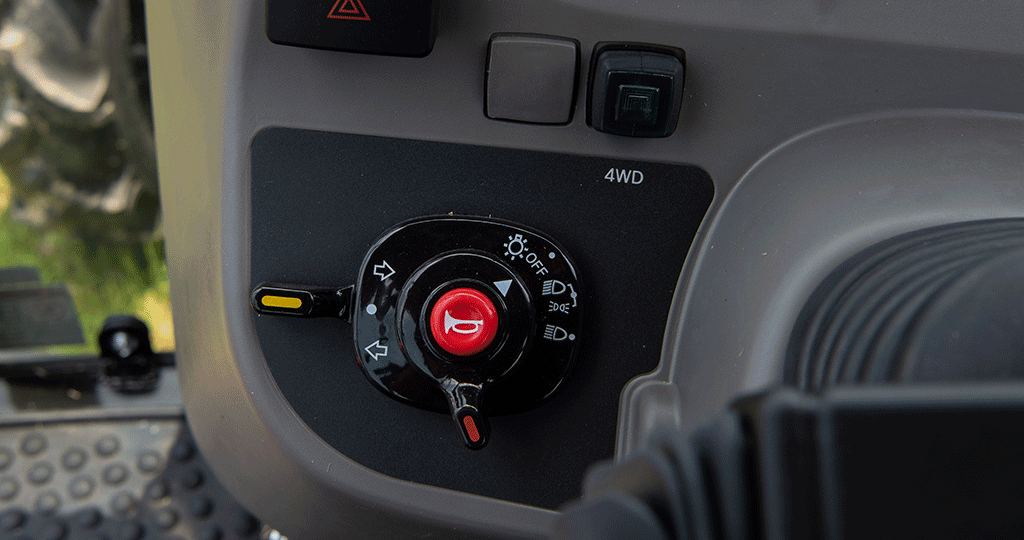

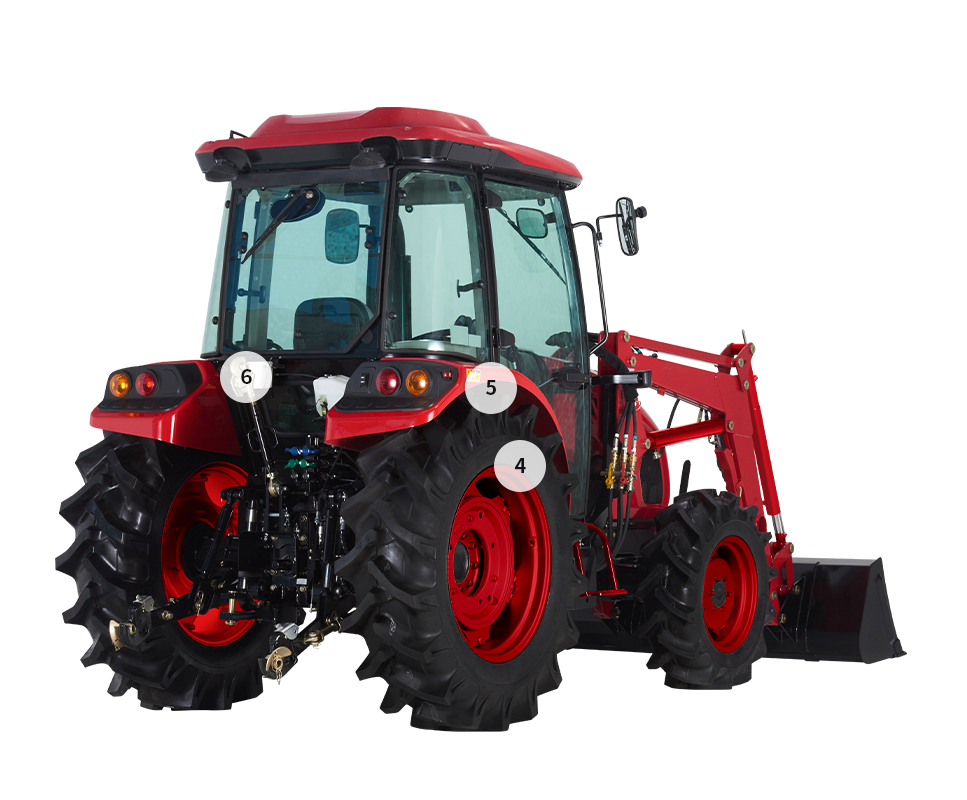

1. Selectable 4WD

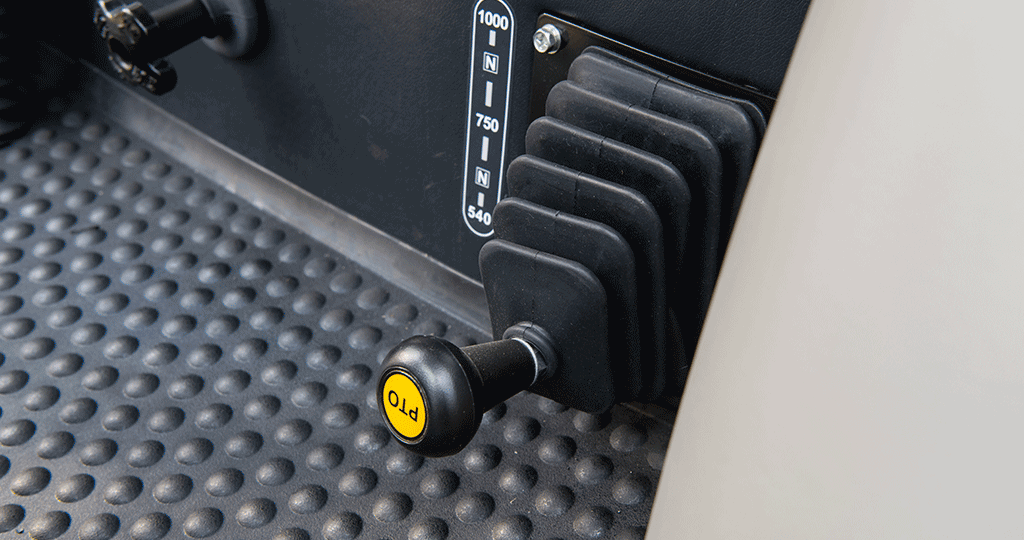

2. PTO shift lever

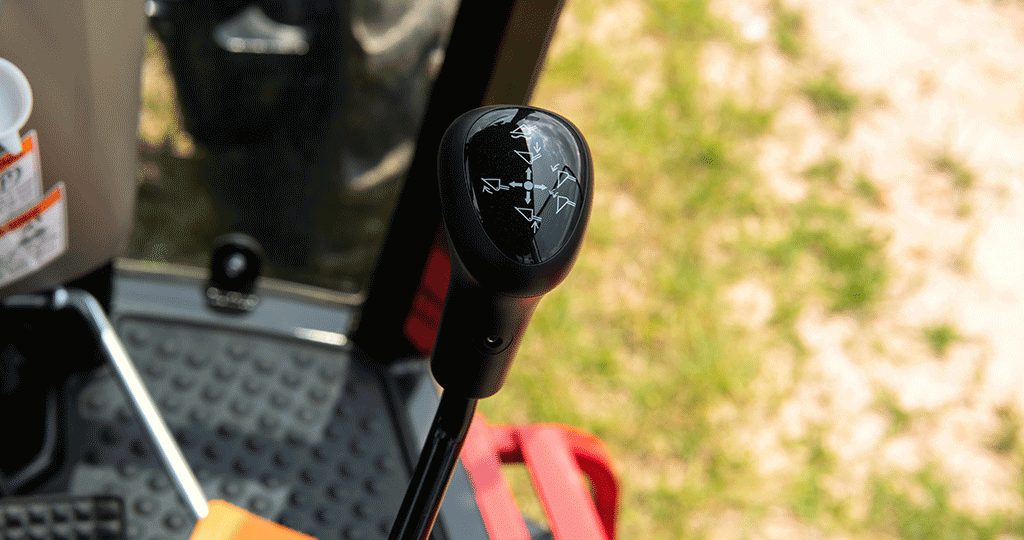

3. Joystick control for front-end loader

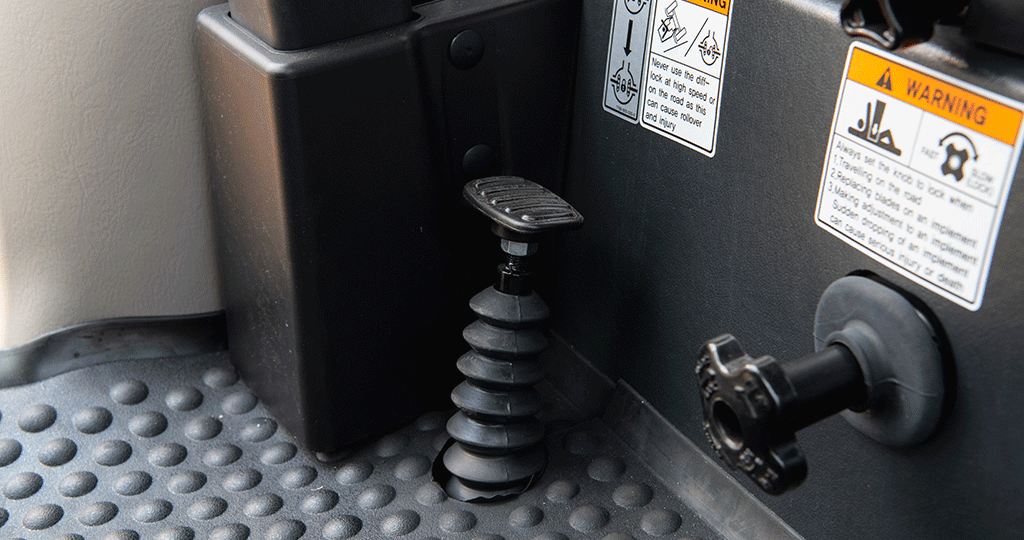

4. Differential lock

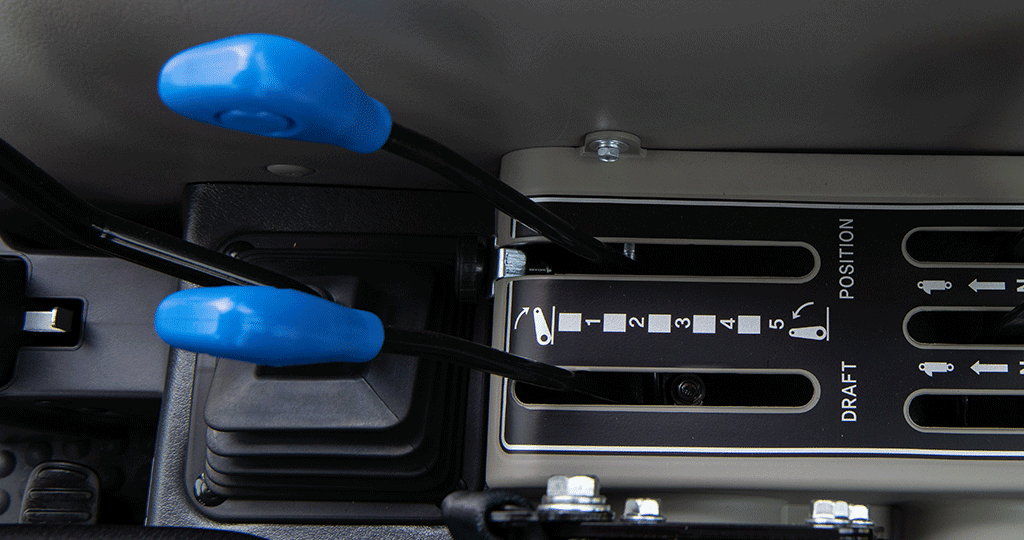

5. Draft control

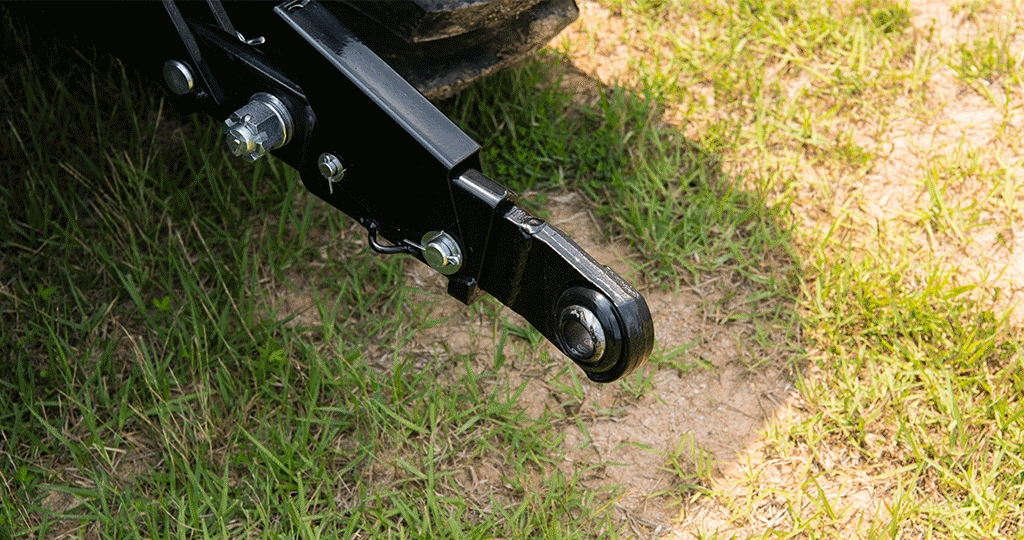

6. Extendable lower link ends

Designed for applications in and around your property

This compact utility tractor has a high lift capacity for the hitch and optional loader, making it ideal to carry heavier loads and connect to larger attachments. With a premium operator cabin complete with joystick controls for front-end loaders and remote valves for rear attachments, it offers all the comforts you need to help you perform tasks productively.

Maneuverability and power come together in this machine, so you can take on a range of medium- to heavy-duty applications with utmost confidence. This tractor can help you manage farm animals, clear land, move material, power larger turf care projects, and so much more.

Livestock & Poultry

Whether you want to build and maintain a modest chicken coop, a functional barn or a expansive stable, a TYM compact utility tractor brings you the multi-functional capabilities to cover the entire farm.

Land Clearing & Forestry

From grappling dead plants to removing uprooted tree stumps, this tractor can maintain your land or clear it for your next big project.

Material Handling

Compatible with attachments like front-end loaders that help you do more in less time, this tractor equips you with the power and control to complete all types of material handling jobs.

Landscaping

Bring your vision to life with the right tools. With higher fuel capacity, enhanced attachment controls, and faster traveling speeds, this tractor helps develop bare land into flourishing lawns.

STORIES FROM THE FIELD

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

SEE TYM’S CUSTOMER STORIES

Technical Specification

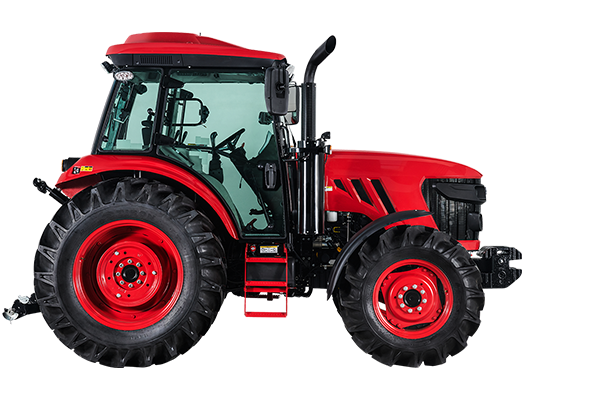

Tractors Model	T654	T754	T115
Engine manufacturer	Deutz TCD2.9L4	Deutz TCD2.9L4	Deutz TCD 3.6L4-C5VT83E
Engine power	67 hp \| 50 kW	74 hp \| 55.4 kW	111 hp \| 83 kW
Rated engine speed	2200 rpm	2200 rpm	2200 rpm
Displacement	177 cu. in. \| 2900 cc	177 cu. in. \| 2900 cc	221 cu. in. \| 3621.5 cc
No. of speeds	F24 x R24	F16 x R16 (Creep interlock)	F32 × R32 w/Creep
Hitch lift capacity	4270 lb \| 1937 kg	5115 lb \| 2320 kg	7294.9 lb \| 3309 kg
PTO rear	540/750/1000 rpm	540/750 540/1000 (Opt) rpm	540/540E/1000 rpm (Reversible shaft)
Fuel tank	18.5 gal \| 70 L	23.8 gal \| 90 L	31.7 gal \| 120 L
Overall length with 3-point hitch	155.6 in. \| 3952 mm	155.7 in. \| 4002 mm	175.2 in. \| 4450 mm
Overall width	72.4 in. \| 1840 mm	76.4 in. \| 1940 mm	89.4 in. \| 2270.8 mm
Wheelbase	84.6 in. \| 2150 mm	86.1 in. \| 2188 mm	93.7 in. \| 2380 mm
Height to top of ROPS	-	-	-
Min. ground clearance	17.1 in. \| 435 mm	18.3 in. \| 465 mm	16.7 in. \| 424.2 mm
Weight with cab	5555 lb \| 2520 kg	6052 lb \| 2745 kg	8940 lb \| 4055.1 kg
R1 Agricultural - Front	FSTR 9.5 R20 TL	FSTR 280/85R24 TL (11R24)	13.6-24
R1 Agricultural - Rear	FSTR 380/85R28 TL (14.9R28)	FSTR 420/85R30 TL (16.9R30)	18.4-34
Download	Technical Brochure	Technical Brochure	Technical Brochure
