T454

Series 3 , Compact Tractors

REQUEST QUOTE

Engine manufacturer

46.6 hp

Engine power

3314 lb

Hitch lift capacity

Build My Tractor

Explore Tractor in 3D

Technical Specification

Compatible Attachments

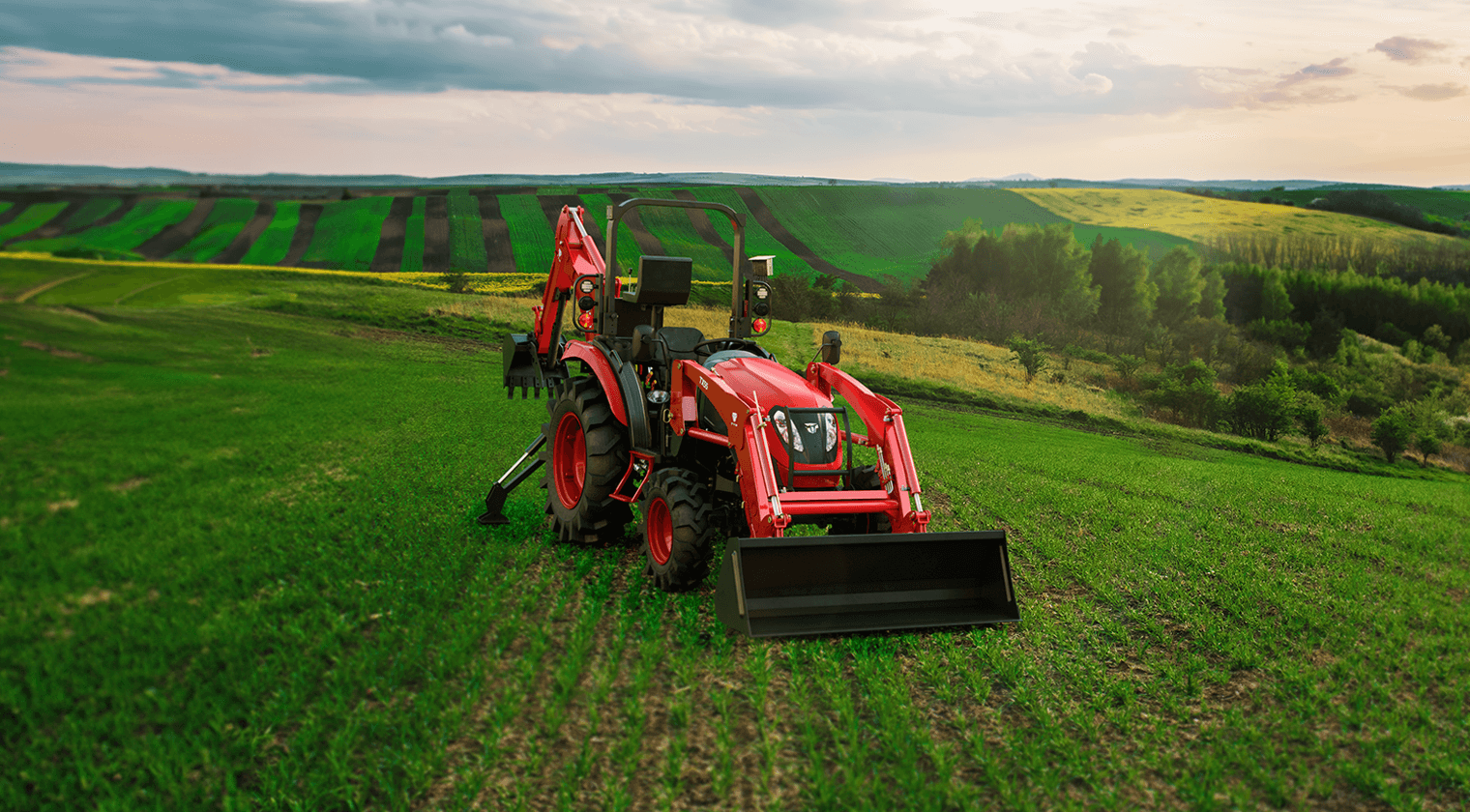

A compact tractor setting new standards in productivity and efficiency

This high-performance tractor makes a clear impact without compromising its maneuverability. With exceptional power packed into a compact-sized frame, the T454 redefines what a modern compact tractor can do for you and your property.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

High efficiency, 4-cylinder Yanmar diesel engine

The Japanese-made Yanmar engine delivers more torque with fewer revs than competitors in its class, significantly maximizing fuel efficiency. Its advanced liquid cooling system warms up the engine quickly and stabilizes temperature more effectively while the tractor is in operation.

Enhanced attachment controls for efficiency

To boost efficiency, this tractor features controls designed to expedite completion. Two sets of rear remote valves allow the operator to manage various attachments directly from the station, minimizing manual position adjustments. A dial or knob controls lowering speed, while draft control levers regulate depth for optimal ground engagement.

Interior detailing to promote operator comfort

Activate core functions such as the PTO on/off switch easily from the main console. Quickly receive alerts and diagnostic information via the digital display. The operator platform features a spacious and ergonomic seat and a flat floor with a rubber mat to enhance comfort during entry, exit, and driving.

Durable, shock absorbing axle configuration

The heavy-duty 4WD front axle enables the tractor to lift heavy loads and tow large attachments while absorbing shock and maintaining stability. Powerful hydraulics support the power steering system, which uses a dual-action mechanism with a hydraulic cylinder and tandem-type hydraulic pump.

Factory installed joystick controls

The joystick controls come installed from the factory, so you can put the tractor to work as soon as it is delivered. Factory installation ensures that gears are configured perfectly and controls are positioned ergonomically.

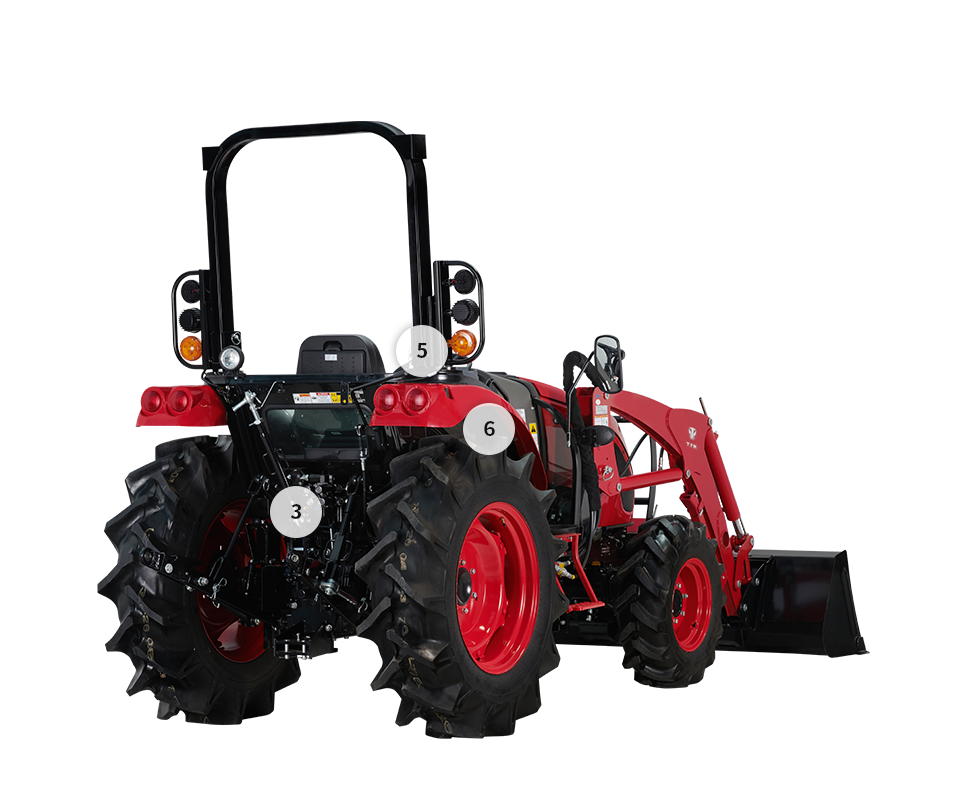

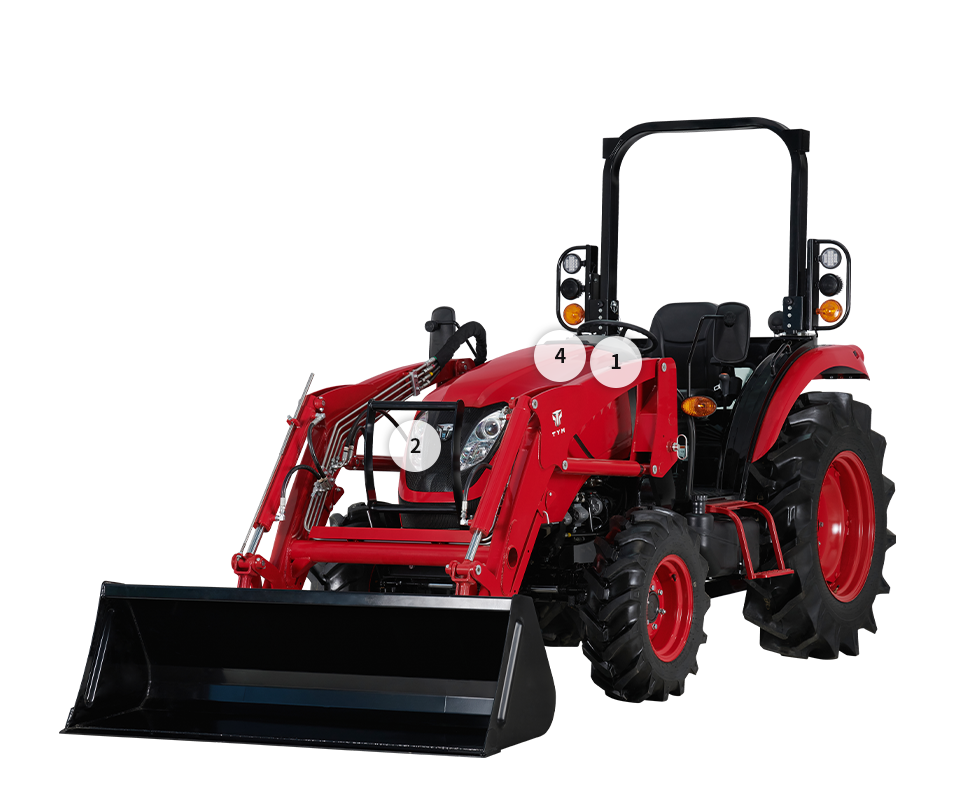

Equipped with features to elevate your productivity

With a powerful hydraulic system and ergonomic controls, this Series 3 tractor has the capability to complete a variety of jobs. The comfortable driver’s seat is equipped with ergonomically designed controls to give operators every advantage.

1. PTO cruise control

2. Projection head lamps

3. 2 sets of rear remote valves

4. Independent rear PTO switch

5. Foldable ROPS

6. Joystick control for front-end loader

Designed for applications in and around your property

This compact tractor boasts a sleek and rugged design, while the interiors are packed with in-cabin controls and features to minimize operator effort. Engineered for productivity inside and out, this tractor features sturdy cast iron linkages and easy to operate hydrostatic controls.

Good clearance from the ground and overhead allows you to take on uneven terrain easily, whether in a barn, under tree cover, or inside greenhouses. Equipped with high engine efficiency, impressive lift capabilities, and the option of a foldable ROPS or heated cab configuration, this tractor has the capabilities to perform light- to medium-duty jobs, all year round.

Arable Farming

Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.

Construction

Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.

Snow Clearing

TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.

Landscaping

Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

STORIES FROM THE FIELD

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

SEE TYM’S CUSTOMER STORIES

Technical Specification

Tractors Model	T454	T454C	T474
Engine manufacturer	Yanmar 4TNV88CR	Yanmar 4TNV88CR	TYM T2300N2
Engine power	46.6 hp \| 34.3 kW	46.6 hp \| 34.3 kW	48.3 hp \| 36 kW
Rated engine speed	2800 rpm	2800 rpm	2600 rpm
Displacement	133.6 cu. in. \| 2189 cc	133.6 cu. in. \| 2189 cc	139.5 cu. in. \| 2286 cc
No. of speeds	F16 x R16	F16xR16	F12xR12
Hitch lift capacity	3314 lb \| 1503 kg	3314 lb \| 1503 kg	2689.6 lb \| 1220 kg
PTO rear	540 rpm	540 rpm	540 rpm
Fuel tank	17.0 gal \| 60 L	17.0 gal \| 60 L	9.0 gal \| 34 L
Overall length with 3-point hitch	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm	131 in. \| 3320 mm
Overall width	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm	54.5 in. \| 1385 mm
Wheelbase	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm	69.7 in. \| 1770 mm
Height to top of ROPS	102.1 in. \| 2594 mm	-	94.5 in. \| 2400 mm
Min. ground clearance	13.8 in. \| 350 mm	13.8 in. \| 350 mm	12.8 in. \| 325 mm
Weight with ROPS	3814 lb \| 1730 kg	-	3289 lb \| 1492 kg
R1 Agricultural - Front	Farm Specialist 9.5-16 NHS TL 6PR	Farm Specialist 9.5-16 NHS TL 6PR	Farm Specialist 8.0-16 NHS TL 6PR
R1 Agricultural - Rear	Farm Specialist 13.6-26 NHS TL 6PR	Farm Specialist 13.6-26 NHS TL 6PR	Farm Specialist 12.4-24 NHS TL 6PR
Download	Technical Brochure	Technical Brochure	Technical Brochure
