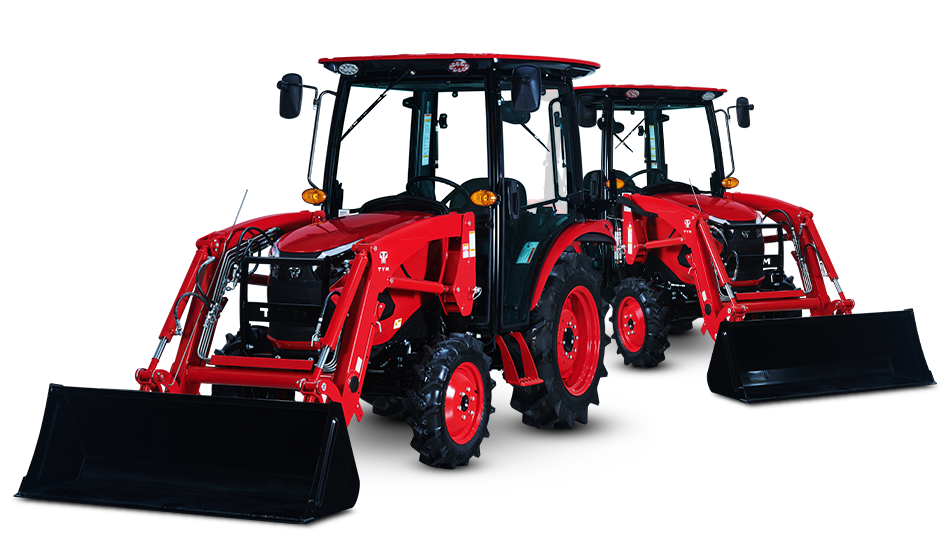

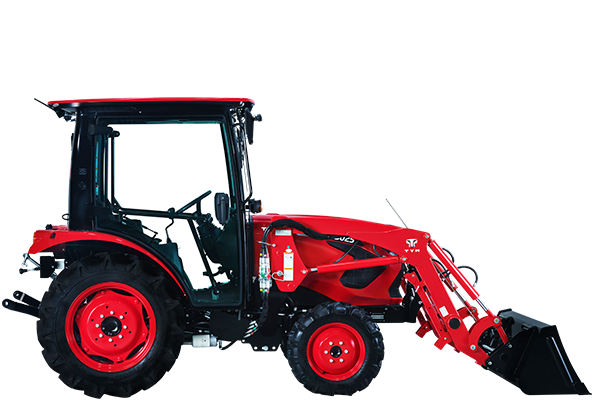

T3035C
Series 3 , Compact Tractors
Engine manufacturer
35 hp
Engine power
3306 lb
Hitch lift capacity

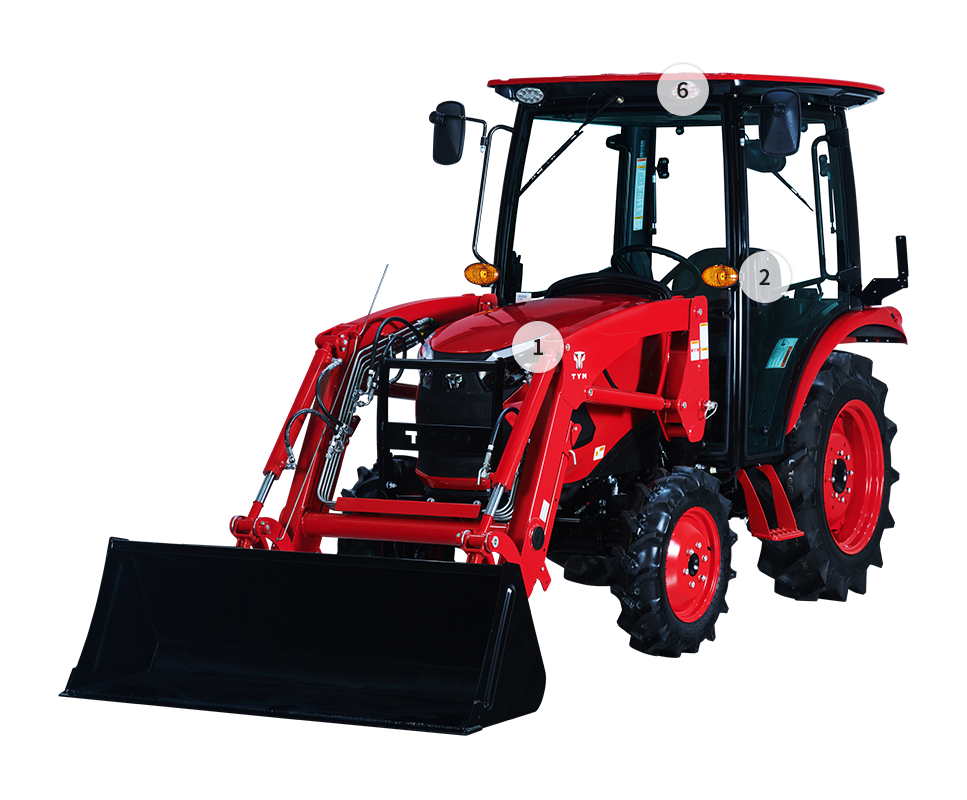

This compact tractor is built for jobs of all sizes
The T3035C delivers the versatility you need in a compact design—with 35 hp and a 2200 lb. lift capacity, it’s powerful enough to tackle even the toughest tasks on and off the field.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

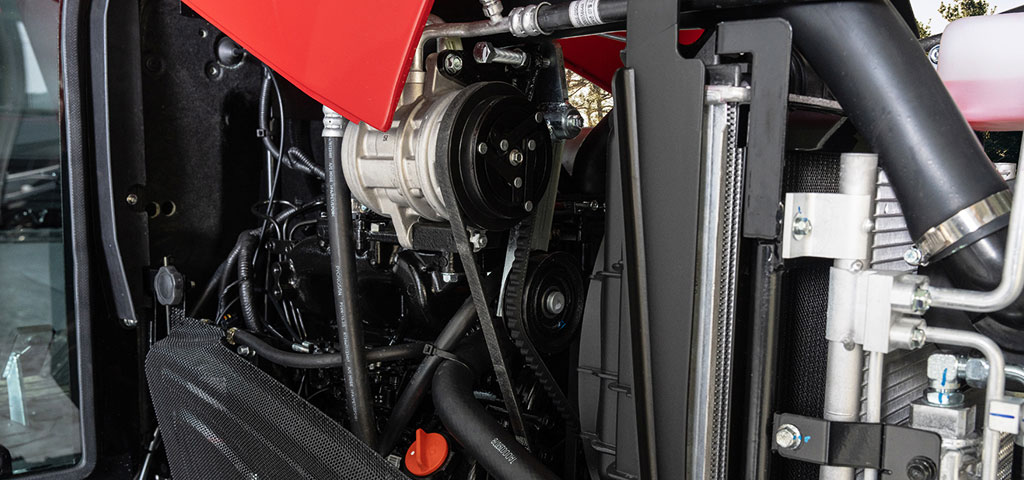

Eco-friendly Tier 4 engine
Fuel-efficient, naturally aspirated 3-cylinder engine, designed and manufactured by TYM, delivers 35 hp of reliable power while meeting strict Tier 4 Final emissions standards.

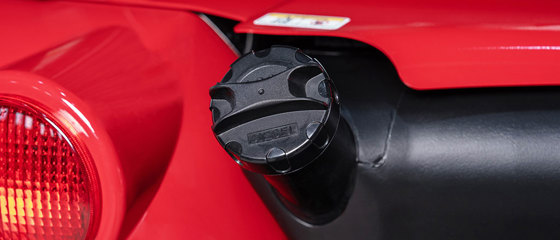

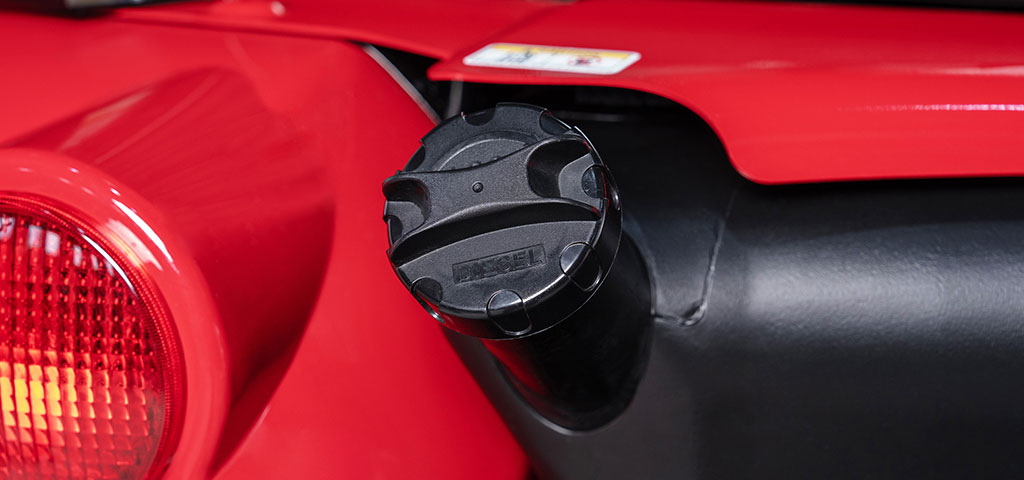

High-capacity fuel tank
The high-capacity fuel tank allows the tractor to operate for longer periods without stopping to refuel. Paired with a fuel-efficient engine, this enables uninterrupted and efficient operations during the busiest seasons.

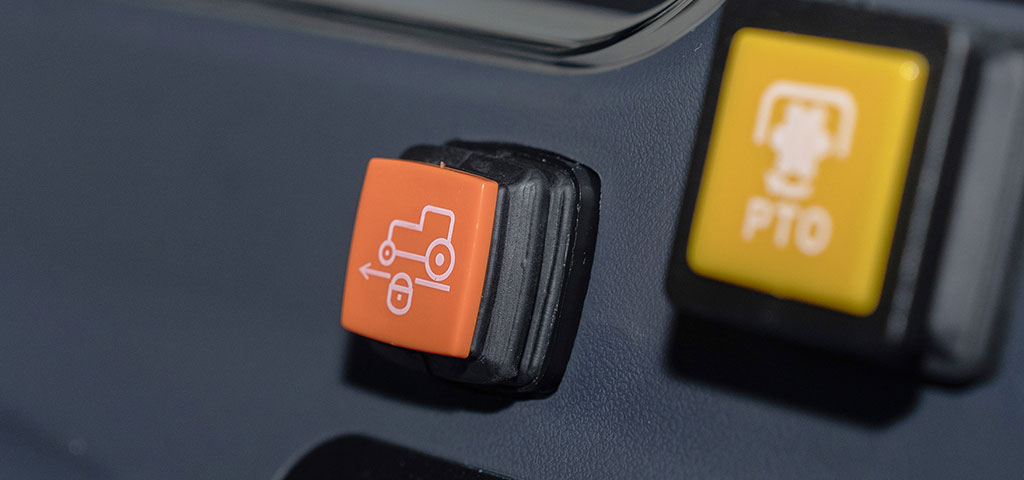

Cruise control
The cruise control feature allows you to set and maintain the engine RPM regardless of the tractor's load conditions.

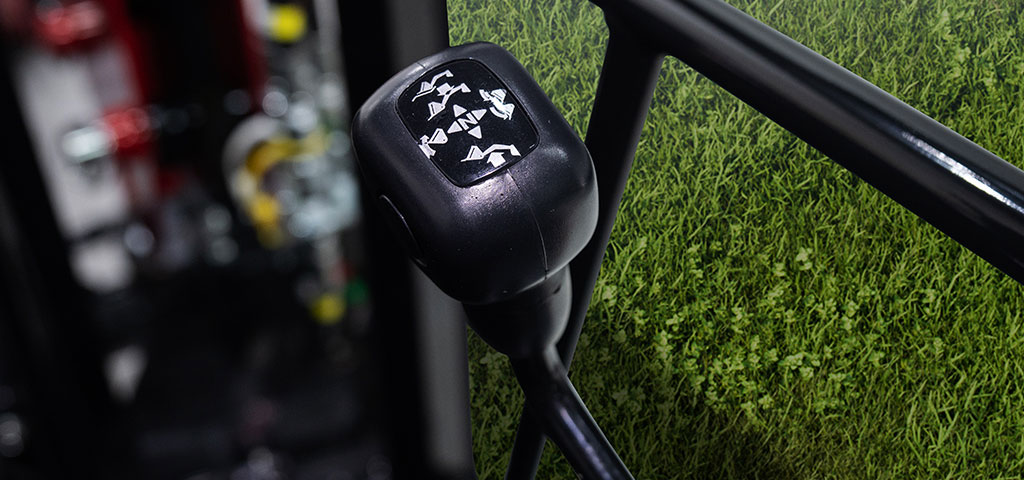

Factory-installed joystick
The standard loader joystick helps perform various tasks. By installing a 3rd function kit as needed, it enables even more diverse operations, such as grapple work.

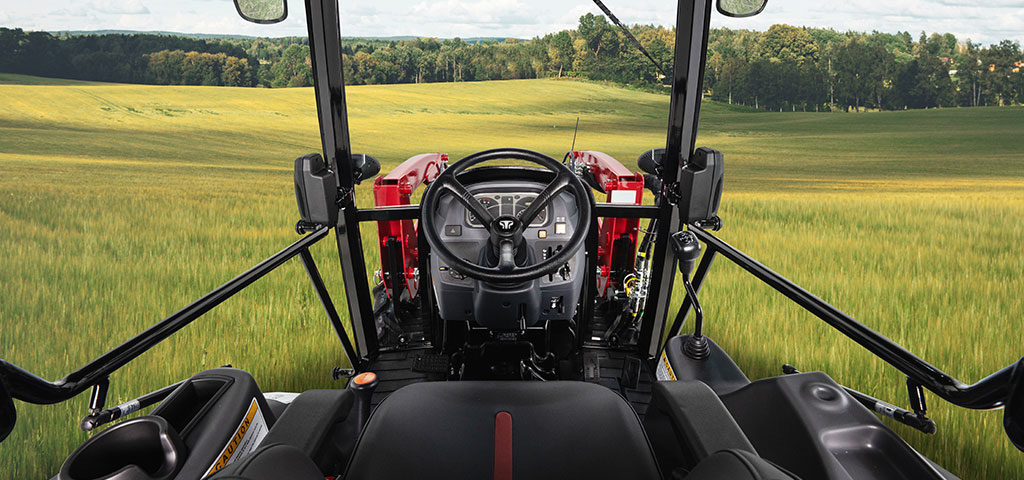

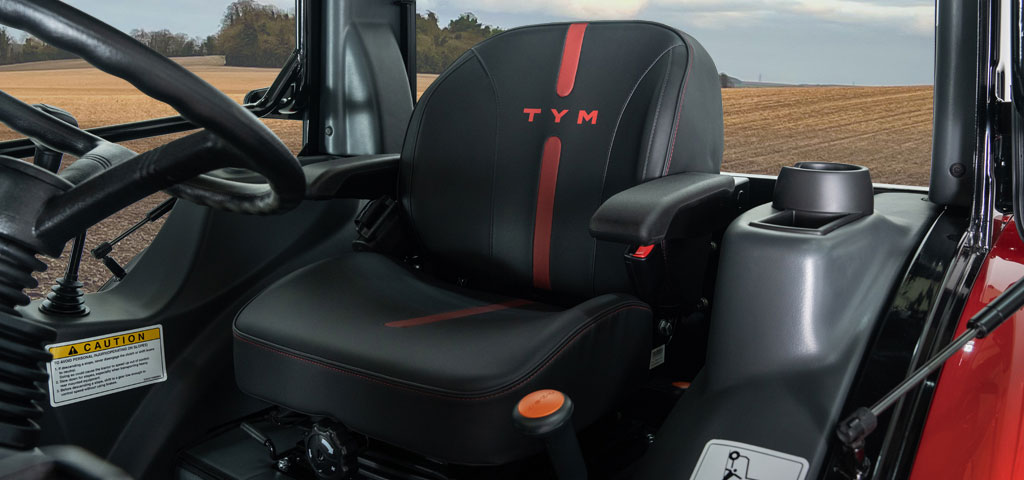

A cabin designed for a comfortable working environment in any condition

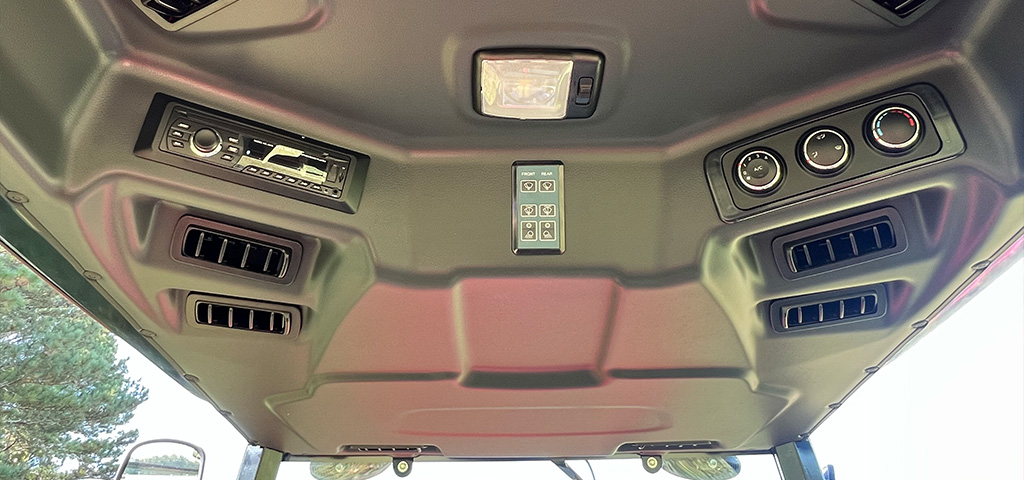

With the widest and most comfortable space in its class, this tractor maximizes operator comfort. It also offers enhanced visibility with standard heating and air conditioning.

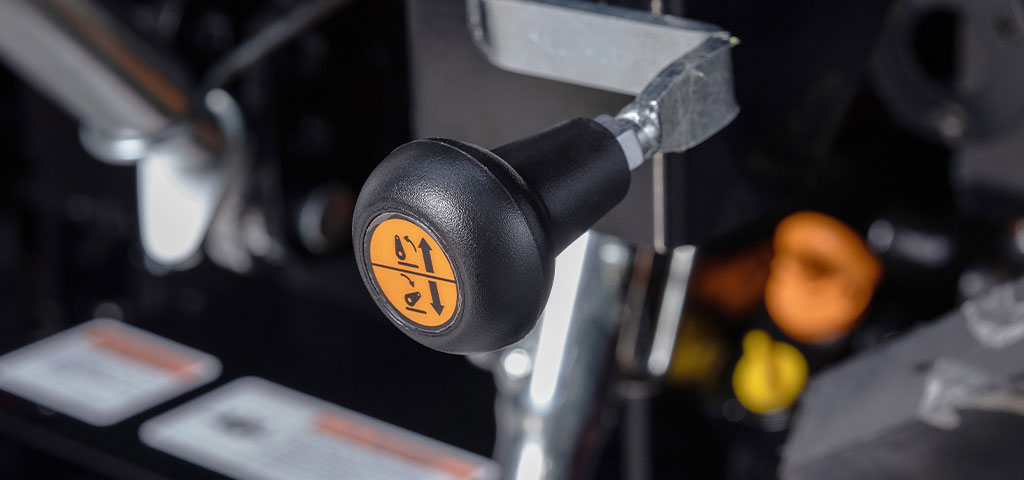

External lever to adjust rear attachments
Along with in-cabin controls, this tractor has an external position lever near the 3-point hitch. Operators can adjust attachment positions immediately after connection without returning to the cabin, enabling quick and convenient attachment switching, which enhances tractor versatility.
Work the Land. Love the Life
Work the land and love the life with the T3035C—your partner for lawn, garden, and hobby-farm projects. Loader, mower, and versatile hitch options deliver power and precision to get more done, faster and easier.
Designed for applications in and around your property
This compact tractor has enhanced lift capacities, maximizing work capabilities while maintaining one of the most compact frames. Functional design and precision engineering come together to create the ultimate tractor, from the Tier 4-certified engine and third-function ready rear hitch, to the ergonomically configured operator platform.
Use this tractor to maintain a healthy lawn, build a home garden, take care of yard work with ease, or create space for a lively home farm. Front-end loader, mid-mount mower and rear hitch linkages enable you to attach a variety of attachments and do more per cycle.
Arable Farming
Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.
Construction
Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.
Snow Clearing
TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.
Landscaping
Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

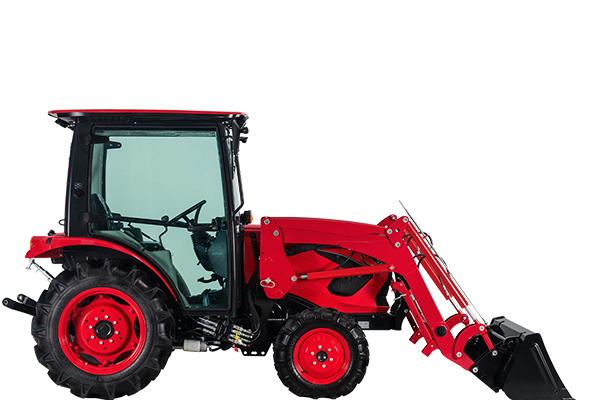

| Tractors Model | T3035C  | T3025C | 4215C  |
Engine manufacturer | TYM T1700N6 | TYM T1700N6 | TYM T2000N2 |
Engine power | 35 hp | 26.2 kW | 24 hp | 18 kW | 41 hp | 30.6 kW |
Rated engine speed | 2100 rpm | 2100 rpm | 2600 rpm |
Displacement | 104.5 cu. in. | 1744 cc | 104.5 cu. in. | 1714 cc | 139.5 cu. in. | 2287 cc |
No. of speeds | 3-Range | 3-Range | 3-Range |
Hitch lift capacity | 3306 lb | 1500 kg | 3306 lb | 1500 kg | 3306 lb | 1500 kg |
PTO rear | 540 rpm | 540 rpm | 540 rpm |
Fuel tank | 7.1 gal | 27 L | 7.1 gal | 27 L | 7.1 gal | 27 L |
Overall length with 3-point hitch | 120.9 in. | 3071 mm | 120.9 in. | 3071 mm | 120.9 in. | 3071 mm |
Overall width | 56.3 in. | 1430 mm | 56.6 in. | 1413 mm | 55.6 in. | 1413 mm |
Wheelbase | 65.7 in. | 1670 mm | 65.7 in. | 1670 mm | 65.7 in. | 1670 mm |
Height to top of ROPS | - | - | - |
Min. ground clearance | 14.4 in. | 366 mm | 13.1 in. | 334 mm | 13.1 in. | 334 mm |
Weight with ROPS | - | - | - |
Weight with cab | 3313 lb | 1503 kg | 3313 lb | 1503 kg | 3644 lb | 1653 kg |
R1 Agricultural - Front | 7-16, 6PR | 7-16, 6PR | 7-16 |
R1 Agricultural - Rear | 11.2-24, 8PR | 11.2-24, 8PR | 11.2-24 |
