T3035
Series 3 , Compact Tractors
Engine manufacturer
35 hp
Engine power
3307 lb
Hitch lift capacity

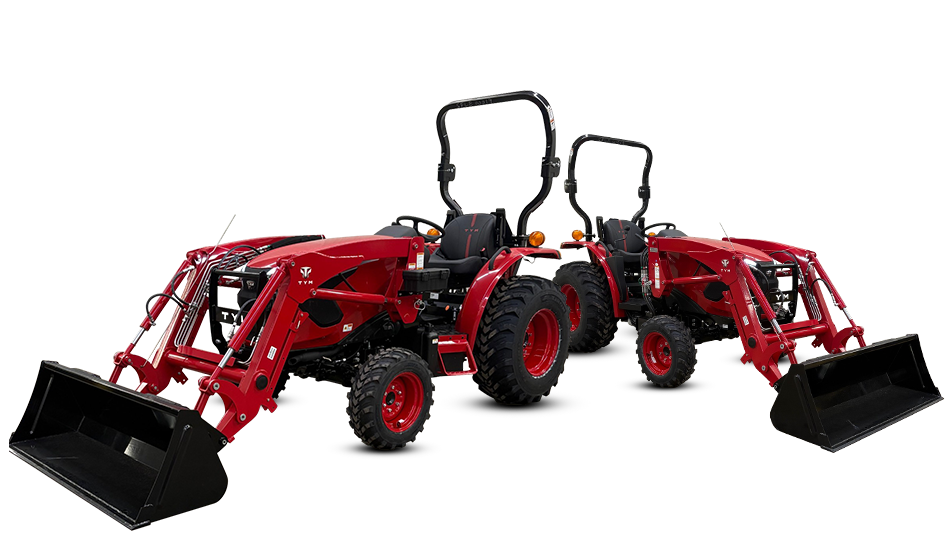

This compact tractor is built for jobs of all sizes
The T3035 delivers the versatility you need in a compact design—with 35 hp and a 2200 lb. lift capacity, it’s powerful enough to tackle even the toughest tasks on and off the field.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

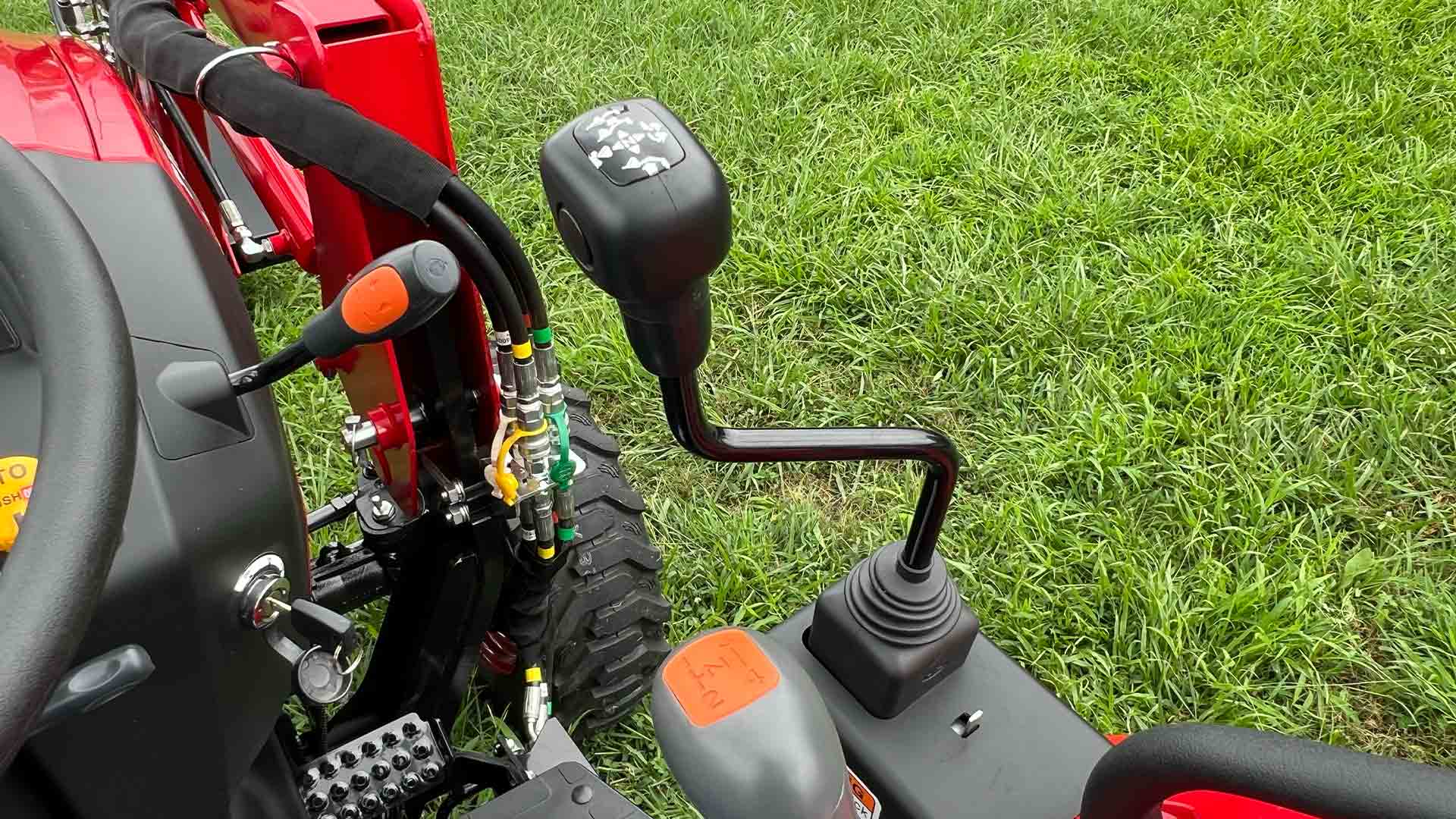

Factory-installed joystick
The standard loader joystick helps perform various tasks. By installing a 3rd function kit as needed, it enables even more diverse operations, such as grapple work.

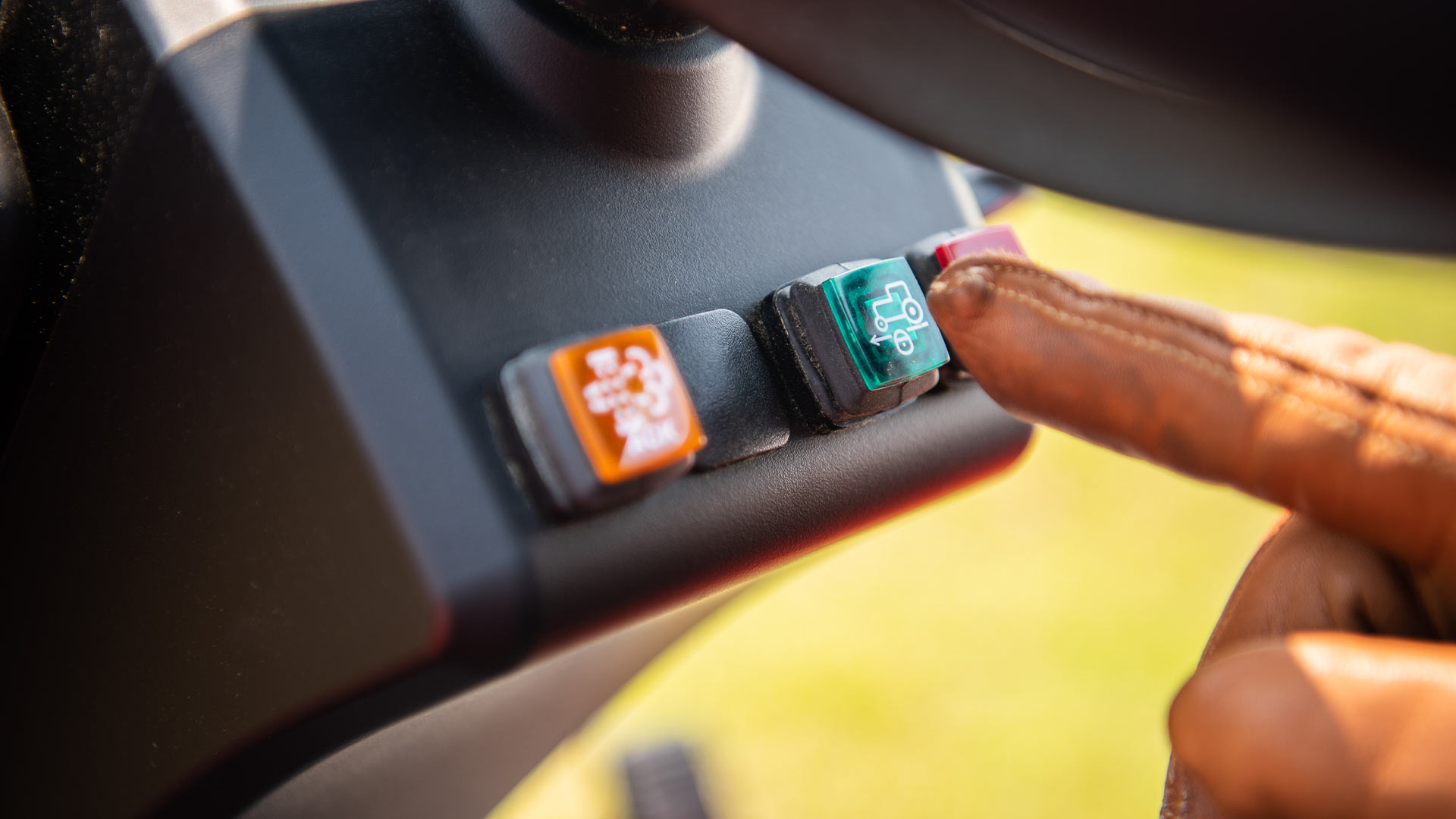

Cruise control
The cruise control feature allows you to set and maintain the engine RPM regardless of the tractor’s load conditions.

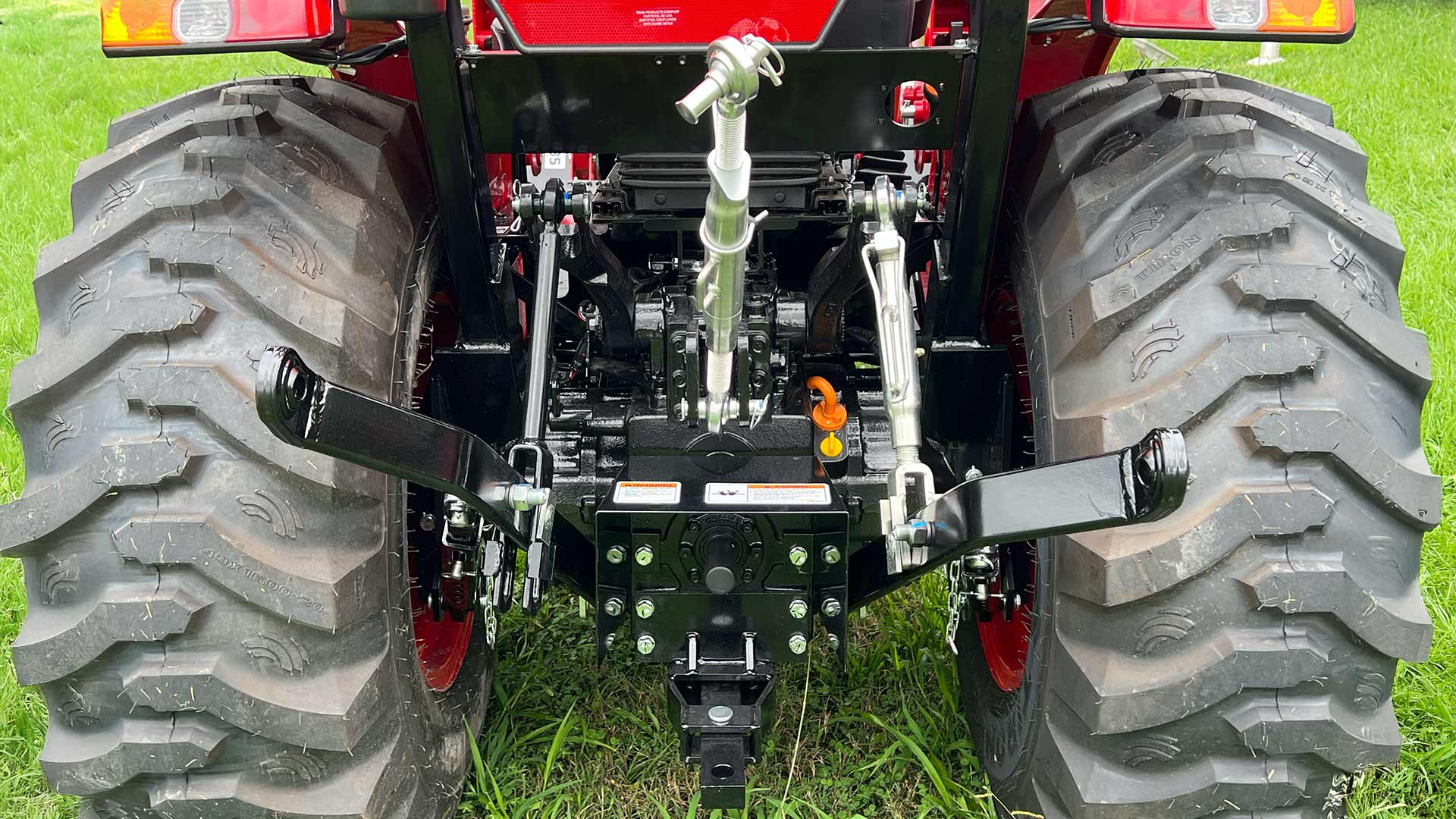

Lift more
Don’t let the size fool you. The T3025 ROPS offers 3,307lb of hitch lift capacity of and 2,200lb of bucket lift capacity.
Eco-friendly Tier 4 engine
Fuel-efficient, naturally aspirated 3-cylinder engine, designed and manufactured by TYM, delivers 35 hp of reliable power while meeting strict Tier 4 Final emissions standards.

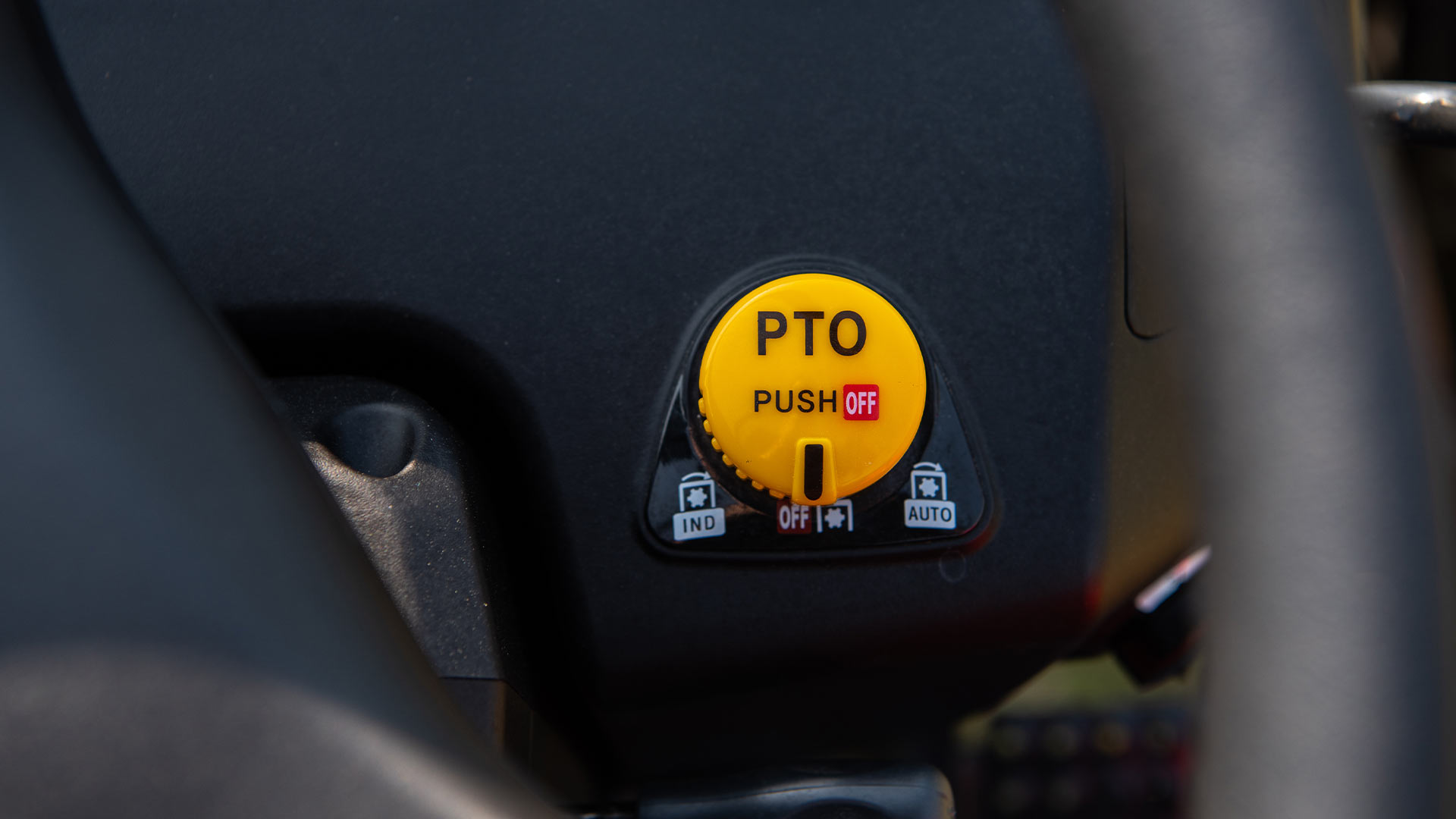

Simple PTO
The Power Take Off (PTO) switch is designed to engage and disengage easily. This will help you with smoother operation and less jerking when using attachments.
Control
The ergonomic joy-stick allows for better control for multiple functions, reducing muscle strain during long hours in the field.
All the right features to get the job done
Complete a range of jobs with a TYM Series 3 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.
Designed for applications in and around your property
This compact tractor has enhanced lift capacities, maximizing work capabilities while maintaining one of the most compact frames. Functional design and precision engineering come together to create the ultimate tractor, from the Tier-IV certified engine and third-function ready rear hitch, to the ergonomically configured operator platform.
Use this tractor to maintain a healthy lawn, build a home garden, take care of yard work with ease, or create space for a lively home farm. Front-end loader, mid-mount mower and rear hitch linkages enable you to attach a variety of attachments and do more per cycle.
| Tractors Model | T3035  | T3025 | 4215 |
Engine manufacturer | TYM T1700N6 | TYM T1700N6 | TYM T2000N2 |
Engine power | 35 hp | 26.2 kW | 24 hp | 18 kW | 41 hp | 30.6 kW |
Rated engine speed | 2100 rpm | 2100 rpm | 2600 rpm |
Displacement | 104.5 cu. in. | 1744 cc | 104.5 cu. in. | 1714 cc | 139.5 cu. in. | 2287 cc |
No. of speeds | T3035R: F12 x F12 T3035H: 3-Range | T3025R: F12 x F12 T3025H: 3-Range | 4215R: F12 x R12 4215H: 3-Range |
Hitch lift capacity | 3307 lb | 1500 kg | 3307 lb | 1500 kg | 3306 lb | 1500 kg |
PTO rear | 540 rpm | 540 rpm | 540 rpm |
Fuel tank | 8.7 gal | 33 L | 8.7 gal | 33 L | 7.1 gal | 27 L |
Overall length with 3-point hitch | 120.9 in. | 3071 mm | 121 in. | 3071 mm | 120.9 in. | 3071 mm |
Overall width | 56.3 in. | 1430 mm | 56.3 in. | 1430 mm | 56.3 in. | 1430 mm |
Wheelbase | 65.7 in. | 1670 mm | 65.7 in. | 1670 mm | 65.7 in. | 1670 mm |
Height to top of ROPS | 97.3 in. | 2471 mm | 97.2 in. | 2471 mm | 97.3 in. | 2471 mm |
Min. ground clearance | 14.4 in. | 366 mm | 14.4 in. | 366 mm | 14.4 in. | 366 mm |
Weight with ROPS | 1347 kg | 2969.6 lb | 1347 kg | 2969.6 lb | 4215R: 3278 lb | 1487 kg 4215H: 3258 lb | 1478 kg |
R1 Agricultural - Front | 8-16 | 8-16 | 8-16 |
R1 Agricultural - Rear | 12.4-24 | 12.4-24 | 12.4-24 |
| Download | Technical Brochure | Technical Brochure | Technical Brochure |
