T3025
Series 3 , Compact Tractors
Engine manufacturer
24 hp
Engine power
3307 lb
Hitch lift capacity

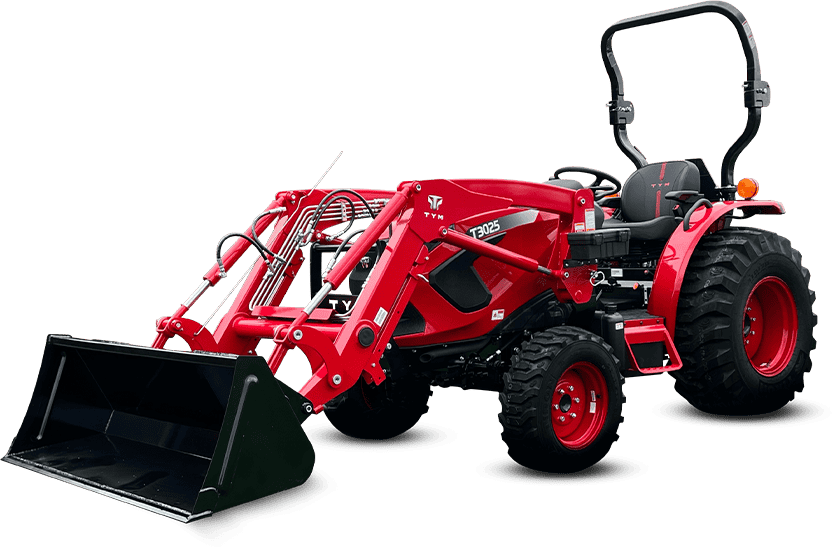

A compact tractor robust enough to take on challenges of all sizes
The T3025 tractor is designed for peak performance through versatility and durability. Offering customizable options throughout, this mid-sized Series 3 compact tractor helps you achieve your goals in applications of varying intensities.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

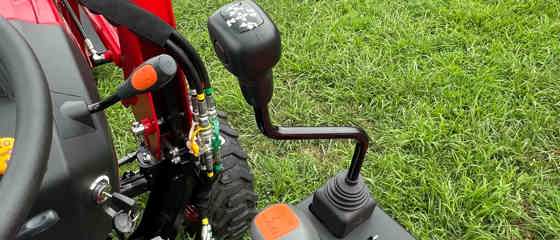

Factory-installed joystick
The standard loader joystick helps perform various tasks. By installing a 3rd function kit as needed, it enables even more diverse operations, such as grapple work.

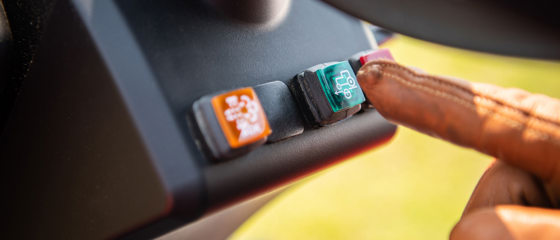

Cruise control
The cruise control feature allows you to set and maintain the engine RPM regardless of the tractor’s load conditions.

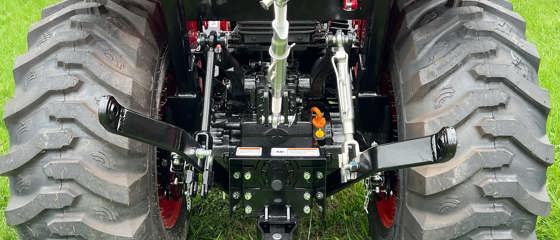

Lift more
Don’t let the size fool you. The T3025 ROPS offers 3,307lb of hitch lift capacity of and 2,200lb of bucket lift capacity.
TYM power
Our TYM diesel is not just smooth, quiet and Tier 4 Certified. It puts out 24 engine hp and 21 PTO hp. Plus it’s covered by our 6-year powertrain warranty.

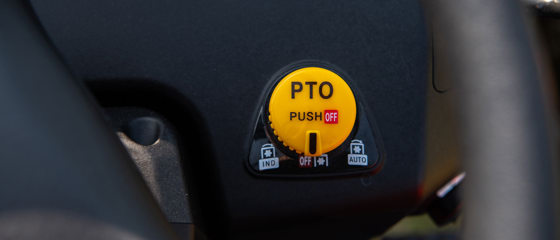

Simple PTO
The Power Take Off (PTO) switch is designed to engage and disengage easily. This will help you with smoother operation and less jerking when using attachments.
Control
The ergonomic joy-stick allows for better control for multiple functions, reducing muscle strain during long hours in the field.

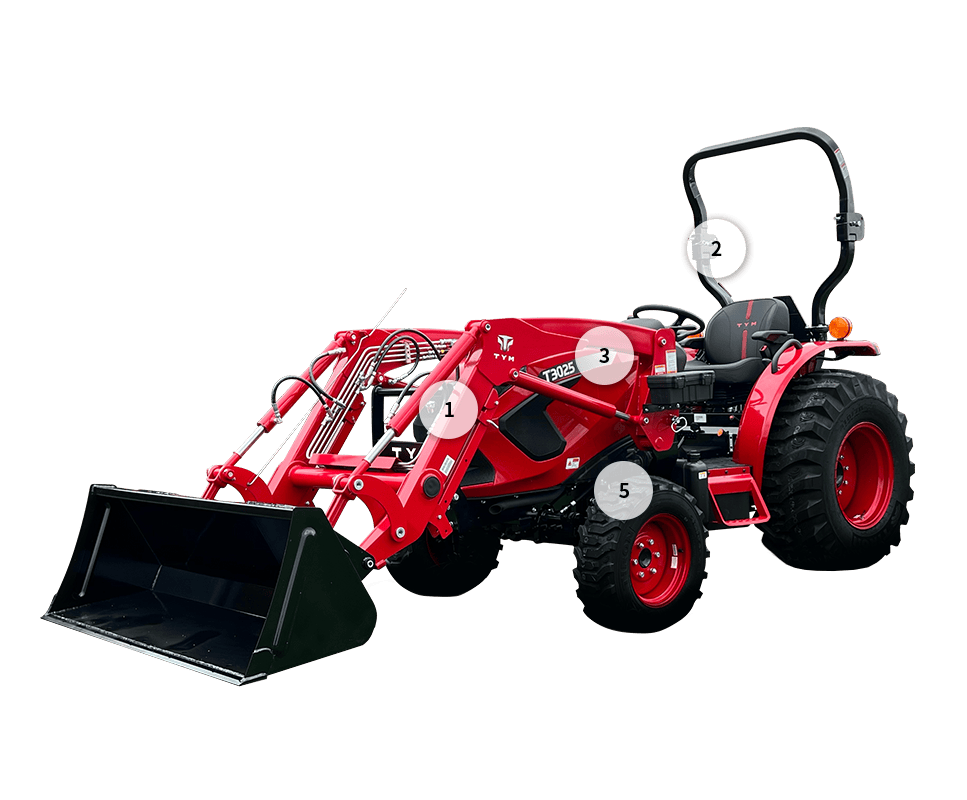

All the right features to get the job done
Complete a range of jobs with a TYM Series 3 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.
Designed for applications in and around your property
This compact tractor has enhanced lift capacities, maximizing work capabilities while maintaining one of the most compact frames. Functional design and precision engineering come together to create the ultimate tractor, from the Tier-IV certified engine and third-function ready rear hitch, to the ergonomically configured operator platform.
Use this tractor to maintain a healthy lawn, build a home garden, take care of yard work with ease, or create space for a lively home farm. Front-end loader, mid-mount mower and rear hitch linkages enable you to attach a variety of attachments and do more per cycle.
| Tractors Model | T3025  | 3015 | 3515 |
Engine manufacturer | TYM T1700N6 | TYM T1700N3 | TYM T1700N2 |
Engine power | 24 hp | 18 kW | 30 hp | 22.5 kW | 35 hp | 26.2 kW |
Rated engine speed | 2100 rpm | 2600 rpm | 2600 rpm |
Displacement | 104.5 cu. in. | 1714 cc | 104.5 cu. in. | 1714 cc | 104.5 cu. in. | 1714 cc |
No. of speeds | 2515R: F12 x F12 2515H: 3-Range | 3015R: F12 x R12 3015H: 3-Range | 3515R: F12 x R12 3515H: 3-Range |
Hitch lift capacity | 3307 lb | 1500 kg | 3306 lb | 1500 kg | 3306 lb | 1500 kg |
PTO rear | 540 rpm | 540 rpm | 540 rpm |
Fuel tank | 8.7 gal | 33 L | 7.1 gal | 27 L | 7.1 gal | 27 L |
Overall length with 3-point hitch | 121 in. | 3071 mm | 120.9 in. | 3071 mm | 120.9 in. | 3071 mm |
Overall width | 56.3 in. | 1430 mm | 56.3 in. | 1430 mm | 56.3 in. | 1430 mm |
Wheelbase | 65.7 in. | 1670 mm | 65.7 in. | 1670 mm | 65.7 in. | 1670 mm |
Height to top of ROPS | 97.2 in. | 2471 mm | 97.3 in. | 2471 mm | 97.3 in. | 2471 mm |
Min. ground clearance | 14.4 in. | 366 mm | 14.4 in. | 366 mm | 14.4 in. | 366 mm |
Weight with ROPS | 1347 kg | 2969.6 lb | 3015R: 3183 lb / 1444 kg 3015H: 3163 lb | 1435 kg | 3515R: 3183 lb | 1444 kg 3515H: 3163 lb | 1435 kg |
R1 Agricultural - Front | 8-16 | 8-16 | 8-16 |
R1 Agricultural - Rear | 12.4-24 | 12.4-24 | 12.4-24 |
