4820C

Series 3 , Compact Tractors

Engine manufacturer

48 hp

Engine power

3306 lb

Hitch lift capacity

Technical Specification

Compatible Attachments

A high-performance compact tractor built to take on challenges of all sizes

High performance meets high efficiency in this customizable Series 3 tractor. The 4820C can be configured as you see fit to drive productivity, and it’s equipped with the features designed to maintain your comfort throughout tasks of varying intensities.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

Eco-friendly TYM Tier 4 engine

Equipped with a naturally aspirated engine designed and manufactured by TYM, the tractor is designed to be eco-friendly and fuel-efficient without compromising on performance.

Tilt steering wheel

The tilt steering wheel allows operators to adjust the position of the steering wheel for a more comfortable driving experience.

PTO on/off switch

Safety is a top priority. The PTO switch ensures secure operation of all tractor attachments.

Differential lock systems & low turning angle

The differential lock system, activated with easily accessible levers, provides enhanced traction in slippery work environments, while a 52˚ turning angle makes operation in narrow areas much easier.

Water-separating fuel filter

The water-separating fuel filter prevents foreign substances from entering the fuel, ensuring better engine starting performance and preventing damage to the machine.

Optional tires for various working conditions

In addition to standard agricultural tires, industrial and turf tires are also available for versatile working conditions.

Powerful features to drive tractor performance

Leverage a range of features to complete a variety of jobs quickly and effectively. With its all-season cabin and ergonomic controls, this Series 3 tractor keeps operators comfortable and productive, ready to tackle challenges all year round.

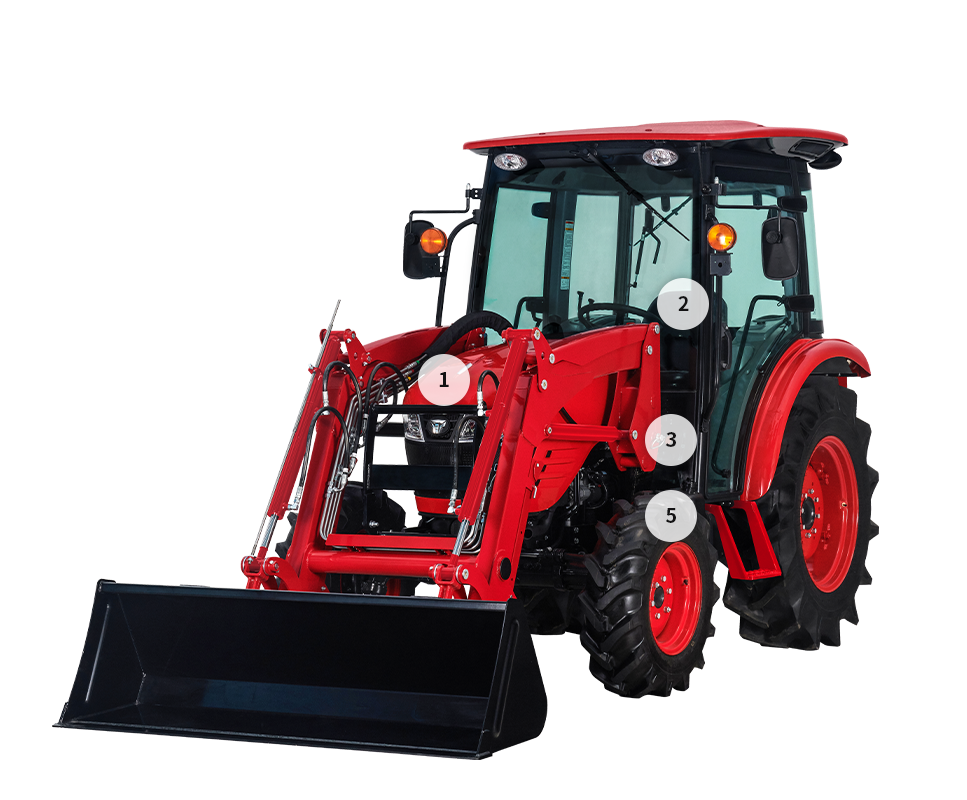

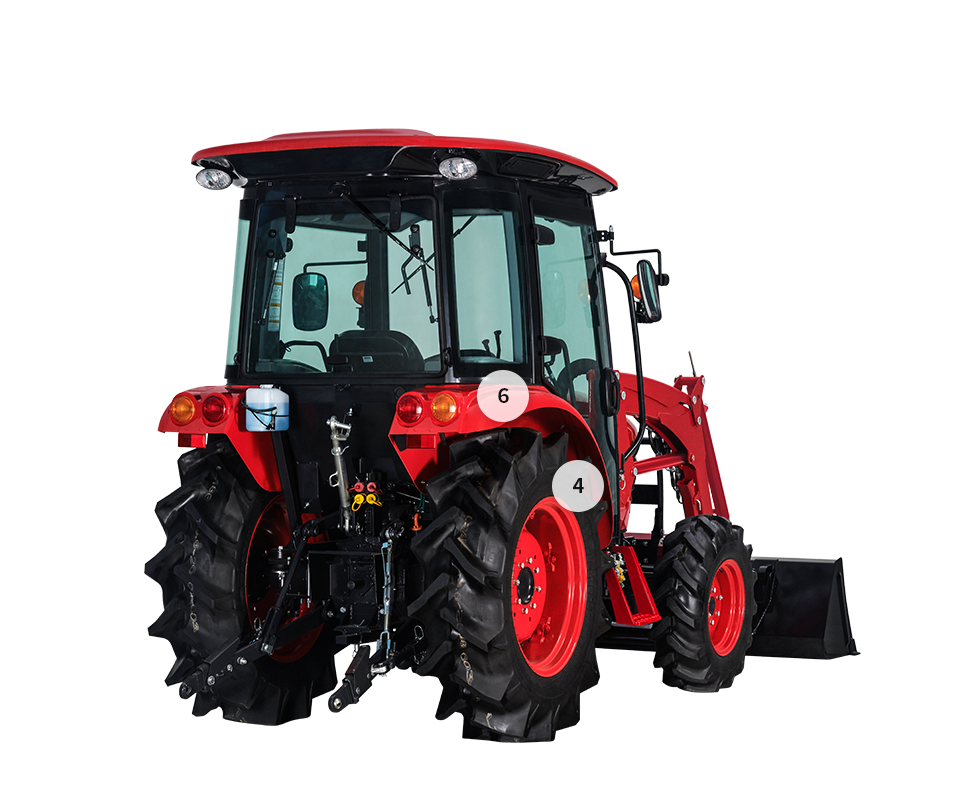

1. Hood design

2. Comfortable suspension seat

3. Ergonomic lever

4. Responsive forward/reverse HST (4820CH)

5. High-capacity fuel tank

6. Joystick control for front-end loader

Designed for applications in and around your property

This compact tractor boasts a sleek and rugged design, while the interiors are packed with in-cabin controls and features to minimize operator effort. Engineered for productivity inside and out, this tractor features sturdy cast iron linkages and easy to operate hydrostatic controls.

Good clearance from the ground and overhead allows you to take on uneven terrain easily, whether in a barn, under tree cover, or inside greenhouses. Equipped with high engine efficiency, impressive lift capabilities, and the option of a foldable ROPS or heated cab configuration, this tractor has the capabilities to perform light- to medium-duty jobs, all year round.

Arable Farming

Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.

Construction

Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.

Snow Clearing

TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.

Landscaping

Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

STORIES FROM THE FIELD

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

SEE TYM’S CUSTOMER STORIES

Technical Specification

Tractors Model	4820C	4820	5520C
Engine manufacturer	TYM T2300N2	TYM T2300N2	TYM T2300T3
Engine power	48 hp \| 36 kW	48 hp \| 36 kW	55 hp \| 41 kW
Rated engine speed	2600 rpm	2600 rpm	2600 rpm
Displacement	139.5 cu. in. \| 2286 cc	139.5 cu. in. \| 2286 cc	139.5 cu. in. \| 2286 cc
No. of speeds	4820C: F16 x R16 4820CH: 4-Range	4820R: F16 x R16 4820H: 4-Range	5520C: F16 x R16 5520CH: 4-Range
Hitch lift capacity	3306 lb \| 1500 kg	1500 lb \| 3306 kg	3306 lb \| 1500 kg
PTO rear	540/750 rpm	540/750 rpm	540/750 rpm
Fuel tank	11.8 gal \| 45 L	11.8 gal \| 45 L	11.8 gal \| 45 L
Overall length with 3-point hitch	127.4 in. \| 3236 mm	127.4 in. \| 3236 mm	127.4 in. \| 3236 mm
Overall width	64.9 in. \| 1650 mm	64.9 in. \| 1650 mm	64.9 in. \| 1650 mm
Wheelbase	71.1 in. \| 1806 mm	71.1 in. \| 1806 mm	71.1 in. \| 1806 mm
Height to top of ROPS	-	98.4 in. \| 1200 mm	97 in. \| 2463 mm
Min. ground clearance	15.5 in. \| 394 mm	15.5 in. \| 394 mm	15.5 in. \| 393.7 mm
Weight with cab	4349 lb \| 1973 kg	-	4349 lb \| 1973 kg
R1 Agricultural - Front	9.5-16	9.5-16	9.5-16
R1 Agricultural - Rear	13.6-26	13.6-26	13.6-26
Download	Technical Brochure	Technical Brochure	Technical Brochure
