T394C

Series 2 , Compact Tractors

REQUEST QUOTE

Engine manufacturer

37.4 hp

Engine power

2639 lb

Hitch lift capacity

Build My Tractor

Explore Tractor in 3D

Technical Specification

Compatible Attachments

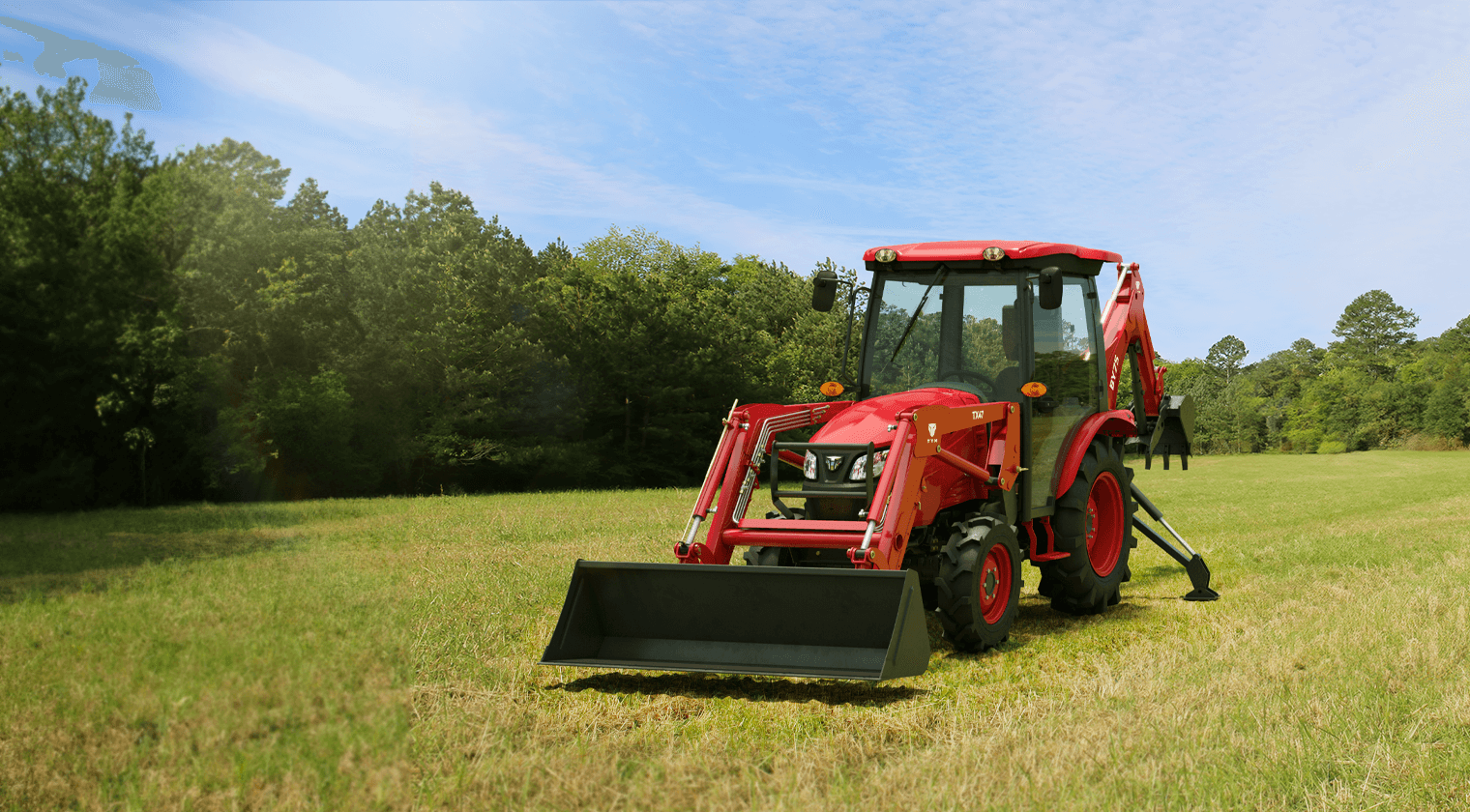

A compact tractor that outperforms its size and outsmarts limitations

Tackle challenges in tight spaces with the T394C. Compact but durable and expertly engineered for efficiency, this tractor excels in greenhouses, orchards, and other confined areas where space is limited but power can’t be compromised.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

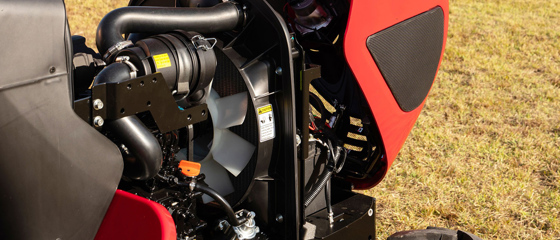

High torque, water-cooled Yanmar diesel engine

The Japanese made Yanmar engine offers more torque with less revs compared to competitors in its class. Since it is water cooled, the engine warms up faster and stabilizes temperature more effectively while the tractor is running. The engine is also Tier 4-certified, including for noise emission standards.

Dual filter air cleaner for engine longevity

An additional filter protects the tractor’s engine from harmful particles, drastically extending the engine life.

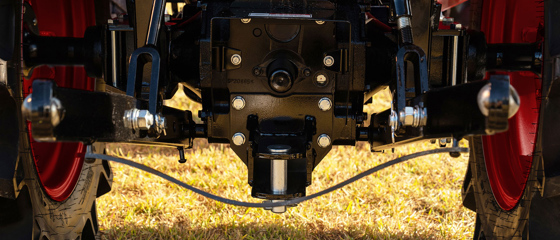

Cast iron components for sturdier connections

For enhanced durability under heavier loads, the rear of this tractor features robust cast-iron components to connect attachments. The material improves hydraulic efficiency and extends component lifecycles.

Easy to open hood for convenient maintenance

The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service, and maintenance. The side panel can also be removed easily without the need for specialized tools.

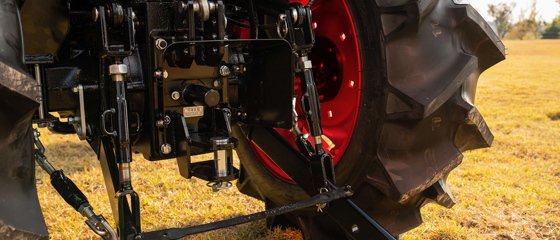

3-point hitch with powerful lift capacity

The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joints. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.

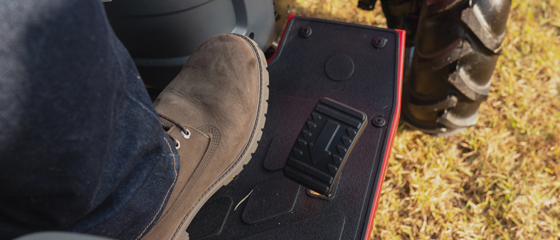

HST for infinitely variable drive speed

Responsive hydrostatic controls provide a smooth ride for operators, from the forward and reverse pedal to the powered steering wheel. These controls reduce the need for operator effort during a range of tasks, particularly while operating the optional front-end loader.

Powerful features to drive tractor performance

Leverage a range of features to complete a variety of jobs, quickly and effectively. Available with a foldable ROPS or heated cabin, this Series 2 tractor keeps operators comfortable to take on challenges in warm or cold weather.

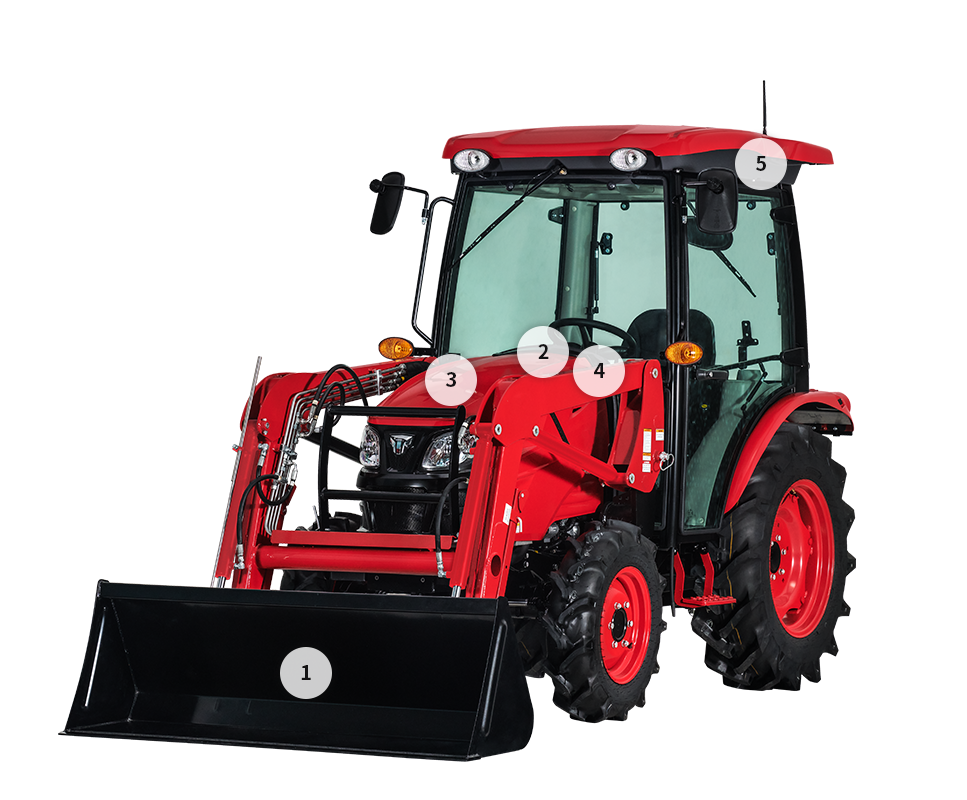

1. Optional loader with high lift capacity

2. PTO on/off switch

3. Dual filter air cleaner

4. Cruise control

5. Cabin with heating and AC

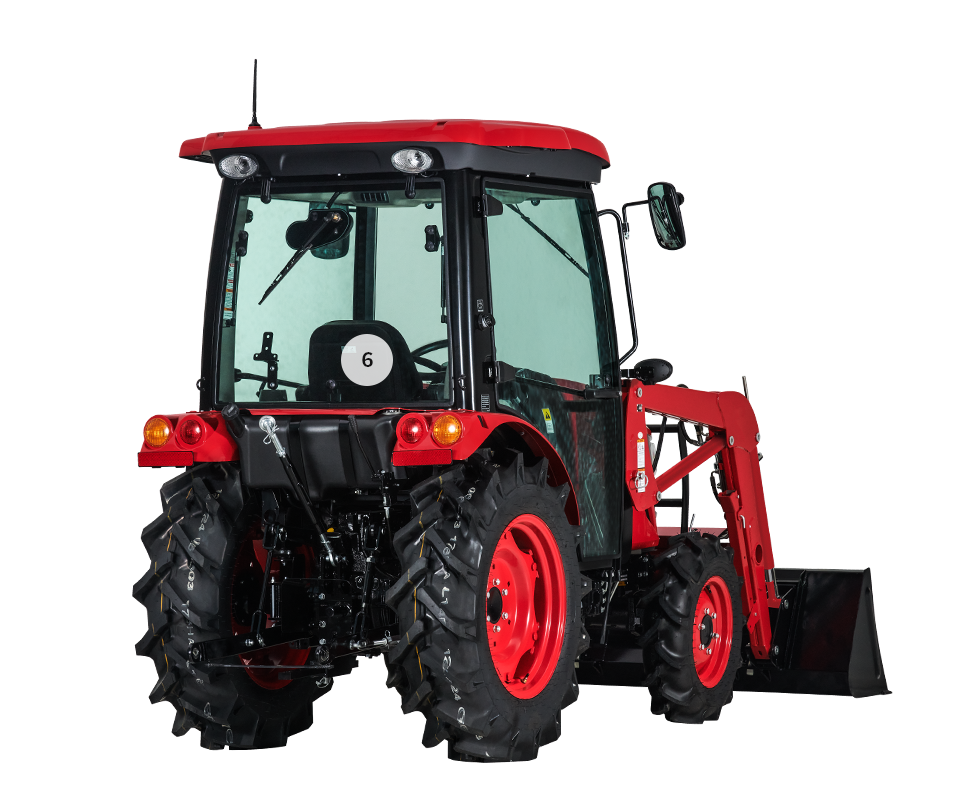

6. Joystick control for front-end loader

Designed for applications in and around your property

This compact tractor has enhanced lift capacities, maximizing work capabilities while maintaining one of the most compact frames. Functional design and precision engineering come together to create the ultimate tractor, from the Tier 4-certified engine and third-function ready rear hitch, to the ergonomically configured operator platform.

Use this tractor to maintain a healthy lawn, build a home garden, take care of yard work with ease, or create space for a lively home farm. Front-end loader, mid-mount mower and rear hitch linkages enable you to attach a variety of attachments and do more per cycle.

Arable Farming

Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.

Construction

Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.

Snow Clearing

TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.

Landscaping

Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

STORIES FROM THE FIELD

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

SEE TYM’S CUSTOMER STORIES

Technical Specification

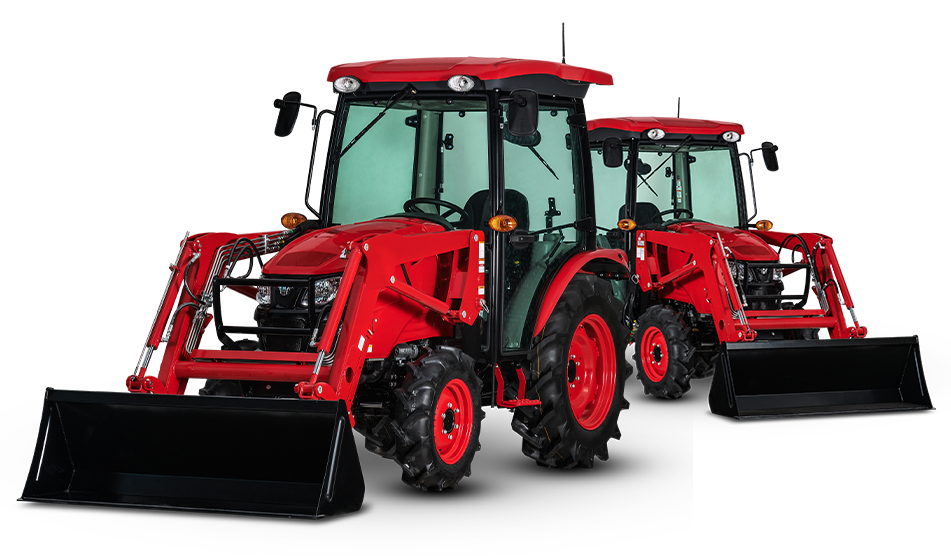

Tractors Model	T394C	T394	T474C
Engine manufacturer	Yanmar 3TNV88-CR	Yanmar 3TNV88-CR	TYM T2300N2
Engine power	37.4 hp \| 27.5 kW	37.4 hp \| 27.5 kW	48.3 hp \| 36 kW
Rated engine speed	3000 rpm	3000 rpm	2600 rpm
Displacement	100.2 cu. in. \| 1642 cc	100.2 cu. in. \| 1642 cc	139.5 cu. in. \| 2286 cc
No. of speeds	F12xR12	F12xR12	F12xR12
Hitch lift capacity	2639 lb \| 1197 kg	2639 lb \| 1197 kg	2689.6 lb \| 1220 kg
PTO rear	540 rpm	540 rpm	540 rpm
Fuel tank	9.0 gal \| 34 L	9.0 gal \| 34 L	9.0 gal \| 34 L
Overall length with 3-point hitch	126 in. \| 3200 mm	126 in. \| 3200 mm	131 in. \| 3320 mm
Overall width	53.5 in. \| 1360 mm	53.5 in. \| 1360 mm	54.5 in. \| 1385 mm
Wheelbase	66.9 in. \| 1700 mm	64.5 in. \| 1640 mm	69.7 in. \| 1770 mm
Min. ground clearance	12.8 in. \| 325 mm	12.8 in. \| 325 mm	12.8 in. \| 325 mm
Weight with cab	3417 lb \| 1550 kg	-	3607 lb \| 1636 kg
R1 Agricultural - Front	Farm Specialist 8.0-16 NHS TL 6PR	Farm Specialist 8.0-16 NHS TL 6PR	Farm Specialist 8.0-16 NHS TL 6PR
R1 Agricultural - Rear	Farm Specialist 12.4-24 NHS TL 6PR	Farm Specialist 12.4-24 NHS TL 6PR	Farm Specialist 12.4-24 NHS TL 6PR
Download	Technical Brochure	Technical Brochure	Technical Brochure
