T394

Series 2 , Compact Tractors

REQUEST QUOTE
Engine Manufacturer

Engine manufacturer

2639 lb

Hitch lift capacity

37.4 hp

Engine power

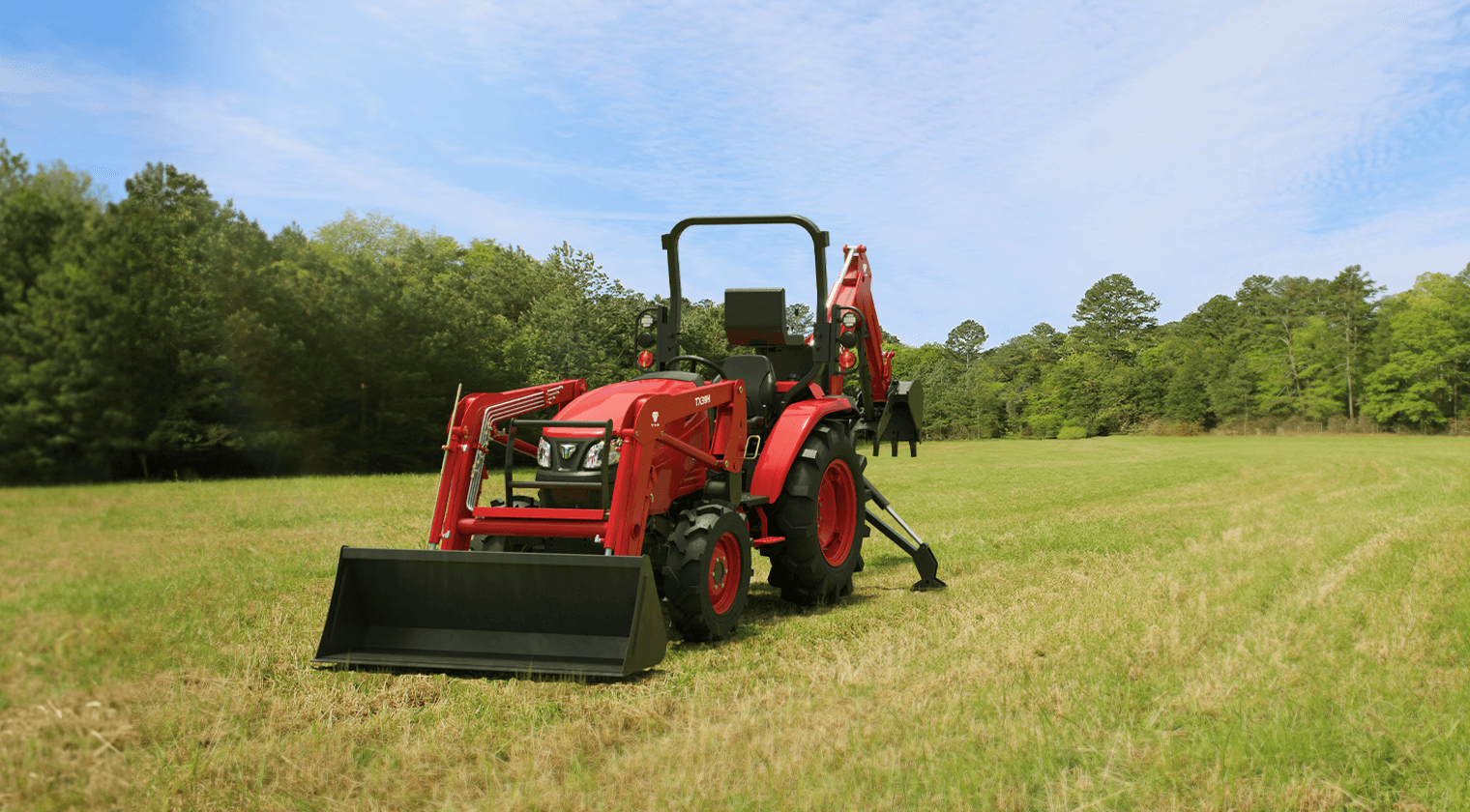

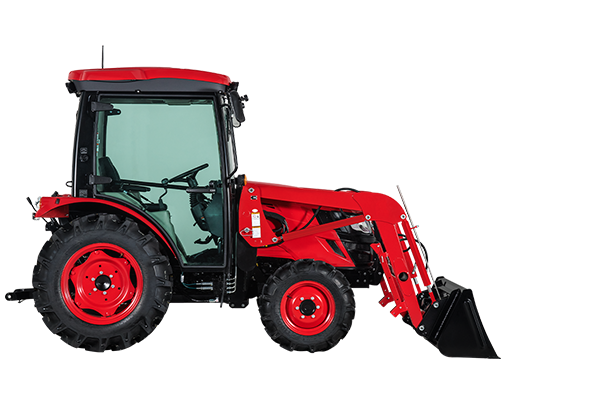

A compact tractor that outperforms its size and outsmarts limitations

Tackle challenges in tight spaces with the T394. Compact but durable and expertly engineered for efficiency, this tractor excels in greenhouses, orchards, and other confined areas where space is limited but power can’t be compromised.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

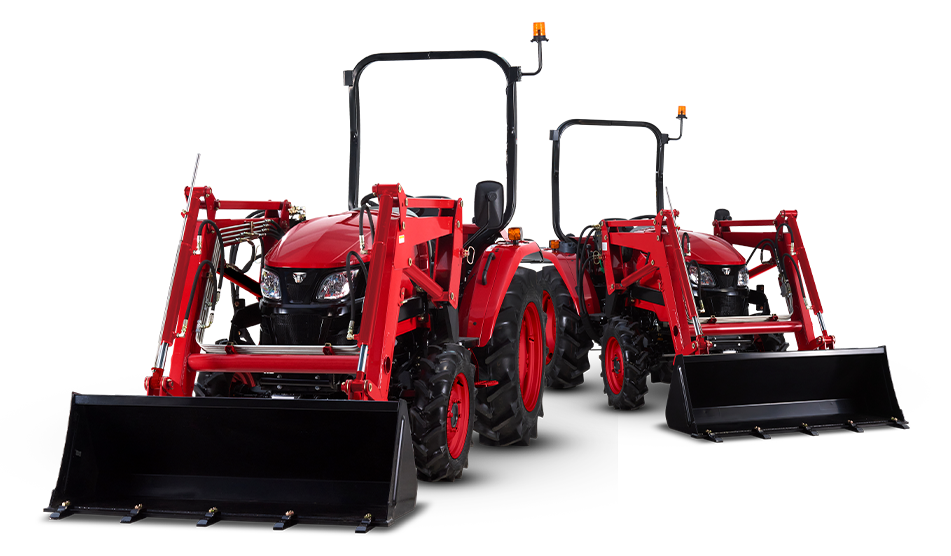

T474 Composition V2 (1)

Powerful features to drive tractor performance

Complete a range of jobs with a TYM Series 2 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.

Rotate Image
Rotate Image

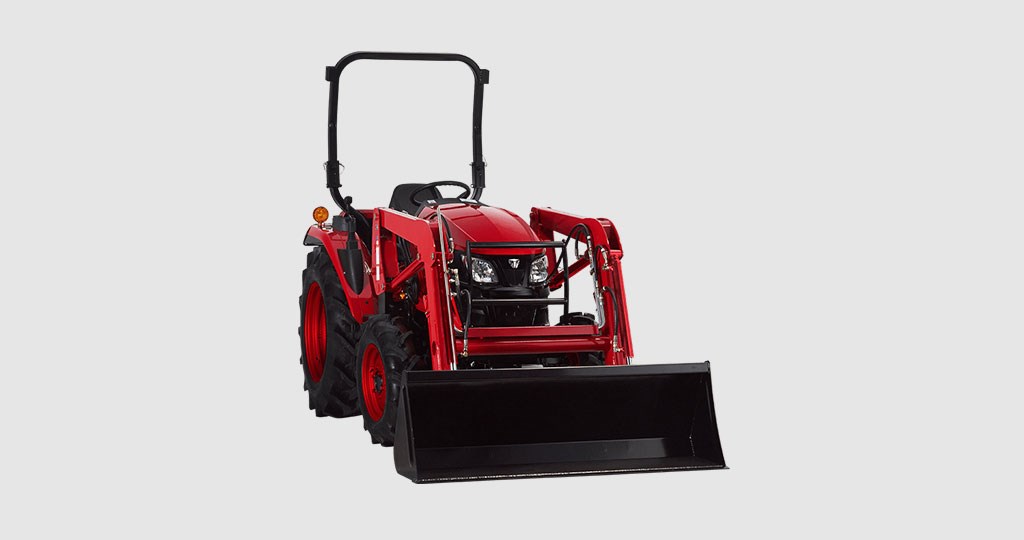

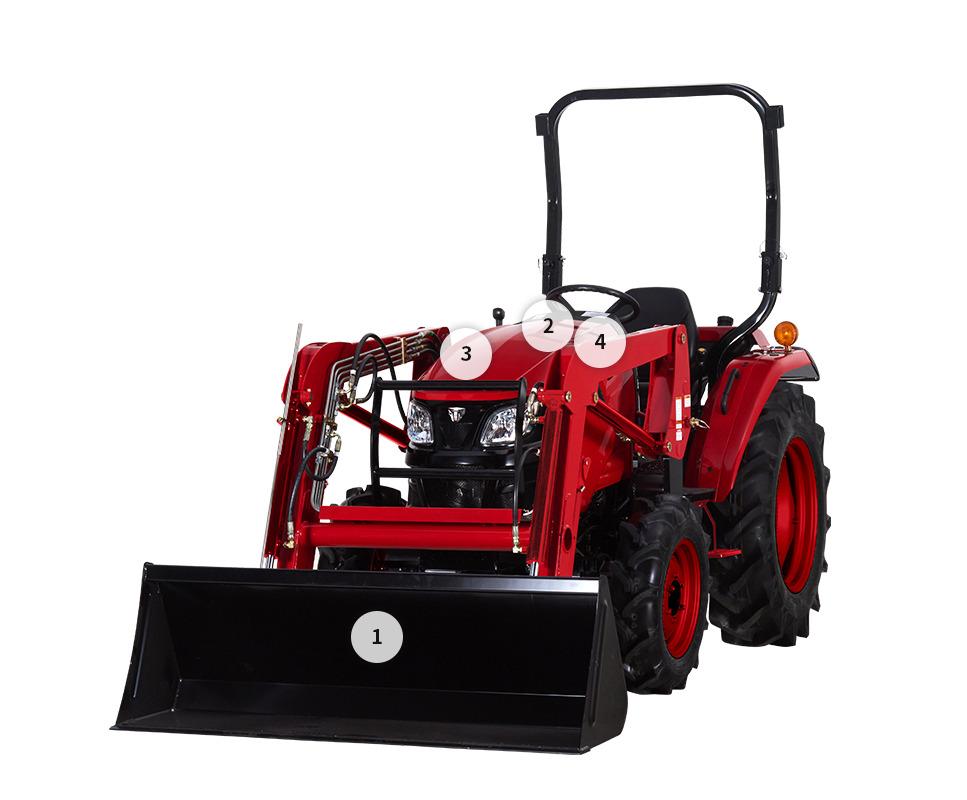

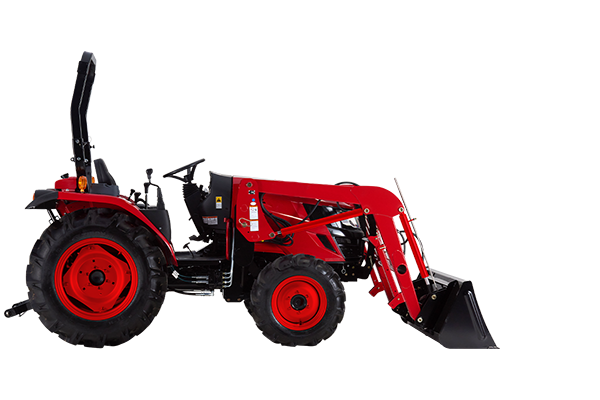

1. Optional loader with high lift capacity
1. Optional loader with high lift capacity

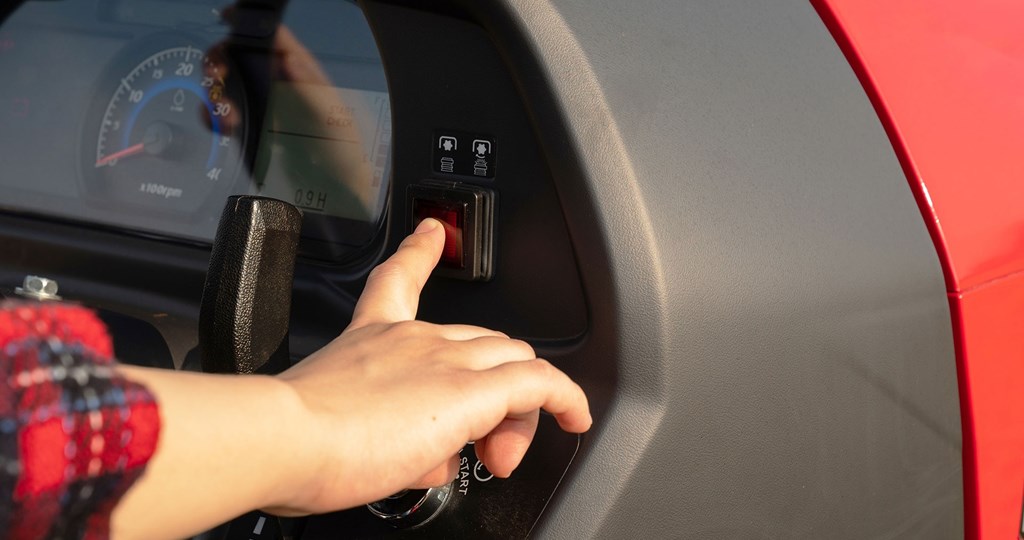

2. PTO on/off switch
2. PTO on/off switch

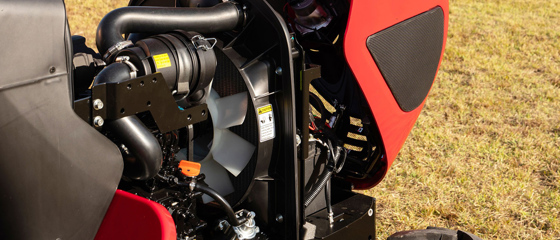

3. Dual filter air cleaner
3. Dual filter air cleaner

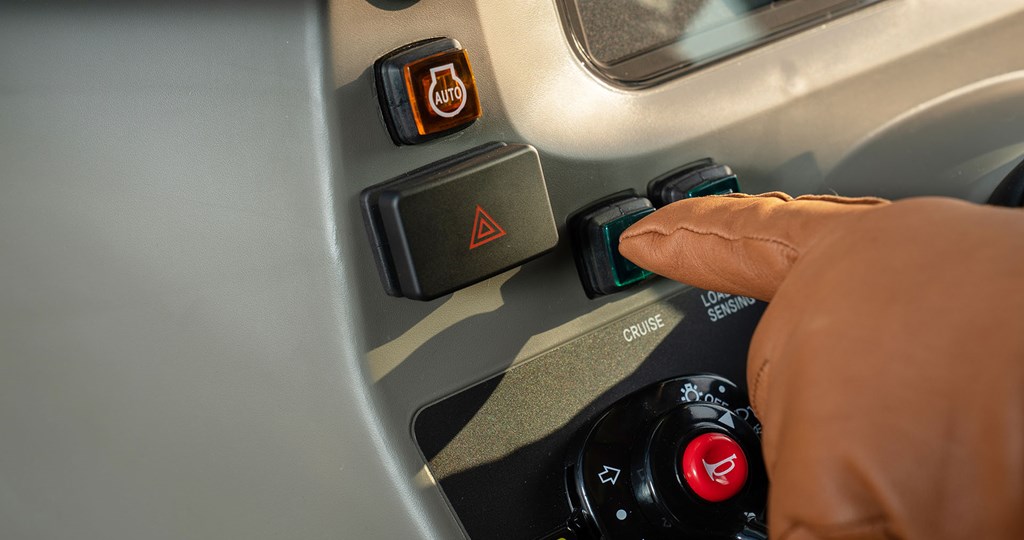

4. Optional cruise control with kit
4. Optional cruise control with kit

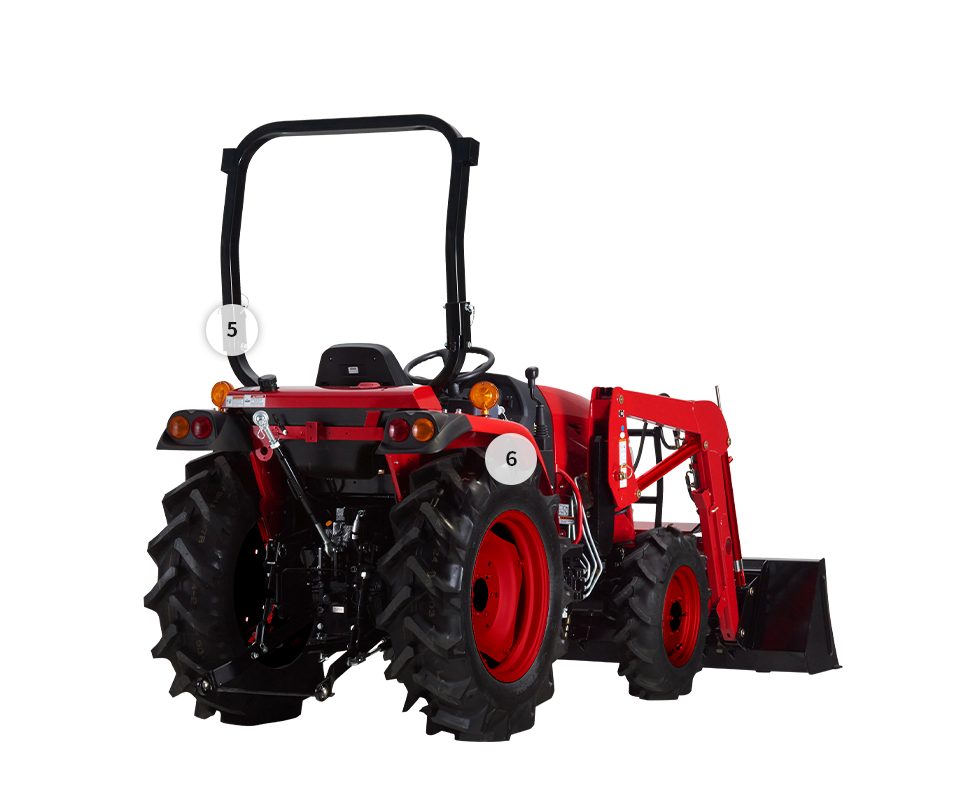

5. Foldable ROPS
5. Foldable ROPS

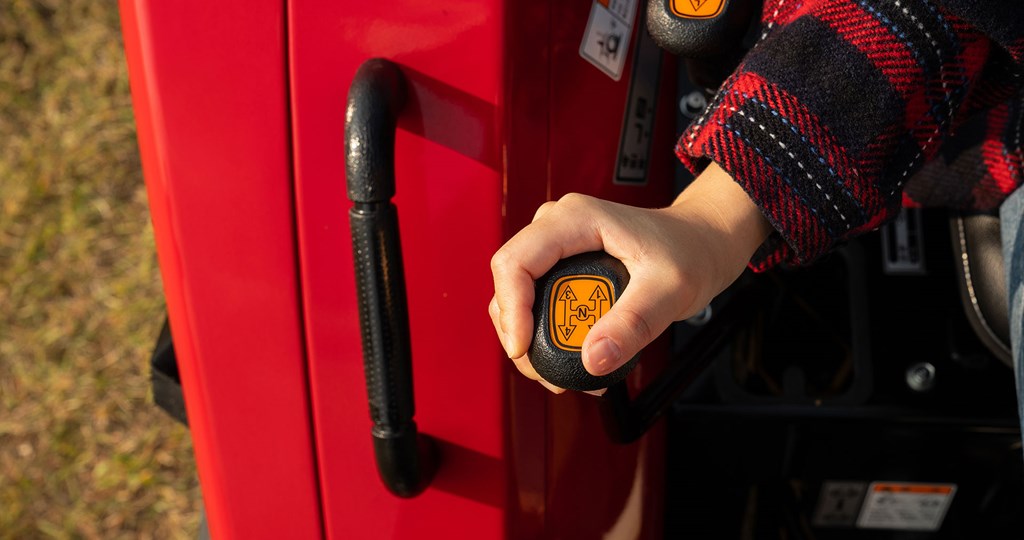

6. Joystick control for front loader
6. Joystick control for front loader

Designed for applications in and around your property

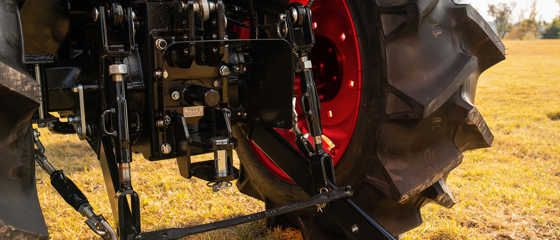

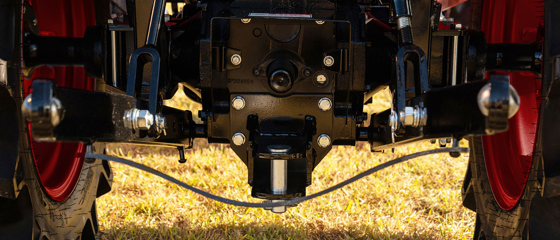

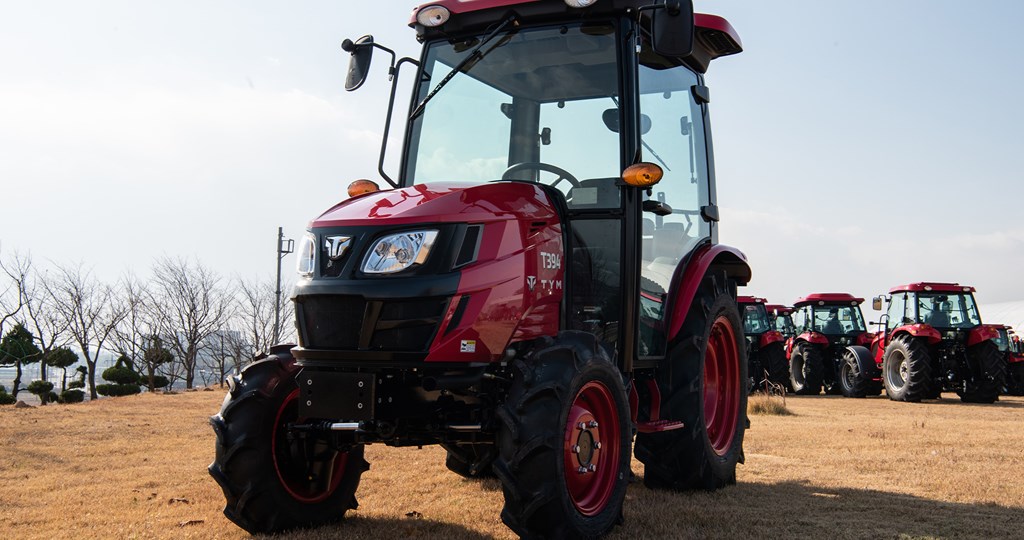

This compact tractor has enhanced lift capacities, maximizing work capabilities while maintaining one of the most compact frames. Functional design and precision engineering come together to create the ultimate tractor, from the Tier 4-certified engine and third-function ready rear hitch, to the ergonomically configured operator platform.

Use this tractor to maintain a healthy lawn, build a home garden, take care of yard work with ease, or create space for a lively home farm. Front-end loader, mid-mount mower and rear hitch linkages enable you to attach a variety of attachments and do more per cycle.

Applicaiton Bg 2

Arable Farming

Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.

Application Construction

Construction

Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.

Application Snow Clearing

Snow Clearing

TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.

Application Landscaping V2

Landscaping

Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

STORIES FROM THE FIELD

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

1

2

3

4

5

6

7

8

STORIES FROM THE FIELD
Technical Specification
Tractors Model
T394
T394
T394C
T394C
T474
T474

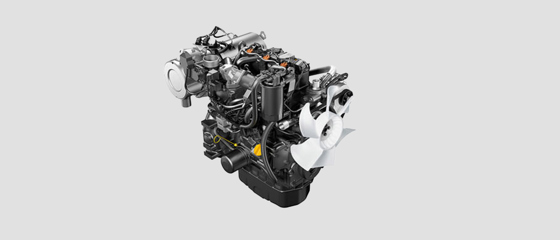

Engine manufacturer
Yanmar 3TNV88-CR
Yanmar 3TNV88-CR
TYM T2300N2
Engine power
37.4 hp | 27.5 kW37.4 hp | 27.5 kW48.3 hp | 36 kW
Rated engine speed
3000 rpm
3000 rpm
2600 rpm
Displacement
100.2 cu. in. | 1642 cc100.2 cu. in. | 1642 cc139.5 cu. in. | 2286 cc
No. of speeds
F12xR12
F12xR12
F12xR12
Hitch lift capacity
2639 lb | 1197 kg2639 lb | 1197 kg2689.6 lb | 1220 kg
PTO rear
540 rpm
540 rpm
540 rpm
Fuel tank
9.0 gal | 34 L9.0 gal | 34 L9.0 gal | 34 L
Overall length with 3-point hitch
126 in. | 3200 mm126 in. | 3200 mm131 in. | 3320 mm
Overall width
53.5 in. | 1360 mm53.5 in. | 1360 mm54.5 in. | 1385 mm
Wheelbase
64.5 in. | 1640 mm66.9 in. | 1700 mm69.7 in. | 1770 mm
Height to top of ROPS
94.5 in. | 2400 mm
-
94.5 in. | 2400 mm
Min. ground clearance
12.8 in. | 325 mm12.8 in. | 325 mm12.8 in. | 325 mm
Weight with ROPS
3020 lb | 1370 kg
-
3289 lb | 1492 kg
Weight with cab
-
3417 lb | 1550 kg
-
R1 Agricultural - Front
Farm Specialist 8.0-16 NHS TL 6PR
Farm Specialist 8.0-16 NHS TL 6PR
Farm Specialist 8.0-16 NHS TL 6PR
R1 Agricultural - Rear
Farm Specialist 12.4-24 NHS TL 6PR
Farm Specialist 12.4-24 NHS TL 6PR
Farm Specialist 12.4-24 NHS TL 6PR
Download Technical Brochure Technical Brochure Technical Brochure
