3515

Series 2 , Compact Tractors

Engine manufacturer

35 hp

Engine power

3306 lb

Hitch lift capacity

Technical Specification

Compatible Attachments

A compact tractor that excels in performance and delivers results

Crafted with optimal dimensions and excellent specifications, the 3515 tractor partners with you for jobs of all sizes. It's compact enough for the versatility you need, yet powerful enough to handle tougher jobs on and off the field.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

2515 3015 3515 4215 4815 Composition V2 (1)

Eco-friendly TYM Tier 4 engine

Equipped with a naturally aspirated engine designed and manufactured by TYM, the tractor is designed to be eco-friendly and fuel-efficient without compromising on performance.

Tilt steering wheel

The tilt steering wheel allows operators to adjust the position of the steering wheel for a more comfortable driving experience.

PTO on/off switch

Safety is a top priority. The PTO switch ensures secure operation of all tractor attachments.

LED work light (optional)

Full front and rear LED work lights facilitate safer operations, particularly in low visibility conditions such as rainy or dusty work environments, or during nighttime tasks.

Differential lock system and low turning angle

The differential lock system, activated with easily accessible levers, provides enhanced traction in slippery work environments, while a 52˚ turning angle makes operation in narrow areas much easier.

Water-separating fuel filter

The water-separating fuel filter prevents foreign substances from entering the fuel, ensuring better engine starting performance and preventing damage to the machine.

All the right features to get the job done

Complete a range of jobs with a TYM Series 2 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.

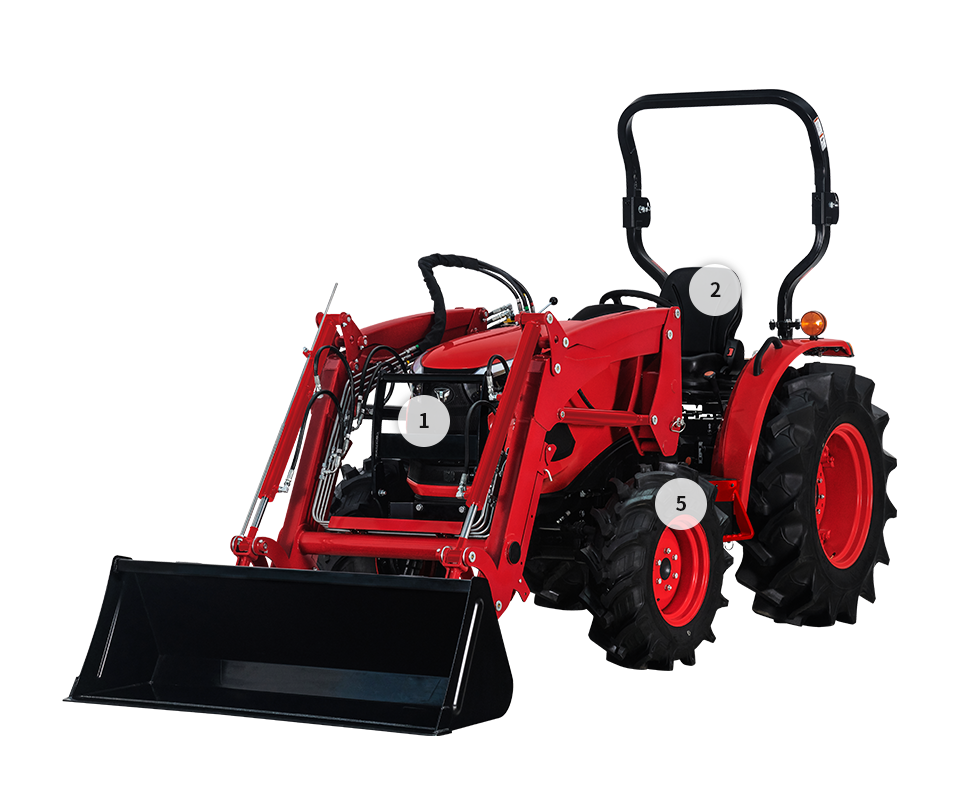

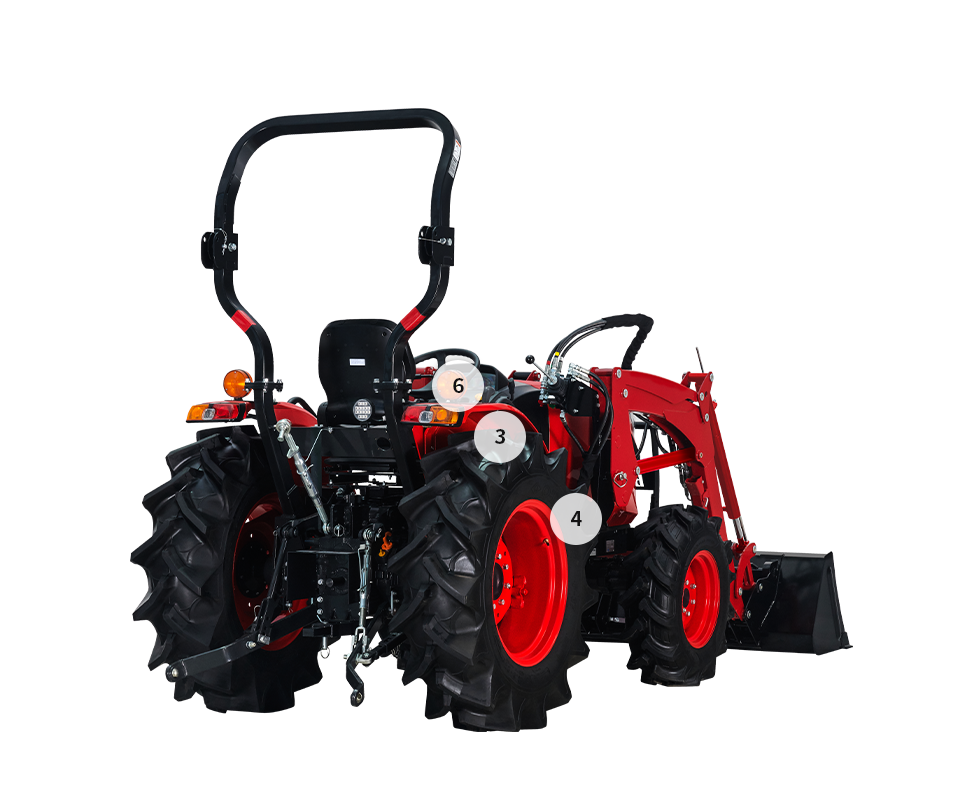

1. New iconic hood

2. Comfortable suspension seat

3. Ergonomic lever

4. Responsive forward/reverse HST (3515H)

5. High-capacity fuel tank

6. High visibility instrumental panel

Designed for applications in and around your property

This compact tractor has enhanced lift capacities, maximizing work capabilities while maintaining one of the most compact frames. Functional design and precision engineering come together to create the ultimate tractor, from the Tier 4-certified engine and third-function ready rear hitch, to the ergonomically configured operator platform.

Use this tractor to maintain a healthy lawn, build a home garden, take care of yard work with ease, or create space for a lively home farm. Front-end loader, mid-mount mower and rear hitch linkages enable you to attach a variety of attachments and do more per cycle.

Arable Farming

Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.

Construction

Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.

Snow Clearing

TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.

Landscaping

Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

STORIES FROM THE FIELD

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

SEE TYM’S CUSTOMER STORIES

Technical specifications

Tractors Model	3515	3015	3515C
Engine manufacturer	TYM T1700N2	TYM T1700N3	TYM T1700N2
Engine power	35 hp \| 26.2 kW	30 hp \| 22.5 kW	35 hp \| 26.2 kW
Rated engine speed	2600 rpm	2600 rpm	2600 rpm
Displacement	104.5 cu. in. \| 1714 cc	104.5 cu. in. \| 1714 cc	104.5 cu. in. \| 1714 cc
No. of speeds	3515R: F12 x R12 3515H: 3-Range	3015R: F12 x R12 3015H: 3-Range	3-Range
Hitch lift capacity	3306 lb \| 1500 kg	3306 lb \| 1500 kg	3306 lb \| 1500 kg
PTO rear	540 rpm	540 rpm	540 rpm
Fuel tank	7.1 gal \| 27 L	7.1 gal \| 27 L	7.1 gal \| 27 L
Overall length with 3-point hitch	120.9 in. \| 3071 mm	120.9 in. \| 3071 mm	120.9 in. \| 3071 mm
Overall width	56.3 in. \| 1430 mm	56.3 in. \| 1430 mm	55.6 in. \| 1430 mm
Wheelbase	65.7 in. \| 1670 mm	65.7 in. \| 1670 mm	65.7 in. \| 1670 mm
Height to top of ROPS	97.3 in. \| 2471 mm	97.3 in. \| 2471 mm	-
Min. ground clearance	14.4 in. \| 366 mm	14.4 in. \| 366 mm	14.4 in. \| 366 mm
Weight with ROPS	3515R: 3183 lb \| 1444 kg 3515H: 3163 lb \| 1435 kg	3015R: 3183 lb / 1444 kg 3015H: 3163 lb \| 1435 kg	-
Weight with cab	-	-	3552 lb \| 1611 kg
R1 Agricultural - Front	8-16	8-16	7-16
R1 Agricultural - Rear	12.4-24	12.4-24	11.2-24
Download	Technical Brochure	Technical Brochure	Technical Brochure
