2400

Series 1 , Sub Compact Tractors

Engine manufacturer

24 hp

Engine power

1499 lb

Hitch lift capacity

Technical Specifications

Compatible Attachments

A sub-compact tractor for everyone, suitable for projects of every size

Combining the size of a ride-on mower with the capabilities of a full-size tractor, this sub-compact tractor is ideal for everyone from hobbyists to groundskeepers. The 2400 is not only highly maneuverable, but also designed for versatility and sustainable operation.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

Eco-friendly TYM Tier 4 engine

Equipped with a naturally aspirated engine designed and manufactured by TYM, the tractor is designed to be eco-friendly and fuel-efficient without compromising on performance.

Four-wheel drive

Four-wheel drive comes as a standard for higher work efficiency, even in the most challenging environment.

Cruise control (HST)

The cruise control function allows you to set and maintain engine RPM, regardless of the tractor’s load conditions.

High-visibility instrumental panel

Be fully aware of your working conditions. An instrumental panel with high visibility enables you to keep track of essential information such as speed, fuel, and the status of your tractor at any time of the day.

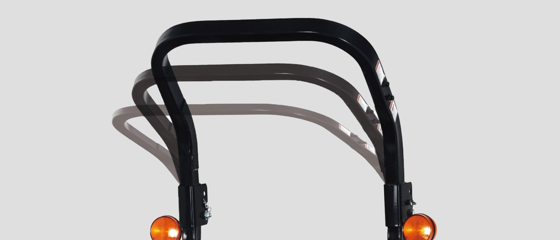

Foldable ROPS

The Roll Over Protective Structure (ROPS) of the tractor is designed to be folded, allowing for easy storage in garages, sheds, and other low-ceiling structures.

Ground clearance

Ground clearance of 307 mm makes operation on rocky or uneven terrain easier than ever before.

All the right features to get the job done

Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.

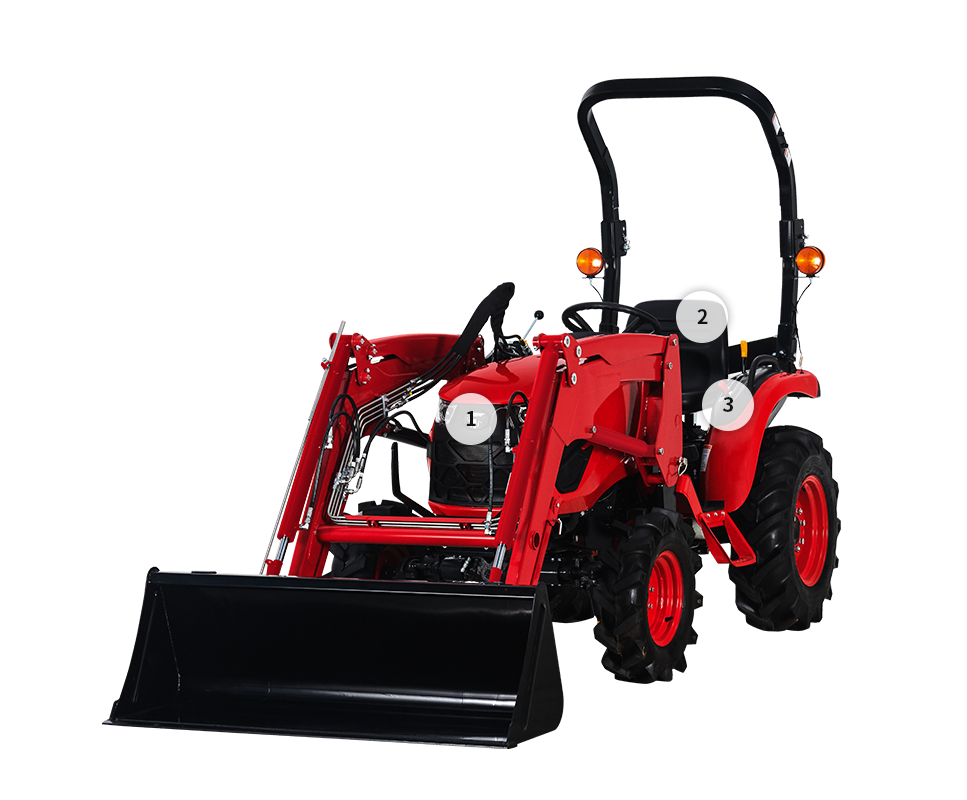

1. New iconic hood

2. Comfortable suspension seat

3. Ergonomic lever

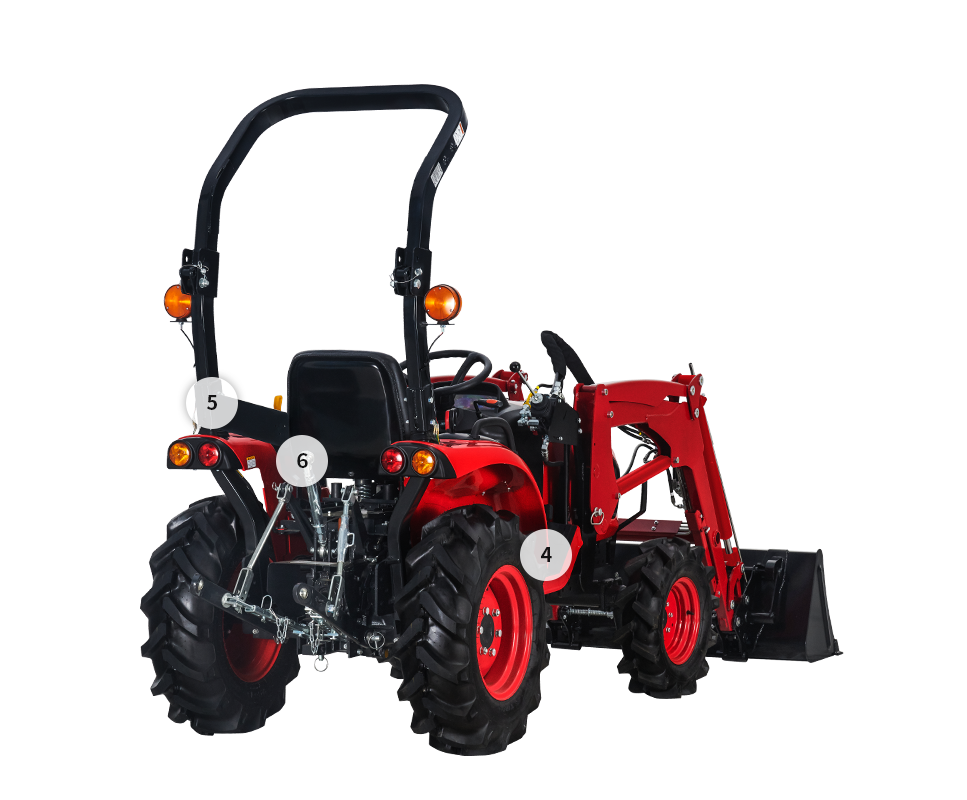

4. Responsive forward/reverse HST (2400H)

5. PTO lever

6. 2 port rear hydraulic control (optional)

Designed for applications in and around your property

This tractor allows you to go beyond a riding mower, without compromising on ease of operation and maneuverability. Multi-functional capabilities and a compact frame come together for a definitive upgrade from traditional machinery and maintenance tools.

Use this tractor to maintain a healthy lawn, build a home garden, tackle yard work, or create space for a lively home farm. Linkage points for a front loader, mid-mount and rear hitch enable you to attach a variety of attachments to complete tasks on your land.

Landscaping

With narrow dimensions, a small turning radius, intuitive controls, and a lightweight design, a TYM sub-compact tractor is the ideal machine for every home. A dedicated mid-mount linkage allows easy attachment to a range of mowers, while front-end and rear linkages allow for additional functionality compared to riding mowers.

Arable Farming

With a TYM sub-compact tractor, you can leverage multi-functional capabilities and ease of maneuverability to build and maintain your home garden. From tilling the land and spreading fertilizer to aerating and seeding your soil, this tractor is easy to operate and swap attachments, enabling you to grow all types of plant life, simply and effectively.

Cleaning

Complete chores around your property quickly and affordably. From brushing dust and dirt from your driveway to lifting and dumping fallen leaves and other waste, a TYM sub-compact offers the right mix of size and power for maneuverability and efficient engine performance.

Livestock & Poultry

Comfortable to sit in and easy to operate, a TYM sub-compact tractor has the light design and small turning radius to assist with maintaining animal life at home. Level the yard, trim grass, spread feed, move hay bales, clear waste and much more.

STORIES FROM THE FIELD

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

SEE TYM’S CUSTOMER STORIES

Technical specifications

Tractors Model	2400	2610	T264
Engine manufacturer	TYM T1100N2	TYM T1100N2	TYM T1100N2
Engine power	24 hp \| 17.9 kW	24 hp \| 17.9 kW	24 hp \| 18 kW
Rated engine speed	2850 rpm	2850 rpm	2800 rpm
Displacement	71.7 cu. in. \| 1175 cc	71.7 cu. in. \| 1175 cc	71.7 cu. in. \| 1175 cc
No. of speeds	2400R: F6 x R2 2400H: 2-Range	3-Range	Infinite 2-Range
Hitch lift capacity	1499 lb \| 680 kg	1499 lb \| 680 kg	1534 lb \| 696 kg
PTO rear	540/1000 rpm	540/1000 rpm	540 rpm
Fuel tank	6.0 gal \| 23 L	6.0 gal \| 23 L	6.6 gal \| 25 L
Overall length with 3-point hitch	120.3 in. \| 3055 mm	122.9 in. \| 3122 mm	107.8 in. \| 2740 mm
Overall width	44.2 in. \| 1122.7 mm	53.8 in. \| 1369 mm	52.8 in. \| 1342 mm
Wheelbase	59.1 in. \| 1502 mm	65.7 in. \| 1670 mm	58.3 in. \| 1480 mm
Height to top of ROPS	87.3 in. \| 2219 mm	91.5 in. \| 2328 mm	89.8 in. \| 2280 mm
Min. ground clearance	12.1 in. \| 307.3 mm	15.1 in. \| 382 mm	7.7 in. \| 196 mm
Weight with ROPS	1792 lb \| 813 kg	2106 lb \| 956 kg	1881 lb \| 853 kg
Weight with cab	-	-	-
R1 Agricultural - Front	6-12	7-16	-
R1 Agricultural - Rear	9.5-16	11.2-20	-
Download	Technical Brochure	Technical Brochure	Technical Brochure
