4820 Series 3, Compact Tractor
-
Engine power
48 hp
-
Hitch lift capacity
3306 lb
High performance meets efficiency in this highly customizable Series 3 tractor that has the power to support your productivity.
Promoting thriving crop in your acreage
With powerful lift capabilities in a compact body, a TYM compact tractor enables you to perform tasks within the narrow spaces between garden beds. Save time and labor to realize your vision quickly and efficiently, from tilling and leveling the land to scattering soil and seed treatment, you can grow your own orchard or raise vegetable and fruit beds within your estate. With the option of shorter variations, you can find a sub-compact tractor to support smaller greenhouse operations.
Helping realize projects on your property
From site preparation to finishing, a TYM compact tractor is an ideal choice for construction projects on your land. Compatible with a backhoe, front loader, grapples, post-hole diggers and more, this tractor can assist or take over a project. Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.
Bringing safer access to your property in the winter

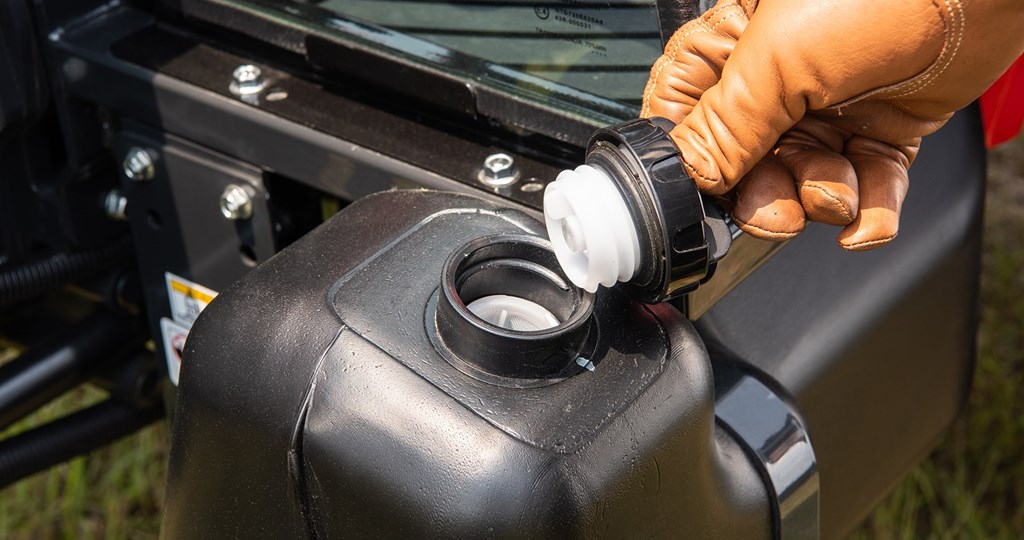

With a greater engine controls and a larger fuel tank, a TYM compact tractor is equipped to perform short or long duration tasks. Clear snow from paved surfaces along your estate or private access roads to your property. With the flexibility to use specialized implements on different structures, you can choose a snow blower, snow push, brooms and more to achieve the results you’re looking for.
Supporting the vision for your property
With greater lift capacity and multi-functional capabilities, a TYM compact tractor helps you accomplish everything from basic lawn care and weed control to installing water features and garden accents. Smaller design, greater control over engine speeds, intuitive operator features and compatibility with a range of specialized implements allow access to narrower spaces, promoting productivity and faster results.
One of the strongest and toughest tractors in its horsepower range, this customizable tractor delivers power and dependability in its compact frame. The 48 HP 4-cycle engine matched with a 4-range Hydro-Max HST or Synchro-Shuttle transmission can drive a range of implements to do everything from digging up rocks to hauling them off-site.

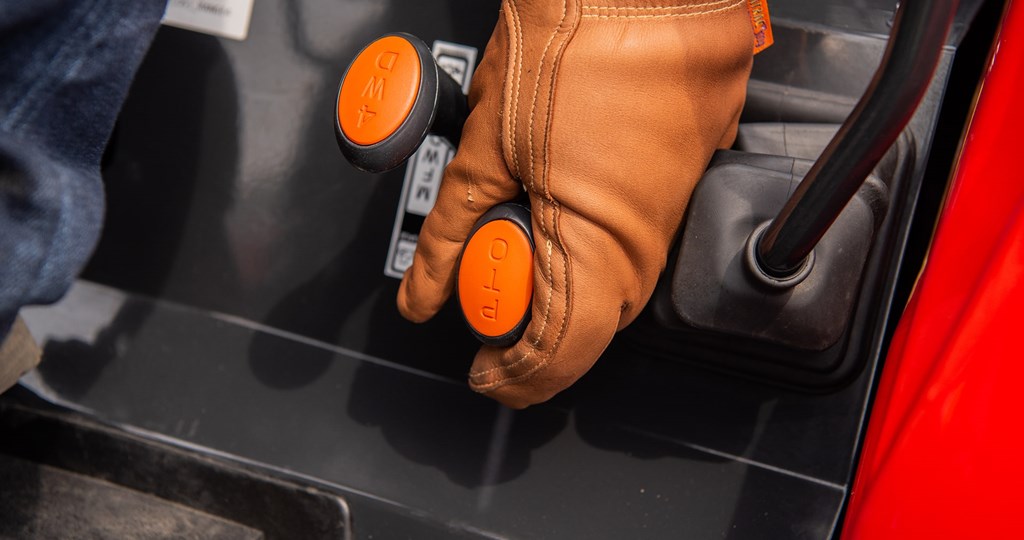

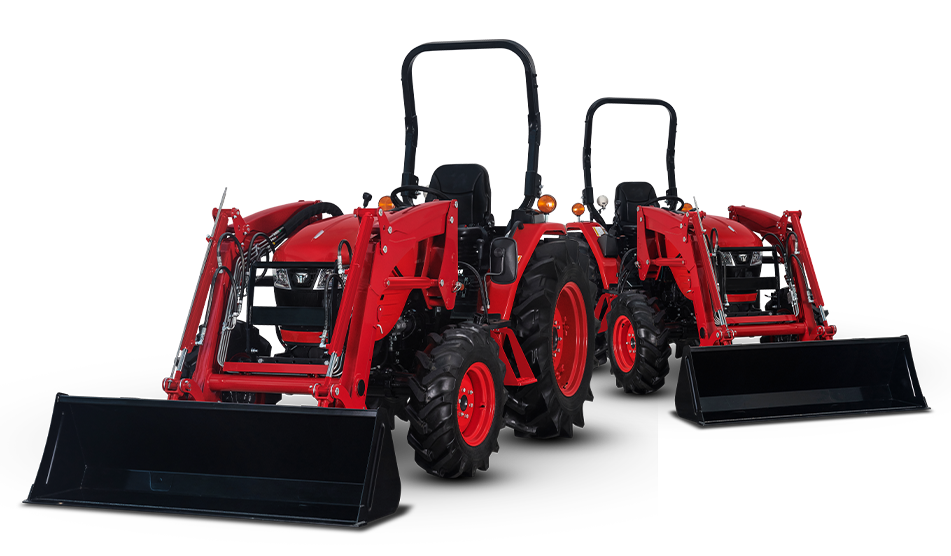

Heavy-duty 3-point hitch and stabilizers make the tractor a powerful partner on the field or on-site, while the high-capacity front-end loader attachment boosts productivity by helping you move more at once. The 2-speed independent PTO allows you to operate attachments with greater fuel efficiency and without compromising productivity.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
Powerful features to drive tractor performance

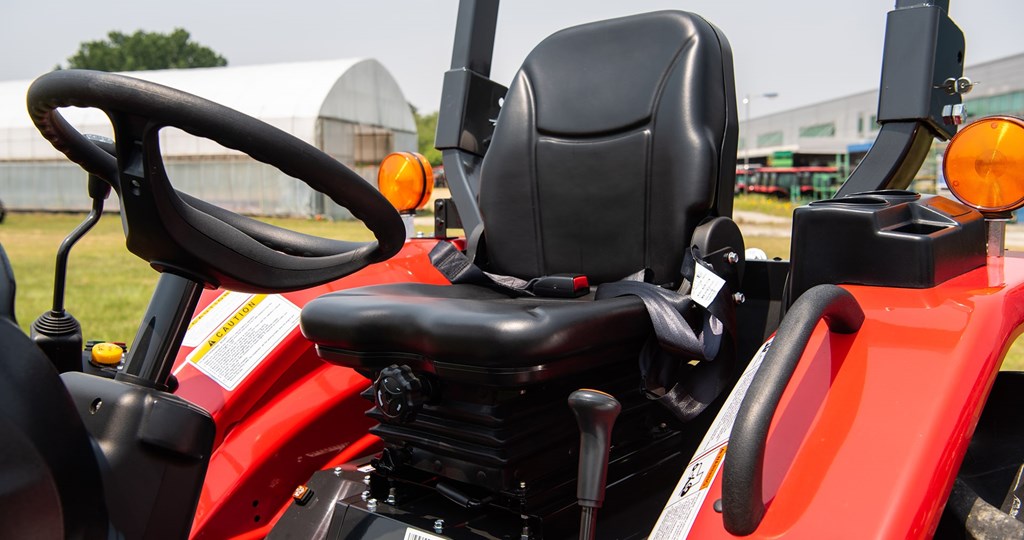

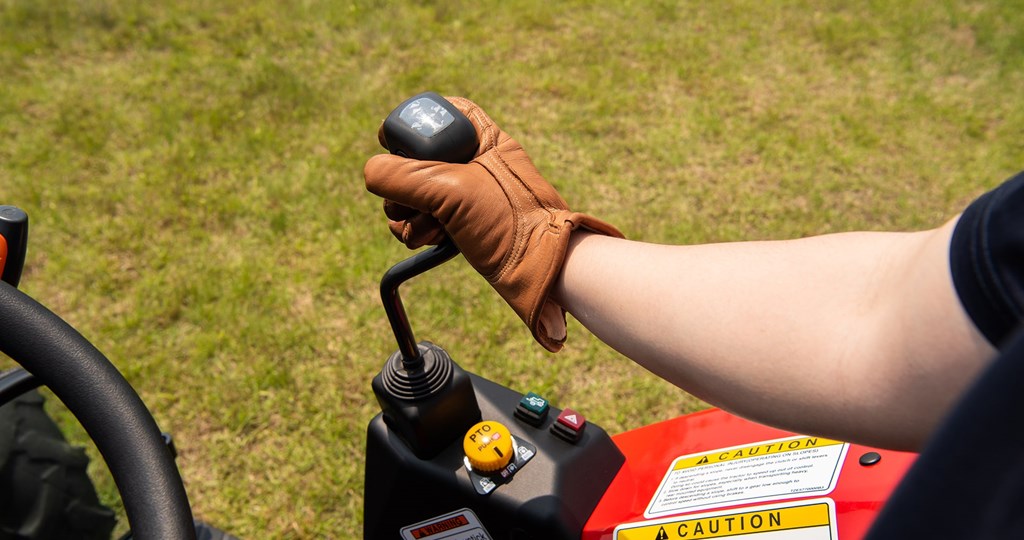

With a powerful hydraulic system and ergonomic controls, this Series 3 tractor has the capability to complete a variety of jobs, whether big or small. The comfortable driver’s seat is equipped with ergonomically designed controls to give operators every advantage.
Technical specifications
Not sure which tractor is right for you? Compare the specifications of each tractor model.
|
||
|---|---|---|
|
4820R |
4820H |
|
|
engine
|
||
| Engine manufacturer | TYM A2300N2 | TYM A2300N2 |
| Type | Natural Aspiration | Natural Aspiration |
| Gross engine power | 48 hp | 36 kW | 48 hp | 36 kW |
| PTO power | 38.4 hp | 28.6 kW | 38.4 hp | 28.6 kW |
| Rated engine speed | 2600 rpm | 2600 rpm |
| No. of cylinders | 4 | 4 |
| Displacement | 139.5 cu. in. | 139.5 cu. in. |
| Air cleaner | Dry Element | Dry Element |
| Alternator | 12V, 50A | 12V, 50A |
| Fuel system | IDI | IDI |
|
powertrain
|
||
| Transmission type | Synchromesh | HST |
| No. of speeds | F16xR16 (4-Range) | F4xR4 (4-Range) |
| Max. traveling speed | 16 mph | 19.5 mph |
| Brakes | Wet, Multi-disc | Wet, Multi-disc |
| Steering | Hydrostatic | Hydrostatic |
| Clutch | Dry Single Type (N/A) | Dry Single Type (N/A) |
|
hydraulic system
|
||
| Pump type | Single Gear Pump | Single Gear Pump |
| Implement flow | 4.4 gpm | 4.4 gpm |
| Steering flow | 9.9 gpm | 9.9 gpm |
| Total flow | 14.3 gpm | 14.3 gpm |
| Category, 3-point hitch | I | I |
| Hitch lift capacity | 3306 lb | 3306 lb |
| Hitch lift capacity at 24 inches behind link ends | 2425 lb | 2425 lb |
| Lift control type | Position | Position |
| No. of standard remote valves | Optional (Up to 4) | Optional (Up to 4) |
|
PTO
|
||
| PTO type | Independent | Independent |
| PTO control | Wet, Multi-disc | Wet, Multi-disc |
| PTO rear | 584 rpm | 584 rpm |
|
capacities
|
||
| Fuel tank | 11.8 gal | 11.8 gal |
| Coolant | 8.3 qt | 8.3 qt |
| Crankcase | 4.5 qt | 4.5 qt |
| Transmission/Hydraulics system | 10.3 gal | 11.1 gal |
| Front axle | 1.8 qt | 1.8 qt |
|
dimensions & weights
|
||
| Overall length with 3-point hitch | 127.4 in. | 127.4 in. |
| Overall width | 64.9 in. | 64.9 in. |
| Wheelbase | 71.1 in. | 71.1 in. |
| Height to top of ROPS | 98.4 in. | 98.4 in. |
| Min. ground clearance | 15.5 in. | 15.5 in. |
| Min. turn radius with brakes | 9.2 ft | 9.2 ft |
| Min. turn radius without brakes | 9.2 ft | 9.2 ft |
| Weight with ROPS | 3831 lb | 3831 lb |
|
standard tires
|
||
| R1 Agricultural - Front | 9.5-16 | 9.5-16 |
| R1 Agricultural - Rear | 13.6-26 | 13.6-26 |
| R3 Turf - Front | 27x8.5-15 / 29x12.5-15 | 27x8.5-15 / 29x12.5-15 |
| R3 Turf - Rear | 41x14-20 / 44x18-20 | 41x14-20 / 44x18-20 |
| R4 Industrial - Front | 12-16.5 | 12-16.5 |
| R4 Industrial - Rear | 17.5Lx24 | 17.5Lx24 |
| Request Quote Build Your Own | Request Quote Build Your Own | |
Upgrades for the Series 3, 4820
Complement the capabilities of your TYM tractor with compatible options and accessories.
Options
| Tire | R1 Agricultural Tires | F 9.5-16 | R 13.6-26 |
| Tire | R3 Turf Tires | F 27x8.5-15 | R 41x14-20 |
| Tire | R3 Turf Tires | F 29x12.5-15 | R 44x18-20 |
| Tire | R4 Industrial Tires | F 12-16.5 | R 17.5Lx24 |
