T474C Series 2, Compact Tractor
Hitch lift capacity
Take on harder tasks in smaller spaces with the T474C, proven to be durable and engineered to be efficient. This tractor is a workhorse that is easy to control in greenhouses, orchards, and more.
Promoting thriving crop in your acreage
With powerful lift capabilities in a compact body, a TYM compact tractor enables you to perform tasks within the narrow spaces between garden beds. Save time and labor to realize your vision quickly and efficiently, from tilling and leveling the land to scattering soil and seed treatment, you can grow your own orchard or raise vegetable and fruit beds within your estate. With the option of shorter variations, you can find a sub-compact tractor to support smaller greenhouse operations.
Helping realize projects on your property
From site preparation to finishing, a TYM compact tractor is an ideal choice for construction projects on your land. Compatible with a backhoe, front loader, grapples, post-hole diggers and more, this tractor can assist or take over a project. Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.
Bringing safer access to your property in the winter
With a greater engine controls and a larger fuel tank, a TYM compact tractor is equipped to perform short or long duration tasks. Clear snow from paved surfaces along your estate or private access roads to your property. With the flexibility to use specialized implements on different structures, you can choose a snow blower, snow push, brooms and more to achieve the results you’re looking for.
Supporting the vision for your property
With greater lift capacity and multi-functional capabilities, a TYM compact tractor helps you accomplish everything from basic lawn care and weed control to installing water features and garden accents. Smaller design, greater control over engine speeds, intuitive operator features and compatibility with a range of specialized implements allow access to narrower spaces, promoting productivity and faster results.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
Powerful features to drive tractor performance

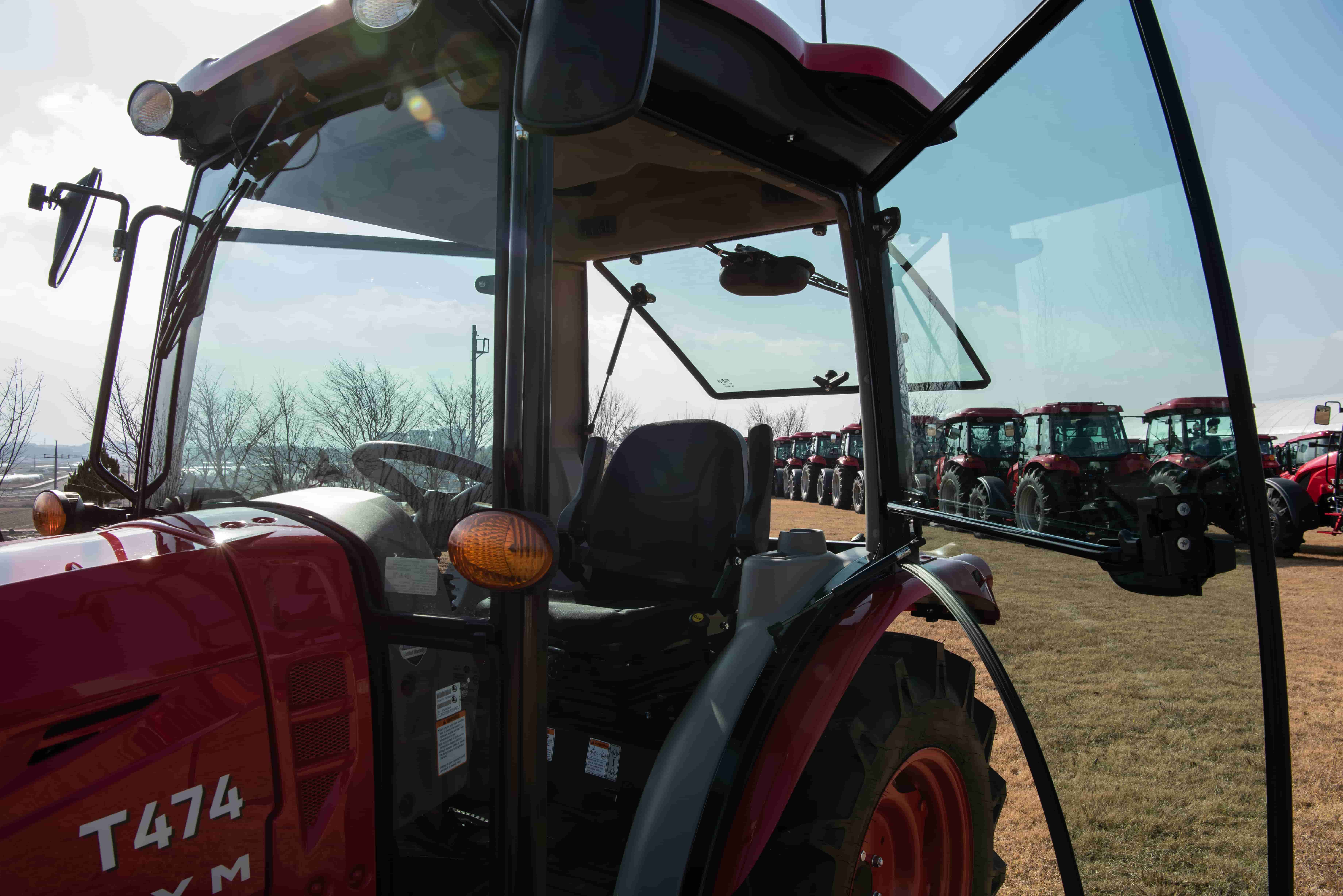

Leverage a range of features to complete a variety of jobs, quickly and effectively. Available with a foldable ROPS or heated cabin, this Series 2 tractor keeps operators comfortable to take on challenges in warm or cold weather.
Not sure which tractor is right for you? Compare the specifications of each tractor model.
|Engine manufacturer||TYM A2300N2|
|Gross engine power||48.3 hp | 36 kW|
|PTO power||35.9 hp | 26.4 kW|
|Rated engine speed||2600 rpm|
|No. of cylinders||4|
|Displacement||139.5 cu. in.|
|Air cleaner||Single Dry|
|No. of speeds||F12xR12|
|Max. traveling speed||14.9 mph|
|Clutch||Dry Single Plate|
|Pump type||Dual Gear Pump|
|Implement flow||7.66 gpm|
|Steering flow||4.25 gpm|
|Total flow||11.91 gpm|
|Category, 3-point hitch||I|
|Hitch lift capacity||2688.8 lb|
|Hitch lift capacity at 24 inches behind link ends||1508.4 lb|
|Lift control type||Position|
|No. of standard remote valves||1|
|PTO rear||540 rpm|
|Fuel tank||9.0 gal|
|Transmission/Hydraulics system||8.5 gal|
|Front axle||8.6 qt|
dimensions & weights
|Overall length with 3-point hitch||131 in.|
|Overall width||54.5 in.|
|Height to top of ROPS||94.5 in.|
|Min. ground clearance||12.8 in.|
|Min. turn radius with brakes||106.7 in.|
|Min. turn radius without brakes||117.5 in.|
|Weight with ROPS||3289 lb|
|Weight with cab||3607 lb|
|Height to top of cabin||92.51 in.|
|R1 Agricultural - Front||Farm Specialist 7-16 NHS TL 6PR|
|R1 Agricultural - Rear||Farm Specialist 11.2-24 NHS TL 6PR|
|R3 Turf - Front||Multi-Trac CS 27x8.50-15 NHS TL 4PR|
|R3 Turf - Rear||Multi-Trac CS 41x14.00-20 NHS TL 4PR|
|R4 Industrial - Front||Trac Chief 10-16.50 NHS TL 6PR|
|R4 Industrial - Rear||Xtra Grip 43x16.00-20 NHS TL 6PR|
|Request Quote Build Your Own|
Upgrades for the Series 2, T474C
Complement the capabilities of your TYM tractor with compatible options and accessories.
|Tire||R1 Agricultural Tires||F Farm Specialist 7-16 NHS TL 6PR||R Farm Specialist 11.2-24 NHS TL 6PR|
|Tire||R3 Turf Tires||F Multi-Trac CS 27x8.50-15 NHS TL 4PR||R Multi-Trac CS 41x14.00-20 NHS TL 4PR (1)|
|Tire||R4 Industrial Tires||F Trac Chief 10-16.50 NHS TL 6PR||R Xtra Grip 43x16.00-20 NHS TL 6PR|
|7-pin trailer socket|
|Auxiliary hydraulic kit|
|T85A Mechanical Thumb|
|Double rear remote w/ detent|
|BHPAD200 Street Pads|
