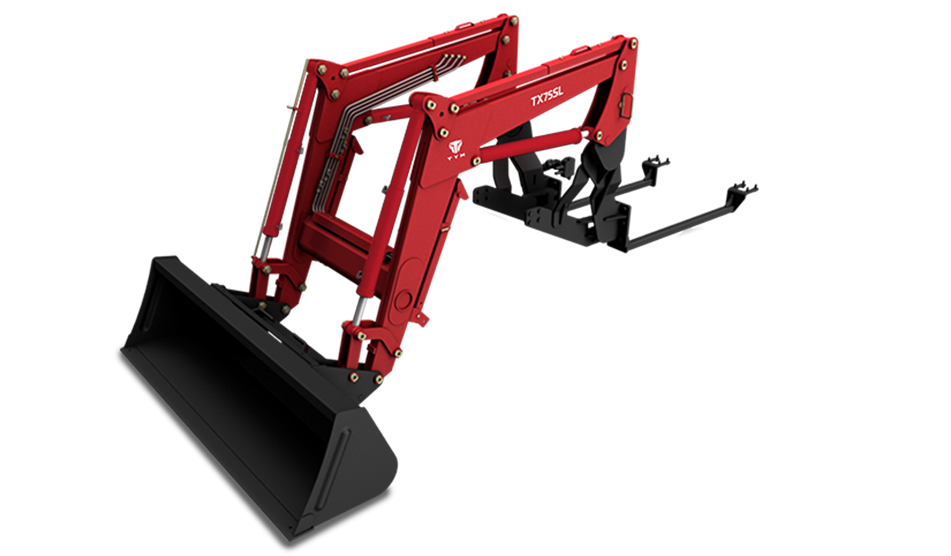

TX75SL FEL Featured

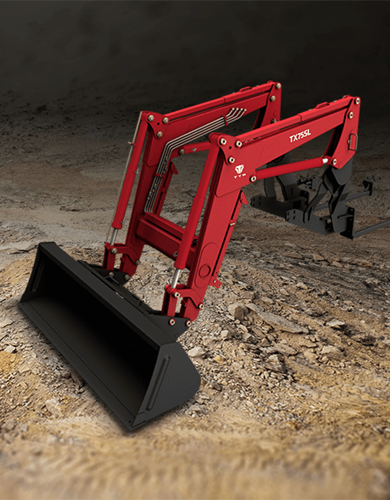

TX75SL Front-End Loader

TX75SL front-end loader is designed for durable performance with enhanced features that are a cut above the rest. Taking full advantage of the capabilities of the TYM T754 compact utility tractor, this attachment is best for heavy duty applications.

Lift height
133.8 in. / 3398 mm
Lift capacity
3325 lb / 1508 kgf
Bucket capacity
16.2 cu. ft / 0.46 cu. m
Request Quote Technical specifications

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

Image Verticle
Built to complement the power and versatility of the TYM T754 compact utility tractor, the TX75SL front-end loader enables you to move and collect soil, mulch, and gravel quickly and more efficiently. Fitted with a self-levelling system, TX75SL front-end loader ensures that the attachment remains parallel to the ground when the boom is raised. With impressive breakout force and maximum lift angle, the TX75SL is capable of lifting heavier loads without compromising safety.
Image-1
Image Wide

Technical specifications

Contact your nearest dealer for more information on TYM attachments.

Request Information
Lift height 133.8 in. (3398 mm)
Max. lift height under level bucket 123 in. (3123 mm)
Clearance with bucket dumped 99.4 in. (2524 mm)
Reach at maximum lift height 24 in. (610 mm)
Max. dump angle 53°
Reach with bucket on ground 85.4 in. (2170 mm)
Max. rollback angle 45°
Digging depth 9.4 in. (240 mm)
Lift capacity 3325 lb (1508 kgf)
Breakout force at ground level, pivot points 5485 lb (2488 kgf)
Bucket rollback force at ground line 3898 lb (1768 kgf)
Bucket capacity 16.2 cu. ft (0.46 cu. m)
Self leveling Available
Relief valve setting (Loader control valve) 2489 psi (175 kg/sq. cm)
Overall height in carry position 70.5 in. (1790 mm)
Depth of Attachment (to the back of the inner shell) 23 in. (585 mm)
Height of Attachment 22.2 in. (565 mm)
Length of Attachment (to pivot point) 32.9 in. (835 mm)
Weight of boom & quick attach mechanism (1) 1000.9 lb (454 kg)
Weight of mounting frame (2) 471.8 lb (214 kg)
Weight of bucket (3) 379.8 lb (172 kg)
Loader total weight (1+2+3) 1851.9 lb (840 kg)
Lift cylinder 2.75x1.6 in. (70x40 mm)
Bucket cylinder 2.75x1.6 in. (70x40 mm)
Attachment used for specification 83 in. (2108 mm)
Boom raising time 7 sec
Boom lowering time 4.7 sec
Bucket rollback time 3.2 sec
Bucket dumping time 4.8 sec

Compatible bucket sizes

TYM's multi-purpose buckets are capable of bulldozing, scraping, loading, metering, moving, and clamping material.


83" Front-End Loader bucket
