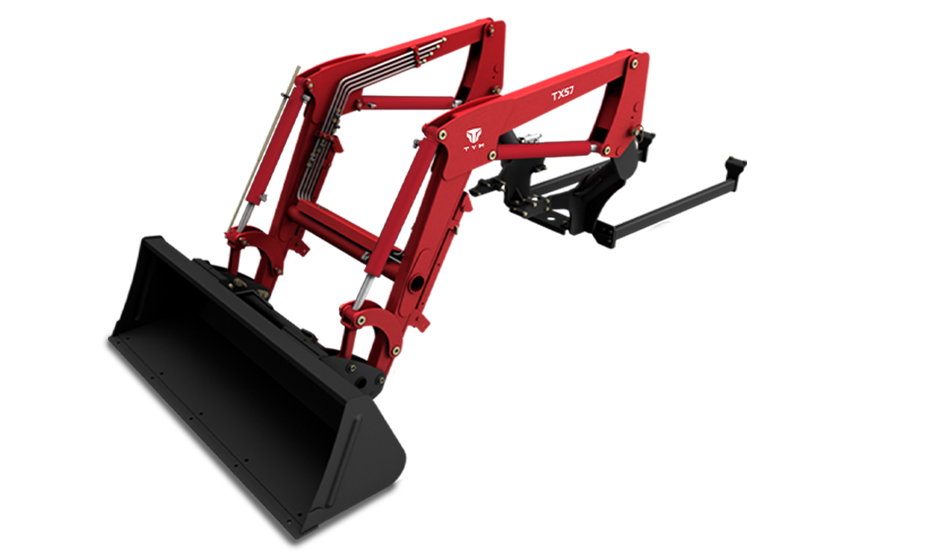

TX57 FEL Featured

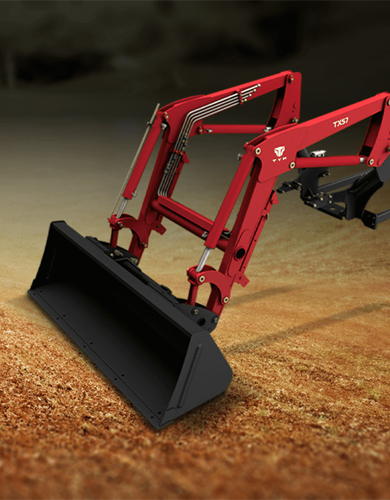

TX57 Front-End Loader

The TX57 front-end loader takes advantage of the power and durability of TYM compact tractors. Ideal for tasks that require more strength, the TX57 front-end loader can help you get your tasks done more efficiently.

Lift height
109.4 in. / 2780 mm
Lift capacity
2790 lb / 1266 kgf
Bucket capacity
11.3 cu. ft / 0.32 cu. m
Request Quote Technical specifications

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

Image Verticle
Built for durable performance and excellent dig capabilities, the TX57 front-end loader is designed to help you accomplish more without compromising stability and safety. With a self-levelling feature in place and impressive boom raising and lowering times, you can focus on the task on hand and get more things done quickly. Engineered to deliver impressive dig depth and maximum rollback angles, the TX57 front-end loader is ideal for more heavy duty applications.
Image-1
Image Wide

Technical specifications

Contact your nearest dealer for more information on TYM attachments.

Request Information
Lift height 109.4 in. (2780 mm)
Max. lift height under level bucket 101 in. (2566 mm)
Clearance with bucket dumped 83.6 in. (2123 mm)
Reach at maximum lift height 17.6 in. (447 mm)
Max. dump angle 50°
Reach with bucket on ground 71.5 in. (1815 mm)
Max. rollback angle 35°
Digging depth 5.5 in. (140 mm)
Lift capacity 2790 lb (1266 kgf)
Breakout force at ground level, pivot points 5316 lb (2411 kgf)
Bucket rollback force at ground line 4356 lb (1976 kgf)
Bucket capacity 11.3 cu. ft (0.32 cu. m)
Self leveling NA
Relief valve setting (Loader control valve) 2489 psi (175 kg/sq. cm)
Overall height in carry position 56.8 in. (1442 mm)
Depth of Attachment (to the back of the inner shell) 21.1 in. (537 mm)
Height of Attachment 20.4 in. (519 mm)
Length of Attachment (to pivot point) 27.3 in. (694 mm)
Weight of boom & quick attach mechanism (1) 535.7 lb (243 kg)
Weight of mounting frame (2) 313 lb (142 kg)
Weight of bucket (3) 271.2 lb (123 kg)
Loader total weight (1+2+3) 1120 lb (508 kg)
Lift cylinder 2.4x1.4 in. (60x35 mm)
Bucket cylinder 2.4x1.4 in. (60x35 mm)
Attachment used for specification 72 in. (1830 mm)
Boom raising time 6.4 sec
Boom lowering time 4.2 sec
Bucket rollback time 3.8 sec
Bucket dumping time 5.7 sec

Compatible bucket sizes

TYM's multi-purpose buckets are capable of bulldozing, scraping, loading, metering, moving, and clamping material.


72" Front-End Loader bucket
