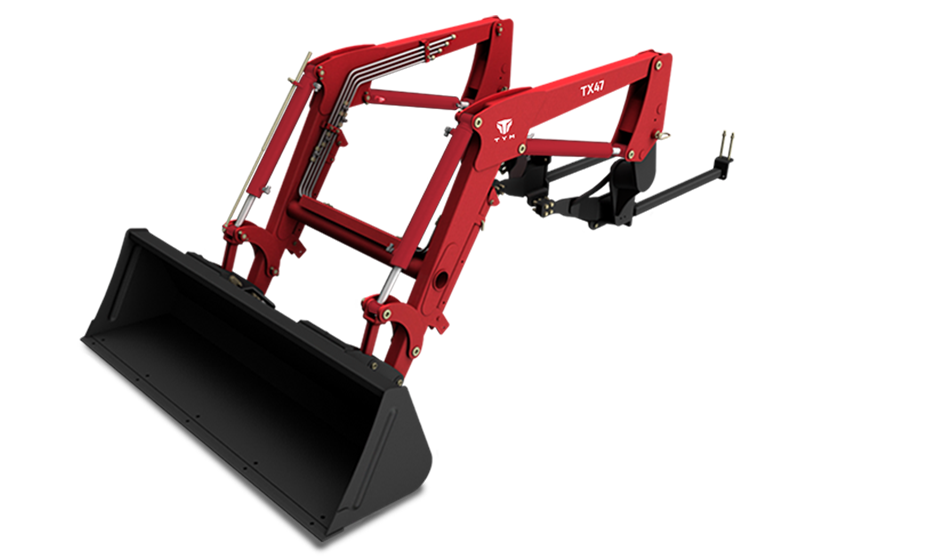

TX47 FEL Featured

TX47 Front-End Loader

The TX47 front-end loader takes advantage of the power and durability of TYM compact tractors. Ideal for tasks that require more strength, the TX47 front-end loader can help you get your tasks done more efficiently.

Lift height
105.6 in. / 2683 mm
Lift capacity
2152 lb / 976.2 kgf
Bucket capacity
9.9 cu. ft / 0.28 cu. m
Request Quote Technical specifications

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

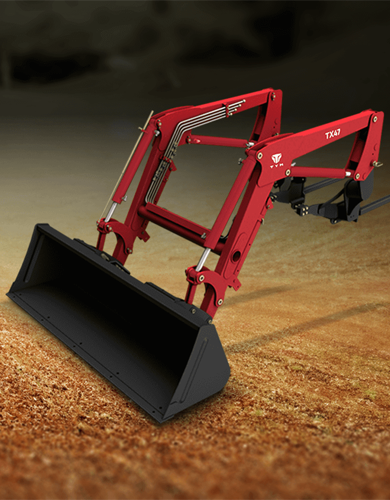

Image Verticle
Built for durable performance and excellent dig capabilities, the TX47 front-end loader is designed to help you accomplish more without compromising stability and safety. With a self-levelling feature in place and impressive boom raising and lowering times, you can focus on the task on hand and get more things done quickly. Engineered to deliver impressive dig depth and maximum rollback angles, the TX47 front-end loader is ideal for more heavy duty applications.
Image-1
Image Wide

Technical specifications

Contact your nearest dealer for more information on TYM attachments.

Request Information
Lift height 105.6 in. (2683 mm)
Max. lift height under level bucket 96.5 in. (2450 mm)
Clearance with bucket dumped 80.4 in. (2042 mm)
Reach at maximum lift height 15 in. (380 mm)
Max. dump angle 52°
Reach with bucket on ground 70.7 in. (1795 mm)
Max. rollback angle 35°
Digging depth 10 in. (255 mm)
Lift capacity 2152 lb (976.2 kgf)
Breakout force at ground level, pivot points 3198 lb (1450.8 kgf)
Bucket rollback force at ground line 3012 lb (1366.1 kgf)
Bucket capacity 9.9 cu. ft (0.28 cu. m)
Self leveling NA
Relief valve setting (Loader control valve) 2347 psi (165 kg/sq. cm)
Overall height in carry position 55.5 in. (1409 mm)
Depth of Attachment (to the back of the inner shell) 19.4 in. (492 mm)
Height of Attachment 21.9 in. (556 mm)
Length of Attachment (to pivot point) 25.5 in. (647 mm)
Weight of boom & quick attach mechanism (1) 513.7 lb (233 kg)
Weight of mounting frame (2) 277.8 lb (126 kg)
Weight of bucket (3) 229.3 lb (104 kg)
Loader total weight (1+2+3) 1020.7 lb (463 kg)
Lift cylinder 2.2x1.2 in. (55x30 m)
Bucket cylinder 2.0x1.2 in. (50x30 m)
Attachment used for specification 65.9 in. (1675 mm)
Boom raising time 5.4 sec
Boom lowering time 3.8 sec
Bucket rollback time 2.5 sec
Bucket dumping time 4.0 sec

Compatible bucket sizes

TYM's multi-purpose buckets are capable of bulldozing, scraping, loading, metering, moving, and clamping material.


66" Front-End Loader bucket
