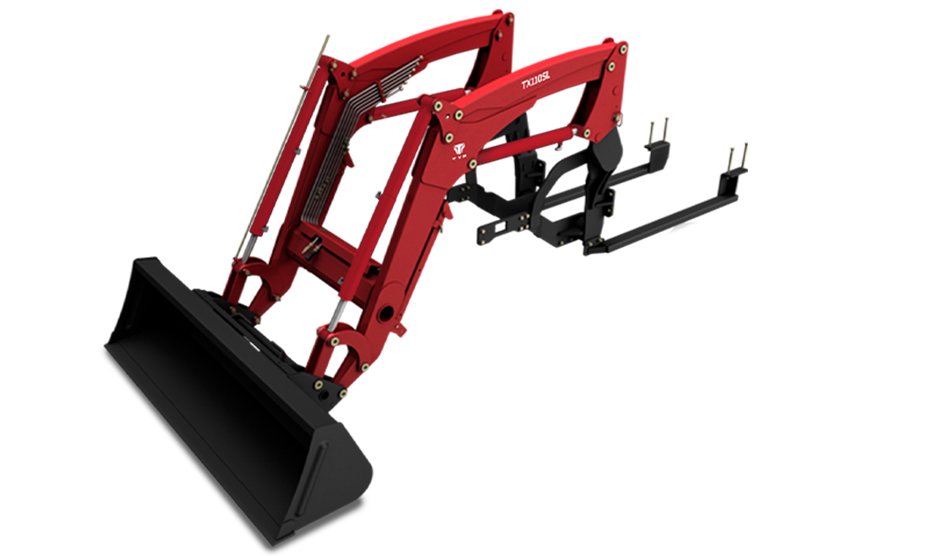

TX110SL FEL Featured

TX110SL Front-End Loader

TX110SL front-end loader is designed for durable performance with enhanced features that are a cut above the rest. Taking full advantage of the capabilities of the TYM T1104 utility tractor, this attachment is best for heavy duty applications.

Lift height
144.4 in. / 3667 mm
Lift capacity
4129 lb / 1873 kgf
Bucket capacity
19.1 cu. ft / 0.54 cu. m
Request Quote Technical specifications

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

Image Verticle

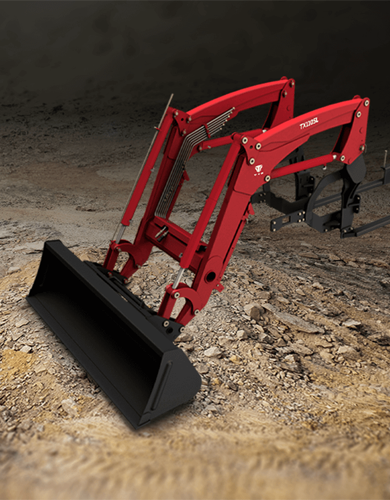

Built to complement the power and versatility of TYM utility tractors, the TX110SL front-end loader enables you to move and collect soil, mulch, and gravel quickly and more efficiently. Fitted with a self-levelling system, TX110SL front-end loader ensures that the attachment remains parallel to the ground when the boom is raised. With impressive breakout force and maximum lift angle, the TX110SL is capable of lifting heavier loads without compromising safety.
Image-1
Image Wide

Technical specifications

Contact your nearest dealer for more information on TYM attachments.

Request Information
Lift height 144.4 in. (3667 mm)
Max. lift height under level bucket 134.6 in. (3418 mm)
Clearance with bucket dumped 115 in. (2921 mm)
Reach at maximum lift height 23 in. (584 mm)
Max. dump angle 56°
Reach with bucket on ground 93.1 in. (2366 mm)
Max. rollback angle 48°
Digging depth 10.2 in. (260 mm)
Lift capacity 4129 lb (1873 kgf)
Breakout force at ground level, pivot points 6025 lb (2733 kgf)
Bucket rollback force at ground line 4189 lb (1900 kgf)
Bucket capacity 19.1 cu. ft (0.54 cu. m)
Self leveling Available
Relief valve setting (Loader control valve) 2845 psi (200 kg/sq. cm)
Overall height in carry position 76 in. (1931 mm)
Depth of Attachment (to the back of the inner shell) 25.1 in. (639 mm)
Height of Attachment 24.1 in. (611 mm)
Length of Attachment (to pivot point) 33 in. (839 mm)
Weight of boom & quick attach mechanism (1) 1073.6 lb (487 kg)
Weight of mounting frame (2) 687.8 lb (312 kg)
Weight of bucket (3) 434.3 lb (197 kg)
Loader total weight (1+2+3) 2195.8 lb (996 kg)
Lift cylinder 2.8x1.6 in. (70x40 mm)
Bucket cylinder 2.8x1.6 in. (70x40 mm)
Attachment used for specification 86.6 in. (2200 mm)
Boom raising time 4.8 sec
Boom lowering time 3.3 sec
Bucket rollback time 2.2 sec
Bucket dumping time 3.2 sec

Compatible bucket sizes

TYM's multi-purpose buckets are capable of bulldozing, scraping, loading, metering, moving, and clamping material.


87" Front-End Loader bucket
