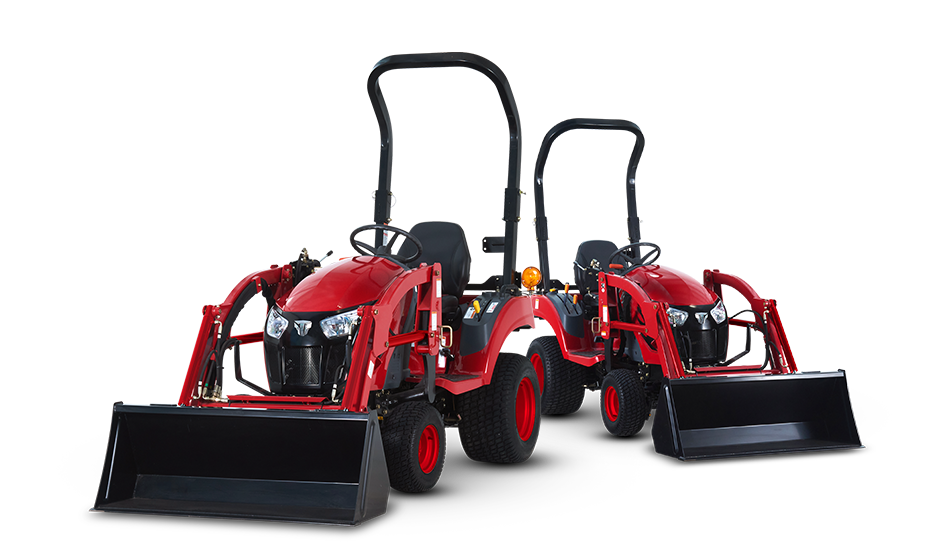

T194 Series 1, Sub-Compact Tractor
Hitch lift capacity
Perform the tasks of a full-size tractor, while enjoying the maneuverability of a riding mower. The T194 is the essential TYM Series 1 tractor, serving as an indispensable groundskeeper for every property owner.
Helping you maintain a healthy lawn

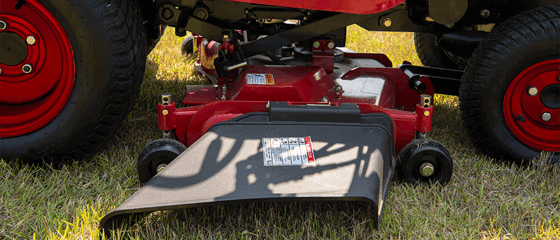

With narrow dimensions, a small turning radius, intuitive controls and a lightweight design, a TYM sub-compact tractor is the ideal machine for any home with a yard. A dedicated mid-mount linkage allows easy attachment to a range of mowers in different sizes, while front-end and rear linkages allow for additional functionality compared to riding mowers.
Enabling you to build and maintain a home garden
With a TYM sub-compact tractor, you can leverage multi-functional capabilities and ease of maneuverability to build and maintain your home garden. From tilling the land and spreading fertilizer to aerating and seeding your soil, this tractor is easy to operate and swap implements, enabling you to grow all types of plant life, simply and effectively.
Making yardwork easier and more enjoyable
Complete chores around your property quickly and affordably. From brushing dust and dirt from your driveway to lifting and dumping fallen leaves and other waste, a TYM sub-compact offers the right mix of size and power for maneuverability and efficient engine performance.
Creating space for a lively home farm
Comfortable to sit in and easy to operate, a TYM sub-compact tractor has the light design and small turning radius to assist with maintaining animal life at home. Level the yard, trim grass, spread feed, move hay bales, clear waste and much more.

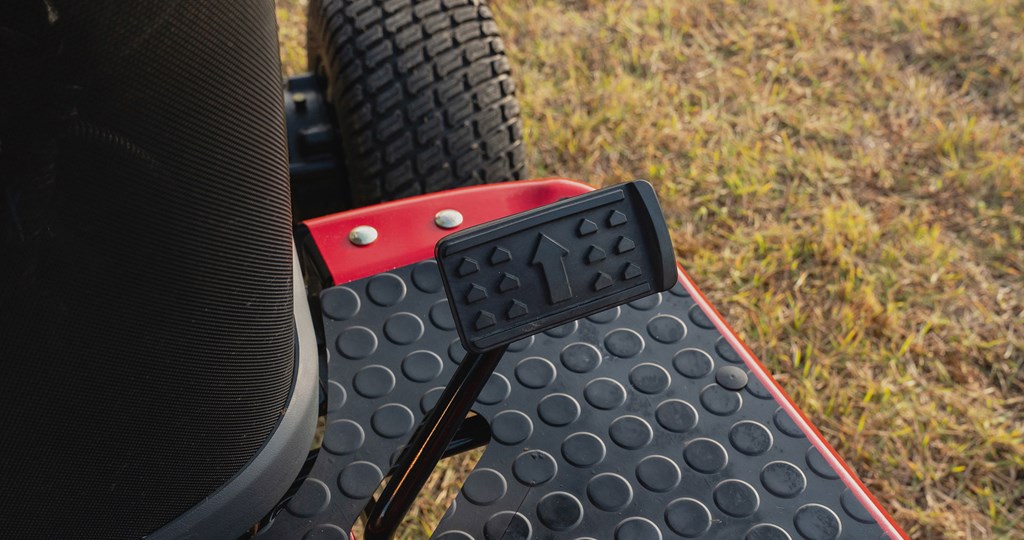

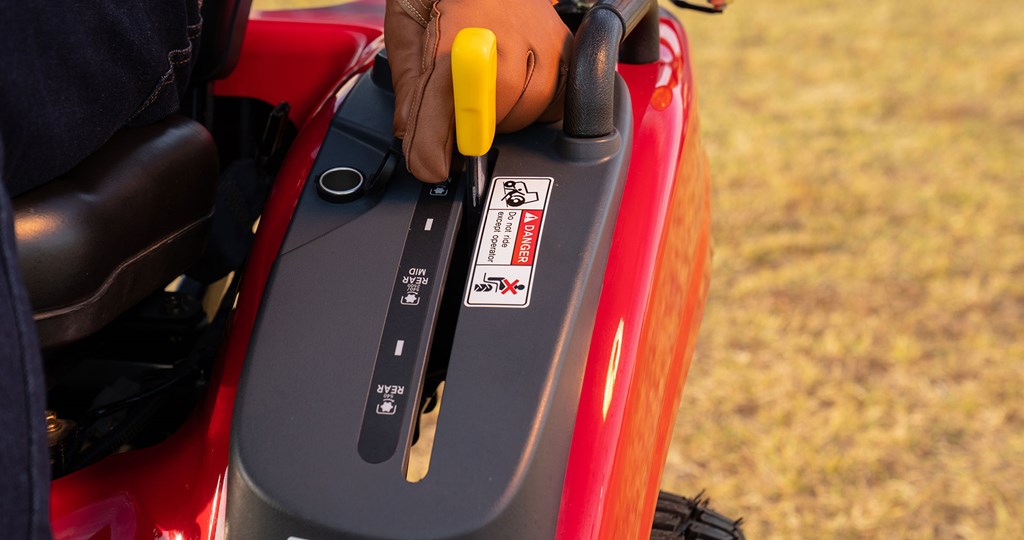

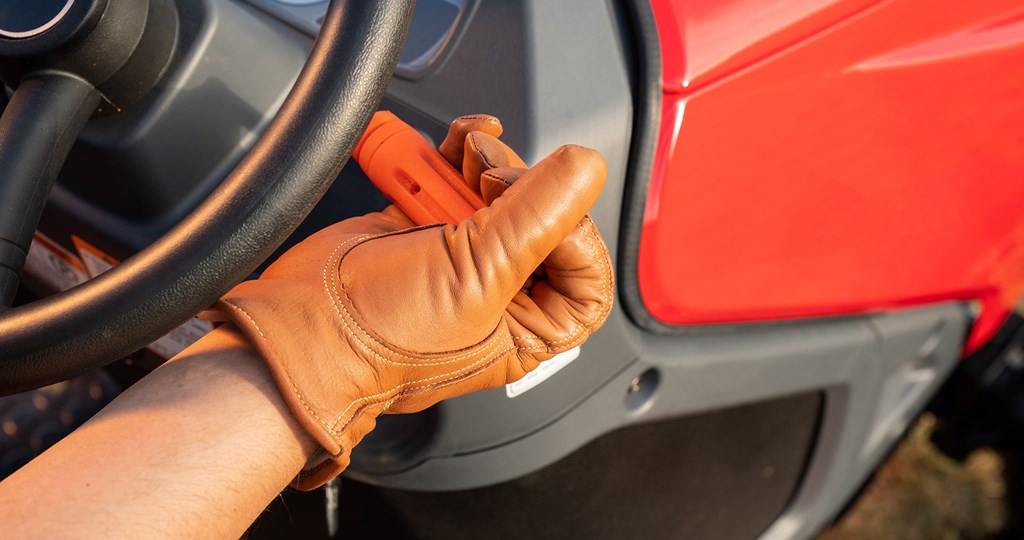

Designed to be nimble and functional, this TYM sub-compact tractor allows greater maneuverability and promotes effortless operations for novice and experienced tractor riders alike. Hydrostatic steering controls and throttle levers help control tractor direction and engine speed, while a dedicated PTO lever can be used to control implement direction and speed.
Affordably priced, this tractor offers owners the potential for great lifetime value, performing reliably for nearly any task in and around a private property.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
All the right features to get the job done

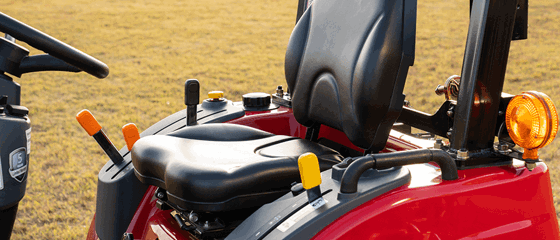

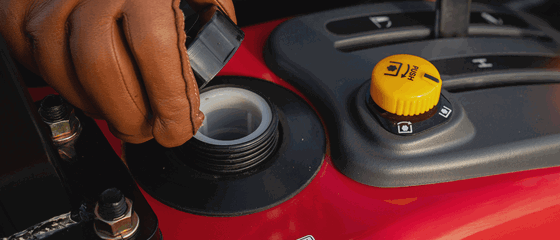

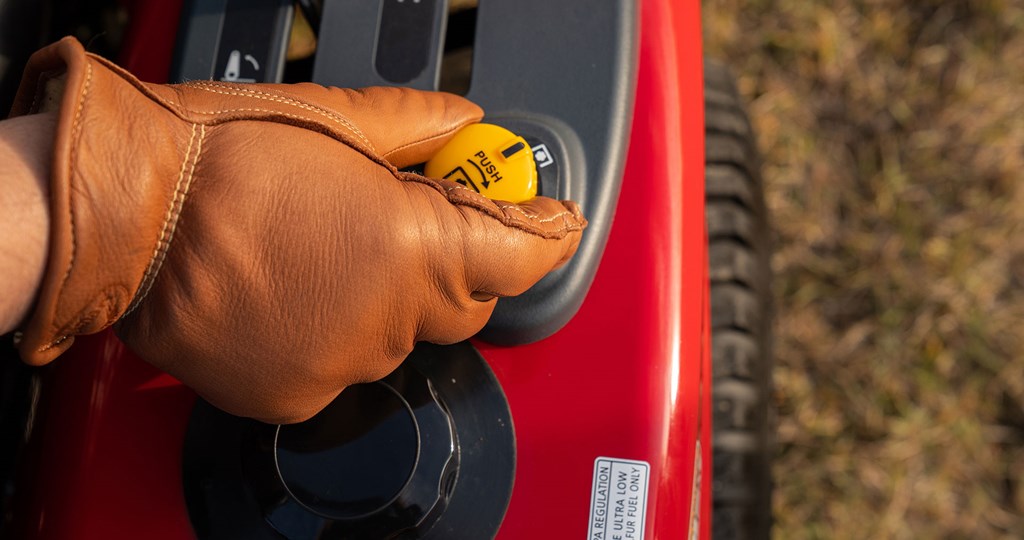

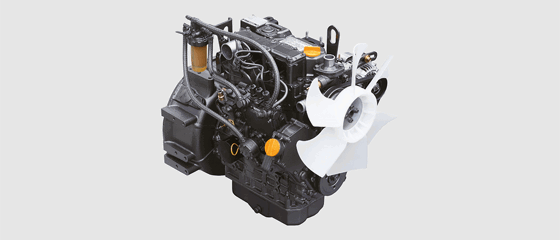

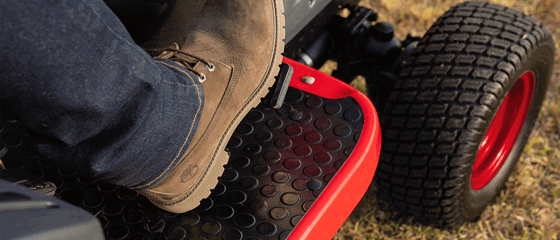

Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control implements easily with a PTO switch, and stay energized with an ergonomically designed operator station.
Not sure which tractor is right for you? Compare the specifications of each tractor model.
|Engine manufacturer||Yanmar 3TNV74F|
|Gross engine power||19 hp | 14.2 kW|
|PTO power||14.6 hp | 10.9 kW|
|Rated engine speed||3000 rpm|
|No. of cylinders||3|
|Air cleaner||Single Dry|
|No. of speeds||2 Range|
|Max. traveling speed||12.5 kmph|
|Pump type||Single Gear Pump|
|Implement flow||15.78 l/min|
|Steering flow||7.99 l/min|
|Total flow||23.77 l/min|
|Category, 3-point hitch||I (N)|
|Hitch lift capacity||499 kg|
|Hitch lift capacity at 24 inches behind link ends||308 kg|

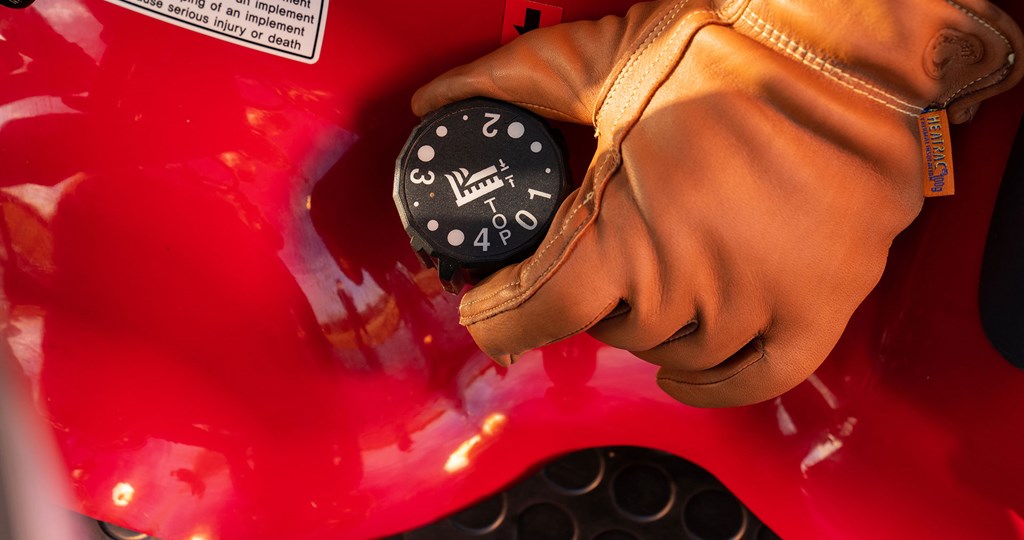

|Lift control type||Position|
|No. of standard remote valves||Optional (1)|
|PTO rear||540 rpm|
|Fuel tank||25 L|
|Transmission/Hydraulics system||13.6 L|
|Front axle||2.5 L|
dimensions & weights
|Overall length with 3-point hitch||2394 mm|
|Overall width||1130 mm|
|Height to top of ROPS||2200 mm|
|Min. ground clearance||210 mm|
|Min. turn radius without brakes||2200 mm|
|Weight with ROPS||650 kg|
|Weight with cab||823 kg|
|R1 Agricultural - Front||BAR F 16x6.50-8|
|R1 Agricultural - Rear||BAR R 24x12.00-12|
|R3 Turf - Front||16x7.50-8|
|R3 Turf - Rear||24x12.00-12|
|R4 Industrial - Front||16x7.50-8|
|R4 Industrial - Rear||24x12.00-12|
|Request Quote Build Your Own|
Similar tractor models
TYM provides a range of tractors that meet all your sub-compact to utility needs. Below are three tractors that are similar in power and specification to the T194:
