T575

Series 3 , Compact Tractors

REQUEST QUOTE

Engine manufacturer

55 hp

Engine power

1733 kg

Hitch lift capacity

Build My Tractor

Explore Tractor in 3D

Technical Specification

Compatible Attachments

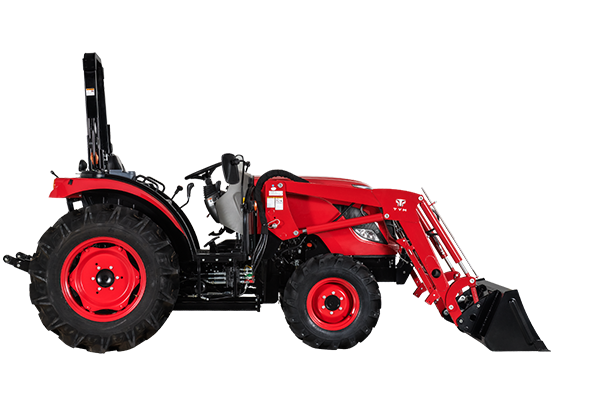

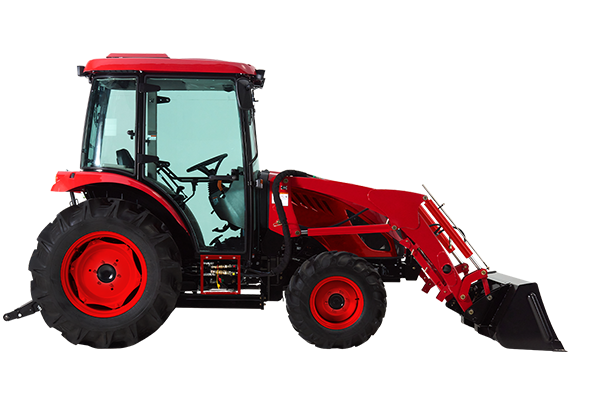

A powerfully versatile compact tractor that gives you the best of both worlds

Take on tough jobs in tight spaces with the T575. This tractor seamlessly combines the top features of our compact and utility ranges, balancing high power output with exceptional maneuverability for outstanding results every time.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

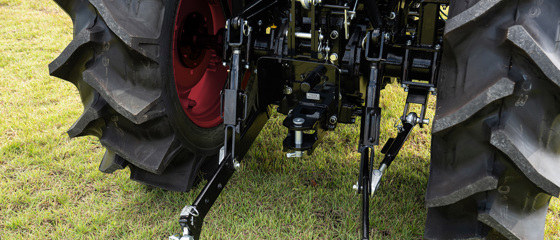

Telescopic linkages and stabilizers

Telescopic linkages allow attachments to be easily connected and swapped out without needing input from the operator cabin. Stabilizers make it possible for the tractor to adapt to attachments of varying loads, without putting too much pressure on engine productivity.

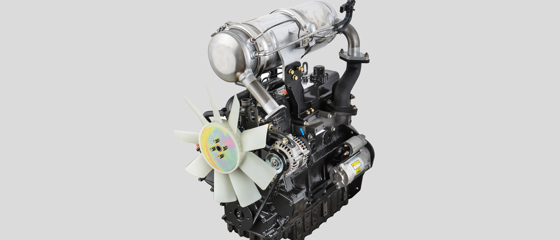

4-cylinder TYM diesel engine with high output

Equipped with a powerful, Tier 4 certified 4-cylinder engine, this tractor has an output comparable to utility tractors while maintaining the dimensions of a sub-compact tractor. The durable body and efficient engine come together to perform medium duty applications efficiently and productively.

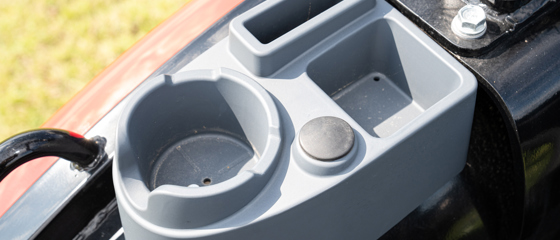

Superior operator amenities

Fully equipped with modern amenities to maximize operator comfort, this tractor is complete with a large cup holder, wireless smartphone charging dock, multiple USB ports to charge personal devices and a bluetooth speaker. These features are designed to promote productivity, keeping drivers hydrated, connected and alert during every job.

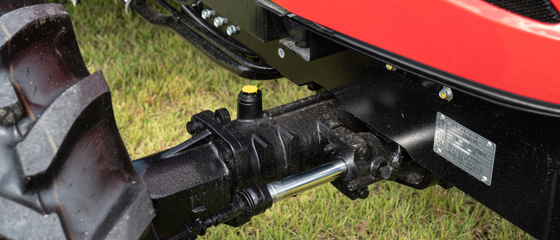

Durable power steering and axle configuration

The heavy-duty 4WD front axle enables the tractor to lift heavy loads and tow large attachments while absorbing shock and maintaining stability. Powerful hydraulics support the power steering system, which uses a dual-action mechanism with a hydraulic cylinder and tandem-type hydraulic pump.

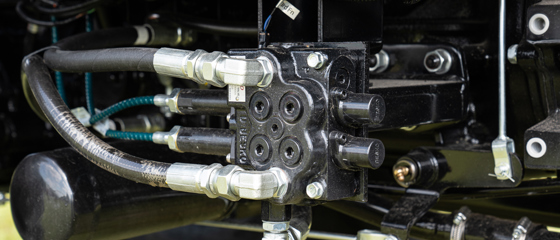

3rd function hydraulic valve to enhance attachment capabilities

Allowing for versatile implement handling, this tractor comes ready with a 3rd function installation kit. It can maximize the use of a bucket implement with 4-in-1 functionality, including lifting, tilting, dumping and grappling

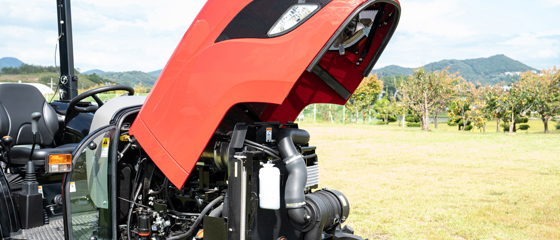

Easy maintenance and service

The hood of the tractor can be easily opened, allowing quick access to the engine and other systems for routine service and maintenance. This feature help increase the tractor’s durability and performance over time.

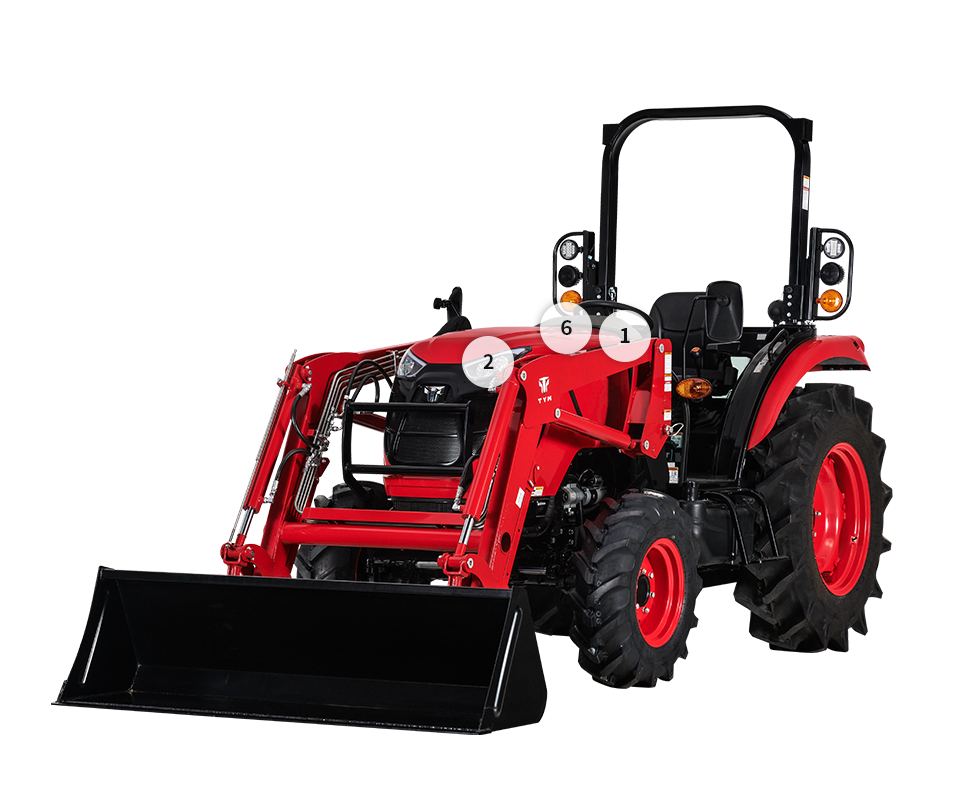

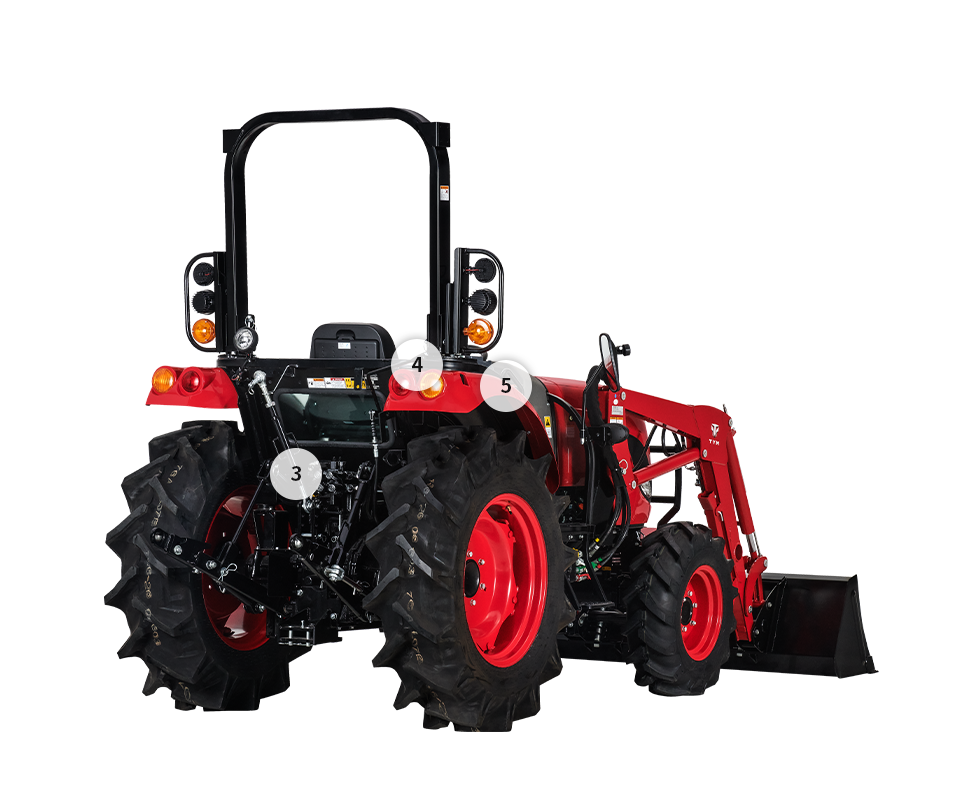

Equipped with features to elevate your productivity

With optimized attachment linkages and flexible controls, this Series 3 tractor has the capabilities to take on a variety of jobs. Complete with an intuitive console and a premium cabin, operators have the tools and the comfort to drive productivity.

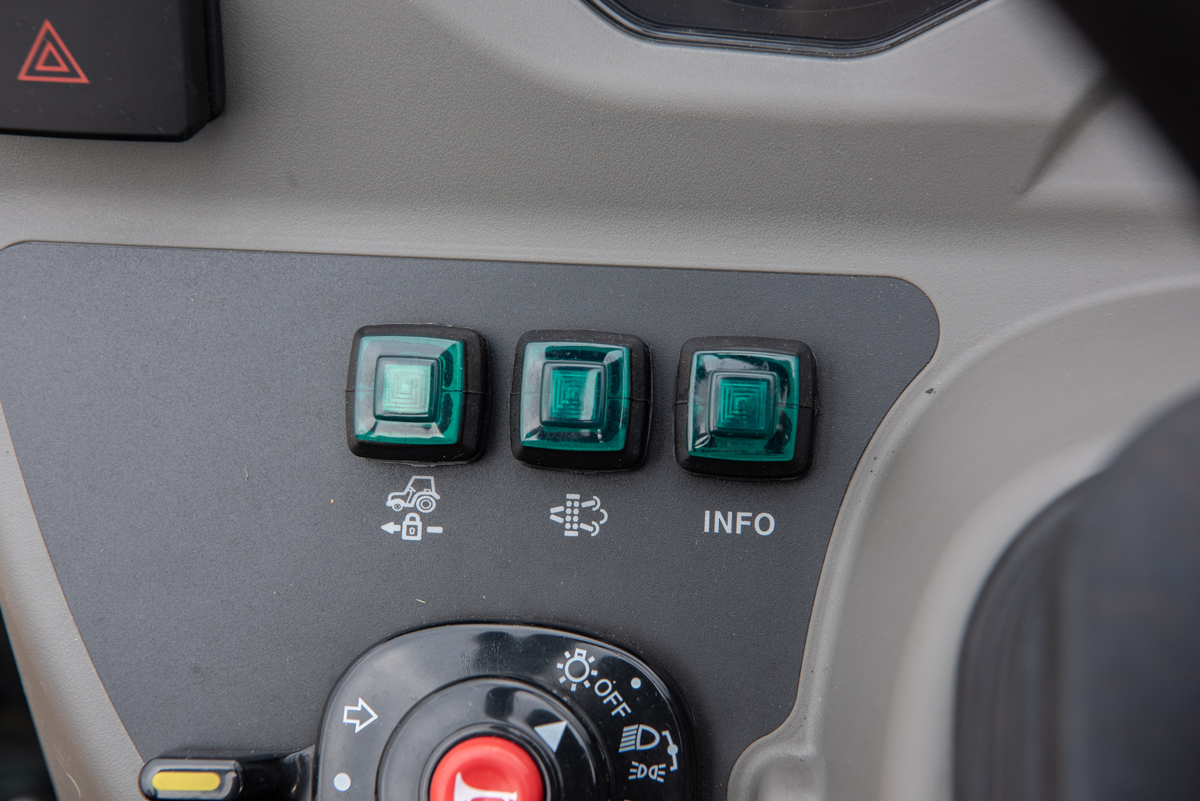

1. Cruise control switch

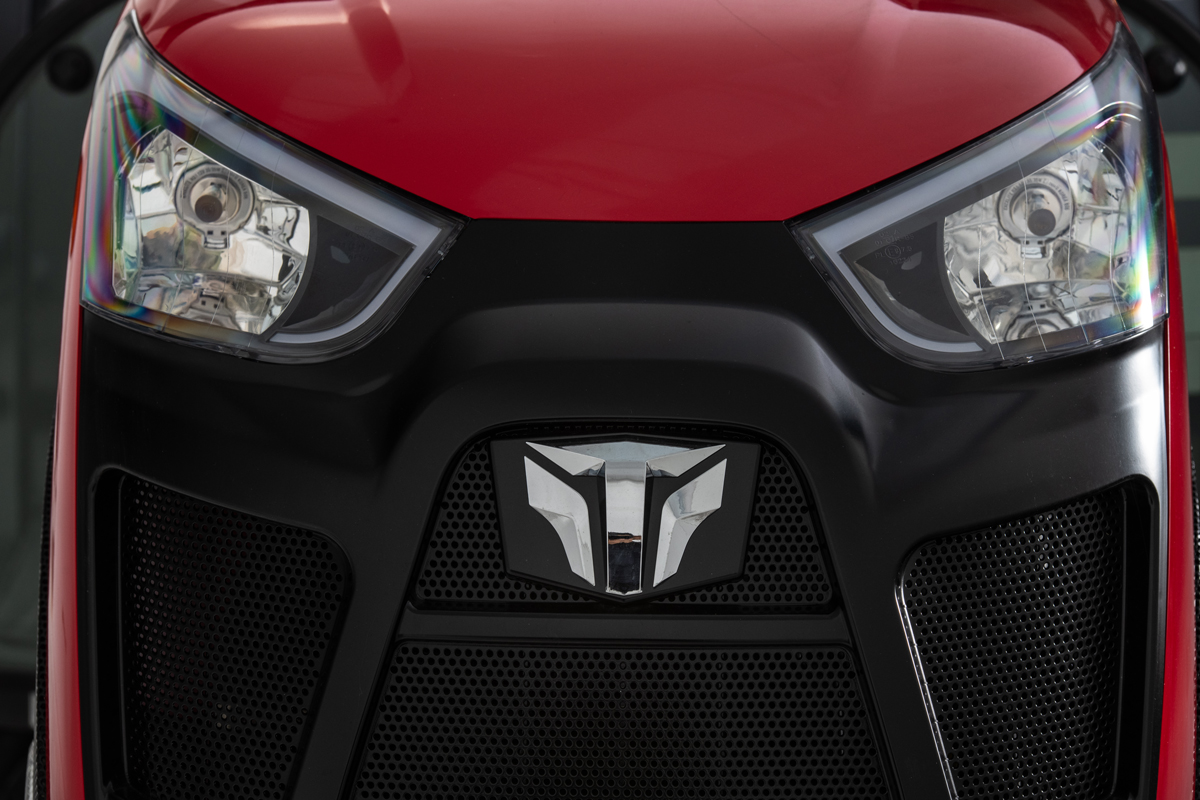

2. Projection headlights

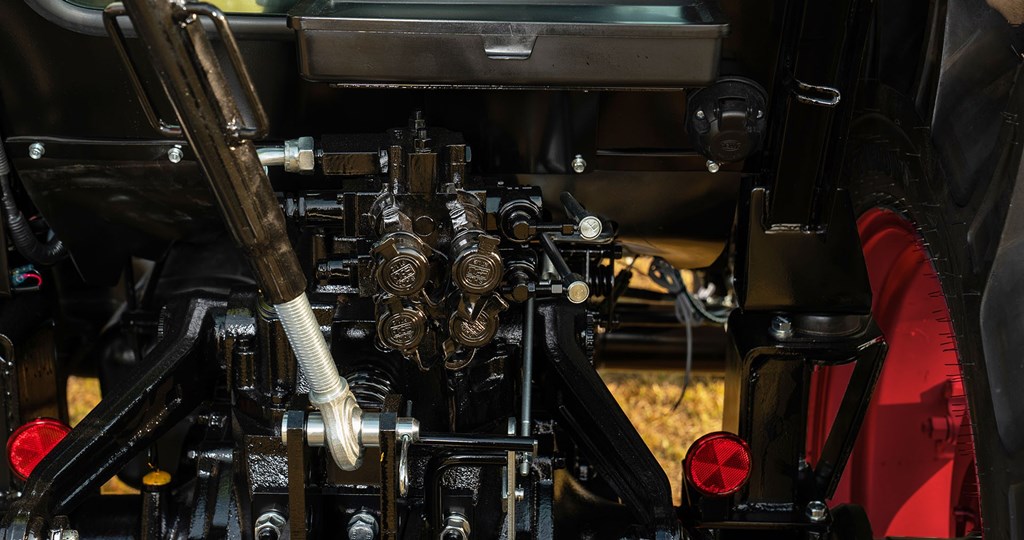

3. 4-port rear hydraulic valve

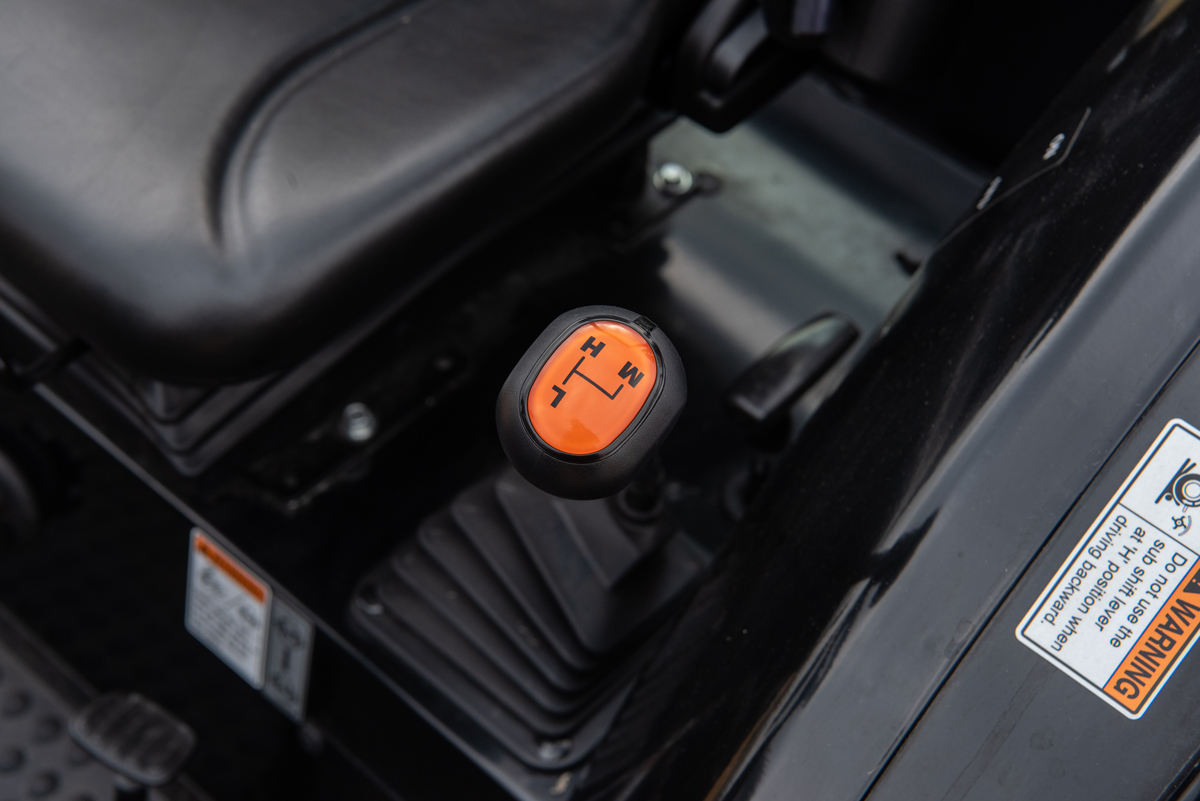

4. 3-range hydrostatic transmission

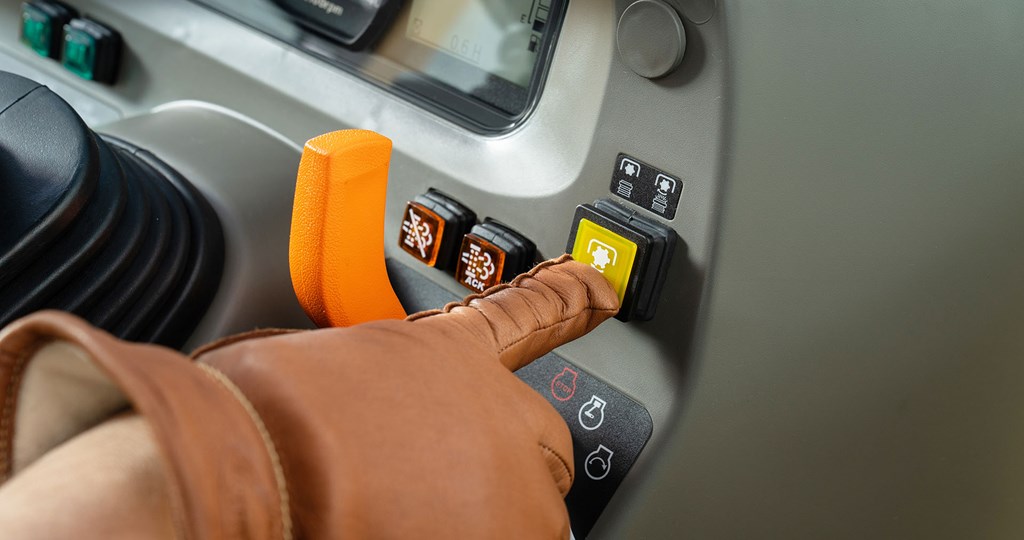

5. PTO switch

6. Digital instrument panel

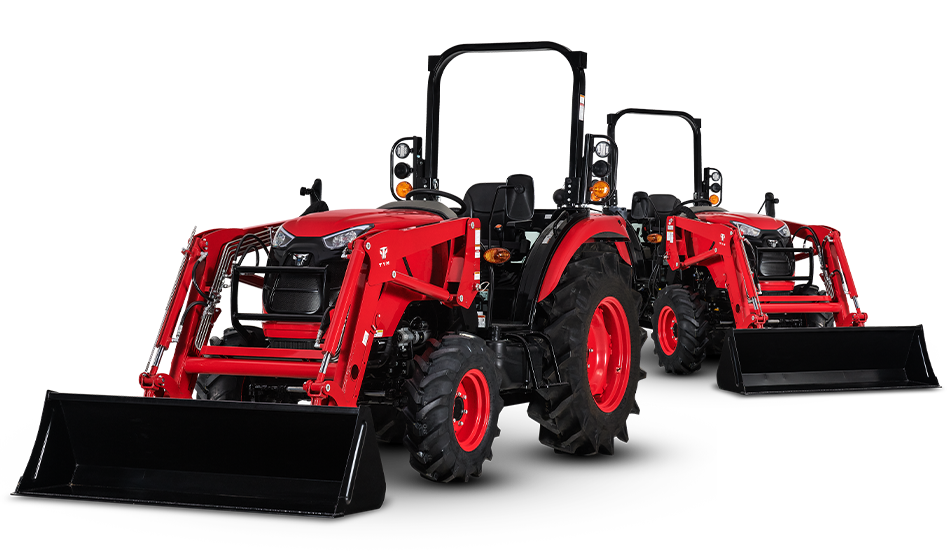

Designed for applications in and around your property

This compact tractor boasts a sleek and rugged design, while the interiors are packed with in-cabin controls and features to minimize operator effort. Engineered for productivity inside and out, this tractor features sturdy cast iron linkages and easy to operate hydrostatic controls.

Good clearance from the ground and overhead allows you to take on uneven terrain easily, whether in a barn, under tree cover, or inside greenhouses. Equipped with high engine efficiency, impressive lift capabilities, and the option of a foldable ROPS or heated cab configuration, this tractor has the capabilities to perform light- to medium-duty jobs, all year round.

Arable Farming

Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.

Construction

Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.

Snow Clearing

TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.

Landscaping

Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.

STORIES FROM THE FIELD

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

SEE TYM’S CUSTOMER STORIES

Technical Specification

Tractors Model	T575	T495	T555
Engine manufacturer	TYM T2300T2	TYM T2300N3	Yanmar 4TNV86CT-K
Engine power	55 hp \| 41 kW	45.3 hp \| 34 kW	55.1 hp \| 41.1 kW
Rated engine speed	2600 rpm	2600 rpm	2800 rpm
Displacement	2286 cc \| 139.5 cu. in.	2286 cc \| 139.5 cu. in.	2091 cc \| 127.6 cu. in.
No. of speeds	SS: F8 x R8 HST: 3-range	SS: F8 x R8 HST: 3-range	SS: F16 x R16 HST: 3-range
Hitch lift capacity	1733 kg \| 3822 lb	1733 kg \| 3822 lb	1503 kg \| 3314 lb
PTO rear	540 rpm	540 rpm	540/1000 rpm
Fuel tank	60 L \| 17.0 gal	60 L \| 17.0 gal	60 L \| 17.0 gal
Overall length with 3-point hitch	3930 mm \| 154.7 in.	3930 mm \| 154.7 in.	3929 mm \| 154.7 in.
Overall width	1800 mm \| 70.8 in.	1800 mm \| 70.8 in.	1837 mm \| 72.3 in.
Wheelbase	1935 mm \| 76.2 in.	1935 mm \| 76.2 in.	1935 mm \| 76.2 in.
Height to top of ROPS	2560 mm \| 100.7 in.	2560 mm \| 100.7 in.	2590 mm \| 116.1 in.
Min. ground clearance	580 mm \| 22.8 in.	580 mm \| 22.8 in.	321 mm \| 12.6 in.
Weight with ROPS	1875 kg \| 4133.7 lb	1875 kg \| 4133.7 lb	1875 kg \| 4133.7 lb
R1 Agricultural - Front	9.5-16 6PR	9.5-16 6PR	1: 9.5-16 6PR 2: 240/70 R16 3: 260/70 R16 4: 260/70 R16 5: 280/70 R16 6: 280/70 R16
R1 Agricultural - Rear	13.6-26 8PR	13.6-26 8PR	1: 13.6-26 8PR 2: 320/70 R24 3: 320/85 R24 4: 340/85 R24 5: 380/85 R24 6: 360/70 R28
Download	Technical Brochure	Technical Brochure	Technical Brochure
