5025C
Series 3 , Compact Tractors
![Engine Manufacturer](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Ffnqfvffd%2Ftym_whitelogo.png&w=3840&q=75)
Engine manufacturer
48 hp
Engine power
1456 kg
Hitch lift capacity
A high-performance compact tractor built to take on challenges of all sizes
Superior performance meets high efficiency in this customizable Series 3 tractor. The 5025C can be configured to suit your needs and equipped with features designed to ensure your productivity and comfort throughout tasks of varying intensities.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.
![5025C 6225C Composition V2 Copy](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fhv1j33gg%2F5025c_6225c_composition_v2-copy.png&w=3840&q=75)

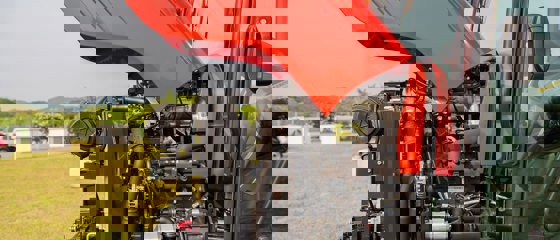

Eco-friendly TYM 4-cylinder Stage-V engine
Equipped with a naturally aspirated engine designed and manufactured by TYM, the tractor is designed to be eco-friendly and fuel-efficient without compromising on performance.
![5025C USP1 V2](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fwxcopsvl%2F5025c_usp1_v2.jpeg%3Fwidth%3D560%26height%3D240%26mode%3Dcrop&w=1200&q=75)

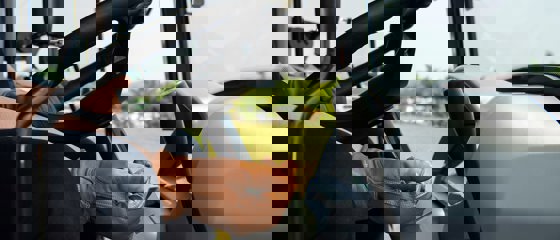

Tilt steering wheel
The tilt steering wheel allows operators to adjust the position of the steering wheel for a more comfortable driving experience.
![5025C USP2 V2](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2F034iwnyv%2F5025c_usp2_v2.jpeg%3Fwidth%3D560%26height%3D240%26mode%3Dcrop&w=1200&q=75)
PTO on/off switch
Safety is a top priority. The PTO switch ensures secure operation of all tractor attachments.
![5025C USP3 V2](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fbviehymi%2F5025c_usp3_v2.jpeg%3Fwidth%3D560%26height%3D240%26mode%3Dcrop&w=1200&q=75)

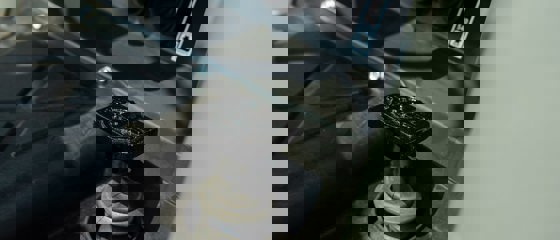

Differential lock system and low turning angle
The differential lock system, activated with easily accessible levers, provides enhanced traction in slippery work environments, while a 52˚ turning angle makes operation in narrow areas much easier.
![5025C USP4 V2](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Ftwzhpcfq%2F5025c_usp4_v2.jpeg%3Fwidth%3D560%26height%3D240%26mode%3Dcrop&w=1200&q=75)

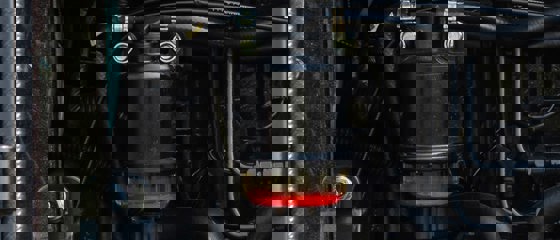

Water-separating fuel filter
The water-separating fuel filter prevents foreign substances from entering the fuel, ensuring better engine starting performance and preventing damage to the machine.
![5025C USP5 V2](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fyxqlz2fy%2F5025c_usp5_v2.jpeg%3Fwidth%3D560%26height%3D240%26mode%3Dcrop&w=1200&q=75)

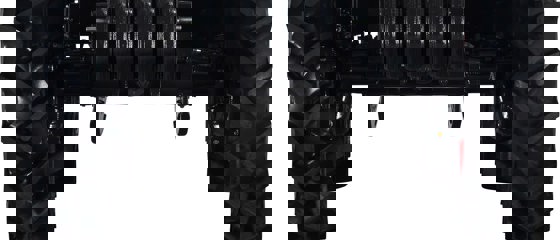

Optional tires for various working conditions
In addition to standard agricultural tires, industrial, turf tires are also available for versatile working conditions.
![5025C USP6 V2](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fgx0bmt2u%2F5025c_usp6_v2.jpeg%3Fwidth%3D560%26height%3D240%26mode%3Dcrop&w=1200&q=75)
Powerful features to drive tractor performance
Leverage a range of features to complete a variety of jobs quickly and effectively. With its all-season cabin and ergonomic controls, this Series 3 tractor keeps operators comfortable and productive, ready to tackle challenges all year round.

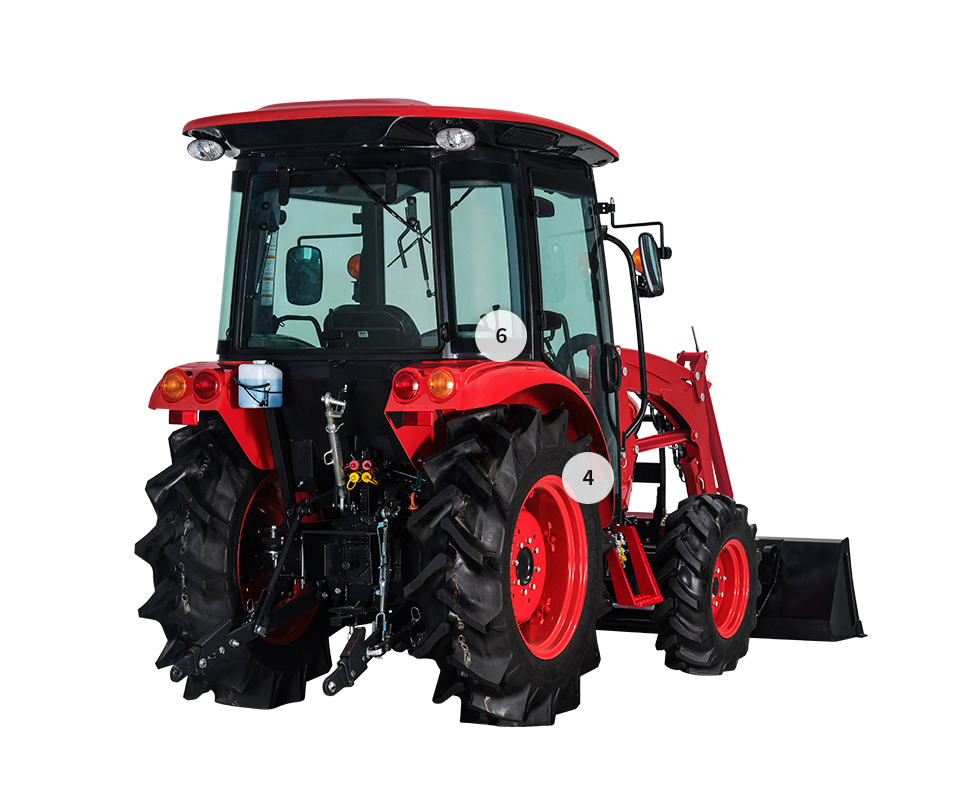

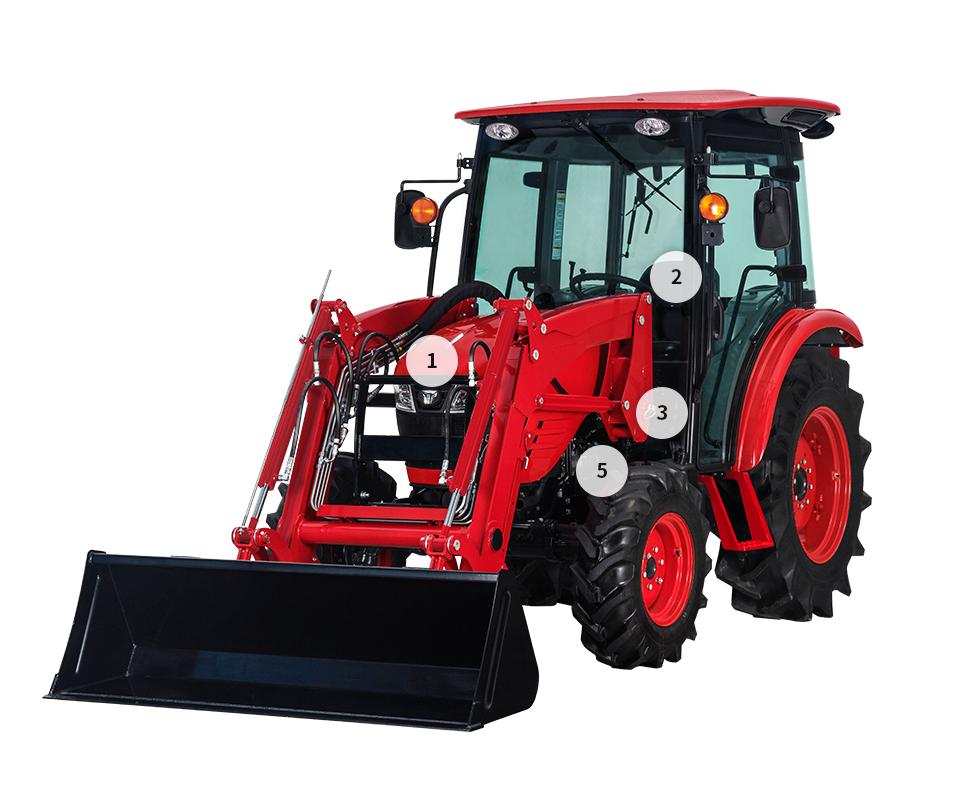

![1. Hood design](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fkhch2s41%2F5025c_feature1_v2.jpeg&w=750&q=75)
![2. Comfortable suspension seat](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fpsyp4oe3%2F5025c_feature2_v2.jpeg&w=750&q=75)
![3. Ergonomic lever](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fnbsfcbcw%2F5025c_feature3_v2.jpeg&w=750&q=75)
![4. Highly responsive forward & reverse HST (5025CH)](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fjn4nxcoj%2F5025c_feature4_v2.jpeg&w=750&q=75)
![5. High-capacity fuel tank](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fo20lg1m0%2F5025c_feature5_v2.jpeg&w=750&q=75)
![6. Joystick control for front-end loader](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fpi0bsyij%2F5025c_feature6_v2.jpeg&w=750&q=75)
Designed for applications in and around your property
This compact tractor boasts a sleek and rugged design, while the interiors are packed with in-cabin controls and features to minimize operator effort. Engineered for productivity inside and out, this tractor features sturdy cast iron linkages and easy to operate hydrostatic controls.
Good clearance from the ground and overhead allows you to take on uneven terrain easily, whether in a barn, under tree cover, or inside greenhouses. Equipped with high engine efficiency, impressive lift capabilities, and the option of a foldable ROPS or heated cab configuration, this tractor has the capabilities to perform light- to medium-duty jobs, all year round.
![Applicaiton Bg 2](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2F4s0jrcbe%2Fapplicaiton-bg-2.png&w=3840&q=75)
Arable Farming
Excellent for working in tight and narrow spaces, this tractor features powerful lift and leveling capabilities optimized for orchards, greenhouses, vineyards, and more.
![Application Construction](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fxxlfczub%2Fapplication_construction.png&w=3840&q=75)
Construction
Greater lift capabilities and gear controls help drive project completion efficiently, whether it’s a simple task like installing a mailbox or larger jobs like building a fence.
![Application Snow Clearing](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2F2nccfmu2%2Fapplication_snow_clearing.png&w=3840&q=75)
Snow Clearing
TYM tractors are equipped with better engine controls and larger fuel tanks, allowing them to perform a variety of tasks for longer periods of time, even in extreme cold conditions.
![Application Landscaping V2](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fqpnprnvs%2Fapplication_landscaping_v2.png&w=3840&q=75)
Landscaping
Greater control over engine speeds and compatibility with a range of specialized attachments allow access to narrower spaces, promoting productivity and faster results.
![STORIES FROM THE FIELD](/_next/image?url=https%3A%2F%2Ftym-new.euwest01.umbraco.io%2Fmedia%2Fasggqxr3%2Ftestimonial_4_v10.jpg&w=3840&q=75)
Tractors Model | 5025C ![]() | 5025 ![]() | 6225C ![]() |
Engine manufacturer | TYM T2300N2 | TYM T2300N2 | TYM T2300T3 |
Engine power | 48 hp | 36 kW | 48 hp | 36 kW | 57.3 hp | 43 kW |
Rated engine speed | 2600 rpm | 2600 rpm | 2600 rpm |
Displacement | 2286 cc | 139.5 cu. in. | 2287 cc | 139.5 cu. in. | 2287 cc | 139.5 cu. in. |
No. of speeds | 5025C: F12 x R12 5025CH: 3-Range | 5025R: F12 x R12 5025H: 3-Range | 6225C: F12 x R12 6225CH: 3-Range |
Hitch lift capacity | 1456 kg | 3210 lb | 1456 kg | 3210 lb | 1456 kg | 3210 lb |
PTO rear | 540/540E rpm | 540/540E rpm | 540/540E rpm |
Fuel tank | 45 L | 11.9 gal | 45 L | 11.9 gal | 45 L | 11.9 gal |
Overall length with 3-point hitch | 3421 mm | 134.3 in. | 3421 mm | 134.3 in. | 3421 mm | 134.3 in. |
Overall width | 1814 mm | 71.4 in. | 1814 mm | 71.4 in. | 1814 mm | 71.4 in. |
Wheelbase | 1806 mm | 71.1 in. | 1806 mm | 71.1 in. | 1806 mm | 71.1 in. |
Height to top of ROPS | - | 5025R: 2500 mm | 98.4 in. 5025H: 2463 mm | 97.0 in. | - |
Min. ground clearance | 391 mm | 15.4 in. | 391 mm | 15.4 in. | 391 mm | 15.4 in. |
Weight with cab | 5025C: 2030 kg | 4475.4 lb 5025CH: 2026 kg | 4466.6 lb | - | 2030 kg | 4475.4 lb |
R1 Agricultural - Front | 1: 7-16 6PR 2: 8-16 4PR 3: 8-18 8PR 4: 9.5-16 6PR | 1: 7-16 6PR 2: 8-16 4PR 3: 8-18 8PR 4: 9.5-16 6PR | 1: 7-16 6PR 2: 8-16 4PR 3: 8-18 8PR 4: 9.5-16 6PR |
R1 Agricultural - Rear | 1: 12.4-24 6PR 2: 13.6-24 8PR 3: 13.6-24 8PR 4: 13.6-26 8PR | 1: 12.4-24 6PR 2: 13.6-24 8PR 3: 13.6-24 8PR 4: 13.6-26 8PR | 1: 12.4-24 6PR 2: 13.6-24 8PR 3: 13.6-24 8PR 4: 13.6-26 8PR |
Download | Technical Brochure | Technical Brochure | Technical Brochure |
