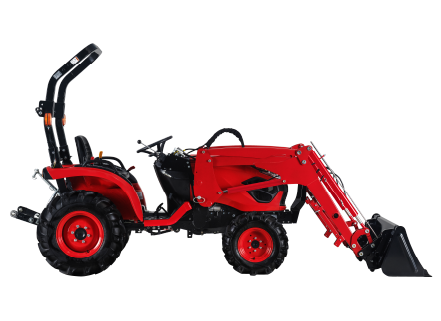

2500HL
Series 2 , Sub-Compact Tractors
24 hp
Engine power
512 kg
Hitch lift capacity
A versatile sub-compact tractor for projects of all sizes
A versatile and highly maneuverable sub-compact tractor perfect for everyone from hobbyists to groundskeepers. Enjoy the size of a ride-on mower with the capabilities of a full-size tractor.







All the right features to get the job done
Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.
Designed for applications in and around your property
This tractor allows you to go beyond a riding mower, without compromising on ease of operation and maneuverability. Multi-functional capabilities and a compact frame come together for a definitive upgrade from traditional machinery and maintenance tools.
Use this tractor to maintain a healthy lawn, build a home garden, tackle yard work, or create space for a lively home farm. Linkage points for a front loader, mid-mount and rear hitch enable you to attach a variety of attachments to complete tasks on your land.

ARABLE FARMING
Combining narrow dimensions, small turning radius, intuitive controls, and a lightweight design, TYM sub-compact tractors are perfect for home yards.

Livestock & Poultry
Construct enclosures, establish watering spots, bale hay, distribute feed, upkeep pastures, manage waste—regardless of the task's scope, a TYM tractor supports efficient animal care.

Snow Clearing
Construct enclosures, establish watering spots, bale hay, distribute feed, upkeep pastures, manage waste—regardless of the task's scope.

Material Handling
Construct enclosures, establish watering spots, bale hay, distribute feed, upkeep pastures, manage waste—regardless of the task's scope, a TYM tractor supports efficient animal care.

| Tractors Model | 2500HL ![]() | 2500L |
Engine manufacturer | TYM T1100N2 | TYM T1100N2 |
Engine power | 24 hp | 18 kW | 24 hp | 18 kW |
Rated engine speed | 2800 rpm | 2800 rpm |
Displacement | 1175 cc | 71.7 cu. in. | 1175 cc | 71.7 cu. in. |
No. of speeds | 2 Range / 3 Range | F6 x R2 / F9 x R3 |
Hitch lift capacity | 512 kg | 1129 lb | 512 kg | 1129 lb |
PTO rear | Rear: 540/1000 rpm Mid: 2500 rpm | Rear: 540/1000 rpm Mid: 2500 rpm |
Fuel tank | 23 L | 6.0 gal | 23 L | 6.0 gal |
Overall length with 3-point hitch | 3124 mm | 123 in. | 3124 mm | 123 in. |
Overall width | MIN: 1164 mm / MAX: 1419 mm | 1419 mm | 55.9 in. |
Wheelbase | 1672 mm | 65.8 in. | 1672 mm | 65.8 in. |
Height to top of ROPS | F-ROPS: 2102 mm | 82.8 in. ROPS: 2330 mm | 91.7 in. | F-ROPS: 2102 mm | 82.8 in. ROPS: 2330 mm | 91.7 in. |
Min. ground clearance | MIN: 211 mm / MAX: 417 mm | 417 mm | 16.4 in. |
Weight with ROPS | 1: F-ROPS: 1043 kg / ROPS: 1031 kg 2: F-ROPS: 993 kg / ROPS: 981 kg | 1: F-ROPS: 1022 kg / ROPS: 988 kg 2: F-ROPS: 985 kg / ROPS: 962 kg |
R1 Agricultural - Front | 1: 6-12 4PR 2: 6-12 4PR 3: 7-16 6PR 4: 200/70R16 | 1: 6-12 4PR 2: 6-12 4PR 3: 7-16 6PR 4: 200/70R16 |
R1 Agricultural - Rear | 1: 9.5-16 6PR 2: 9.5-18 8PR 3: 11.2-20 8PR 4: 320/70R20 | 1: 9.5-16 6PR 2: 9.5-18 8PR 3: 11.2-20 8PR 4: 320/70R20 |
| Download | Technical Brochure | Technical Brochure |
