T255

Series 1 , Sub Compact Tractors

REQUEST QUOTE

Engine manufacturer

25.3 hp

Engine power

551 kg

Hitch lift capacity

Build My Tractor

Explore Tractor in 3D

Technical Specifications

Compatible Attachments

A sub-compact tractor engineered for productivity inside and out

The T255 tractor is proof that great things can indeed come in small packages. Offering enhanced power without sacrificing maneuverability, it’s equipped with a powerful engine and ergonomic operator controls, ensuring both performance and comfort.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

Ergonomic features for enhanced productivity

A wide operator cabin with a flat floor offers good visibility and ample leg room, promoting comfortable operation. All controls are within arm’s reach, including a dial to control the cutting height of the mid-mount implement. The accelerator, brake pedal, differential lock, and parking brake are easily accessible on the floor of the cabin, located precisely where you expect them to be. These features make this tractor easy to operate, even for novice drivers.

High torque, water-cooled Yanmar diesel engine

The Japanese made Yanmar engine offers more torque with less revs compared to competitors in its class. Since it is water cooled, the engine warms up faster and stabilized temperature more effectively while the tractor is running. The engine is also Stage V certified, including for noise emission standards.

2-range HST for smooth operation

Accompanied by the power steering, the responsive 2-range hydrostatic controls on this tractor ensures a smooth ride. It reduces the need for operator effort, particularly while operating the optional front-end and rear implements.

3-point hitch with powerful lift capacity

The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joint. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive ground engagement like slashing or digging.

Mid-mount linkage for mowing implements

The mid-mount linkage on the tractor allows easy installation for a mower up to 54 inches wide. Cutting height can be adjusted easily during operation using the dial on the operator console, so patches of overgrowth can be tackled more efficiently.

Foldable ROPS for storage in low-ceiling structures

The Roll Over Protective Structure (ROPS) of the tractor is designed to be folded, allowing for easy storage in low-ceiling garages or sheds.

Controls to speed up, slow down, raise or lower implements

Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed.

HST for infinitely variable drive speed

Responsive hydrostatic controls offers a smooth ride for operators, from the forward and reverse pedal to the powered steering wheel. These controls reduce the need for operator effort during a range of tasks, particularly while operating the optional front-end loader.

All the right features to get the job done

Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.

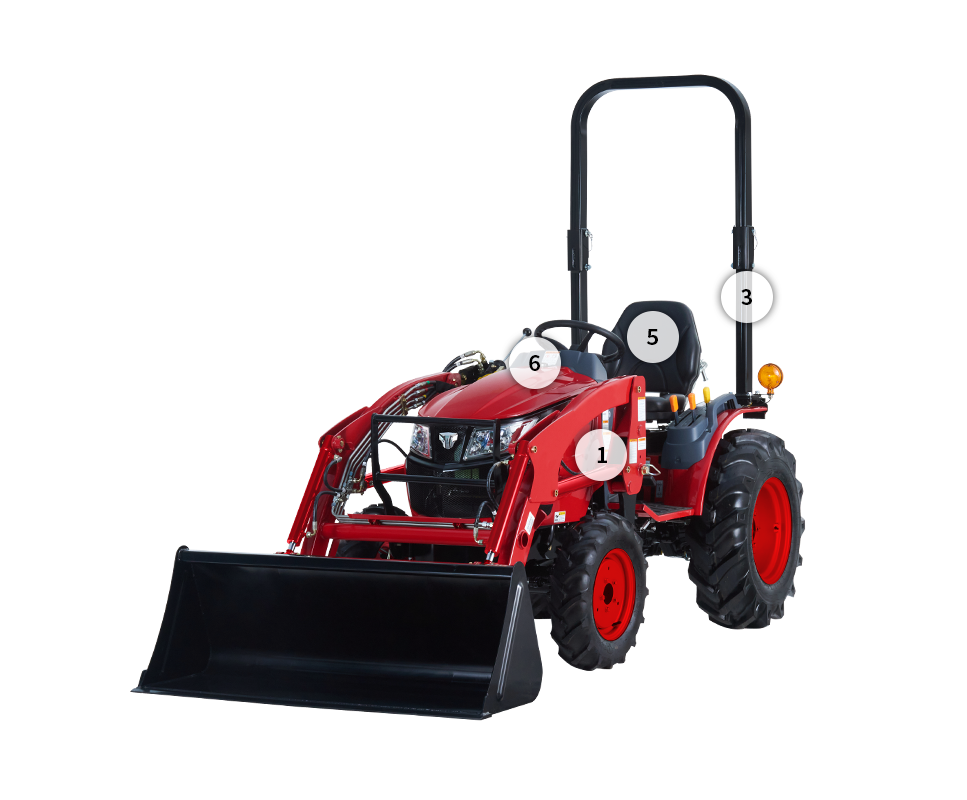

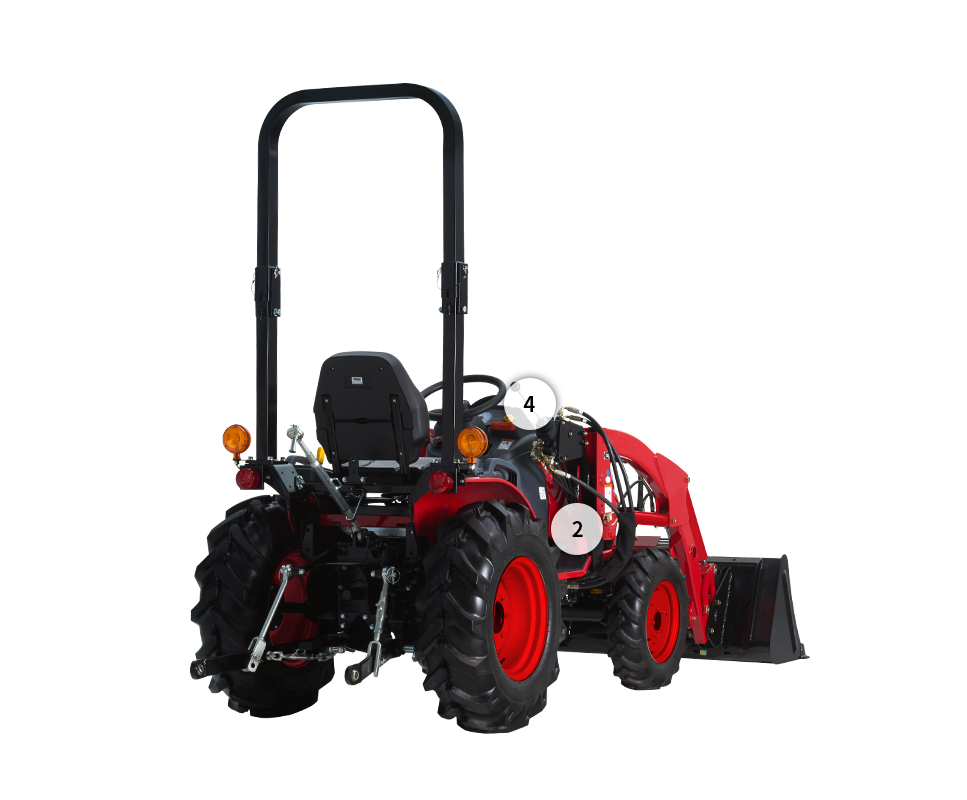

1. PTO lever for mid and rear rpm

2. 2-range hydrostatic transmission (HST)

3. Safety seat sensor

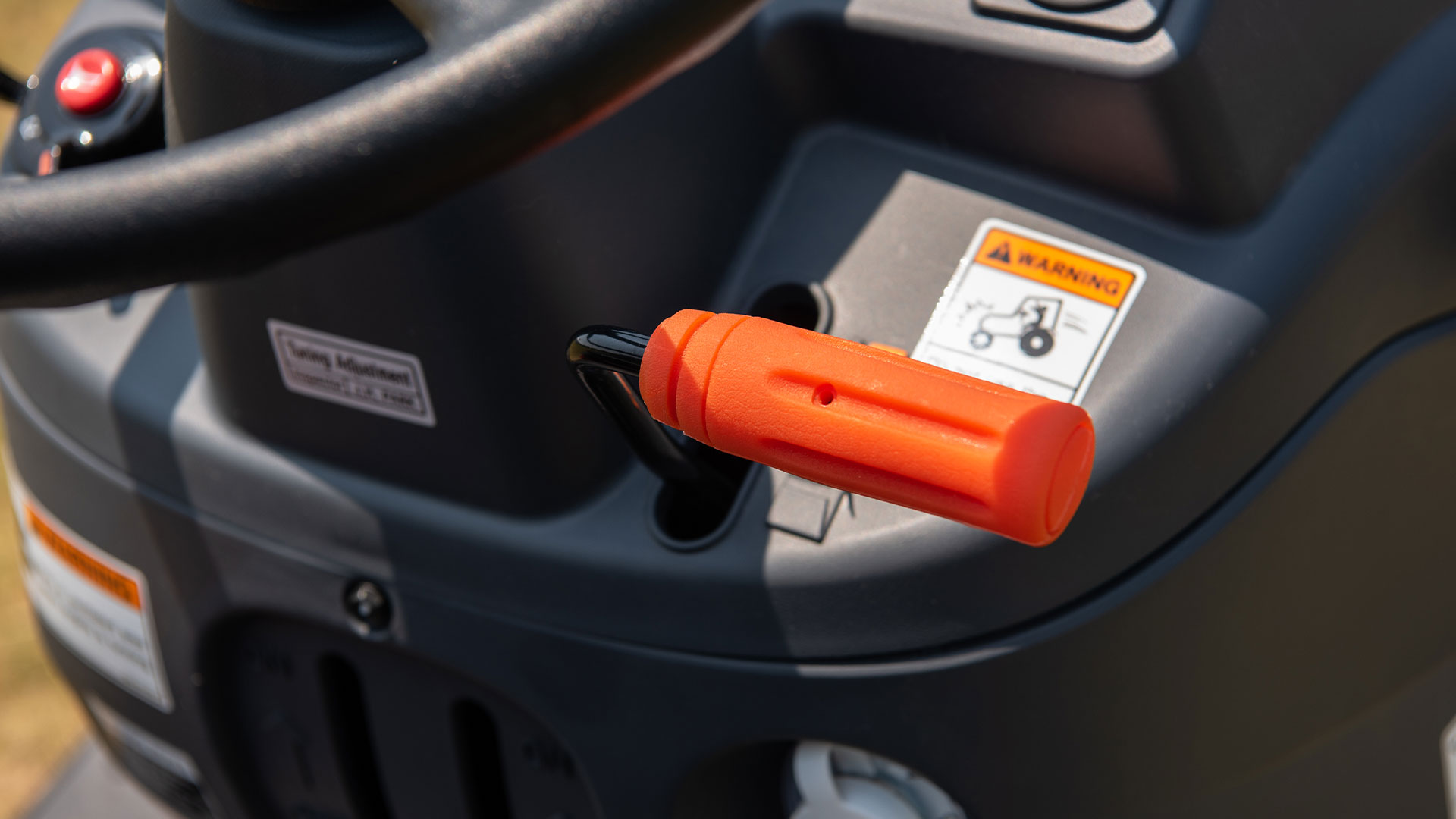

4. Throttle lever

5. PTO on/off switch

6. Dial adjustment for mower height

Designed for applications in and around your property

This tractor allows you to go beyond a riding mower, without compromising on ease of operation and maneuverability. Multi-functional capabilities and a compact frame come together for a definitive upgrade from traditional machinery and maintenance tools.

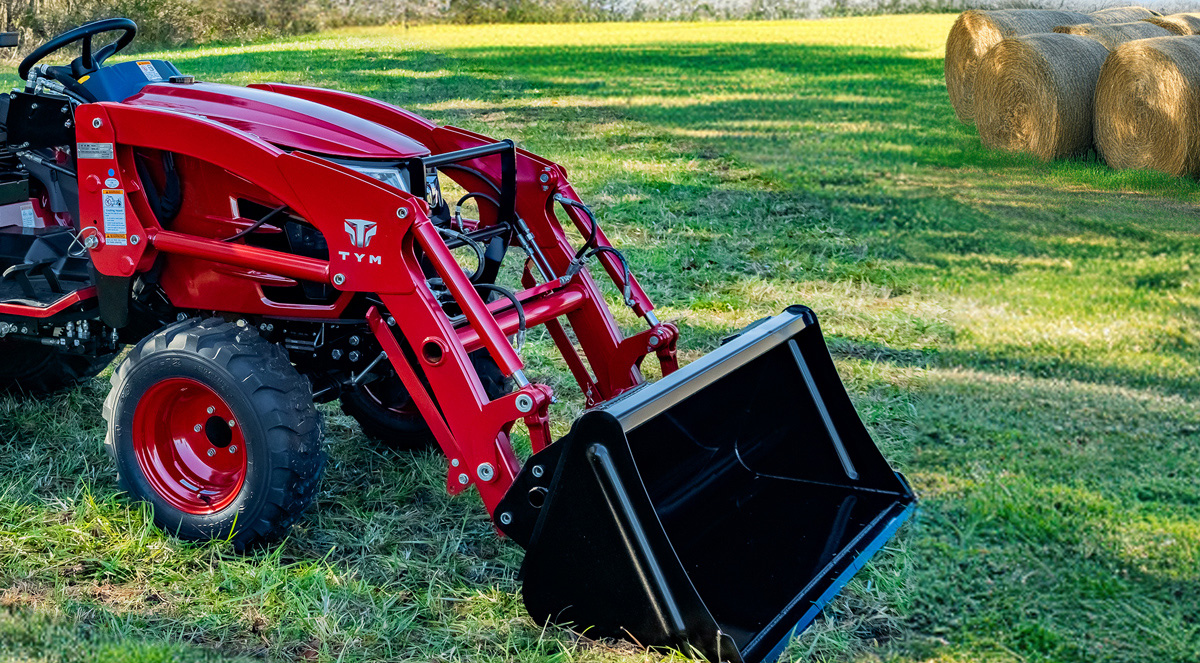

Use this tractor to maintain a healthy lawn, build a home garden, tackle yard work, or create space for a lively home farm. Linkage points for a front loader, mid-mount and rear hitch enable you to attach a variety of attachments to complete tasks on your land.

Landscaping

With narrow dimensions, a small turning radius, intuitive controls, and a lightweight design, a TYM sub-compact tractor is the ideal machine for every home. A dedicated mid-mount linkage allows easy attachment to a range of mowers, while front-end and rear linkages allow for additional functionality compared to riding mowers.

Arable Farming

With a TYM sub-compact tractor, you can leverage multi-functional capabilities and ease of maneuverability to build and maintain your home garden. From tilling the land and spreading fertilizer to aerating and seeding your soil, this tractor is easy to operate and swap implements, enabling you to grow all types of plant life, simply and effectively.

Cleaning

Complete chores around your property quickly and affordably. From brushing dust and dirt from your driveway to lifting and dumping fallen leaves and other waste, a TYM sub-compact offers the right mix of size and power for maneuverability and efficient engine performance.

Livestock & Poultry

Comfortable to sit in and easy to operate, a TYM sub-compact tractor has the light design and small turning radius to assist with maintaining animal life at home. Level the yard, trim grass, spread feed, move hay bales, clear waste and much more.

STORIES FROM THE FIELD

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

SEE TYM’S CUSTOMER STORIES

Technical specifications

Tractors Model	T255	T265	T25
Engine manufacturer	Yanmar 3TNV76-UD	TYM T1100N4	Yanmar 3TNV80F-NXD
Engine power	25.3 hp \| 18.9 kW	24 hp \| 18 kW	24.7 hp \| 18.4 kW
Rated engine speed	2800 rpm	2600 rpm	3000 rpm
Displacement	1116 cc \| 68.1 cu. in.	1175 cc \| 71.7 cu. in.	1267 cc \| 77.3 cu. in.
No. of speeds	SS: F6 x R2 HST: 2-Range	Infinite 2-Range	Infinite 2-Range
Hitch lift capacity	551 kg \| 1214 lb	696 kg \| 1534 lb	703.6 kg \| 1551.2 lb
PTO rear	540 rpm	540 rpm	540 rpm
Fuel tank	22 L \| 5.8 gal	25 L \| 6.6 gal	25 L \| 6.6 gal
Overall length with 3-point hitch	2668 mm \| 100.5 in.	2868 mm \| 112.9 in.	2829 mm \| 111.4 in. in.
Overall width	1286 mm \| 50.6 in.	1430 mm \| 56.3 in.	1384 mm \| 54.5 in.
Wheelbase	1460 mm \| 57.5 in.	1480 mm \| 58.3 in.	1550 mm \| 61 in.
Height to top of ROPS	2320 mm \| 91.3 in.	2514 mm \| 99.0 in.	2505 mm \| 98.6 in.
Min. ground clearance	240 mm \| 9.4 in.	240 mm \| 9.4 in.	267 mm \| 10.5 in.
Weight with ROPS	843 kg \| 1858.5 lb	995 kg \| 2193.6 lb	1100 kg \| 2425 lb
Weight with cab	-	-	-
R1 Agricultural - Front	6.0-12 4PR	6.0-12 4PR	6-12 4PR
R1 Agricultural - Rear	9.5-16 6PR	9.52-20 6PR	9.5-20 6PR
Download	Technical Brochure	Technical Brochure	Technical Brochure
