T25

Series 1 , Sub Compact Tractors

REQUEST QUOTE

Engine manufacturer

24.7 hp

Engine power

703.6 kg

Hitch lift capacity

Build My Tractor

Explore Tractor in 3D

Technical Specifications

Compatible Attachments

A sub-compact tractor engineered for productivity inside and out

The T25 tractor is proof that great things can indeed come in small packages. Offering enhanced power without sacrificing maneuverability, it’s equipped with a powerful engine and ergonomic operator controls, ensuring both performance and comfort.

DOWNLOAD BROCHURE

*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

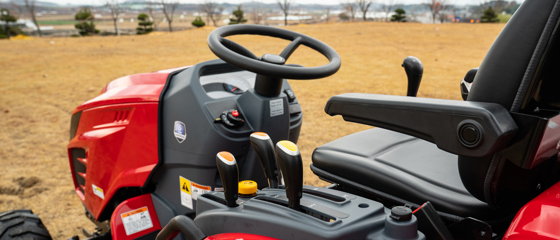

Superior operator amenities

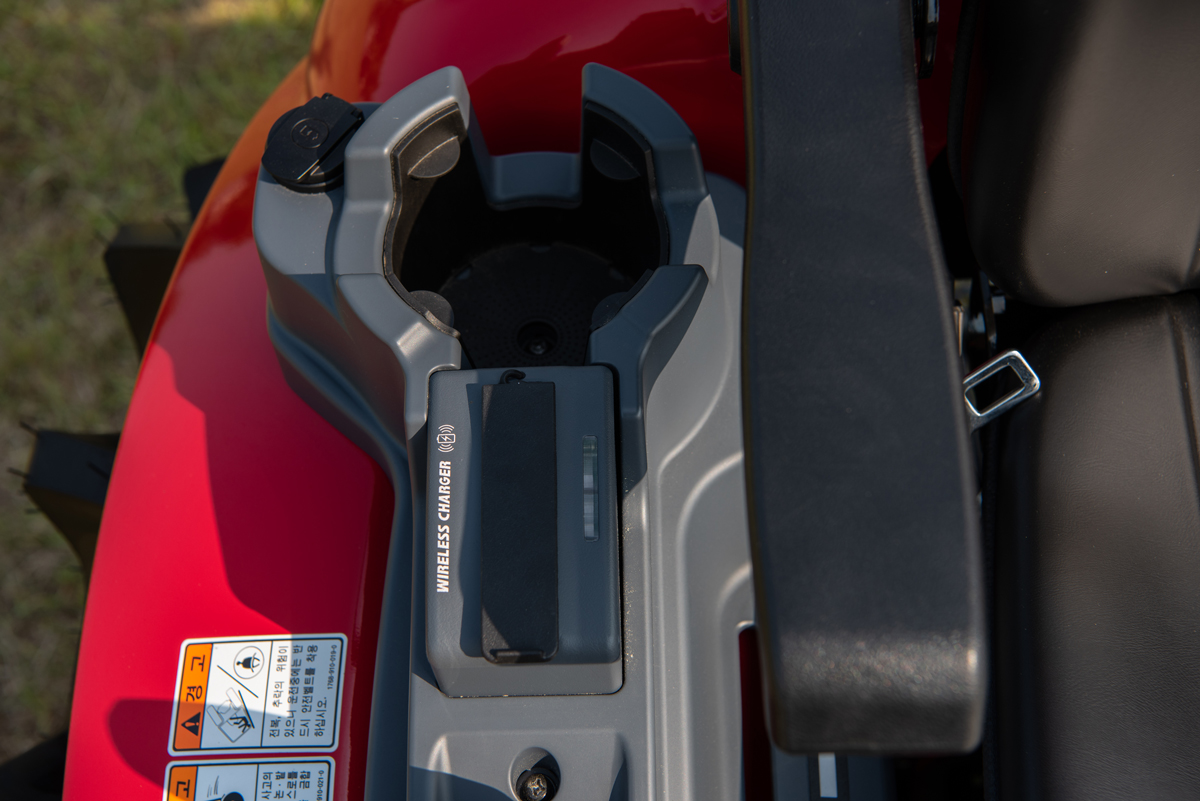

Fully equipped with modern amenities to maximize operator comfort, this tractor is complete with a large cup holder, wireless smartphone charging dock, multiple USB ports to charge personal devices and a Bluetooth speaker. These features are designed to promote productivity, keeping drivers hydrated, connected, and alert during every job.

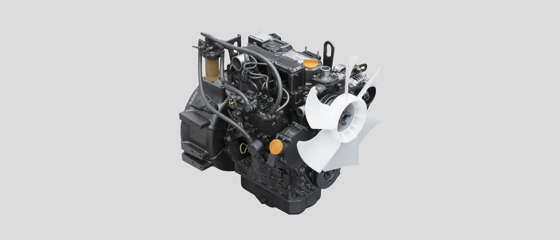

High torque, water-cooled Yanmar diesel engine

The Yanmar engine offers more torque with fewer revs compared to competitors in its class. Since it is water-cooled, the engine warms up faster and stabilizes temperature more effectively while the tractor is running. The engine is Stage V certified as it matches environmental and noise emission standards.

High-capacity fuel tank for time-intensive work

The high-capacity fuel tank allows the tractor to operate for longer periods without stopping to refuel. Paired with a fuel-efficient engine, this enables uninterrupted and efficient operations during the busiest seasons.

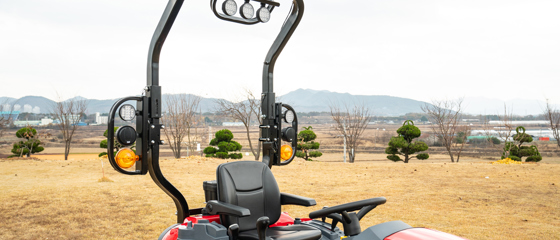

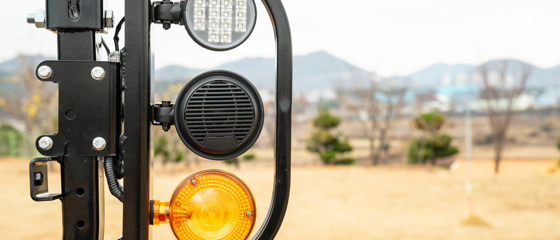

Customizable rear accessories for every need

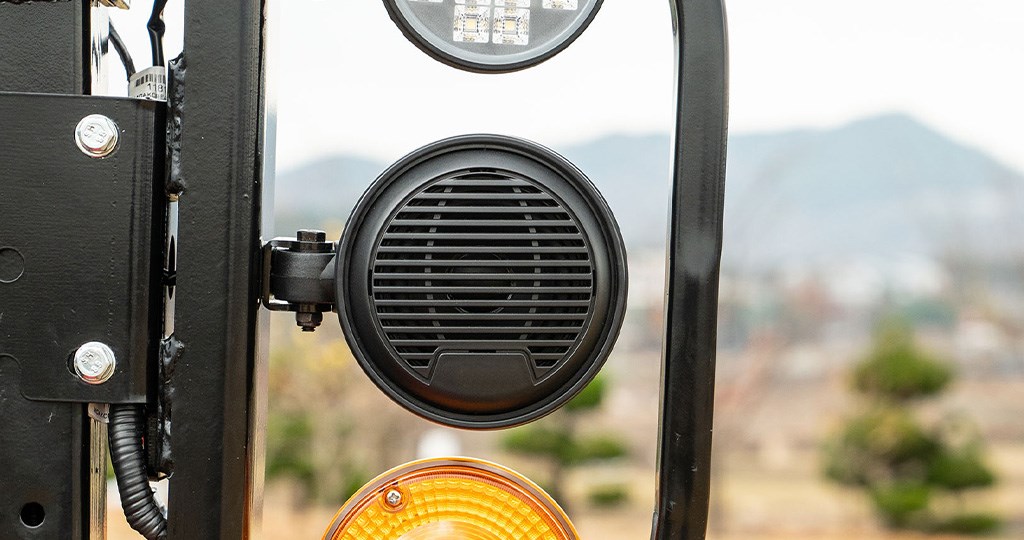

Attached to the right and left verticals on the foldable ROPS structure, this tractor features a modular system with three slots for lights, work lamps, and speakers. Based on operator preference and working conditions, more speakers and lamps can be attached. This brings operators comfort and security in daylight or at night.

Upgraded detailing to reduce operator effort

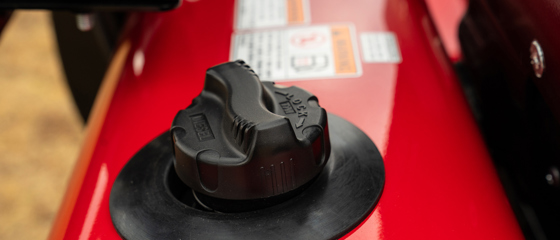

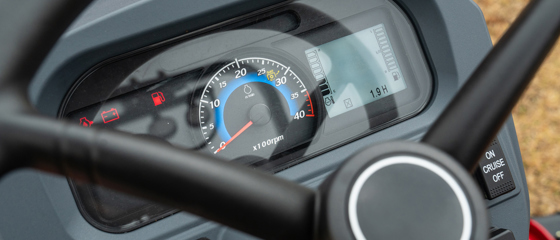

Packed with value-added features to enhance ease of operation, including a new fuel cap design to enhance grip and reduce manual effort and a brighter meta panel engineered to enhance operator awareness.

Comfortable and secure seating

In addition to a standard retractable seatbelt and cushioning, the seat of this tractor can hold over 400 lb (190 kg) and is equipped with a heavy duty mechanical suspension. While the seat provides comfort, the suspension acts as a buffer on uneven ground, keeping the operator secure in situations where there is a risk of impact on the lower back. The seat can also be manually adjusted for weight, enabling operators to have the most optimal seating position.

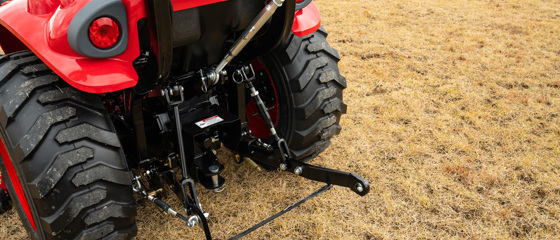

3-point hitch with powerful lift capacity

The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joint. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.

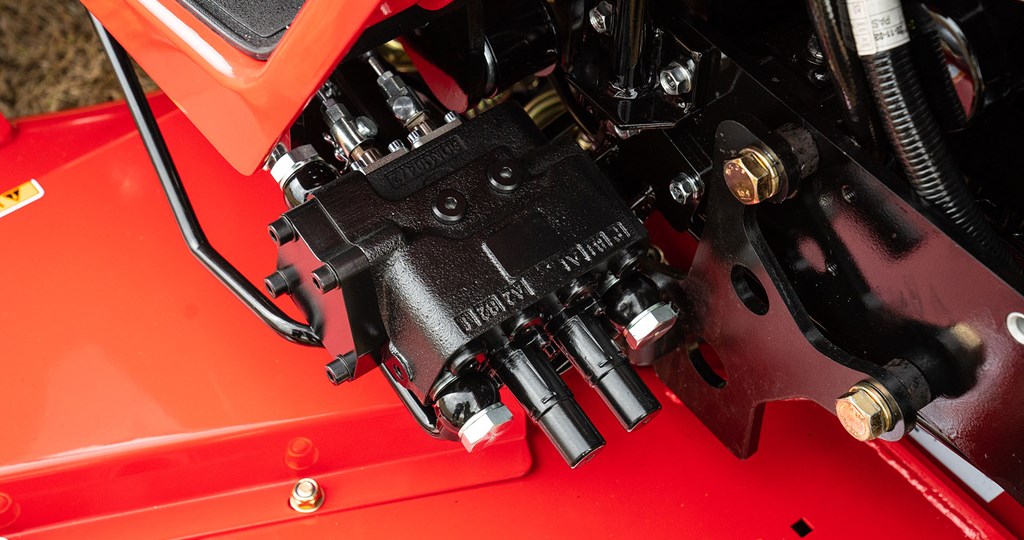

3rd function hydraulic valve to enhance attachment capabilities

Allowing for versatile attachment handling, this tractor comes ready with a 3rd function installation kit. It can maximize the use of a bucket attachment with 4-in-1 functionality, including lifting, tilting, dumping, and grappling.

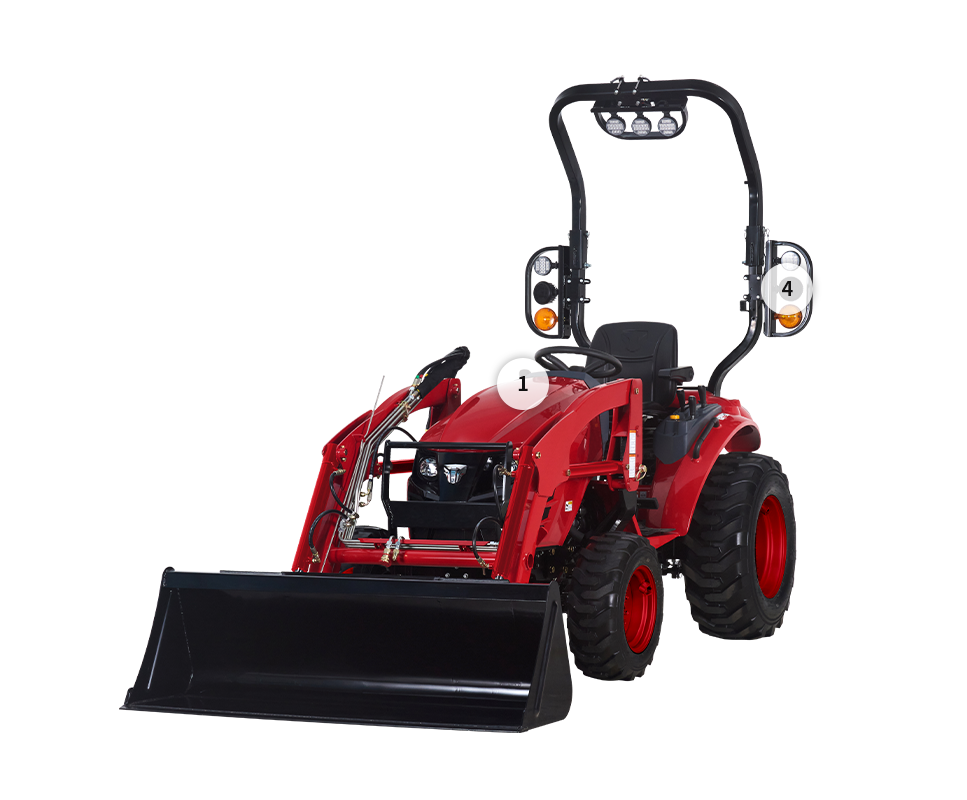

All the right features to get the job done

Complete a range of jobs with a TYM Series 1 tractor. Achieve results faster with a powerful high-torque engine, control attachments easily with a PTO switch, and stay energized with an ergonomically designed operator station.

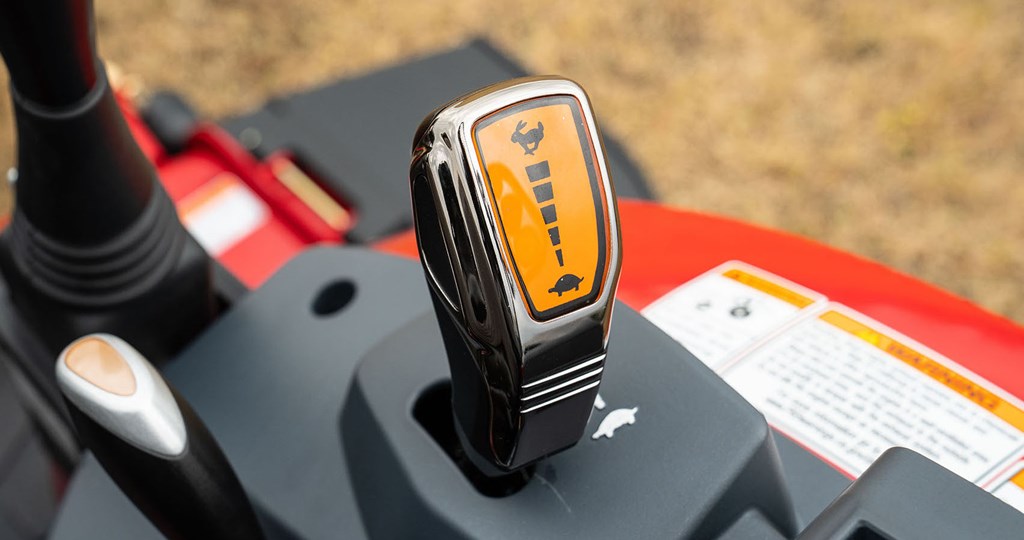

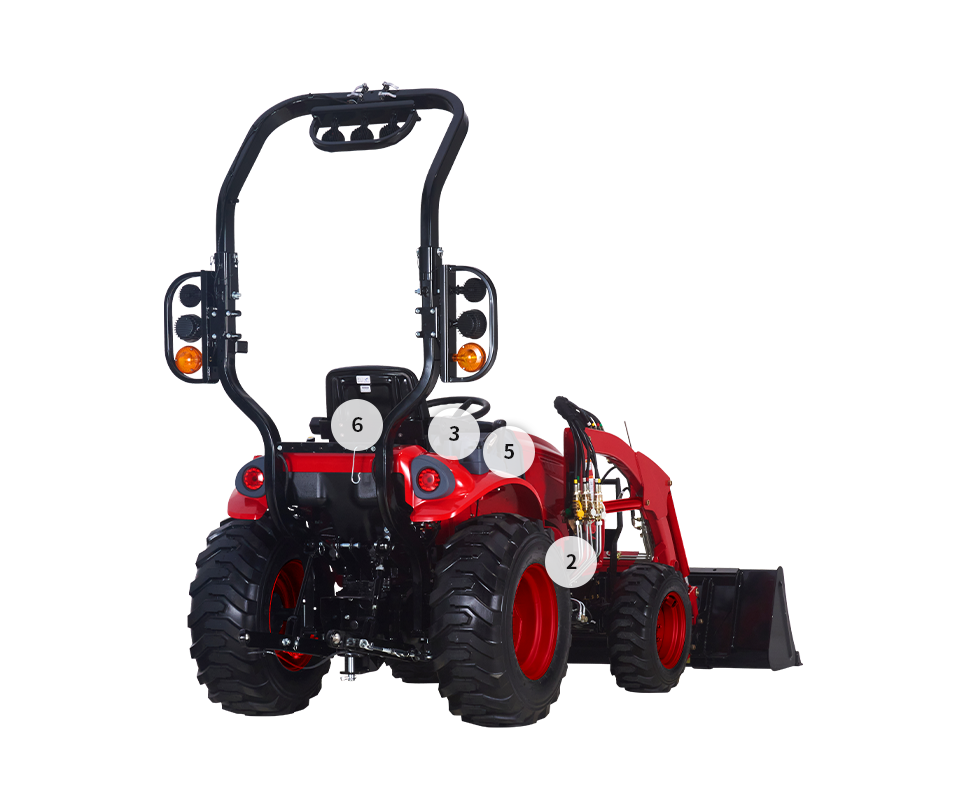

1. 2 range hydrostatic transmission (HST)

2. 3rd function hydraulic valve

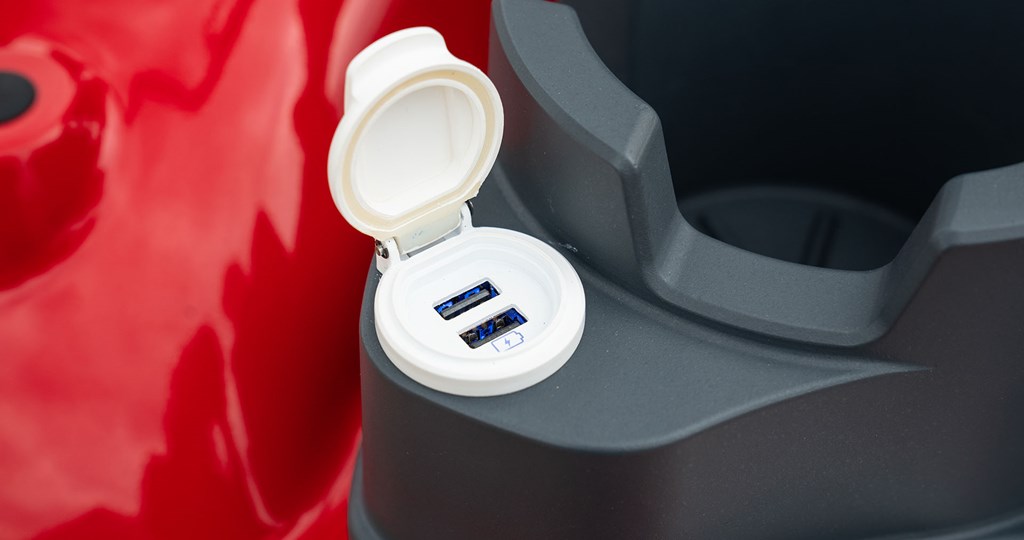

3. 2 USB ports

4. Waterproof Bluetooth speaker

5. Wireless smartphone charger

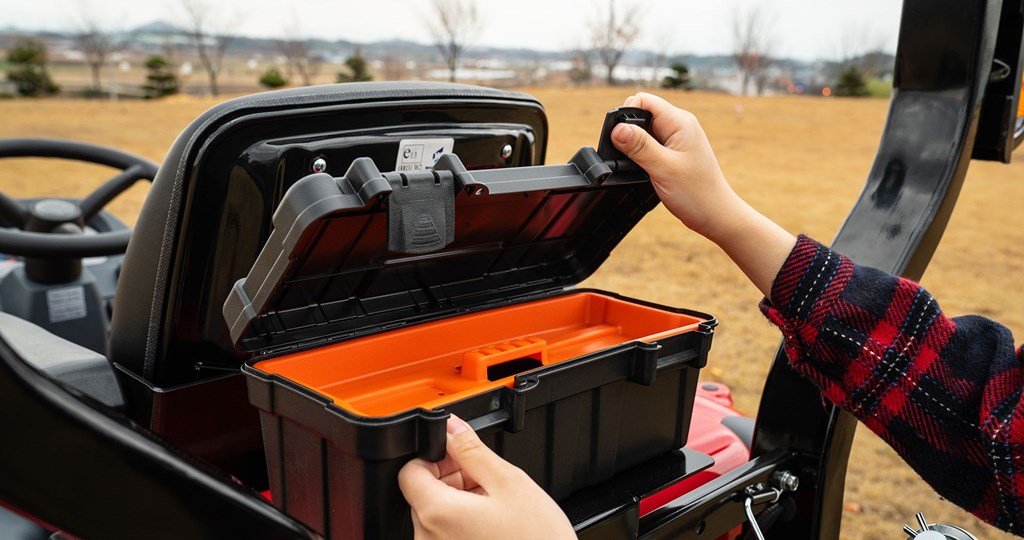

6. Wide loadspace with toolbox

Designed for applications in and around your property

The T25 tractor allow you to go beyond a riding mower, without compromising on ease of operation and maneuverability. Multi-functional capabilities and a compact frame come together for a definitive upgrade from traditional machinery and maintenance tools.

Use the T25 tractor to maintain a healthy lawn, build a home garden, take care of yard work with ease, or create space for a lively home farm. Linkage points for a front loader, mid-mount and rear hitch enable you to attach a variety of implements to complete tasks on your land.

Landscaping

With narrow dimensions, a small turning radius, intuitive controls, and a lightweight design, a TYM sub-compact tractor is the ideal machine for every home. A dedicated mid-mount linkage allows easy attachment to a range of mowers, while front-end and rear linkages allow for additional functionality compared to riding mowers.

Arable Farming

With a TYM sub-compact tractor, you can leverage multi-functional capabilities and ease of maneuverability to build and maintain your home garden. From tilling the land and spreading fertilizer to aerating and seeding your soil, this tractor is easy to operate and swap implements, enabling you to grow all types of plant life, simply and effectively.

Cleaning

Complete chores around your property quickly and affordably. From brushing dust and dirt from your driveway to lifting and dumping fallen leaves and other waste, a TYM sub-compact offers the right mix of size and power for maneuverability and efficient engine performance.

Livestock & Poultry

Comfortable to sit in and easy to operate, a TYM sub-compact tractor has the light design and small turning radius to assist with maintaining animal life at home. Level the yard, trim grass, spread feed, move hay bales, clear waste and much more.

STORIES FROM THE FIELD

“I was surprised by how user-friendly it was and I also underestimated the power of its lift capacity.”

‘Little Red,' my compact TYM T25 tractor, can handle anything on my 19.6-acre property, from bush hogging to logging and even grinding stumps. It effortlessly navigates tight spots, saving me time and hassle. With its impressive power, I was able to lift 1400 lbs of logs without breaking a sweat! That's the kind of reliability and durability you can expect from TYM.

“We have over 30 acres of land, so it requires a lot of work. Thankfully, we now have TYM to assist us with that.”

Tim, my TYM T25 tractor, is great at handling Gaylord, Michigan’s harsh winters. I’ve also equipped it with pallet forks and a box blade for land clearing, hobby farming, gardening, and trail building. If I were to rate it, I’d give it a 9/10—it’s powerful, versatile, and very reliable!

“The performance of the K110E is really amazing, and the price is excellent too. For someone like me who has to handle both barn work and farming, this TYM tractor is the most reliable and sturdy friend.”

While cultivating rice and raising more than 40 cattle, the K110E has shown me performance beyond my expectations. It's the perfect tractor for me, needing a higher horsepower machine. Not only is the performance outstanding, but the price is also very good. Until now, I have been using imported tractors, but now I want to recommend TYM tractors to anyone looking to purchase one. My most reliable friend that helps me with the tough work of the barn and farming is this TYM tractor.

“When it comes to power, 'Mr. T' does not mess around. It has made farm work not just efficient but enjoyable too! I love working on my land day and night—from dusk till dawn.”

'Mr. T,' our TYM T654 tractor, is powerful! I can cut and bale hay all day and all night, even until 2 a.m. It has become a trusty partner here at Britten Farms, helping us achieve so much and making every step of the journey more rewarding and enjoyable.

“My favorite feature about the tractor is the front-mount snow blower. It’s the first time I’ve ever had one of those, and it has made my life so much easier.”

Whether it's winter, summer, spring, or fall, Timmy was built to handle all seasons with ease! From clearing the snow to bush clearing, it's tough, reliable, and durable!

"I have purchased five tractors from TYM so far, and if I need to buy more, it will definitely be from TYM."

I have personally developed this farm since I was 30. I handle everything with automation using tractors purchased from TYM, only hiring help during busy seasons. Although it is tough, I am proud and fulfilled. Therefore, the machines and services are essential to me. The Buyeo TYM dealership, which responds whenever I need, is very trustworthy. This is why I have been a loyal TYM fan for two generations, starting with my father's time.

“It’s hard to explain how much that tractor has helped me in getting busy and outside and physically fit again.”

Since 'BIG RED' came into my life, courtesy of TYM, it's been a game-changer! This reliable tractor has rejuvenated my days, helping me restore my energy. Thanks to TYM, I'm not just driving a tractor - I've found renewed purpose and vitality.

“The lift capacity on both the front and rear really stood out to me."

The pandemic inspired our homesteading journey. Our TYM T654 tractor is not only reasonably priced but also powerful - it is an essential partner for turning our homesteading and sustainable living dreams into reality.

SEE TYM’S CUSTOMER STORIES

Technical Specification

Tractors Model	T25	T265	T355
Engine manufacturer	Yanmar 3TNV80F-NXD	TYM T1100N4	Yanmar 3TNV88C-K
Engine power	24.7 hp \| 18.4 kW	24 hp \| 18 kW	34.2 hp \| 25.5 kW
Rated engine speed	3000 rpm	2600 rpm	2800 rpm
Displacement	1267 cc \| 77.3 cu. in.	1175 cc \| 71.7 cu. in.	1642 cc \| 100.2 cu. in.
No. of speeds	Infinite 2-Range	Infinite 2-Range	SS: F12 x R12 HST: 3-range
Hitch lift capacity	703.6 kg \| 1551.2 lb	696 kg \| 1534 lb	1197 kg \| 2639 lb
PTO rear	540 rpm	540 rpm	540 rpm
Fuel tank	25 L \| 6.6 gal	25 L \| 6.6 gal	34 L \| 9.0 gal
Overall length with 3-point hitch	2829 mm \| 111.4 in. in.	2868 mm \| 112.9 in.	ROPS Mechanical: 3310 mm \| 130.3 in. HST: 3290 mm \| 129.5 in. Cab Mechanical: 3360 mm \| 132.3 in. HST: 3340 mm \| 131.5 in.
Overall width	1384 mm \| 54.5 in.	1430 mm \| 56.3 in.	1715 mm \| 67.5 in.
Wheelbase	1550 mm \| 61 in.	1480 mm \| 58.3 in.	ROPS Mechanical: 1640 mm \| 64.6 in. HST: 1680 mm \| 64.1 in. Cab Mechanical: 1700 mm \| 66.9 in. HST: 1680 mm \| 64.1 in.
Height to top of ROPS	2505 mm \| 98.6 in.	2514 mm \| 99.0 in.	2430 mm \| 95.7 in.
Min. ground clearance	267 mm \| 10.5 in.	240 mm \| 9.4 in.	270 mm \| 10.6 in.
Weight with ROPS	1100 kg \| 2425 lb	995 kg \| 2193.6 lb	1494 kg \| 3293.7 lb
Weight with cab	-	-	1650 kg \| 3637.6 lb
R1 Agricultural - Front	6-12 4PR	6.0-12 4PR	8.0-16 4PR
R1 Agricultural - Rear	9.5-20 6PR	9.52-20 6PR	12.4-24 6PR
Download	Technical Brochure	Technical Brochure	Technical Brochure
